can you guess these connectors?

Karlos28 · Apr 17, 2019

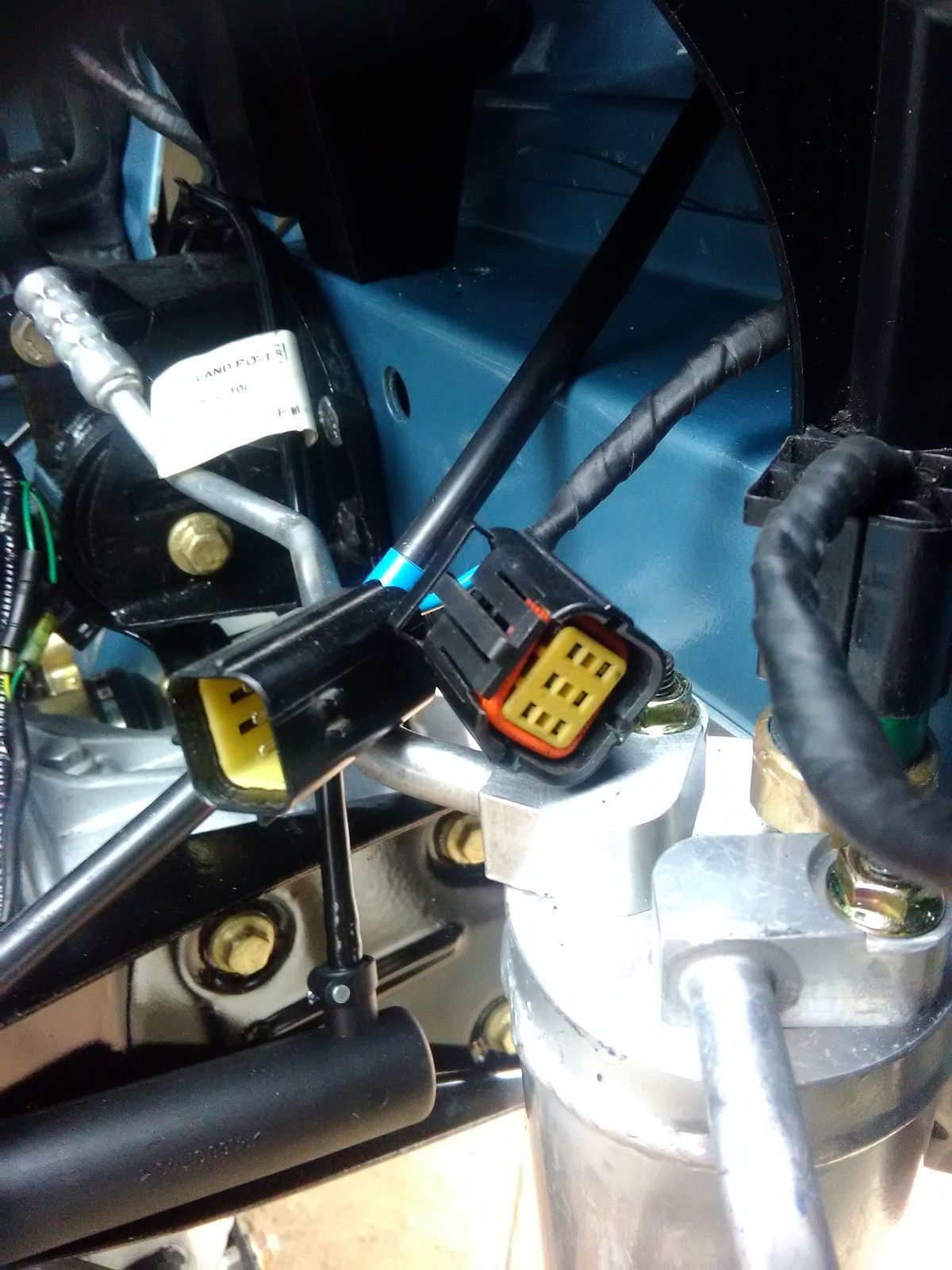

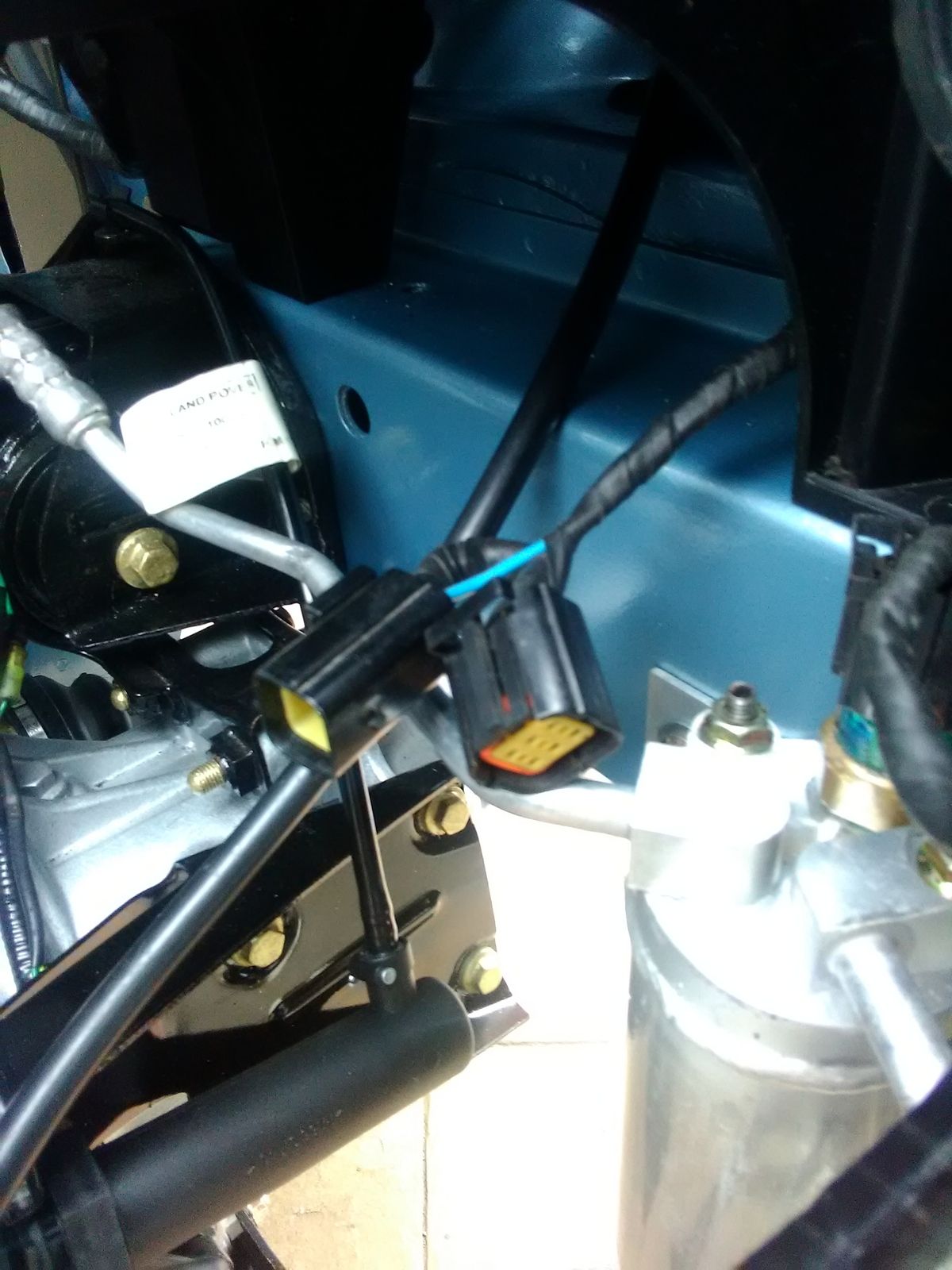

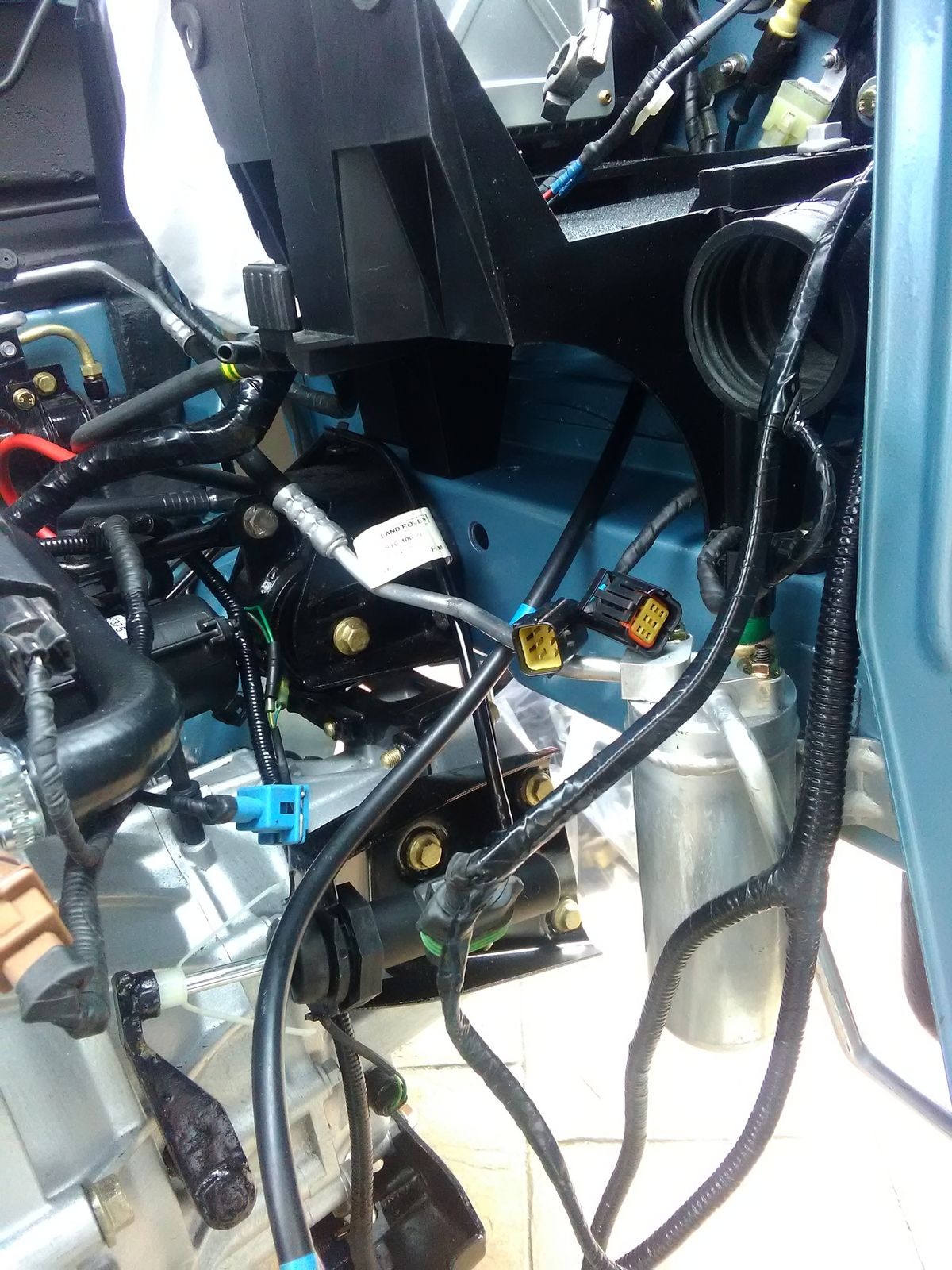

A friend of mine has done a full restoration on his 1.8 pre facelift freelander. All is well apart from these two mysterious connectors that have no home..

they are on the left hand side of the engine bay (passenger side) they are part of the loom that comes from under the battery tray, which contains wiring for the fogs or spot lights.

Any advice much appreciated!

Cheers
Karl

GrumpyGel · Apr 17, 2019

TBH my first thought, with that number of pins, was that they were ABS connections - but they're on the wrong side of the engine bay.

That's it a very clean engine bay - he's obviously put in a lot of elbow grease.

td4van · Apr 17, 2019

How many wires in each connector? Are they the headlight feed for the fogs/spots and piggy back the car wiring loom to the headlamp?

Colthebrummie · Apr 17, 2019

One is male the other female, plug em in together and see what happens.

Col

Karlos28 · Apr 17, 2019

Oh aye, itl be like new when he's finished!

I think he already has the headlights, fogs and spots plugged up so can't be them..

He did try to connect them together but the wrapping on the loom won't allow it . Can't imagine they would build a loom with a connection in it either .?

baptista · Apr 17, 2019

on the left hand side of the engine bay maybe fuel burn heater? but I think 1.8 didn't had it fitted

td4van · Apr 17, 2019

What colour wires in each of the cavities and how many?

kernowsvenski · Apr 17, 2019

GrumpyGel said:
That's it a very clean engine bay - he's obviously put in a lot of elbow grease.

I was thinking that. Wish mine looked as good!

Nodge68 · Apr 18, 2019

kernowsvenski said:
I was thinking that. Wish mine looked as good!

The owner has laid down some serious dough on that. Just look at the bolts he's used. Those are either new genuine (not cheap) bolts, or he's had them dipped in the factory yellow zinc.

Karlos28 · Apr 18, 2019

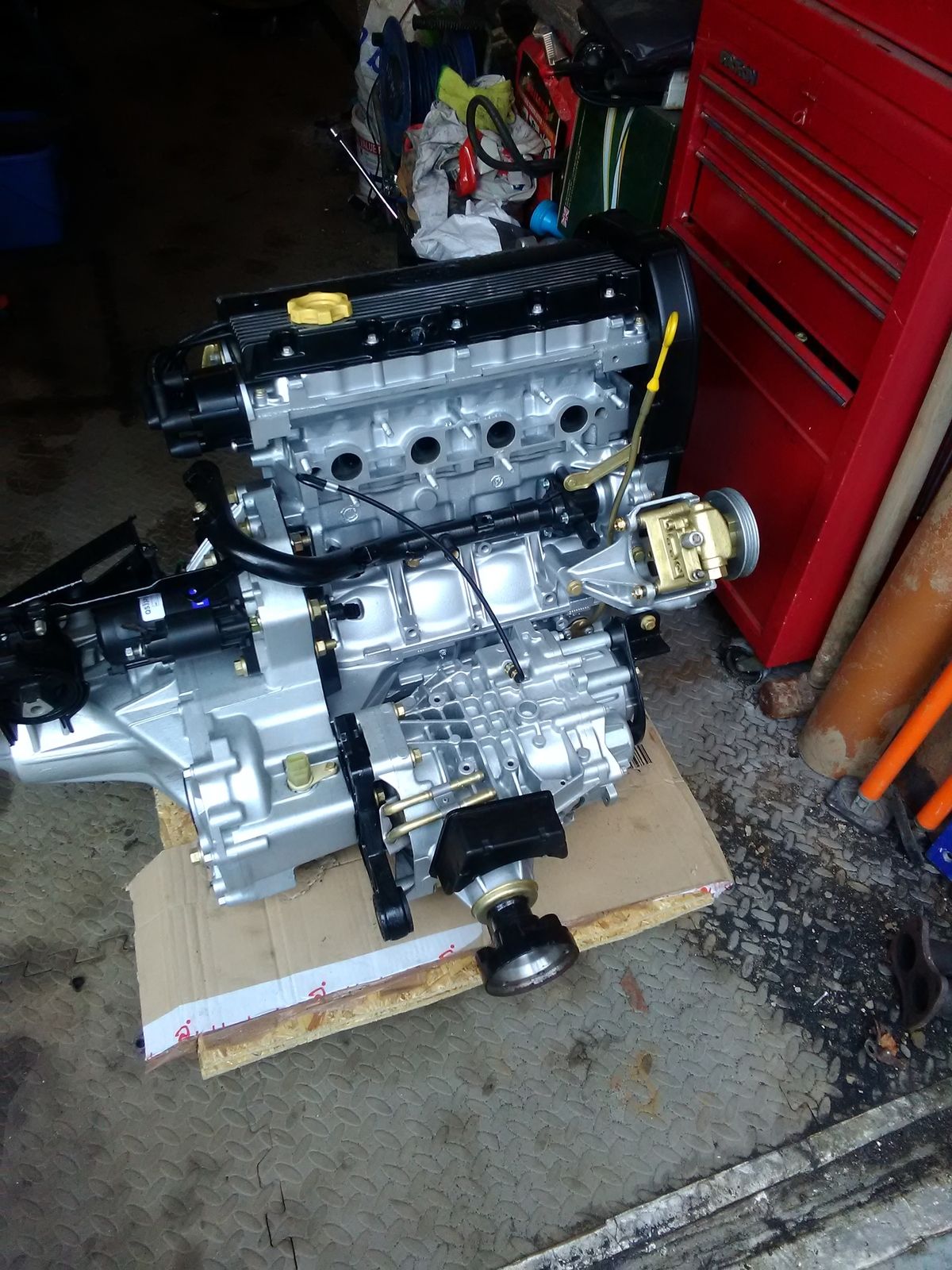

Yeah hwhe spent a fortune, it is literally brand new. Rebuilt engine, IRD, gearbox and diff, all bushes, all steering, clutch, hydraulics, everything. I have a few more pics il share when I get chance!

I will get him to check the wire colours.

NewDragon81 · Apr 18, 2019

Those are guzzonters.
As in "they guzzonter summat!"

kernowsvenski · Apr 18, 2019

Karlos28 said:
have a few more pics il share when I get chance!

Please do. I'd love to see more of it.

Karlos28 · Apr 21, 2019

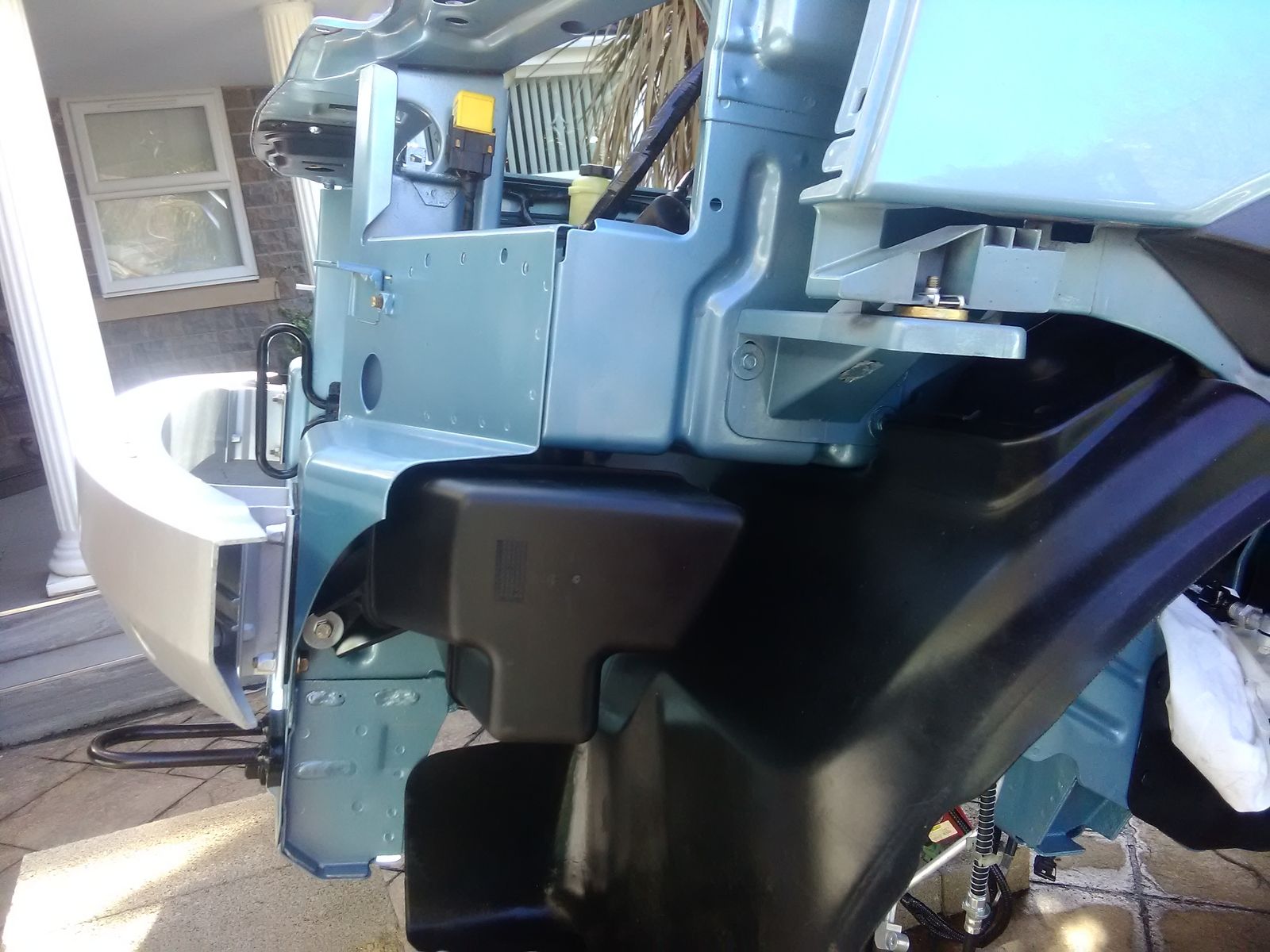

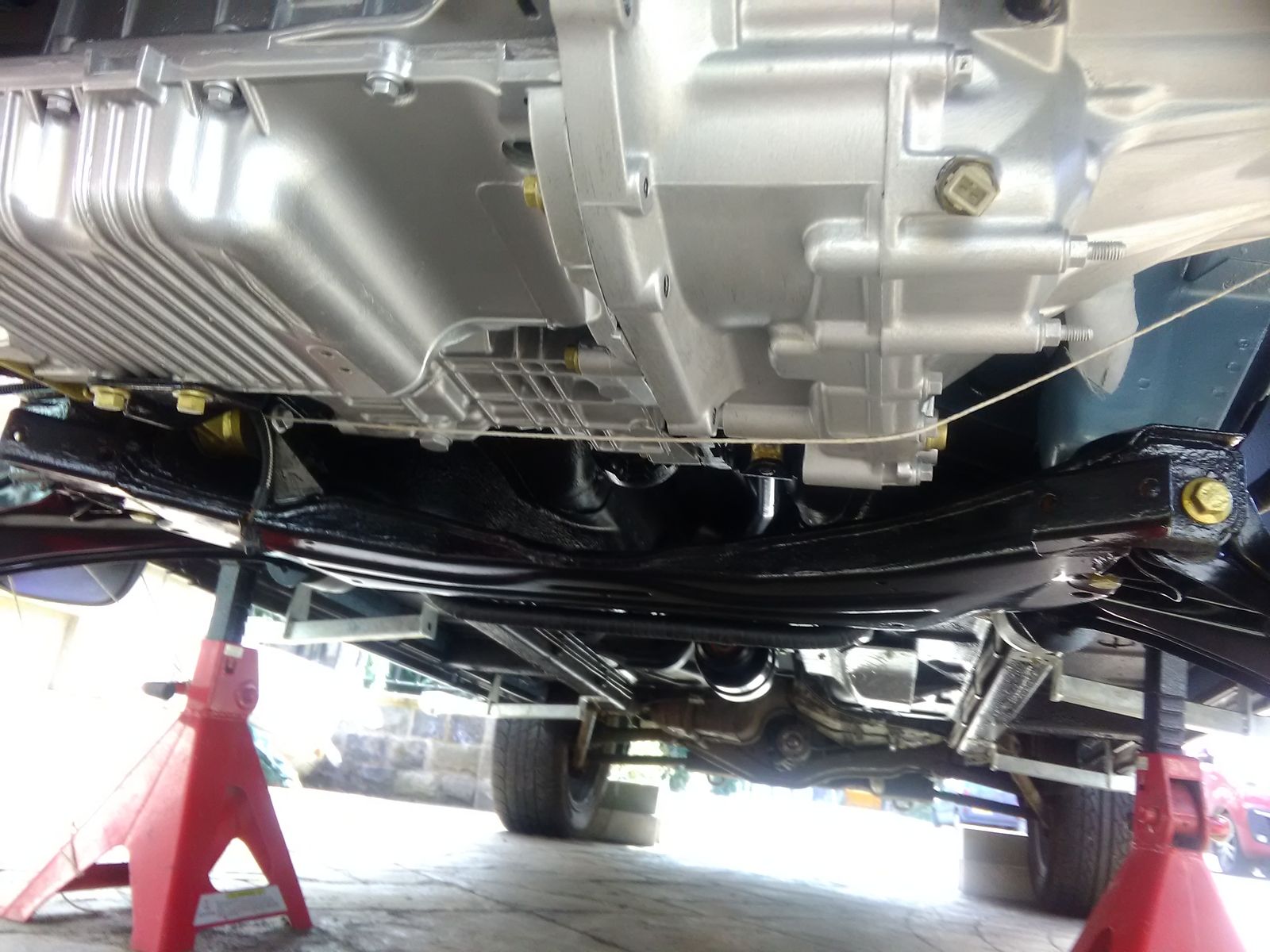

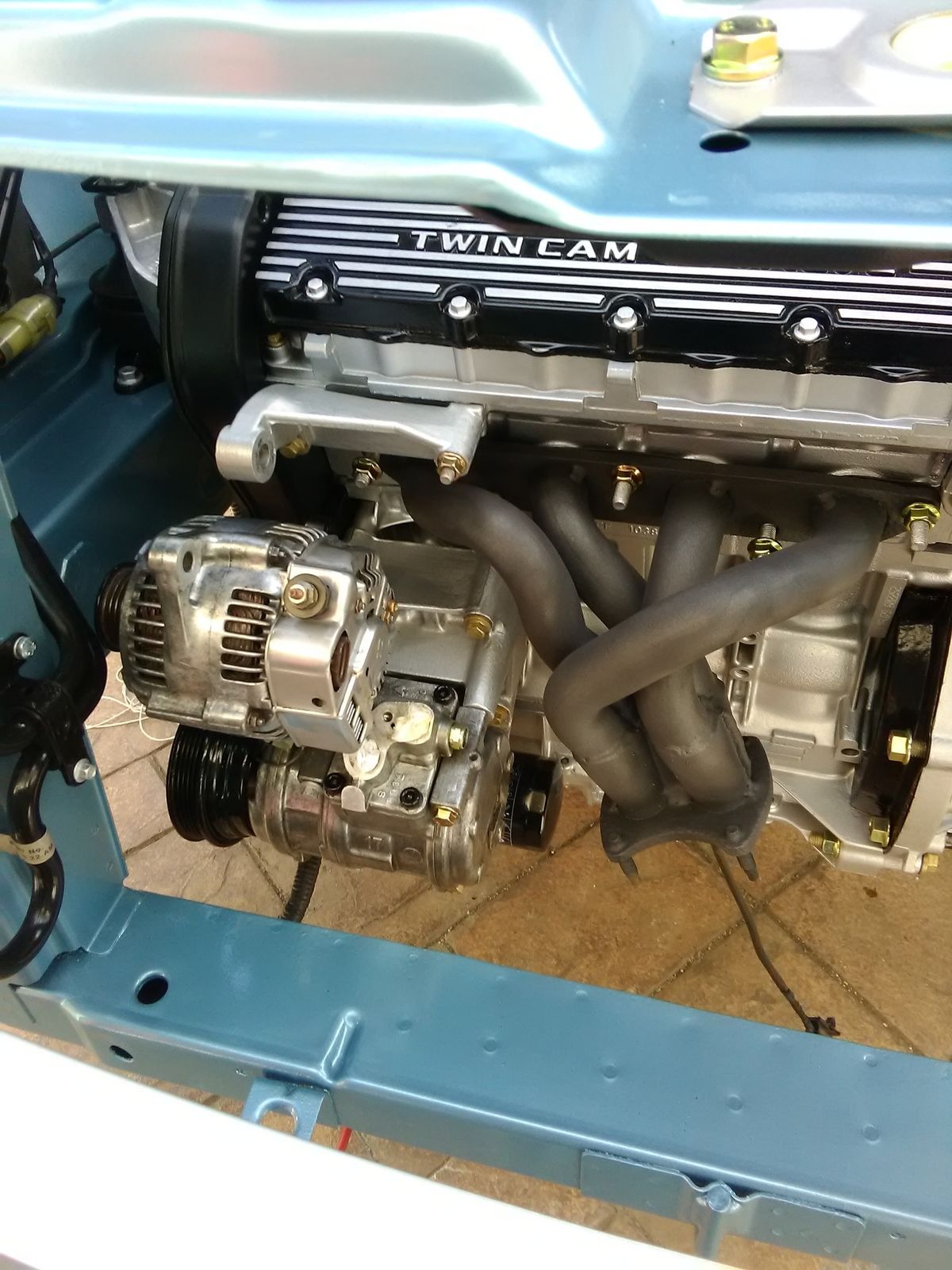

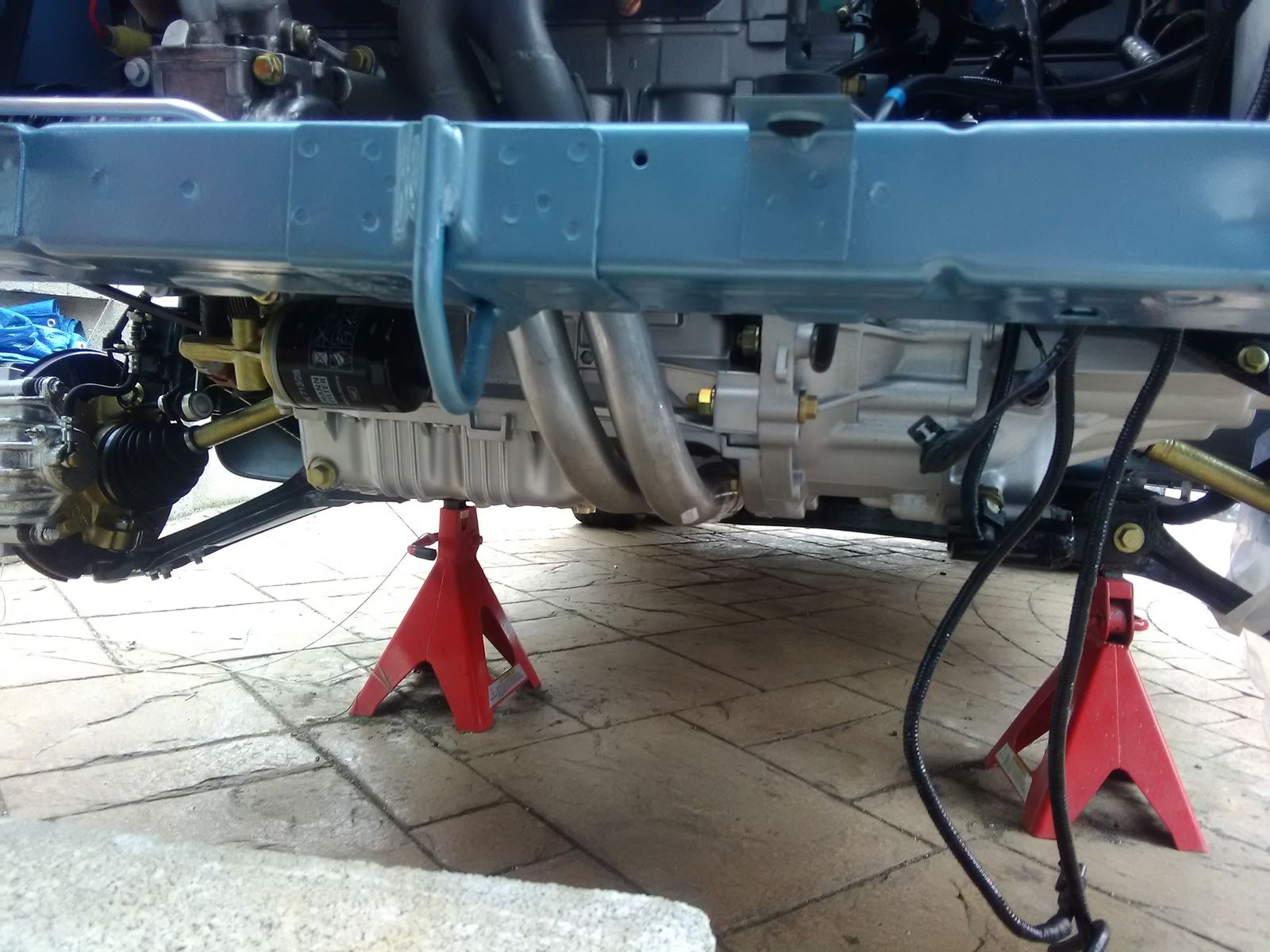

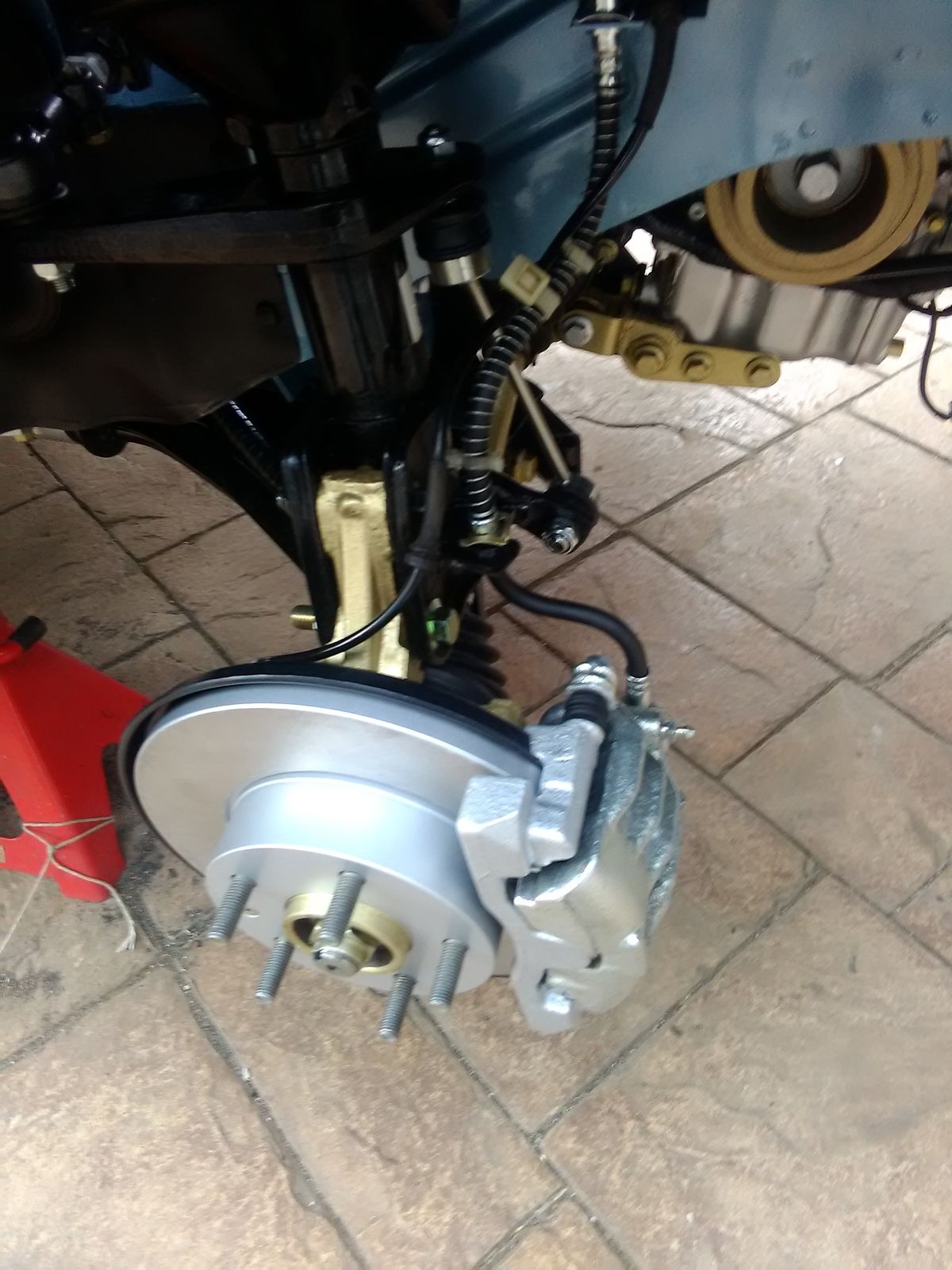

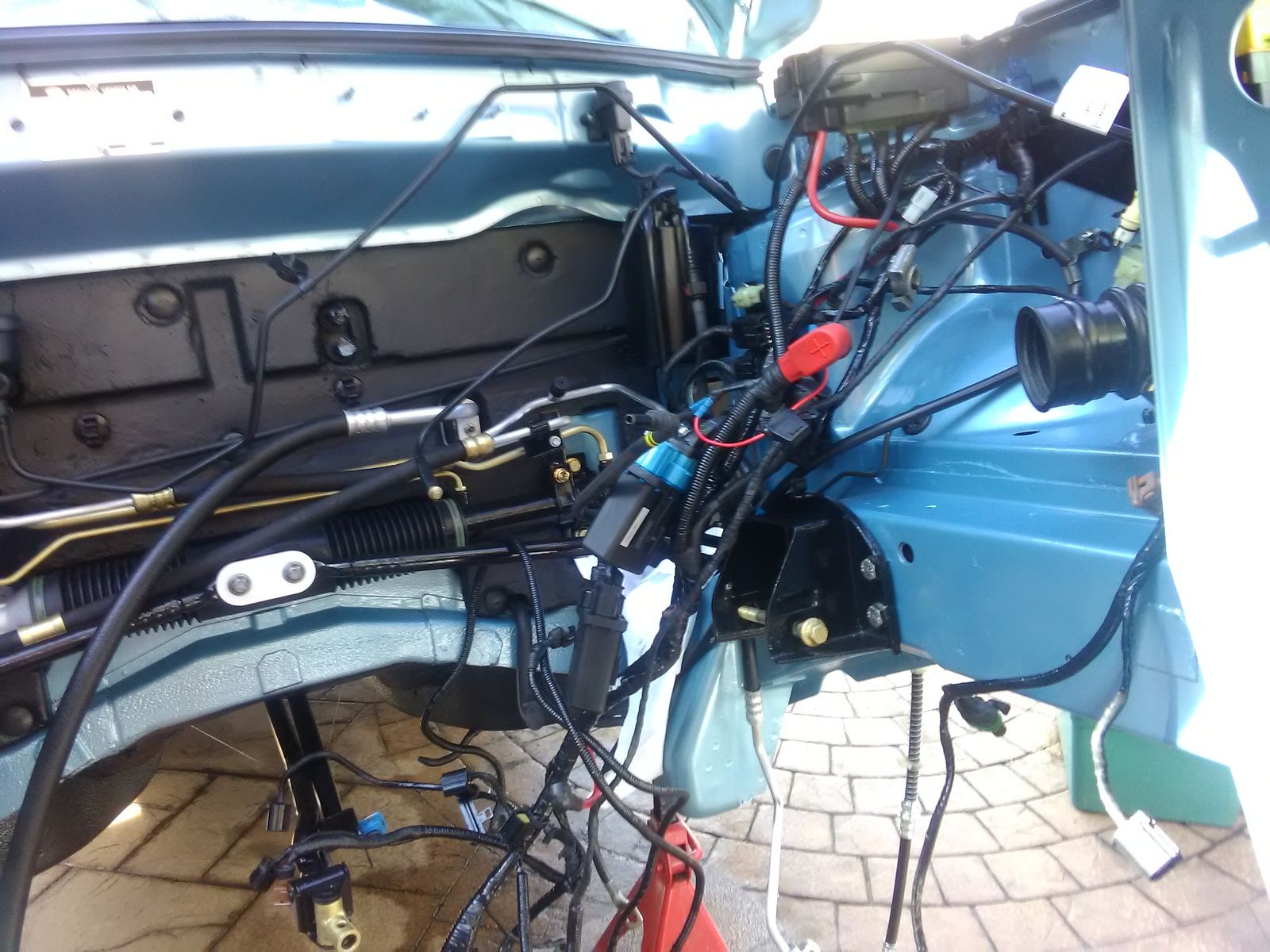

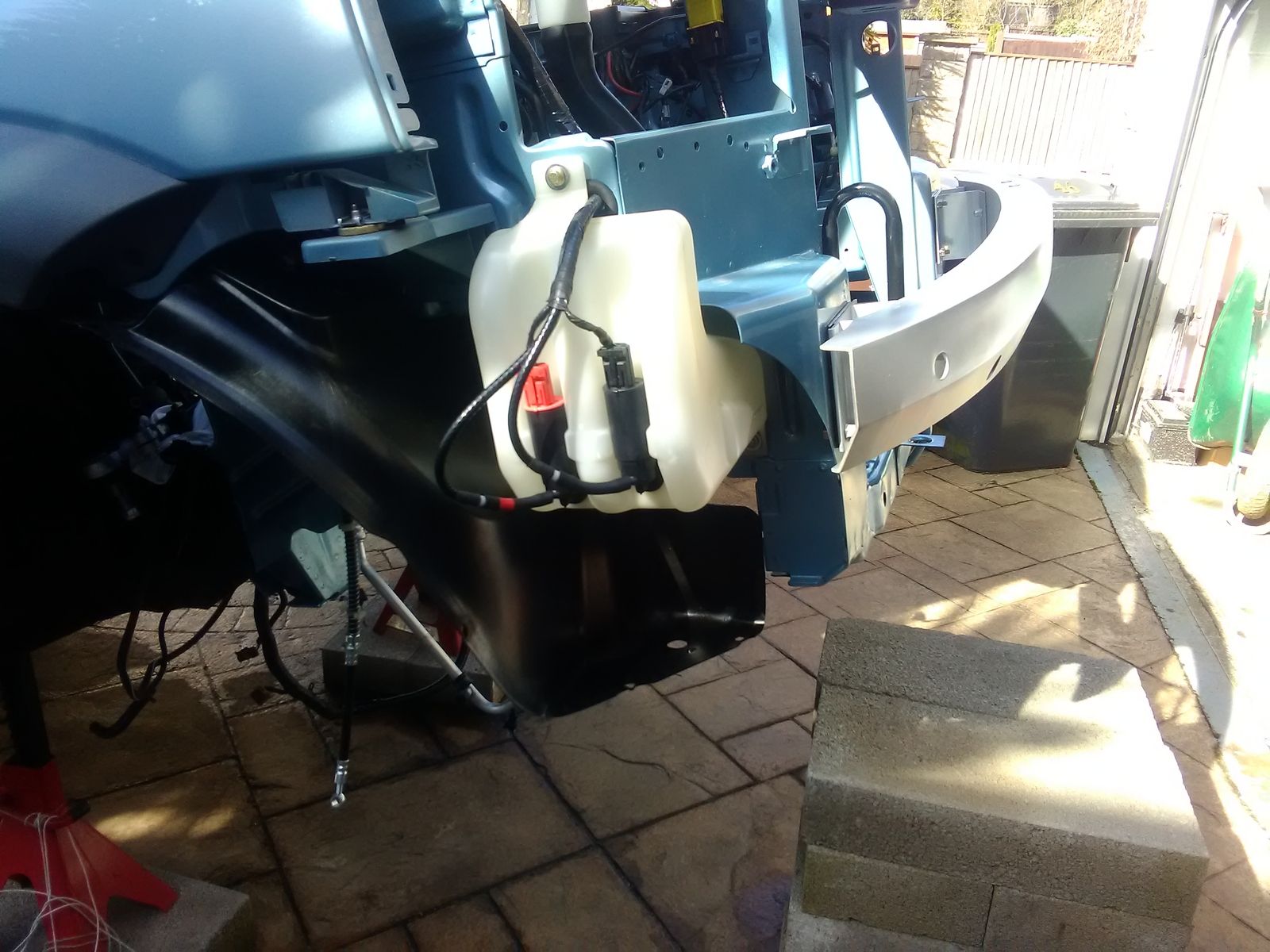

He sent some more over kernow. Still none the wiser on the plugs!

kernowsvenski · Apr 21, 2019

Epic! Straight off the production line!

kernowsvenski · Apr 21, 2019

P. S. Can't help on the plugs. Sorry.

Nodge68 · Apr 22, 2019

kernowsvenski said:
Epic! Straight off the production line!

That looks better than one off the line. The owner clearly doesn't have a wife, or she doesn't occupy much of his time.

I know from experience, that that sort of finish takes an enormous amount of time to achieve.
