Brake pipe setup help required

tomhop · Jul 17, 2017

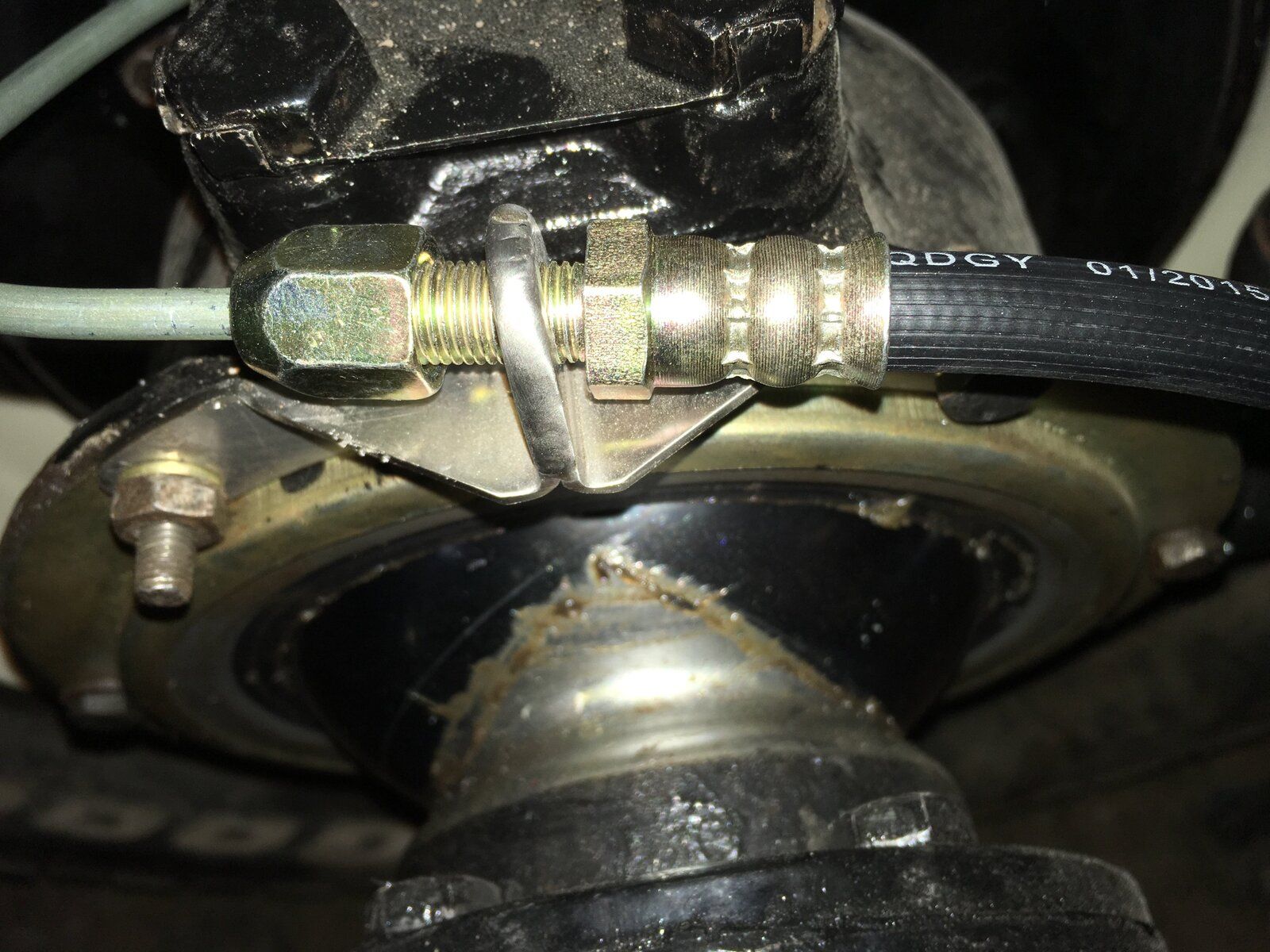

i have started to build up the brake pipe system on the rolling chassis and i dont think the way i have my flexi pipe joining the solid pipe on the front axle swivel housing is correct, could anyone shed some light on it?

it should not be this slack should i be using a nut to fix the flexi pipe to the mount then just tighten the solid pipe up on the thread?

jamesmartin · Jul 17, 2017

tomhop said:
i have started to build up the brake pipe system on the rolling chassis and i dont think the way i have my flexi pipe joining the solid pipe on the front axle swivel housing is correct, could anyone shed some light on it?

it should not be this slack should i be using a nut to fix the flexi pipe to the mount then just tighten the solid pipe up on the thread?

View attachment 127609

you should be using a nut,there are 2 choices up to 1980 (nt606041l)and after (fam3658l)

tomhop · Jul 17, 2017

thanks James, i wonder why they dont include that with the pipe, oh well will have them here in a couple of days it isn't going any where soon any way!

Flossie · Jul 17, 2017

Britpart flexis don't come with a nut which I found quite annoying one Sunday morn.
