Bonnet

border · Feb 16, 2020

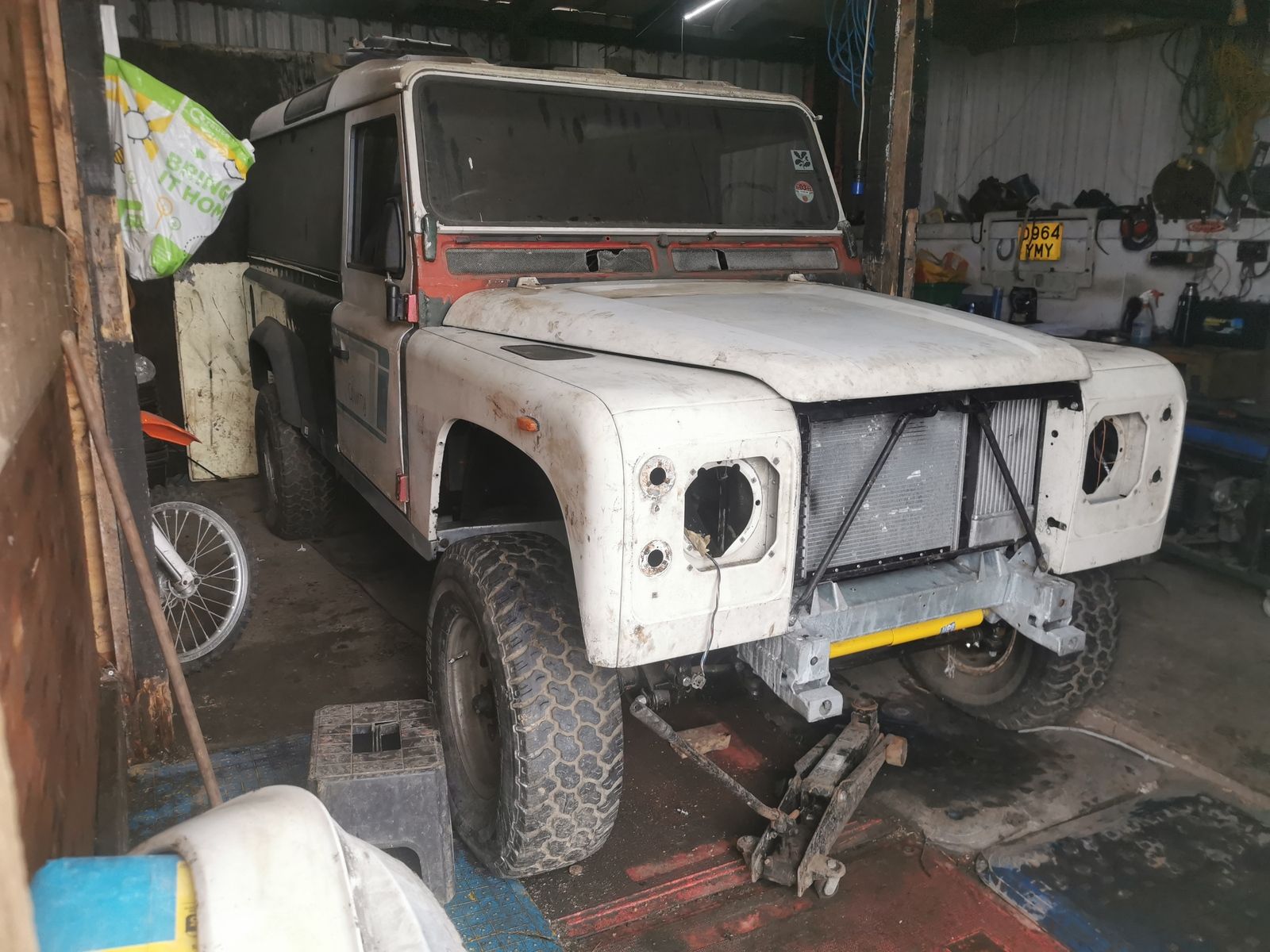

Been on all week with Lowering Rad for my Conversion. Decided to Trial fit bonnet and seems to be just about right, quite pleased with myself

Anyway the Bloody thing is locked shut solid, cant get it to open, I can move the hook thingy on the right but the thing wont budge. Any Ideas Please.

jamesmartin · Feb 16, 2020

probably alignment issues press hard down and pull catch towards drivers wing
failing that unbolt the catch

marjon · Feb 16, 2020

I am guessing you have not hooked up the bonnet cable?

look underneath and you can see where the cable fixes too, it’s on the left of the center bit?
Then move it to the left with your finger I can do it on mine with the grill on so you should be able too.

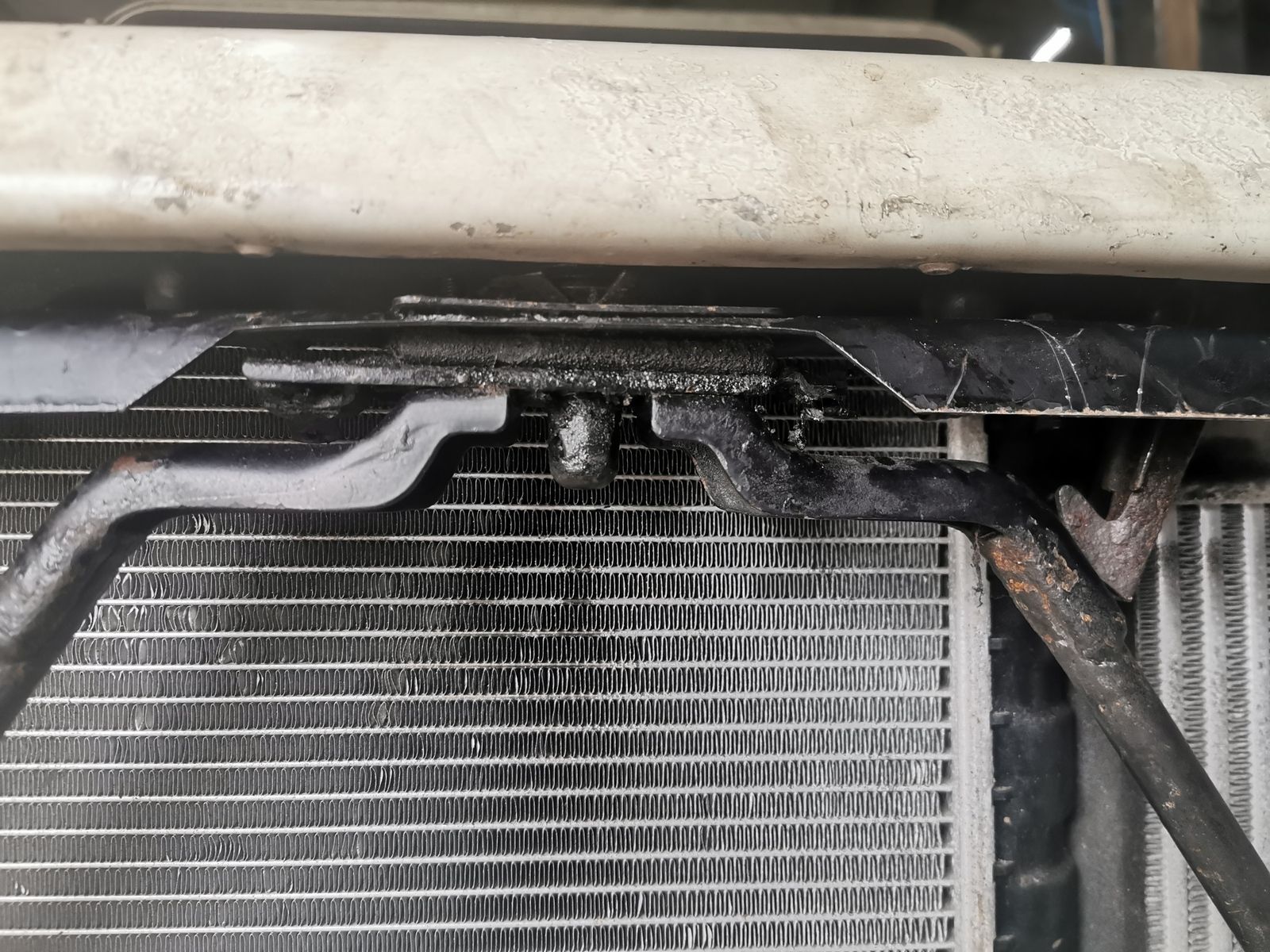

just took a couple of pics might help 1 from the top and 1 from below. Mine a 96 but think the same.

J

looking good btw.

border · Feb 16, 2020

Thanks. Can't get back to it till later to tonight but will have a go.

border · Feb 16, 2020

Thanks Both were right the Bloody thing was staring me in the face, just moved it with my finger and it opened. Must be aligned right coz it opens and closes perfect, just ned the cable connected. Took it back off for now as need more work in engine bay, Got engine harness ready to plug in. Not sure what to start next, all pipe work just about plumbed in, need heater box water tub also windscreen washer tub and air filter box in there somewhere doesn't look like there's enough room for that lot but I know it can be done. Just need to ask loads more questions

O33 · May 19, 2020

I'm new here and I'm not really sure how to open up a new thread, so I'm just gonna ask here.

I accidentally broke the cable for releasing the bonnet and now I need to know if there is a way to open the bonnet without it???

Please help. Thanks in advance.
Land Rover Defender 110, 1995y

tottot · May 19, 2020

Do as in marjon's post above, as you move the lever with one hand a whack on the bonnet with the other can help make it open. Remove grill for better access.

O33 · May 20, 2020

Thank you so much, it was quite difficult but the bonnet has opened.
Now I just need to fix the bonnet cable
