Bankz's 110 Double Cab

Discussion in 'Members Vehicles/Projects' started by bankz5152, Oct 22, 2016.

< Previous Thread | Next Thread >
  1. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,644
    Likes Received:
    2,534
    Location:
    South London/North Kent
    110 is back! And stronger than ever :D

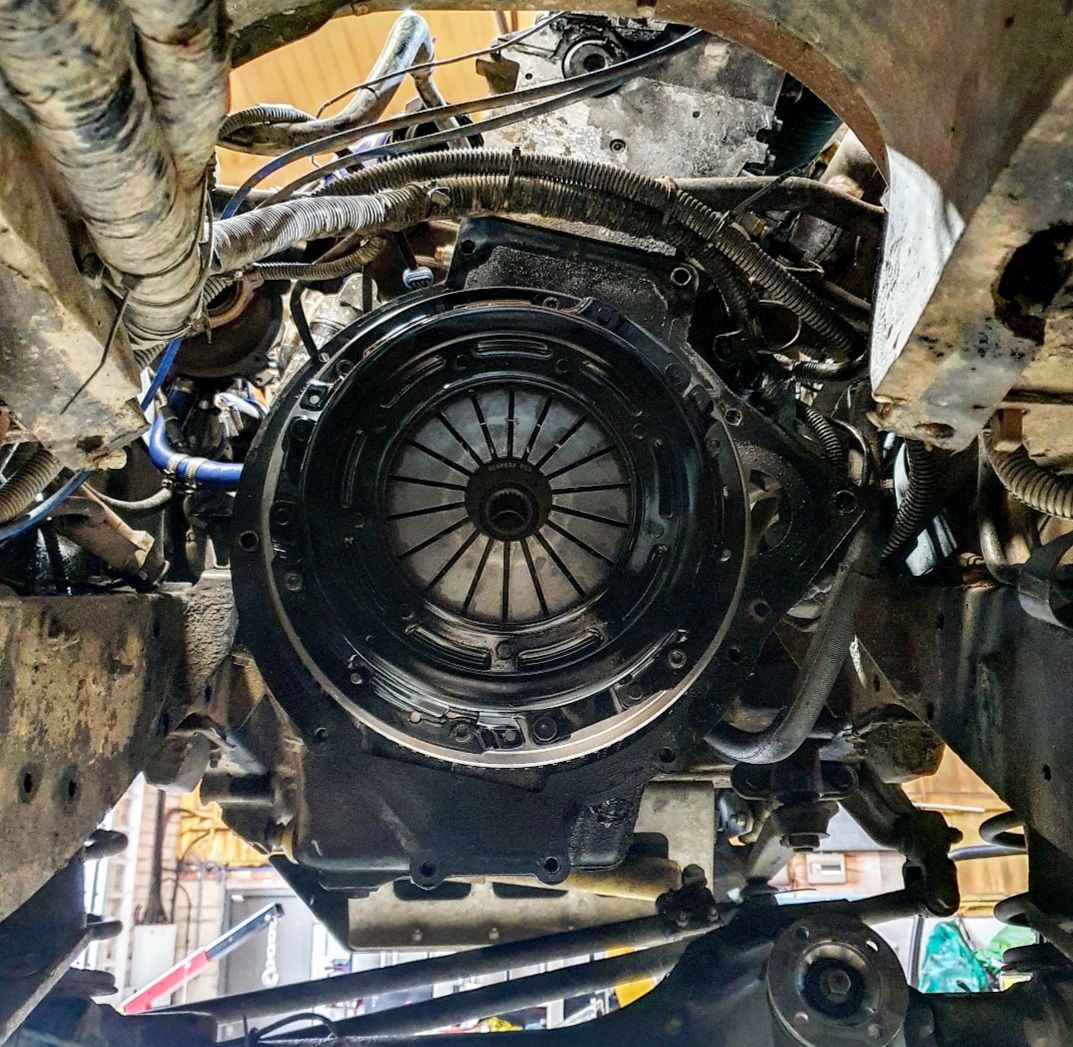

    New LOF VNT Extreme Spec clutch + LOF SMF

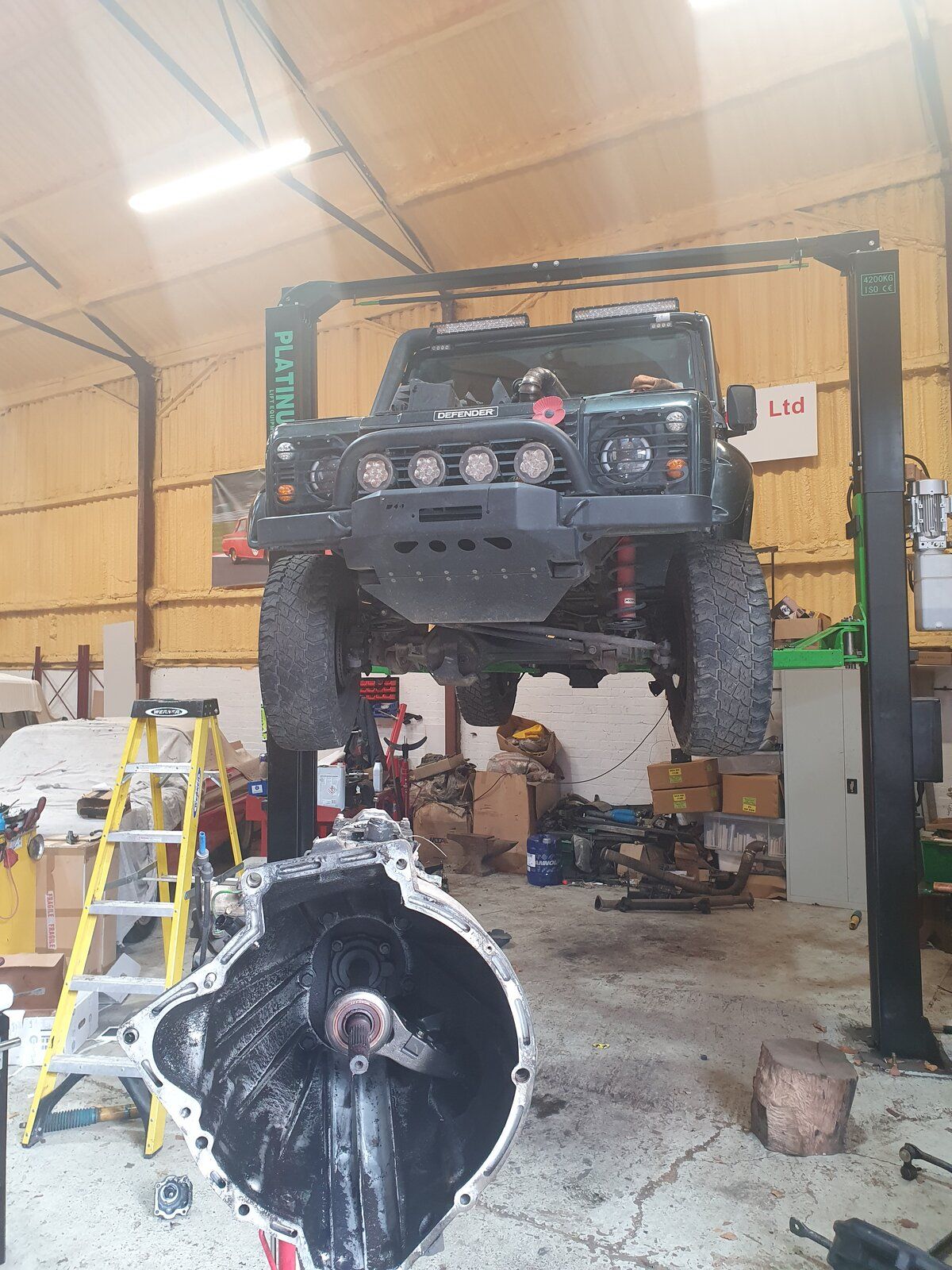

    New Ashcroft HD gearbox mated to the bellhousing

    All quite inolved! Didnt realise quite how much work went it a swap like this. First time ive helped out/done it myself.

    Now 500miles of easy driving, let everything bed in just in time for the Dyno friday :D

    KISSMYAURA and Knappster like this.
  2. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,644
    Likes Received:
    2,534
    Location:
    South London/North Kent
    170 miles down driving like a 90 year old... rather dull but fairly relaxing :)

    330m left before the Dyno Friday! :D


    Definitely needs more soundproofing though! Im thinking tuck a load behind the airbox on the bulkhead and deaden the tranny tunnel further.

  3. Shropshire classic

    Shropshire classic Member

    Joined:
    Sep 2, 2017
    Posts:
    60
    Likes Received:
    13
    Location:
    Shropshire
    Must be doing wonders for the economy!

  4. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,644
    Likes Received:
    2,534
    Location:
    South London/North Kent
    500miles done in a week :)

    Averaged 290m from a tank (full to the yellow bit) usually 220- 240 :eek:

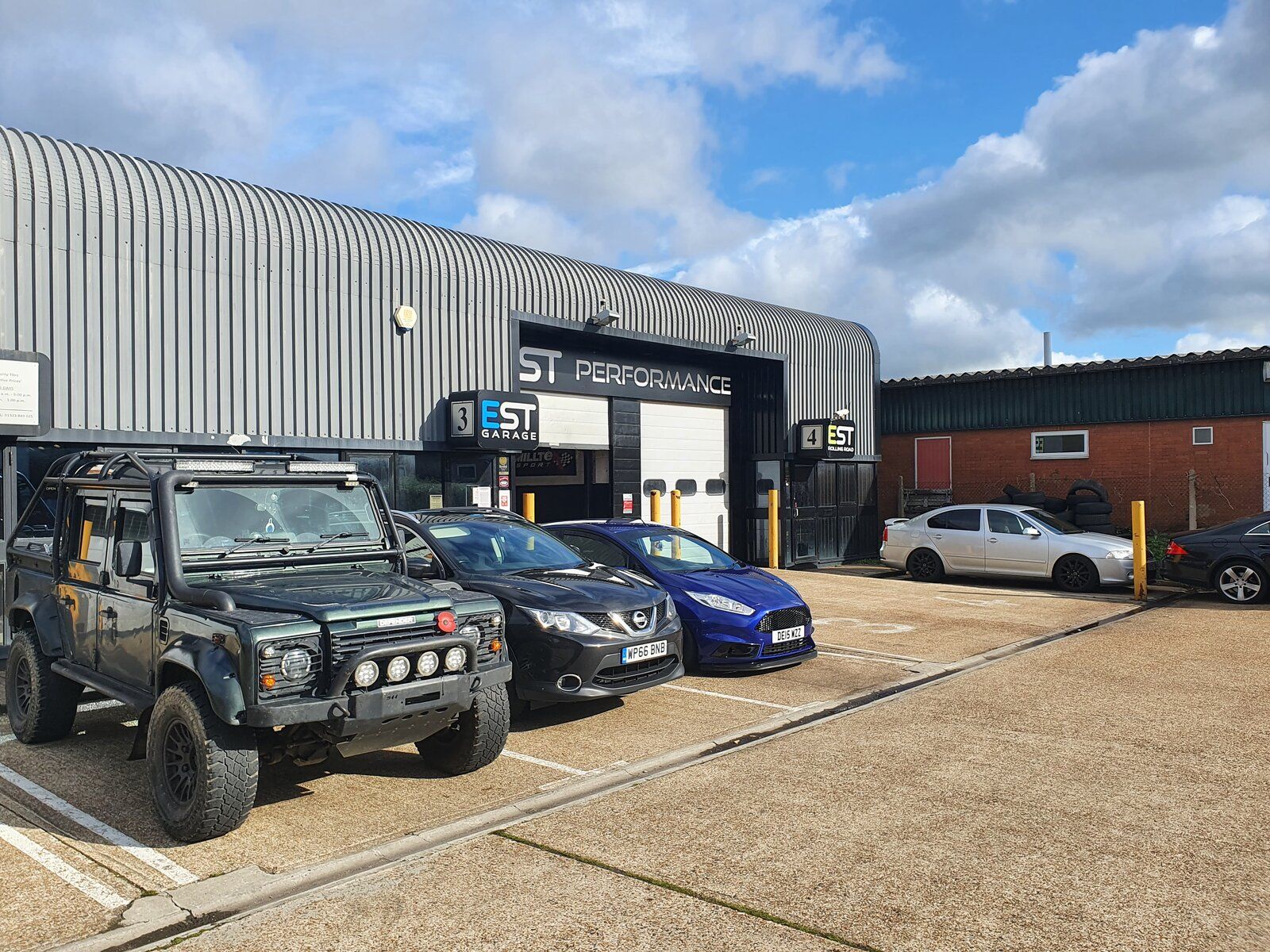

    Annnnd Dyno Day!


    Knappster and neilly like this.
  5. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    19,292
    Likes Received:
    9,595
    Location:
    Oxfordshireness
    OOoohhh,,, cannot wait to see the pretty graphs.

    Cheers

    mick 1986 and bankz5152 like this.
  6. Bennehboy

    Bennehboy Well-Known Member

    Joined:
    Aug 23, 2011
    Posts:
    2,133
    Likes Received:
    325
    Location:
    Huddersfield
    How many litres is the tank on that?

  7. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,644
    Likes Received:
    2,534
    Location:
    South London/North Kent
    No idea :rolleyes:

  8. Henry_b

    Henry_b Waiting..........

    Joined:
    Jan 29, 2018
    Posts:
    12,656
    Likes Received:
    11,919
    Location:
    Its Full of WIN.....
    16.5 Gallons according to google..

    So you're doing around 15'ish MPG when not driving like a granny.. :eek::D

  9. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,644
    Likes Received:
    2,534
    Location:
    South London/North Kent
    Ahh but I call a "tank" from full to the first line before the yellow. Thats my reserve fuel :p which is roughly 50-60miles to the fuel light comes on.

    So 290m for £70 of derv at 119.9 makes around 23mpg.

    So itd be more like 350 - 360 to a full tank.

    Henry_b likes this.
  10. Bennehboy

    Bennehboy Well-Known Member

    Joined:
    Aug 23, 2011
    Posts:
    2,133
    Likes Received:
    325
    Location:
    Huddersfield
    I get ~ 400 miles to 85 liters oops - I remember when it was more like 580.

  11. neilly

    neilly Well-Known Member

    Joined:
    Jan 10, 2011
    Posts:
    19,292
    Likes Received:
    9,595
    Location:
    Oxfordshireness
    Did it go bang? you going to share the results? Pretty please.

    Cheers

    mick 1986 likes this.
  12. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,644
    Likes Received:
    2,534
    Location:
    South London/North Kent

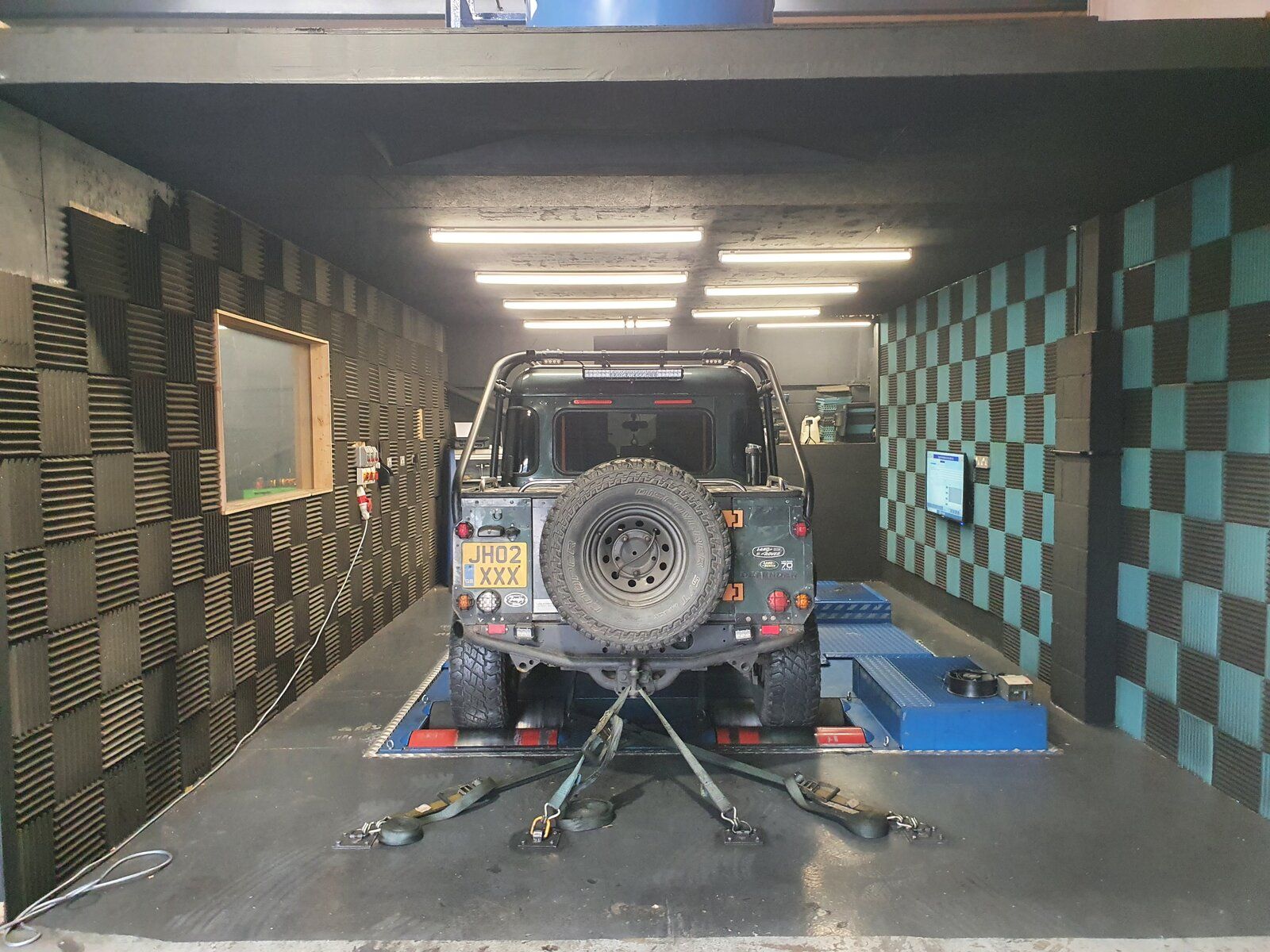

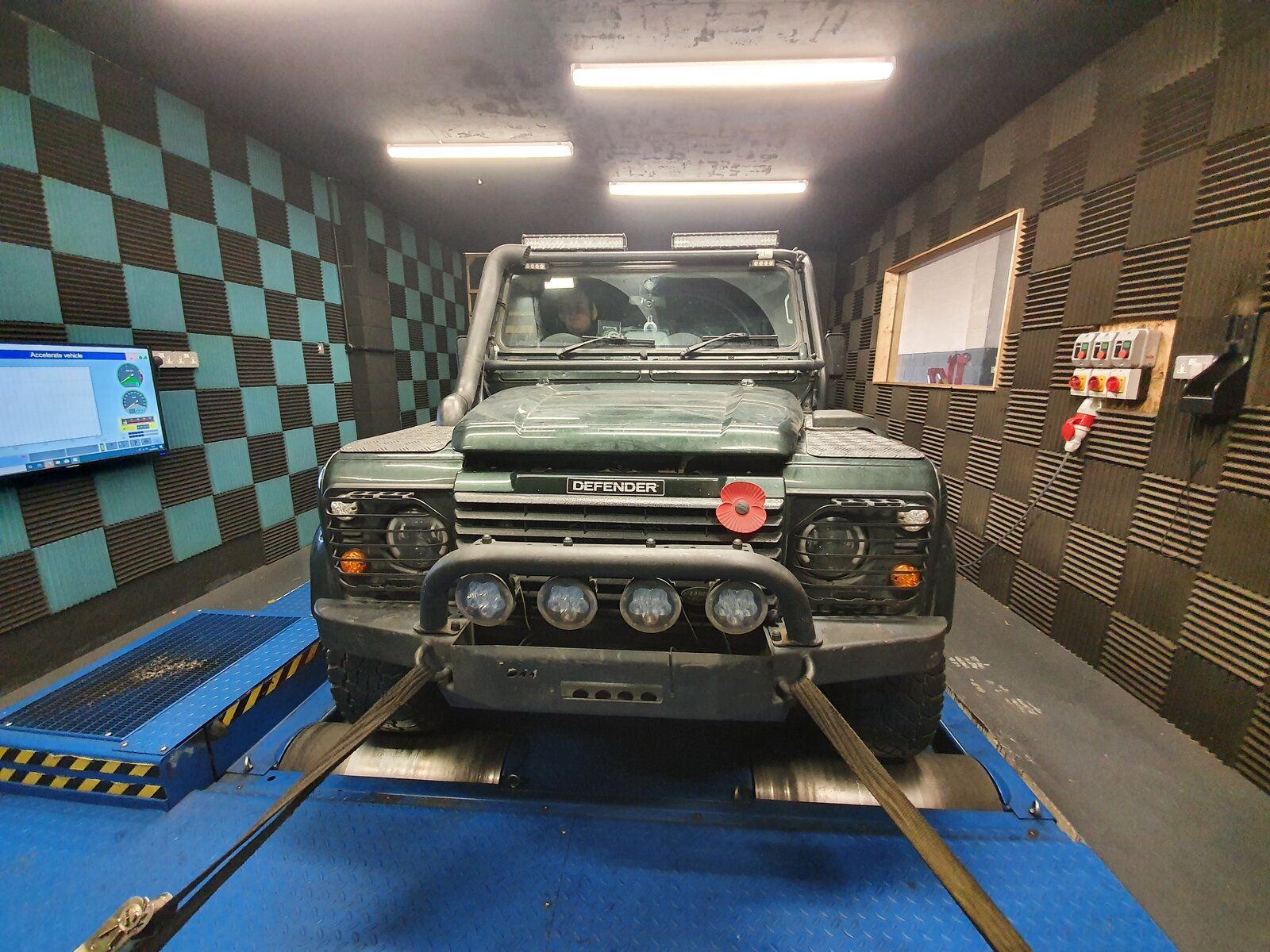

    All strapped in! Produced some very good numbers! I was very impressed!

    I will post tomorrow :D

    20201023_152728.jpg 20201023_153723.jpg

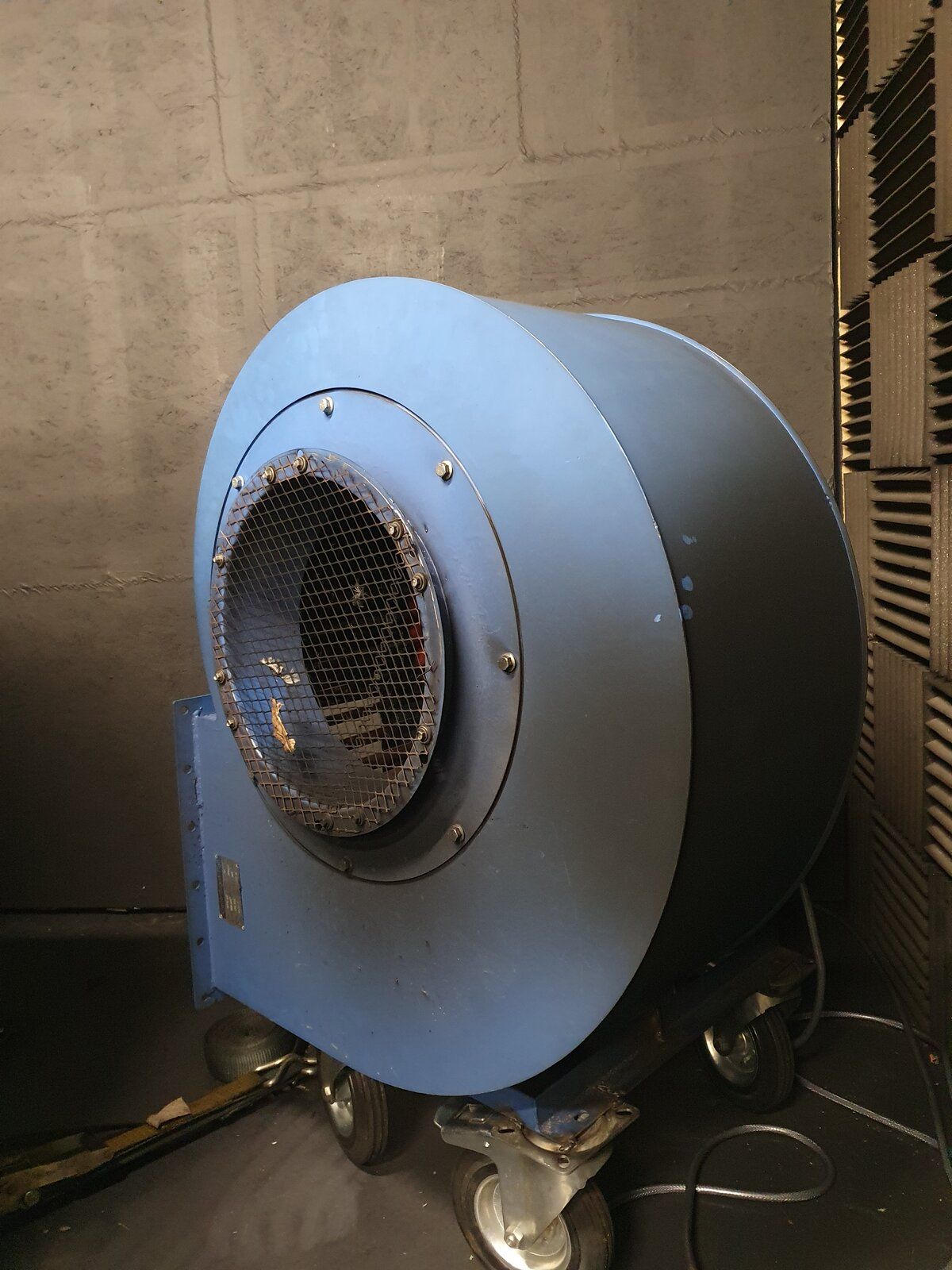

    Their fan got a bit smokey! :rolleyes:


    Hicap phill likes this.
  13. Bennehboy

    Bennehboy Well-Known Member

    Joined:
    Aug 23, 2011
    Posts:
    2,133
    Likes Received:
    325
    Location:
    Huddersfield
    ...

    bankz5152 likes this.
  14. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,644
    Likes Received:
    2,534
    Location:
    South London/North Kent
    Sorry been fixing another 90 all day!

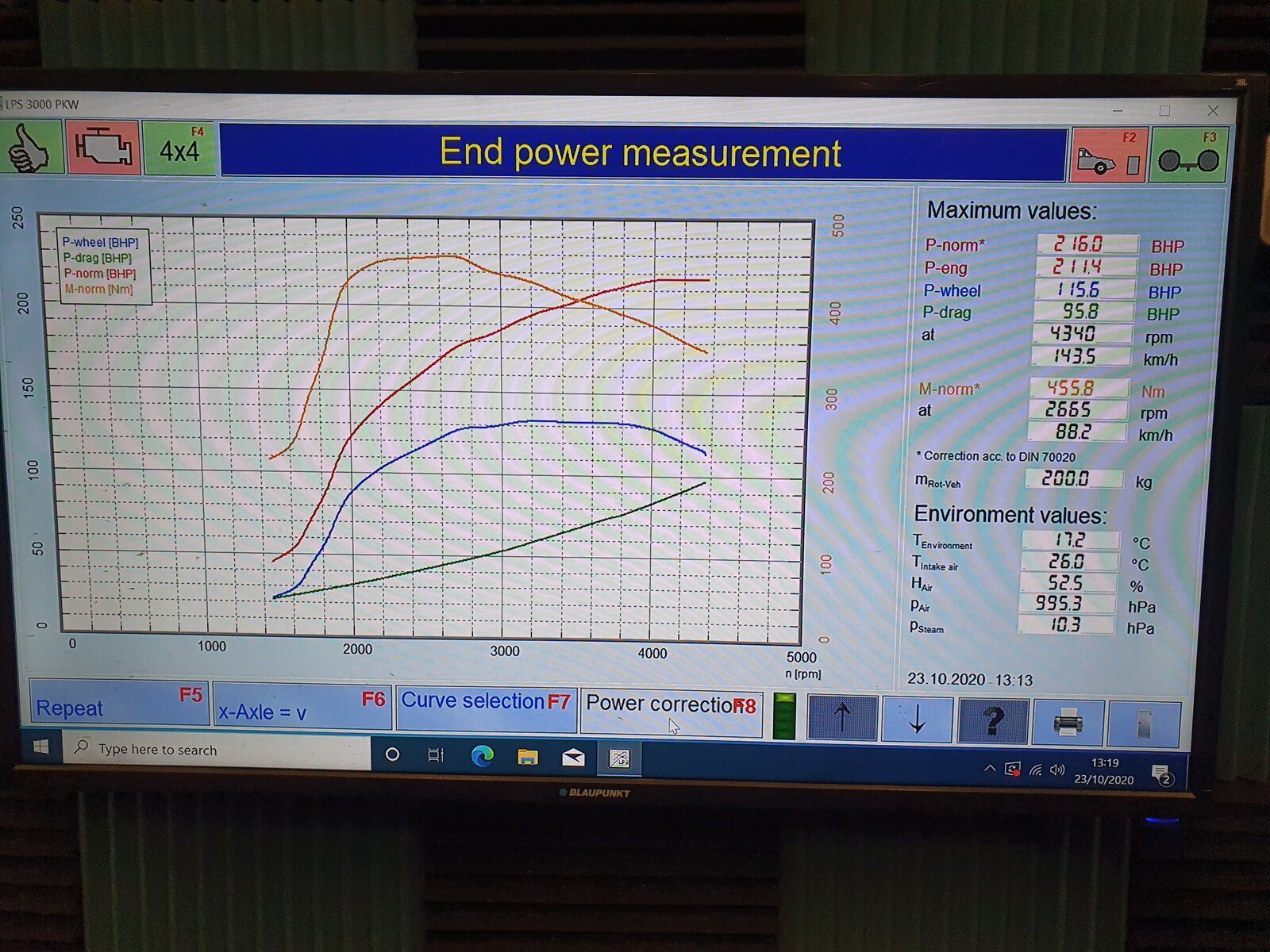

    First run pulled a respectable

    216bhp and 456nm

    Did a few more runs and some tweaking

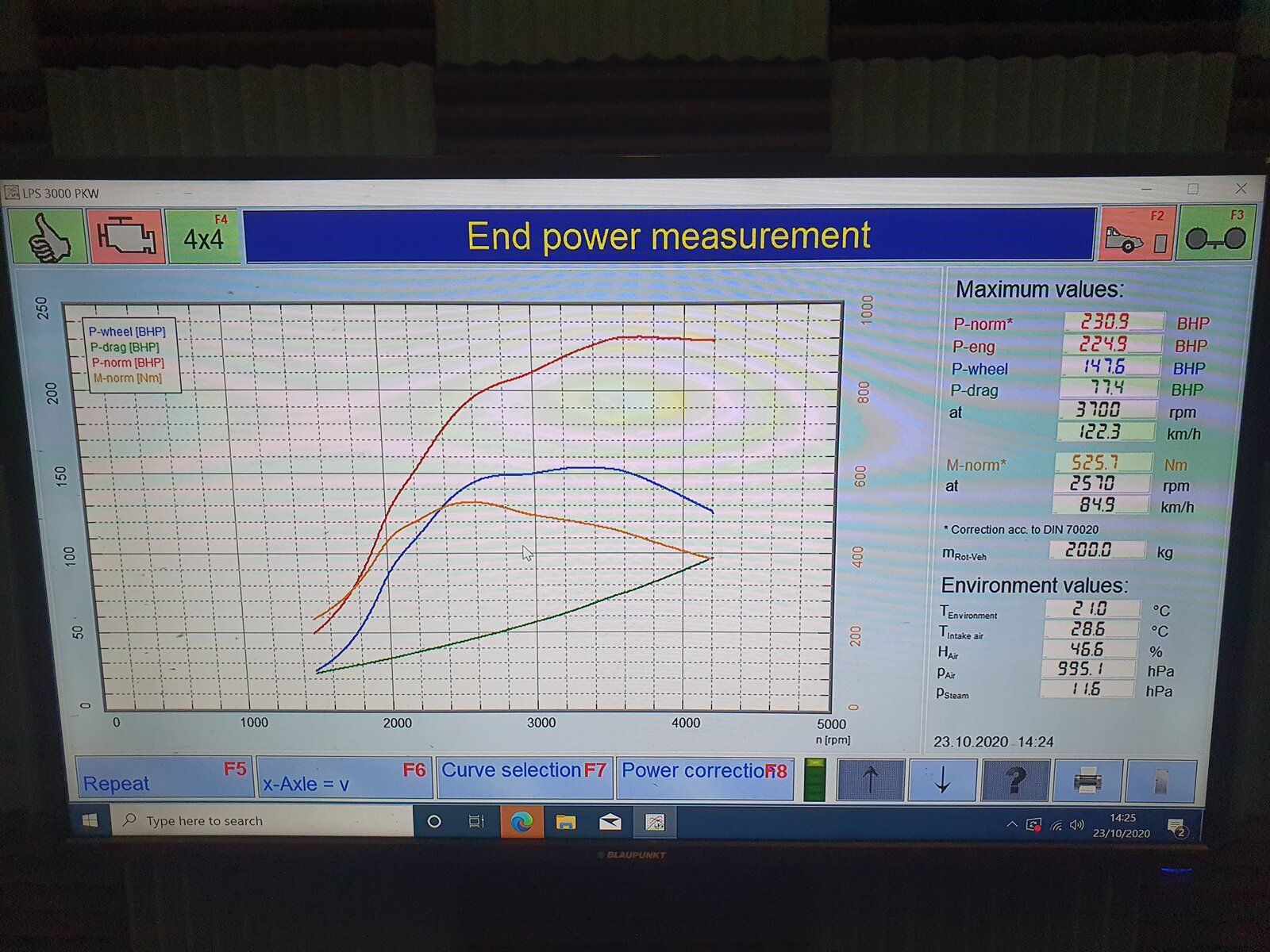

    Strongest run we did was 231bhp & 526nm however the smoke levels where pretty excessive due to the limitations of the standard air box (currently looking at options for a bigger one!)

    Also the Dyno rescaled to 1000nm as we pushed past 500nm so the graph isnt perfect.

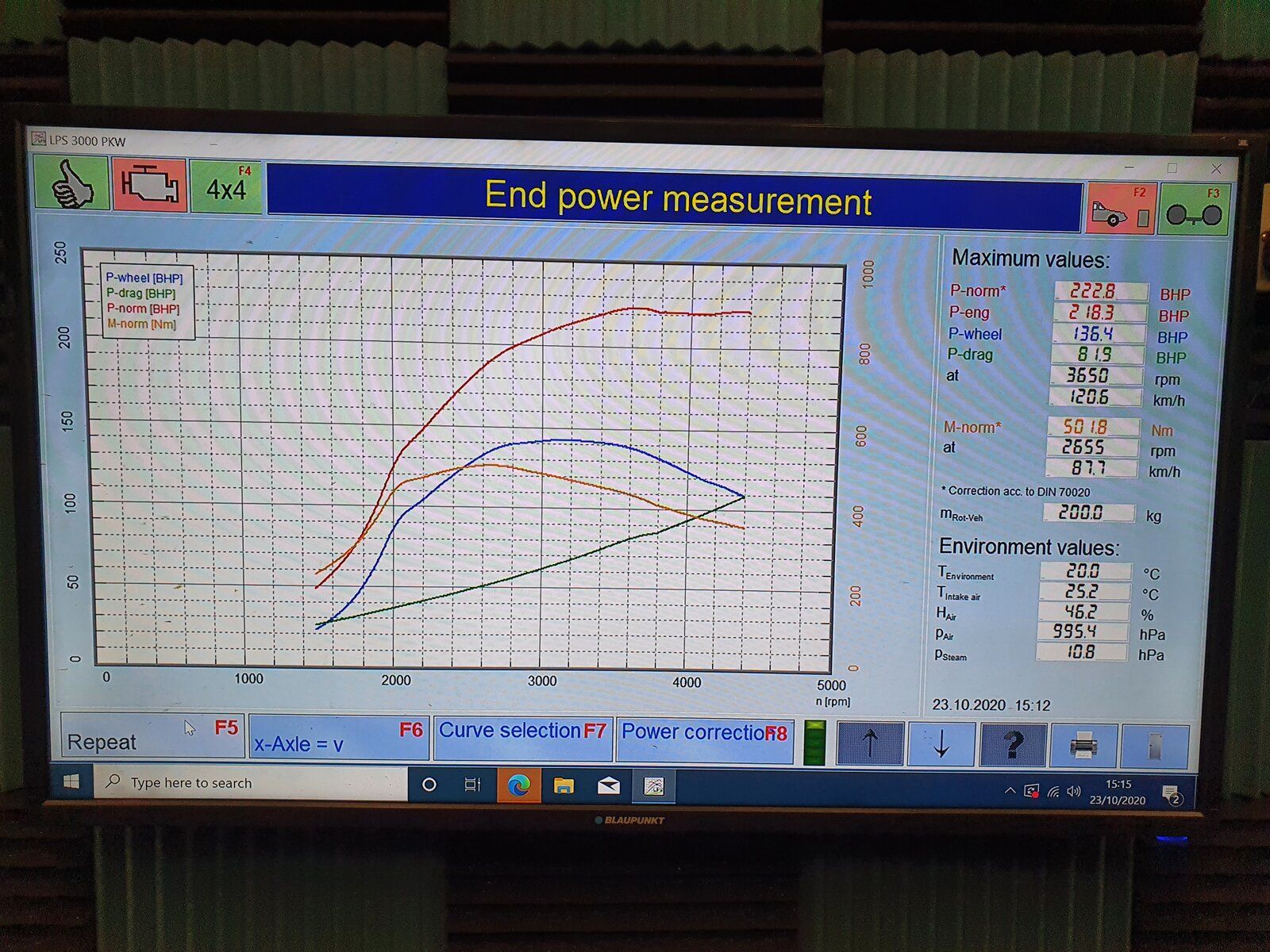

    Few more runs we settled on 223bhp and 502nm with acceptable smoke - by acceptable its less than a hell of a lot of TD5s ive seen! A light haze if you will.



    So there we have it. Will fit a bigger airbox, up the fuel and go from there! Im very happy so far!

    mick 1986 and neilly like this.
  15. Bennehboy

    Bennehboy Well-Known Member

    Joined:
    Aug 23, 2011
    Posts:
    2,133
    Likes Received:
    325
    Location:
    Huddersfield
    Have you removed the vortex from the standard one?

    bankz5152 likes this.
  16. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,644
    Likes Received:
    2,534
    Location:
    South London/North Kent
    Yeah of course.

    3.5" snorkel - 4" to the airbox, impeller gone + ITG filter - full 3" to turbo

    Needs a bigger airbox to match higher fueiling

  17. Bennehboy

    Bennehboy Well-Known Member

    Joined:
    Aug 23, 2011
    Posts:
    2,133
    Likes Received:
    325
    Location:
    Huddersfield
    bankz5152 likes this.
  18. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,644
    Likes Received:
    2,534
    Location:
    South London/North Kent
    They arnt good. They cause turbulant flow which plays havoc with the APP and MAP.

    Plan is a BIG ITG box mounted on the bulkhead. Not to mention fraction of the cost!

  19. Bennehboy

    Bennehboy Well-Known Member

    Joined:
    Aug 23, 2011
    Posts:
    2,133
    Likes Received:
    325
    Location:
    Huddersfield
    The MAP's in the intake manifold post turbo though? I can understand it affecting the AAP a bit.

    Anyhow interested to see how you get on, would think the flow through the head is the next limitation - port matching time?

    bankz5152 likes this.
  20. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,644
    Likes Received:
    2,534
    Location:
    South London/North Kent
    Yeah post turbo but a few have tried twin airbox intakes none have succeeded.

    Oh it has plenty more to give with a few easy mods. After that yes, it would be head work but unless the HG goes i wont be going down that route.
