    Haha yeah guna blow it out with the compressor!

    It is lovely working there, everyone is very nice and helpful!

  2. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,414
    Likes Received:
    1,584
    Location:
    South London/North Kent
    So came up with an idea to improve my heater to a more modern standard rather than just "a bit" and "full blast" (which is a lil weak compared to my old one)

    Plan is to fit s 12v bilge blower after the LR blower to force more air in, wired into the LR blower controls for easy control.

    Then fit this (lil more research needed tho) so I can have a smoother more variable control of the fan speed.

    Will of course check and adjust if needed the current heater controls.

    Final addition is the the Defender vent2.0 which I got for a very good price. Should mean i can adjust the top vents more and should have demisted side windows!

  3. Thommo1

    Thommo1 Active Member

    Joined:
    May 3, 2017
    Posts:
    146
    Likes Received:
    84
    Location:
    Fareham
    "Should mean i can adjust the top vents more and should have demisted side windows!"

    Just turn the standard lower foot vents upside down and it demists your side windows (you might have to swap them over as well - can't remember)

  4. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,414
    Likes Received:
    1,584
    Location:
    South London/North Kent
    Its an XS so they rotate anyway but does bugger all as me legs are in the way!

  5. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,414
    Likes Received:
    1,584
    Location:
    South London/North Kent
    Off today so got on with something ive been meaning to do for about a year.

    TC OFF switch!

    Super simple.
    Pulled the ABS/TC fuse.
    Replaced with some cable and connectors + an inline fuse.
    Connected to the Carling switch.

    He presto TC off switch. Not sure why PACE4X4 are charging £150 for one, mine cost £15. Would be £2 if you went for a toggle instead of a Carling.

    Only annoying thing is I have the EU Carling so ON is down, think ill swap it to a US one where ON is up. So it sits better on the pod. Just me being obsessive.

    What is a tad annoying is the red slit. When wired up as per the Carling wiring diagram its illumjnated constantly so not sure how to rewire it to be illuminated when the TC is turned off. If thats even possible but im just nit picking.

  6. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,414
    Likes Received:
    1,584
    Location:
    South London/North Kent

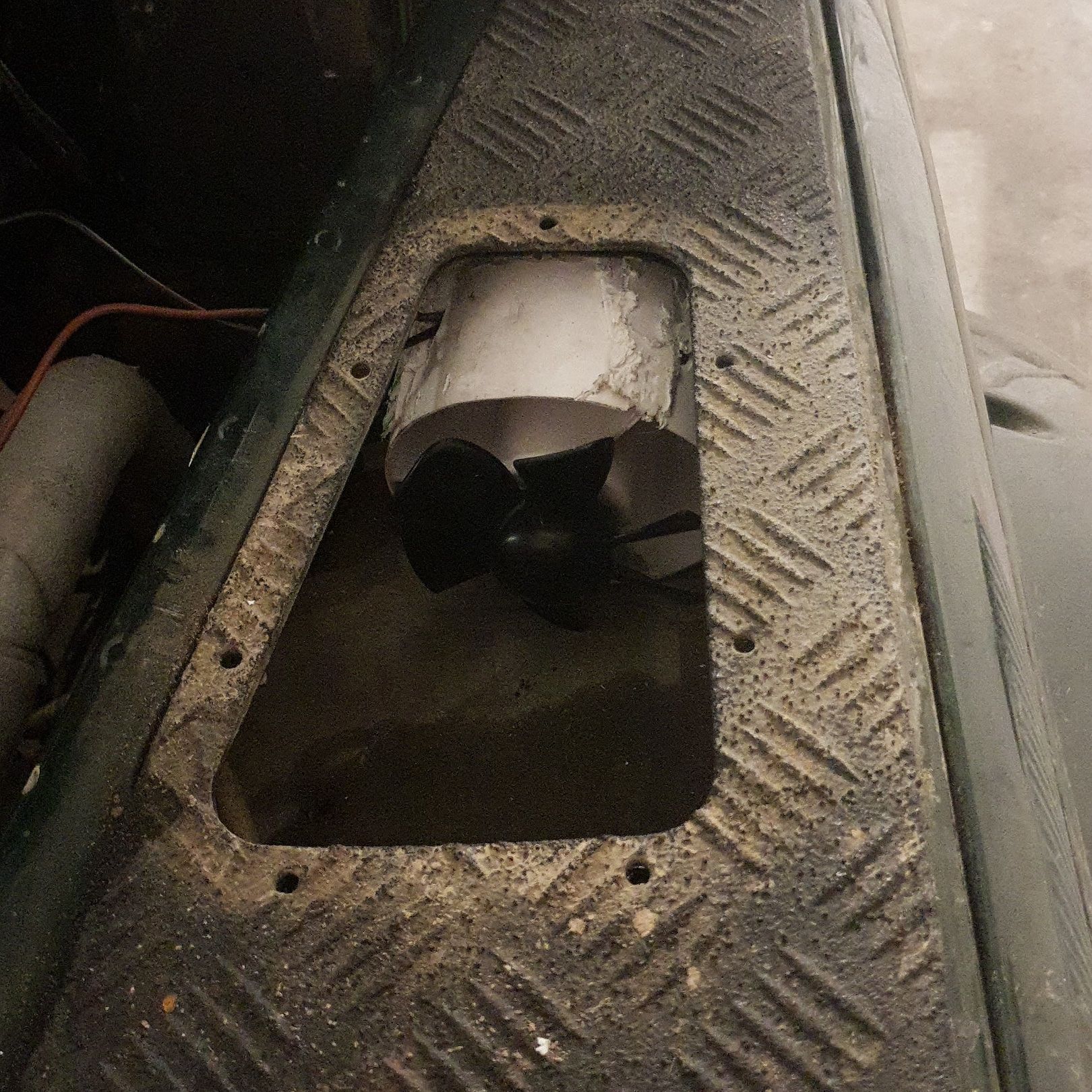

    So with a bit of cutting and shamefully some gorilla tape I got the bilge blower installed. Not my neatest work but I had minimal tools and materials! Hey it works!


    Yes they are tights as an air filter :D

    Its wired into the LR blower motor so functions on the two speeds. Speed 1 has about a 40% increase in air flow speed 2 has 50%+ at least.

    Should help a fair bit when the DefenderVents go in!

    TC off switch tested and works better than I expected. Looks like I dont need to cycle the engine in order to reactivate the TC/ABS.

    Best of all the red slit now comes on when the TC is deactivated :D


    (Video is done with the handbrake off to show the error lights)

    Quite happy with todays work!

    jamesmartin likes this.
  7. SkillzTom

    SkillzTom Member

    Joined:
    Nov 8, 2018
    Posts:
    11
    Likes Received:
    1
    Location:
    Yorkshire
    After about three days I’ve read this thread from start to finish ! Top job definitely some inspiration.

    1988smithy likes this.
  8. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,414
    Likes Received:
    1,584
    Location:
    South London/North Kent
    Bloody hell! Some dedication, thanks :)

    Fair few pics missing due to photobuckets ransom!

    If there are any you want let me know the post number and ill see if i can dig em out!

    Knappster, 1988smithy and dieseldog69 like this.
  9. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    1,618
    Likes Received:
    922
    Location:
    West midlands
    Had the pleasure of seeing it in the metal, superb build something to aspire to

    dieseldog69 likes this.
  10. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,414
    Likes Received:
    1,584
    Location:
    South London/North Kent
    Awww you guys! :oops:

    Thank you has been a labour of love (regret, hate, money and angero_Oo_O) :p:p:D:D

    Also im not done yet!!:cool:

    Knappster, 1988smithy and Trailstar like this.
  11. dieseldog69

    dieseldog69 Well-Known Member LZIR Despatch Agent

    Joined:
    May 21, 2010
    Posts:
    5,195
    Likes Received:
    3,564
    Location:
    Back in the UK, Hayling Island.
    To save me scrolling back a few pages, what is that coating on your wing top tread plates?

  12. SkillzTom

    SkillzTom Member

    Joined:
    Nov 8, 2018
    Posts:
    11
    Likes Received:
    1
    Location:
    Yorkshire
    Hoping to get my project thread moving soon but mine is showing me its identity before I can even enjoy it haha I enjoy how cub you have made it comfortable but yet still get stuck in

  13. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    7,414
    Likes Received:
    1,584
    Location:
    South London/North Kent
    Bit of feedback on the blower upgrade.

    Bloody fantastic! SO much more flow and the heat output is still very good. On high the whole cab is warmed up very very quickly. Low is perfect for some good heat as well. Noise is only slightly more than before on high.

    For £20 an an hours work its a great mod.

    X3 coats of Raptor (with black silica zand for grip) over black powder coat.

    That was the full intention from the start. I cant stand people who buy things and then dont use them for their intended purpose!
