Anyone recommend callipers for transfer box rebuild

Anyone recommend a decent set of callipers for transfer box rebuild. Needs to measure accurately to 0.01mm for thickness and width of grooves.

Happy to spend a bit for a decent set. Digital preferably.

Lidl - do a set of digital calipers and angle gauge. VG value for occasional use.

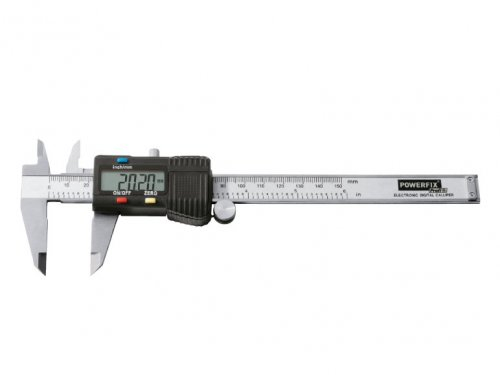

Digital Calliper at Lidl with 3 year warranty. - £8.99

I'm looking for that angle gauge coming back again

're the vernier I would look on tbay for a decent brand like Moore and Wright or Mitoyoto. You can sometimes pick up a bargain.

if its not an urgent buy wait till the go on promo then they are a lot cheaper

https://www.maplin.co.uk/p/electronic-digital-calliper-n48aa

What about
https://m.ebay.co.uk/itm/Mitutoyo-6...%3Addf5477815e0a629ab13c78affffff08%7Ciid%3A4

still dont beat £8.99

The Mad Hat Man said:

still dont beat £8.99

Click to expand...

Does on quality

raywin said:

Does on quality

Click to expand...

have yu calibrated both? Lidls are manuf in Germany and are more than adequate for what the op requires.

Thanks everyone. Will check these out. Had a look at the Lidl ones. Couldn't see any deets on their resolution?

Been using my for more than 20 years and its a pup compared to my Moore and Wright non digital one.
Good tools are always more expensive.
I agree that some cheaper stuff has come on in leaps I have one which cost about £7 but I use it only to check a bolt or a dowel saves getting my decent ones dirty.
I check them with the distance peices from my 0 to 100 mm mike.

The Lidl ones are very, very good quality (IMHO) and cannot be beaten at that price with 3yr warranty.
Angle finders are on flea-bay and also well worth the spend.

payydg said:

Thanks everyone. Will check these out. Had a look at the Lidl ones. Couldn't see any deets on their resolution?

Click to expand...

cheap ones are fine your only going to need to measure shims

jamesmartin said:

cheap ones are fine your only going to need to measure shims

Click to expand...

According to the rebuild manual got to measure the width of a whole bunch of grooves on this and that.

I did one last year and it involves measuring some shims then you could do with a DTI to check the shaft end float, then you calculate which shim thickness is needed to give the pre load.
Get hold of a luggage weight scale to check the force needed to turn the shafts, they are pretty cheap but try to check it with an old fashioned weight to give you confidence.
I made a thread but the pictures are out of it now thanks the the great photo site disaster

payydg said:

According to the rebuild manual got to measure the width of a whole bunch of grooves on this and that.

Click to expand...

you wont need to ,check for obvious wear and set shiming

payydg said:

According to the rebuild manual got to measure the width of a whole bunch of grooves on this and that.

Click to expand...

Verniers are often nicknamed 'Very Nears', there is also a difference between 'resolution' and 'accuracy', they are also not good for measuring smaller internal diameters due to the flat surfaces on the internal jaws . Micrometers are a lot more accurate (and expensive, and you need various sizes) so its a bit of a balancing act. If you need to measure grooves then feeler gauges can prove useful.

Thanks everyone. May just get a cheapish set in that case.
