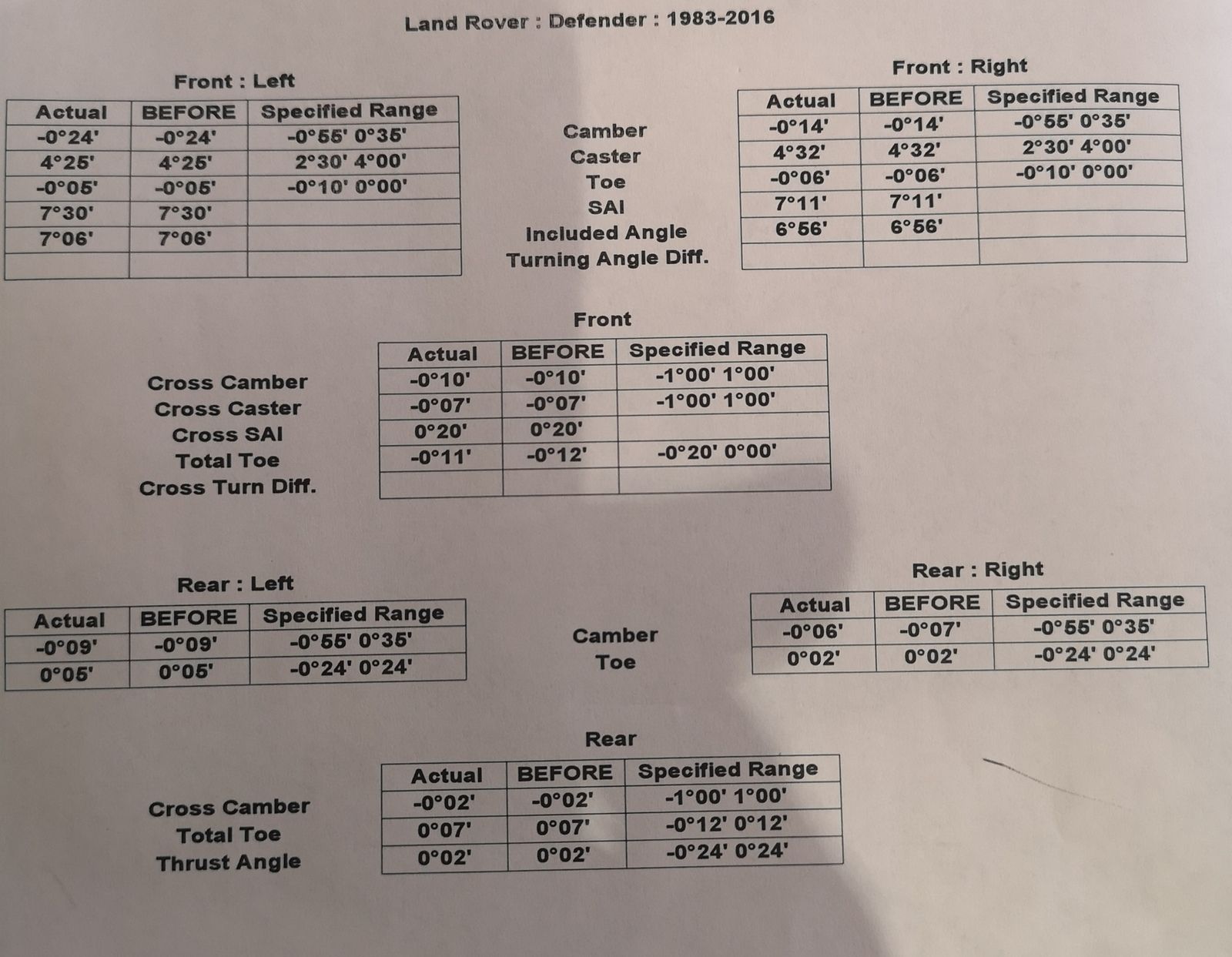

Can anyone explain these readings to me?
Just had my wheel alignment done.

The steering is much better, feels like the tyres are on the road. No more pulling to the left, however there still is the odd spot when the steering goes slightly light when on duel carrageways for a couple of seconds and not all the time. Had the tyres changed around as well. No bent track rod ends, no leaking bushes, no leak on steering box, no seized UJ's, no worn drop arm, no leaking dampner.

Thanks

in what way ,only toe is adjustable and you have results for each wheel and the cross is the difference between each side, your toe out slightly-.05 and -.06 but within range of -.10, one thing they often forget is to set tracking whilst steering box is centered, which wouldnt matter as long as you still have full locks but with a pas box you have a center spot where there is or shouldnt be any play but either side of the center there is play which gets larger as you head to either lock

in what way ,only toe is adjustable and you have results for each wheel and the cross is the difference between each side, your toe out slightly-.05 and -.06 but within range of -.10, one thing they often forget is to set tracking whilst steering box is centered, which wouldnt matter as long as you still have full locks but with a pas box you have a center spot where there is or shouldnt be any play but either side of the center there is play which gets larger as you head to either lock[/QUOTE
Thanks for your reply.
So there wasn't much adjusting to my wheels at all then.
