Series 3 AF socket set and spanners seems wrong, what should I bought?

Discussion in 'Series Land Rovers' started by bultacobob, Mar 27, 2020.

< Previous Thread | Next Thread >
  1. bultacobob

    bultacobob Member

    Joined:
    Jul 30, 2019
    Posts:
    32
    Likes Received:
    9
    Location:
    London
    I just getting round to a front end rebuild on my late series 3. So to save time I bought some swivel hubs that came with old bolts. So proudly wielding my shiny new Halfords pro sockets (AF) the swivel pin bolts seemed somewhat loose in them, in fact all the bolts were loose. So switching to an 18mm socket and all was good. So where I have I gone wrong? What should I be using to strip down the front hubs? I will it seem keep on going with the metric. All the new bolts from Craddocks are the same so I know it is not some sort of Metric swap.
    PS I now have a shed load off AF spanners and sockets.

  2. Citizen Kane

    Citizen Kane Active Member

    Joined:
    Sep 13, 2015
    Posts:
    260
    Likes Received:
    94
    Location:
    Hampshire
    You need Whitworth for the hubs and gearbox.

  3. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    5,740
    Likes Received:
    4,921
    Location:
    Thatcham
    Landrover switched to metric during the production of late series 3. Some vehicles actually had a mix of metric and imperial on the same car.

    Col

    Hicap phill and Dippypud like this.
  4. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    2,949
    Likes Received:
    1,135
    Location:
    Warwick
    That just means you need a vehicle which uses them if your series doesn't (it should). I suggest an old tractor or a bitish bike!,

  5. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    2,949
    Likes Received:
    1,135
    Location:
    Warwick
    Yep, that would be mine!

    Dippypud likes this.
  6. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    85,371
    Likes Received:
    14,824
    Location:
    louth lincs
    axles are AF as are most bolts ,gearbox is whitworth, suspension bolts,engine bolts and a few others were later metric

  7. Citizen Kane

    Citizen Kane Active Member

    Joined:
    Sep 13, 2015
    Posts:
    260
    Likes Received:
    94
    Location:
    Hampshire
    Drive flange bolts are Whit, don't know about later Series 3

  8. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,412
    Likes Received:
    627
    Location:
    norfolk
    You can't have enough spanners and sockets! Just bought some whitworth sockets myself to rebuild the gearbox.......always wanted some now found an excuse to add em to the collection:D

  9. bultacobob

    bultacobob Member

    Joined:
    Jul 30, 2019
    Posts:
    32
    Likes Received:
    9
    Location:
    London
    Thanks for the input, I will get an old Royal Enfield to go with the socket set. Still a bit confused as to what I need to strip down the swivels to the axle and then back up. The sockets may have been sold as Imperial, which I thought was AF. The bolts aren't metric but seem to fit well in the 12 point sockets so will use them.

    FRAJ likes this.
  10. bultacobob

    bultacobob Member

    Joined:
    Jul 30, 2019
    Posts:
    32
    Likes Received:
    9
    Location:
    London
    Just found a set of whitworths for 11.95, cheaper than the box of eggs I just got from the local corner shop.

    Bobsticle and wireman like this.
  11. wireman

    wireman Well-Known Member

    Joined:
    Nov 22, 2008
    Posts:
    731
    Likes Received:
    258
    Location:
    Warrington
    Dippypud likes this.
  12. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    2,477
    Likes Received:
    840
    Location:
    Slough and Bath
    My 1970 S2A continues to throw curveballs when it comes to threads. Not only are there the random BSF and Whit but Lucas (bless them) seem to have mixed BA, UNF and metric on the same bits of kit. The starter drove me to distraction.

  13. Webley1991

    Webley1991 Well-Known Member

    Joined:
    Feb 4, 2012
    Posts:
    1,612
    Likes Received:
    150
    Location:
    London
    3/8" Whitworth or 7/16" BSF use a spanner which is equivalent to 18.03mm AF

    Something else to rembmer with Whitworth spanners is that the size stamped on the spanner is the thread diameter, not the distance across the flats of the bolt head.

    This page is a useful guide to explain it all. http://www.baconsdozen.co.uk/tools/conversion charts.htm

    My early Series 3 was mostly UNF, but had a bit of everything. This was both fitted originally and through later repairs.

    All of the wheel studs were M16x1.5mm fine thread. The U-bolts were 7/16" BSF, while the spring eye bolts were 5/8 UNF.

    As with most of these vehicles, it had been repaired over the years with various metric and imperial bolts holding the panels together, including a few with square heads.

  14. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    4,379
    Likes Received:
    963
    Location:
    west wales coast
    Even as late as my 1990 90 there is still a mix.

  15. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    15,831
    Likes Received:
    16,893
    Location:
    Manchester
    I have a belting spanner that fits owt.................:oops:



    wireman likes this.
  16. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,412
    Likes Received:
    627
    Location:
    norfolk

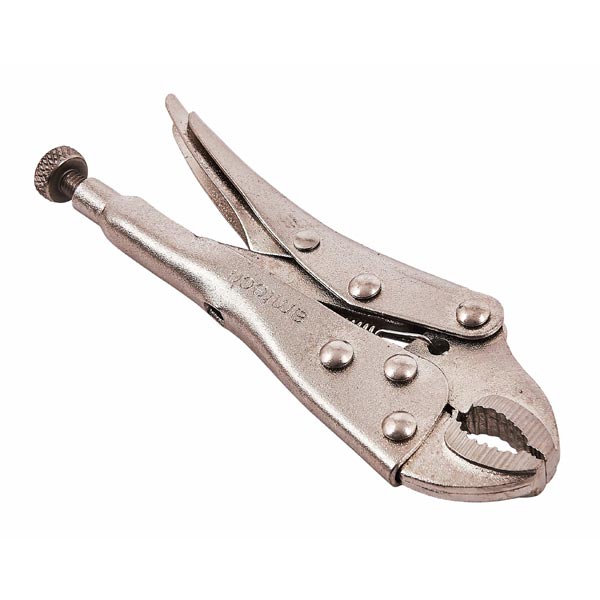

    Mole grip or Vice grip?

  17. wireman

    wireman Well-Known Member

    Joined:
    Nov 22, 2008
    Posts:
    731
    Likes Received:
    258
    Location:
    Warrington
    "Molies - the wrong tool for everything!"

    Bobsticle likes this.
  18. dag019

    dag019 Well-Known Member

    Joined:
    May 18, 2014
    Posts:
    2,949
    Likes Received:
    1,135
    Location:
    Warwick
    Mine are Mole grips, because that is the brand they are, everything else is a vice grip. A bit like a vacuum or a hoover.

  19. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    15,831
    Likes Received:
    16,893
    Location:
    Manchester
    Mine are very specialist. They include softened, self elongating pin holes and plasticine jaw grips. The adjustment screw has random slackening with a blood blister release. Unfortunately you have to spend over three quid to get these extra features but guarantee a bucket full make a perfect door stop. :)

    fucmeitsandy, wireman and Rodeo Joe like this.
  20. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,412
    Likes Received:
    627
    Location:
    norfolk
    See your point but my Vice grips are still Mole grips:D
