ABS sensor

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Karlos the jackal

Well-Known Member
Posts
465
Location
Norfolk
Hi folks me again I purchased 2 abs sensors from a RR dealer put in the motor took for MOT and only done 50 miles and one has failed
So looks like I need to replace one so my enquiry is what ones do people recommend

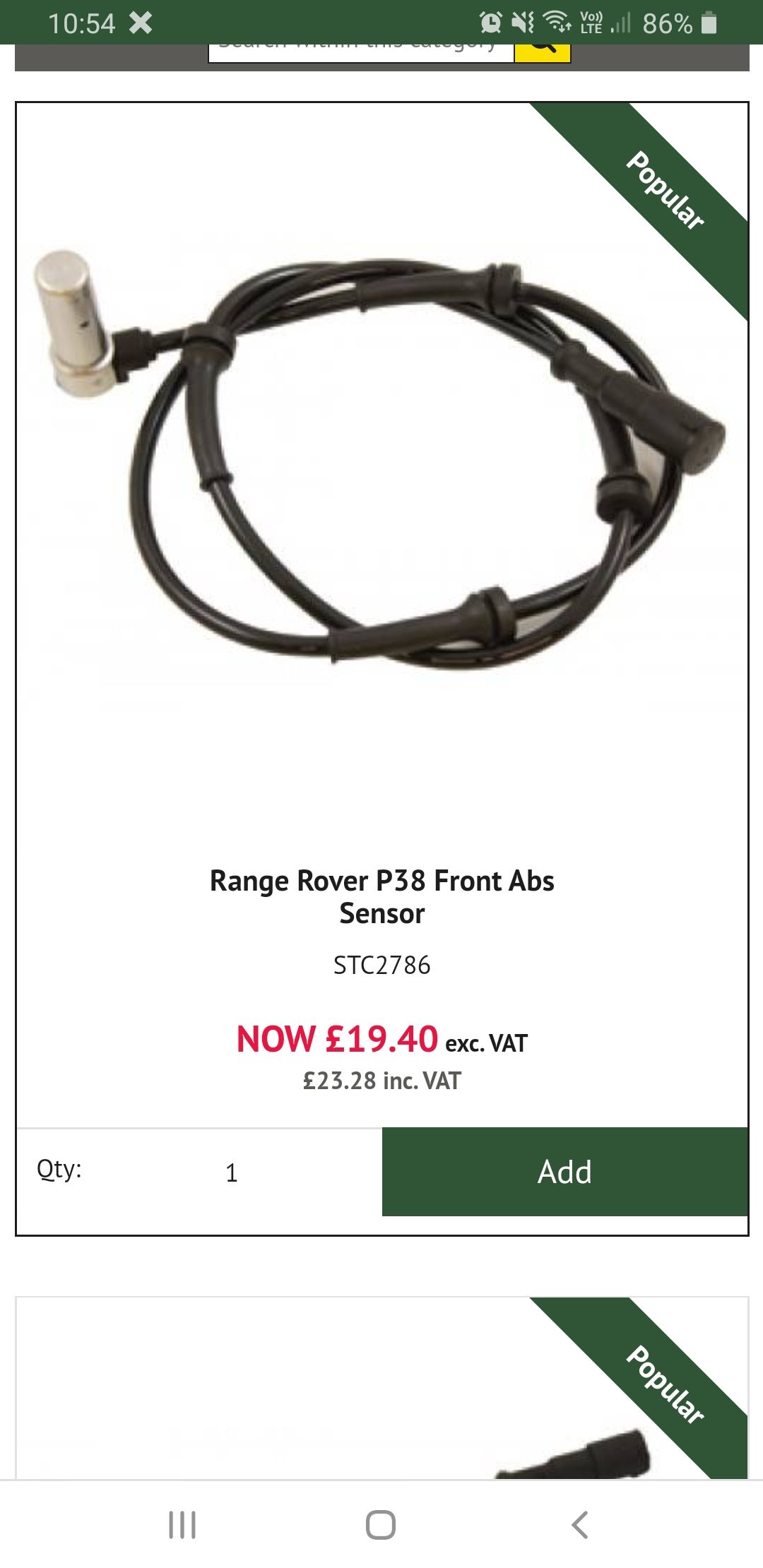

These are the ones I purchased


Attachments

  • Screenshot_20200607-105444_Chrome.jpg
    111.7 KB · Views: 70
Last edited:
Might be worth while removing the wheel on the offending corner to see it the sensor has slipped out a little. Push them all the way home and the reluctor ring will set the gap itself.
I plugged Hawkeye in and did live drive test nothing on NSF sensor I did check to see if was seated first

Is it possible to swap it for a known good one from another corner and check the fault moves?

I think @Datatek checks them with an oscilloscope?

Is this the later model with 4 wheel traction control?
I swapped it with the OSF I checked it first to see if had slipped plugged Hawkeye in said it was faulty live test drive both rears working and front left all had good voltage so when got back swapped them over and still nothing so this would lead me to believe that it definitely a failed sensor
