90 Rear door lock.

seanlandy · Mar 31, 2020

I knew I should have left this alone. But no! The catch on my 90 stopped working on the key. It just spun. The inside catch seemed to work which was okay when someone sat inside. Anyway, I took it apart. I think there are broken bits of the two larger springs but the small spring also came detached. I can't work out what it locates to, so was wondering if anybody had any photos, or exploded views so I can at least get it back on so I can take my dogs out. I did it before when I change the barrel, but can't remember.
Cheers

resto_d1 · Mar 31, 2020

Have you got rave? There’s prob an exploded view in there?

seanlandy · Mar 31, 2020

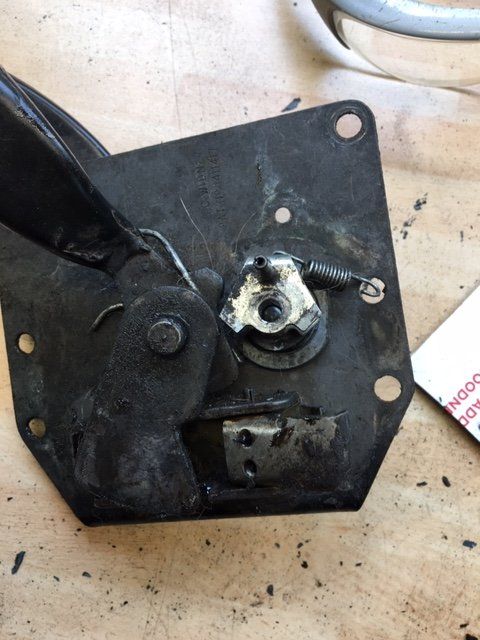

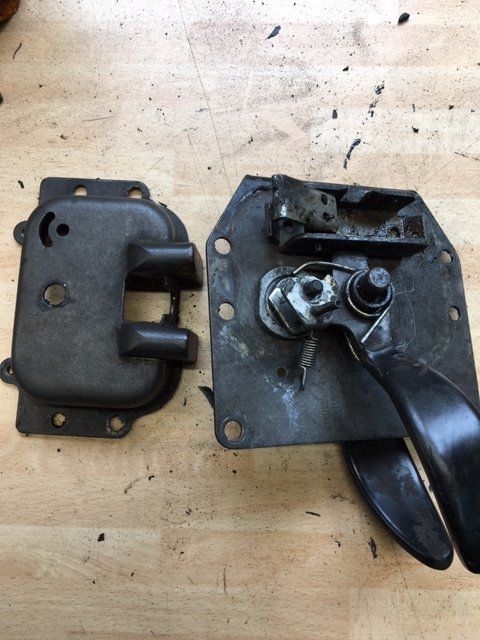

No. Not used it before. This is what I have so far.

resto_d1 · Mar 31, 2020

You need rave mate! If you search defender worship manual you’ll find it online straight away. It has exploded views

resto_d1 · Mar 31, 2020

If your td5 I have whole thing that I can email you off my laptop

seanlandy · Mar 31, 2020

No I am a 1987 90 but thanks.

seanlandy · Mar 31, 2020

I think I have downloaded but does not have an exploded view of the internals.

dag019 · Apr 1, 2020

seanlandy said:
I think I have downloaded but does not have an exploded view of the internals.

I would not have expected it to have exploded views of the lock as that is a single unit part in the parts manual. Unfortunately I cannot help too much with what it should look like as I have always replaced the units. Looking at the pics it should be straight forward enough to rapier as is a fairly basic mechanism.
