4.0 core/freeze plugs

The LR dealer did not order the right ones(too small), so no playing with the RR today

Has anyone got a part number for the plug or knows the exact size.
My rough measurements told me the hole was about 39mm .....give or take a bit

The guy from LR phoned me back today and said he had found the correct plugs and they were 33mm. Which, I think, is too small again.

Any ideas?

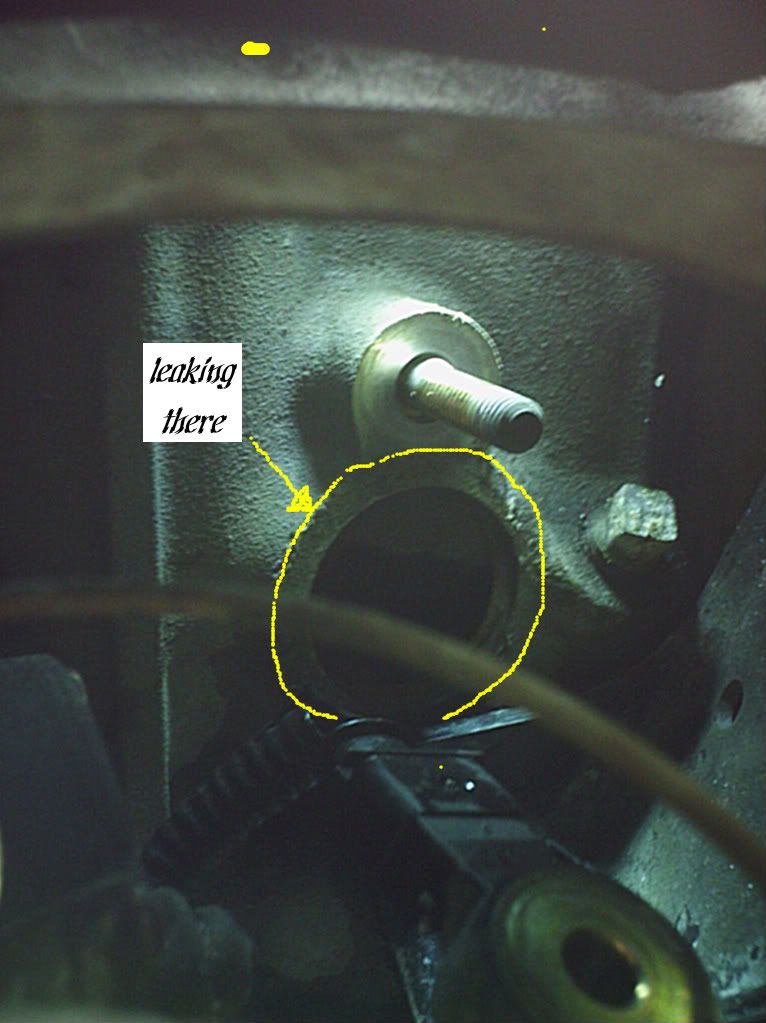

Here's the pic of the hole in question again.

No such animal as freeze plugs. Ask for core plug 1.5" diameter.

wammers said:

No such animal as freeze plugs. Ask for core plug 1.5" diameter.

Click to expand...

Thanks

I know there's no such thing as a freeze plug, but I thought I'd mention it cause some people call it that

Rimmer Bros do a full core plug set for about 20 quid. It has every plug you could think of including many you cant.

jt_armstrong said:

Rimmer Bros do a full core plug set for about 20 quid. It has every plug you could think of including many you cant.

Click to expand...

Thanks!

I've had a look. Too bad they don't mention size though...

ⓡⓤⓓⓨ;1500513 said:

Thanks!

I've had a look. Too bad they don't mention size though...

Click to expand...

There are many different sizes. It has about 20 different plugs in the set.

602152 should be number for core plug i believe there still same size as earlier engines

jamesmartin said:

602152 should be number for core plug i believe there still same size as earlier engines

Click to expand...

If I google that part number it comes up as a 33mm plug

602152 is core plu 8 in all fitted to engine which fits on side of block

jamesmartin said:

602152 is core plu 8 in all fitted to engine which fits on side of block

Click to expand...

Yes, but if it's 33mm it won't fit. I have a 34 and 36mm here which are both too small

i would check again

jamesmartin said:

i would check again

Click to expand...

Check what again? The diameter of the hole?

you googling i thought they were an 1 1/2 inches nearer 38 mm for my maths

jamesmartin said:

you googling i thought they were an 1 1/2 inches nearer 38 mm for my maths

Click to expand...

Most sites I saw didn't mention size.

This one does - CUP PLUG 33mm ALL V8 - 602152 - Land Rover Parts & Range Rover Parts

jamesmartin said:

you googling i thought they were an 1 1/2 inches nearer 38 mm for my maths

Click to expand...

Correct James, he said hole was around 39mm. 1.5" is 38.46mm. Think he will find most core plugs on V8 are imperial sizes. Needs to take a look at Ebay item 200608298768 metric core plugs, imperial also available.

OK, so I just measured the plugs I have left over from the set I got from Rimmers. P/N 602152A measures in at 38.2mm. There are 8 of these in the pack. There is also a P/N 602146 which measures 46mm. There is only one of these in the set.

jt_armstrong said:

OK, so I just measured the plugs I have left over from the set I got from Rimmers. P/N 602152A measures in at 38.2mm. There are 8 of these in the pack. There is also a P/N 602146 which measures 46mm. There is only one of these in the set.

Click to expand...

Excellent JT, thanks!

i think i helped abit was that 602152 x 8

jamesmartin said:

i think i helped abit was that 602152 x 8

Click to expand...

you did

Went to get the 2nd engine this morning and thought I'd get a core plug from that one and fitted it to the RR.

Not as a permanent replacement, but I just wanted to see what else would come up.

Engine started overheating after about 10 - 15 minutes running idle.

Felt bottom hose of thermostat assy - Ice cold
New thermostat assy ordered. Going to pick up new core plugs tomorrow and hopefully that's it sorted.

p.s there is also a brand new timing timing cover with the 2nd engine. I understand they are not cheap.
