300tdi timing cover ouch

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Series71

Series71

Space man
Posts
17,374
Location
Dorset

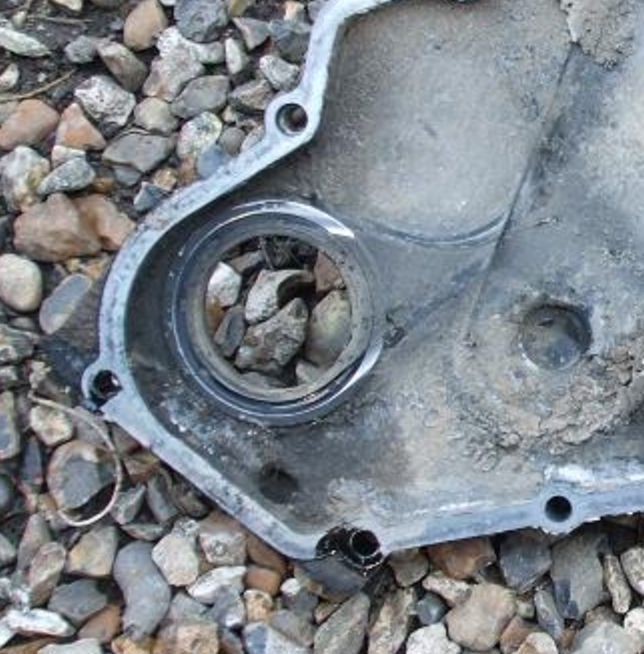

Having a look at my scrap timing cover and found these grooves in it.Is this due to the cam belt failure or summit else ? :confused:


Attachments

  • 1.JPG
    75.7 KB · Views: 696
looks like the result of an 'Old' style cam belt drive pulley. where there were no shoulders on the drive pulley and the belt would wander...the newer ones had shoulders on the pulley to prevent this happening.

does you drive pulley have shoulders? if so it's been upgraded at some time and those score marks are from the first time, if not Refit with the upgraded kit.

As was mentioned by Daft in yur uvva fred, early 300tdi motors had a tendancy to eat timing belts due to some misalignment. I would say this is very good evidence that yurs is/was misaligned.


Fancy havin a replacement belt kit sat on the shelf for 18 months and not fittin it :doh: Now get outside an fix the bloody thing, we don't want anuvva Tufftee saga do we????

Dorset VogueSE said:
As was mentioned by Daft in yur uvva fred, early 300tdi motors had a tendancy to eat timing belts due to some misalignment. I would say this is very good evidence that yurs is/was misaligned.


Fancy havin a replacement belt kit sat on the shelf for 18 months and not fittin it :doh: Now get outside an fix the bloody thing, we don't want anuvva Tufftee saga do we????
Click to expand...

:D:D:D snigger :D:D:D:D

battenberg said:
looks like the result of an 'Old' style cam belt drive pulley. where there were no shoulders on the drive pulley and the belt would wander...the newer ones had shoulders on the pulley to prevent this happening.

does you drive pulley have shoulders? if so it's been upgraded at some time and those score marks are from the first time, if not Refit with the upgraded kit.
Click to expand...

here's a pic


Attachments

  • cam.jpg
    246 KB · Views: 1,011
