300tdi prop doughnut keeps failing

Timdb said:

Sorry can e explain in more detail as I am lost a bit .
I have changed prop but not taken splines apart and not sure what phase angle is?
Thanks excuse my lack of knowledge.

Click to expand...

I did look earlier and thought the angle of the prop coming onto doughnut looked a bit odd .ie the diff looked like it didn't line up straight.
Then I thought maybe when it was poly bushed the tie bars (I may have that wrong! ) wernt done up enough thus not pulling axle up enough, I have checked and they are tight.
Clutching at straws

The Mad Hat Man said:

Click to expand...

Thanks 4 that

Is the sliding joint free, or perhaps worn in one place and acting as a lock, jamming the sliding action

freelance said:

Is the sliding joint free, or perhaps worn in one place and acting as a lock, jamming the sliding action

Click to expand...

Do u mean the sliding joint on prop?
As that is OK as moved freely when changed doughnut.

Timdb said:

Do u mean the sliding joint on prop?
As that is OK as moved freely when changed doughnut.

Click to expand...

Yes

Timdb said:

Do u mean the sliding joint on prop?
As that is OK as moved freely when changed doughnut.

Click to expand...

Is there another, if so please let me know, as that's something I've missed in my ownership of a RR and a D1 in the last 30 + years

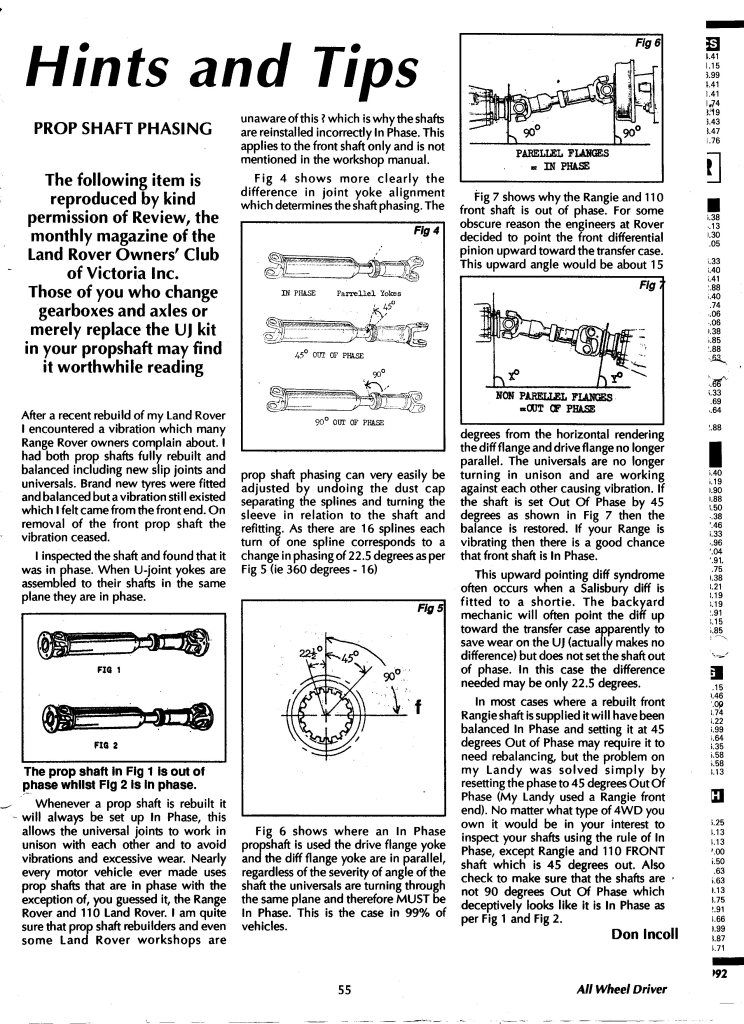

Is the prop long enough, for the extended travel, can you use a longer prop and scrap the donut, have you facilities to point the nose of the diff upwards a bit, and then phase the prop (like Range Rover front axle in brochure already posted) ?

just use the disco rear prop upgrade kit.

https://www.ebay.co.uk/itm/LAND-ROVER-DEFENDER-DISCOVERY-1-4-BOLT-REAR-DIFF-FLANGE-SEAL-KIT-STC4858-/252566412162?clk_rvr_id=1522093231170&utm_medium=cpc&utm_source=twenga&utm_campaign=twenga&utm_param=eyJlcyI6MCwicyI6OTcyMDIzNywiY2kiOiIwM2MxZGMwNGI4MzQxODQ0MjZlN2NiMTE4YTYzMWEyZCIsImkiOiIyNTI1NjY0MTIxNjIiLCJ0cyI6MTUyNTYyNzczMywidiI6Mywic28iOjE1MDAsImMiOjMzNzMxfQ==&rmvSB=true

freelance said:

Is the prop long enough, for the extended travel, can you use a longer prop and scrap the donut, have you facilities to point the nose of the diff upwards a bit, and then phase the prop (like Range Rover front axle in brochure already posted) ?

Click to expand...

Looking the prop upgrade kit that mad hat has posted below looks like it would do the trick.

yu will need a new prop.

The Mad Hat Man said:

just use the disco rear prop upgrade kit.

https://www.ebay.co.uk/itm/LAND-ROVER-DEFENDER-DISCOVERY-1-4-BOLT-REAR-DIFF-FLANGE-SEAL-KIT-STC4858-/252566412162?clk_rvr_id=1522093231170&utm_medium=cpc&utm_source=twenga&utm_campaign=twenga&utm_param=eyJlcyI6MCwicyI6OTcyMDIzNywiY2kiOiIwM2MxZGMwNGI4MzQxODQ0MjZlN2NiMTE4YTYzMWEyZCIsImkiOiIyNTI1NjY0MTIxNjIiLCJ0cyI6MTUyNTYyNzczMywidiI6Mywic28iOjE1MDAsImMiOjMzNzMxfQ==&rmvSB=true

Click to expand...

Thanks I didn't know this was out there. It looks like it would do the trick .

The Mad Hat Man said:

yu will need a new prop.

Click to expand...

What a longer one like a 200tdi?

yes, i think so
