Disco 1 300TDI Lift pump again...

Hi All

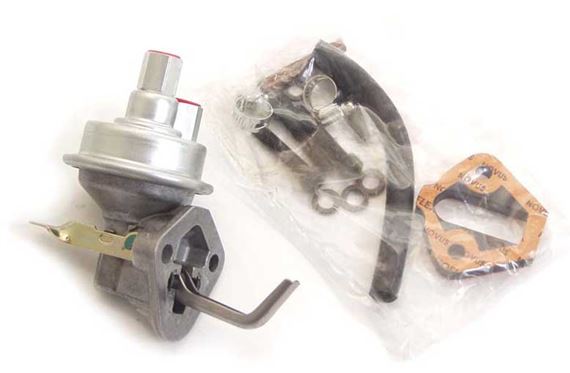

just a quick question if i may, i am replacing my lift pump again and just took delivery of one with the rubber block and screw on pipes ( britpart) but it doesn't fit , won't clear the injector pipes. am i right in thinking this is the one for the Defenders? i can't see why it would be different ( see picture for what i have got it didn't come from Rimmer Brothers but it is the same type)

When i replaced mine when i got Dorris it didn't have the rubber gasket and all the replacement ones i see don't have it in the kit, so should it be there? and the priming pump is on the other side

Dorris is a Auto with EDC not sure if that make s a difference ?
Cheers for you help

Mort

plastic spacer is for fitting to earlier engines , disco and defender are the same pump,looks like a std type 300 pump to me

Thanks James, will get correct pump sent out tomorrow

Thanks James. That's the one I had before I'll get the same again

dont forget you need olives and nuts they dont allways come with pump nrc9770 and nrc9771

☺ thanks

Is it a delphi one? They come recommended for quality and was what I fitted. Came with olives etc..

No a Britpart one

correct one being delivered today
