300tdi auto transfer box problem

andyfox2005 · Sep 6, 2012

i just bought another dsc today its amazing every where except the transfer box wich is a pain in the arse to change from hi to low and lock ect is there any common faults with the transfer box and are they differant to manual gear box transfer boxes i see they are quite cheap to buy so would any 300tdi transfer box fit

jamesmartin · Sep 6, 2012

same box ,id remove consol and have look at lever housing especially where shafts pokes out of passenger side of housing

andyfox2005 · Sep 6, 2012

slow down lol didnt really get that

you mean the linkage or just the nob and shaft itself and yes i did just say those two words, but were all adults here (and i couldnt think of another word )

jamesmartin · Sep 6, 2012

lever sits through a cross shaft ,its this shaft that normally seizes in aliminum housing especially on lh side opposite to the linkage worth setting linkage so it moves equally in all directions while your in there

andyfox2005 · Sep 6, 2012

cool ill check that out tomorrow and update

Sheeprus · Sep 7, 2012

andyfox2005 said:
i just bought another dsc today its amazing every where except the transfer box wich is a pain in the arse to change from hi to low and lock ect is there any common faults with the transfer box and are they differant to manual gear box transfer boxes i see they are quite cheap to buy so would any 300tdi transfer box fit

I had a similar problem with mine, i.e. the usual seized due to lack of use.
I followed the advice given on here first.
Undo the knob on the diff lock selector, remove the gator and load it up with WD40. If you can get a product called release all, even better.
Get underneath the disco and you'll see the selection lever which looks liek a fold piece of aluminium. Soak every joint with WD40 (other oil based products are available) and leave for 12 hours or so.
then try engaging as much as possible hi-lo lo-hi lock/unlock and after few goes it should start moving.
worked well for me and I make a point of moving the lever to select each option at least once a month whether I need it or not.

The only other thing to be aware of, my LED had gone from the dash so I tested the diff lock (1 wheel up jobby) and I know it all works well
Testing again on the beach a few days later a defo works really well!

Let us know how you get on!

thebiglad · Sep 7, 2012

andyfox2005 said:
i just bought another Disco today its amazing everywhere except the transfer box which is a pain in the arse to change from hi to low and lock etc is there any common faults with the transfer box and are they different to manual gear box transfer boxes i see they are quite cheap to buy so would any 300tdi transfer box fit

First things first; are you aware that you must put the autobox into Neutral BEFORE try to select High to Low and vice versa?

Re selecting diff-lock, it is very common for this sideways movement of the lever seizes up due to lack of use. Lubricate and work it often is the cure.

andyfox2005 · Sep 7, 2012

right so i went out today with the intention of doing the above and just took note of the diagram in front of the selector and it says 0-5mph so i tried it while i was rolling in neutral and it went in no problems i think mine must just have tension on the drive train even in neutral so im not to bothered at the minuted about having to do it while rolling a little bit works well the dash light works and its catching the wheels on full lock < also ive been told for some reason the auto is better off road why is this and is it true ?

thebiglad · Sep 7, 2012

andyfox2005 said:
Right, so I went out today with the intention of doing the above and just took note of the diagram in front of the selector and it says 0-5mph. So i tried it while i was rolling in neutral and it went in no problems, I think mine must just have tension on the drive train even in neutral so I'm not too bothered at the minute about having to do it while rolling a little bit. Works well, the dash light works and its catching the wheels on full lock.
Also I've been told for some reason the auto is better off road why is this and is it true ?

It depends on who you talk to, if it's someone who only drives manual gearbox vehicles they will say no!

I've driven both types off-road in a variety of conditions and I'm convinced that auto is better. If you select low-range and then use the gear selector you can drive like a manual or, leave it in D and let the gearbox select gear.

This works well except for steep downhill slopes where you need to select gear no. 1 to control speed.

andyfox2005 · Sep 7, 2012

thats what i was thinking i managed to pull off on a gradient that any manual ive ever had has struggled to get up with a slight run up and the auto went up it with ease so at the minute im over the moon with the way the auto performs including the road the motorway is much more pleasant in the auto

thebiglad · Sep 7, 2012

andyfox2005 said:
thats what i was thinking i managed to pull off on a gradient that any manual ive ever had has struggled to get up with a slight run up and the auto went up it with ease so at the minute im over the moon with the way the auto performs including the road the motorway is much more pleasant in the auto

As you're enjoying it so much might I suggest that you change the oil and filter in the autobox asap, then you'll be able to enjoy it for a lot longer

andyfox2005 · Sep 7, 2012

thebiglad said:
As you're enjoying it so much might I suggest that you change the oil and filter in the autobox asap, then you'll be able to enjoy it for a lot longer

will

dirtydiscov8 · Sep 10, 2012

Auto's are good off road but make sure you only go between D and R when the wheels are completely not moving, if your stuck in a hole and trying to get out going back and forth this can kill the clutches in the autobox.

andyfox2005 · Sep 10, 2012

dirtydiscov8 said:
Auto's are good off road but make sure you only go between D and R when the wheels are completely not moving, if your stuck in a hole and trying to get out going back and forth this can kill the clutches in the autobox.

after having a good look round it today i dont think i will be doing any off roading shes a beaut

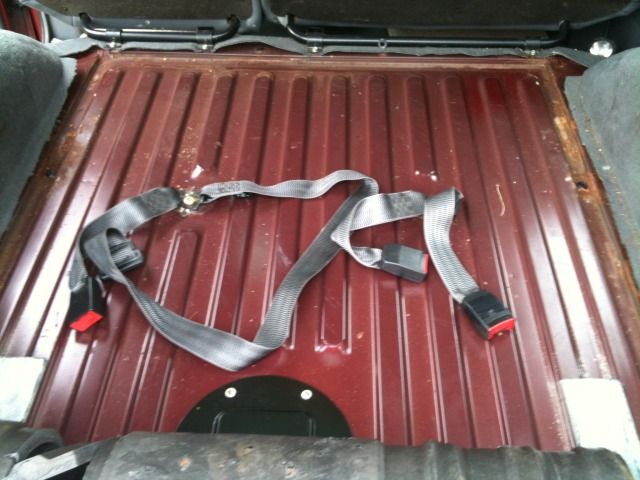

you ever seen a boot floor like that ?
