300 Tdi Rebuild
- Thread starter Al2O3
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 11,020
- Location
- North of the Wall
Hmmm, if my pipe was lifted off the wing it would just add to the angle of the bend. Unless, the clamp pulled the pipe back and so opened the angle.
- Posts
- 11,020
- Location
- North of the Wall
Ah, yes the pipes are clamped together. I thought yours were clamped to the wing!
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
are you sure you have the pipe fitted to the cooler at the correct endYours doesn't look like it's pressing against the wing!
Aye, they look the same. But not as tight as mine? What do you mean one hot and one cooler?
- Posts
- 11,020
- Location
- North of the Wall
Yeah, the ends to the cooler have much longer metal pipes. Appreciate the idea though, had me thinking for a second or two
Sorry about the clamp description, was just working from memory Think what JM may be meaning is are the pipes fitted to the cooler the correct way round (the one with the 90 degree metal pipe going to the top rad connection and the straight one to the bottom)?
Think what JM may be meaning is are the pipes fitted to the cooler the correct way round (the one with the 90 degree metal pipe going to the top rad connection and the straight one to the bottom)?
Last edited:
- Posts
- 11,020
- Location
- North of the Wall
Bloody English language!Sorry about the clamp description, was just working from memory
I fitted them the same way as the old ones came off, but I'll go and check.
- Posts
- 11,020
- Location
- North of the Wall

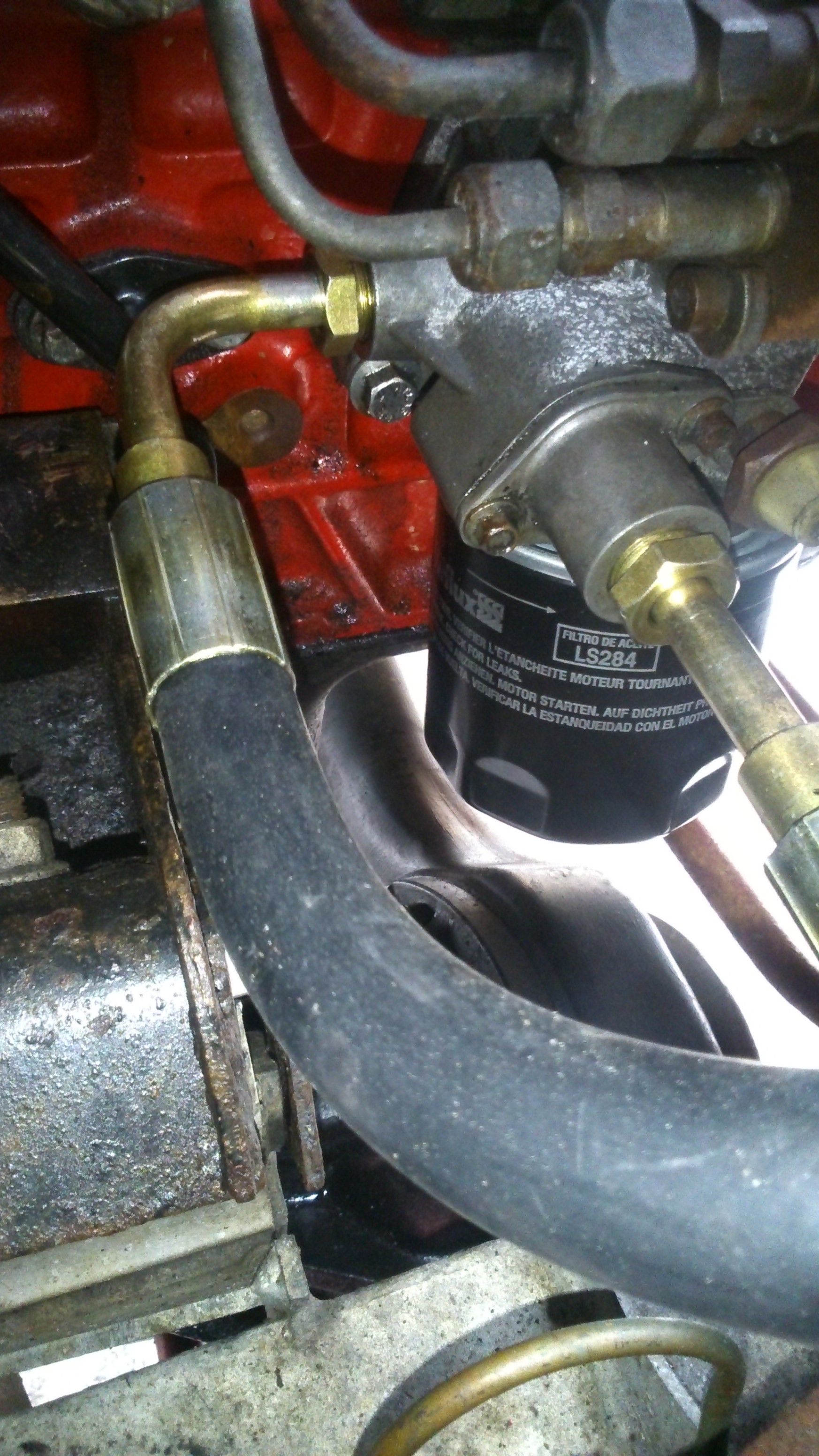

This is the pipe arrangement in to the filter housing
Pretty sure they are the right way around.

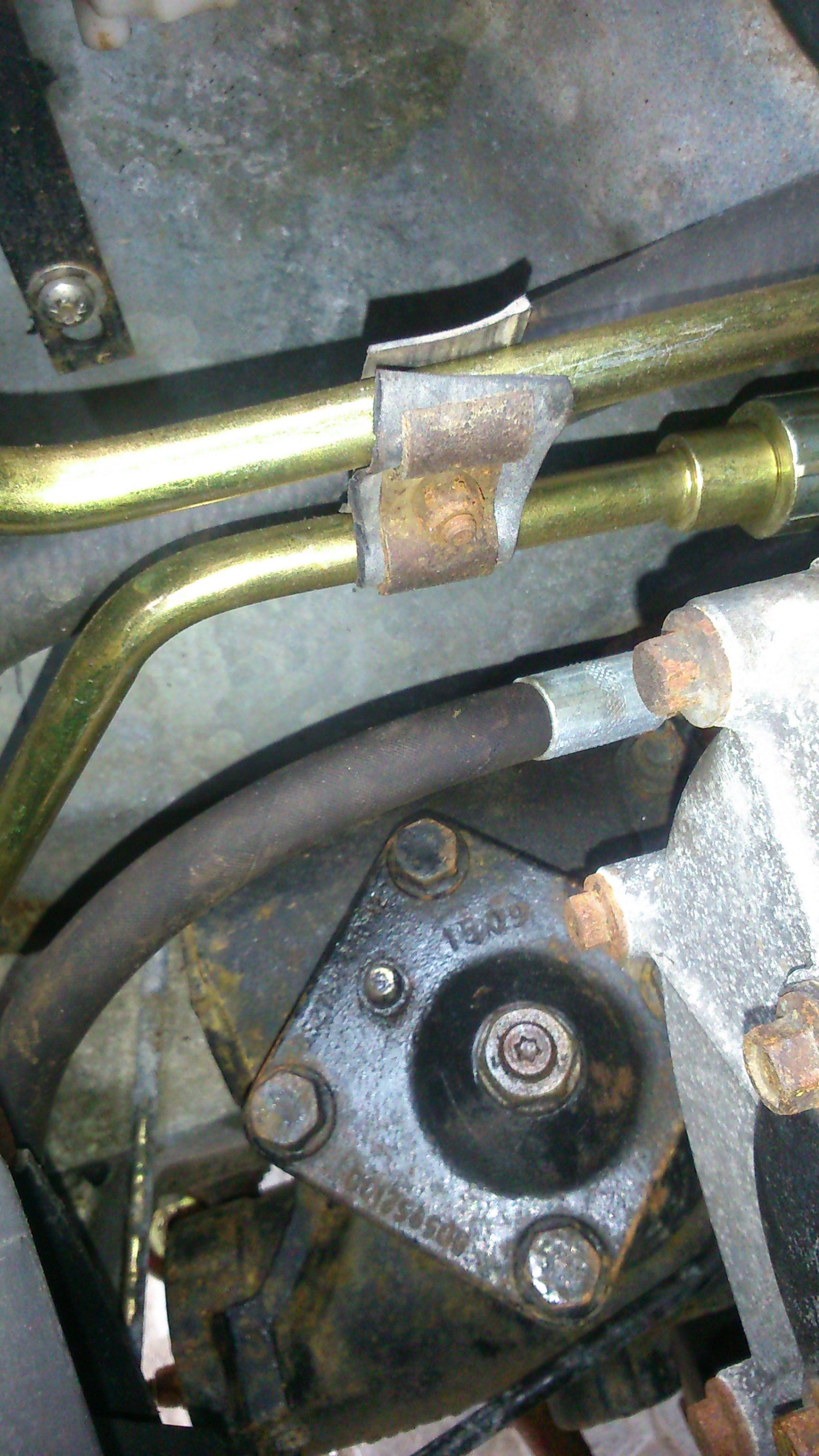

This is the clamp
Filter area is the same as mine, looking at the other picture it looks like the pipes are the right way around at the radiator as the one with the longer straight bit is the top one. Must just be down to a different length pipe? Do you still have the old ones, could try measuring them with a bit of string to see if there is a difference.
- Posts
- 11,020
- Location
- North of the Wall

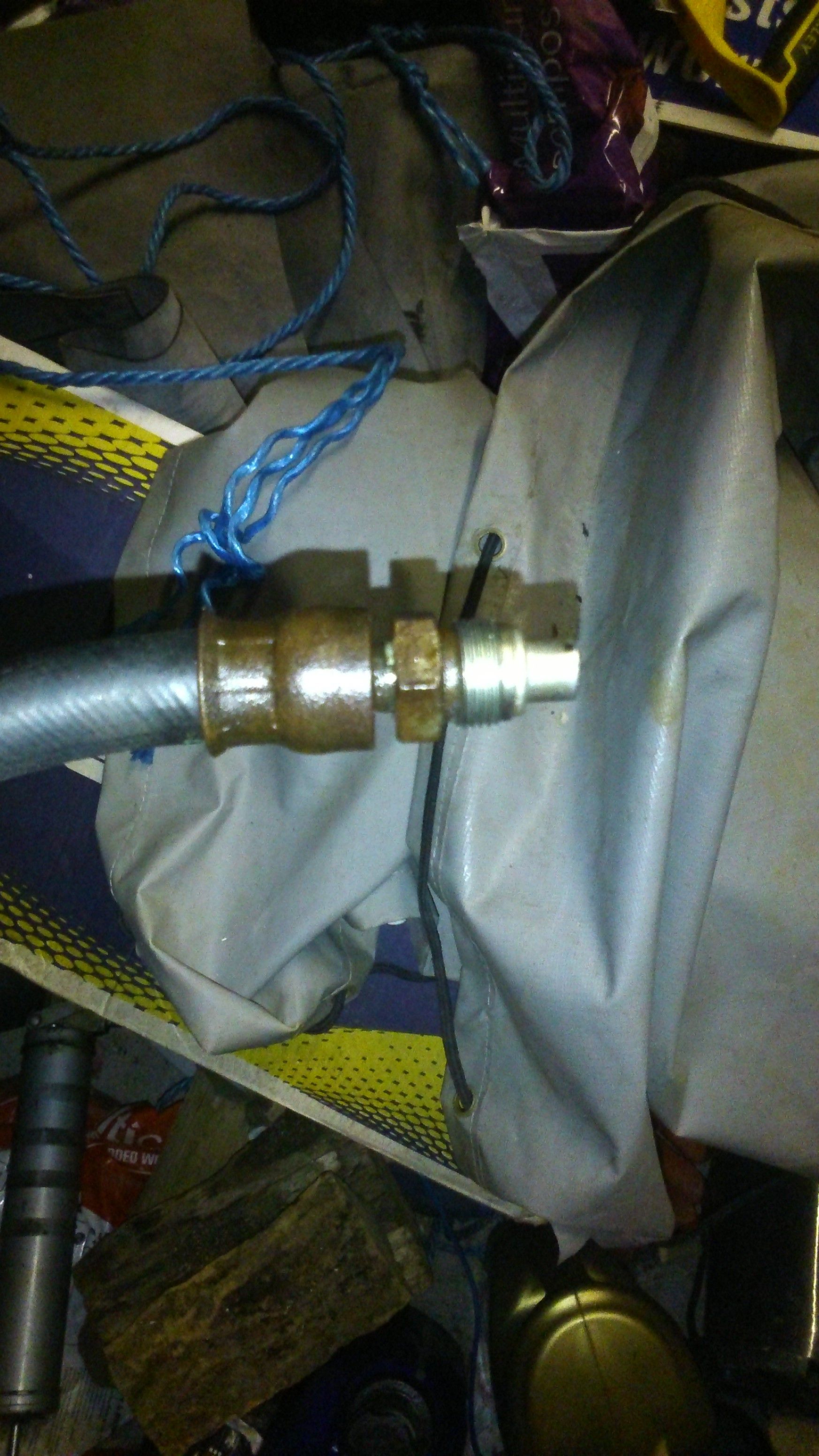

This is the old pipe.
If you compare with the new pipe above, the new one has about 2.5" more straight pipe between the nut and the fitting on the end of the rubber pipe, compared to this old one. This extra solid pipe is pushing the hose up against the inner wing.
Well looks like you have spotted a difference that could cause it. If you zoom in on picture 2 of my previous post it looks like mine has a similar length (or possibility a little bit shorter) to your new one.
- Posts
- 11,020
- Location
- North of the Wall
Yeah, I noticed that before. I reckon yours is just about the same. But, yours doesn't look as though it touches the inner wing!
- Posts
- 11,020
- Location
- North of the Wall

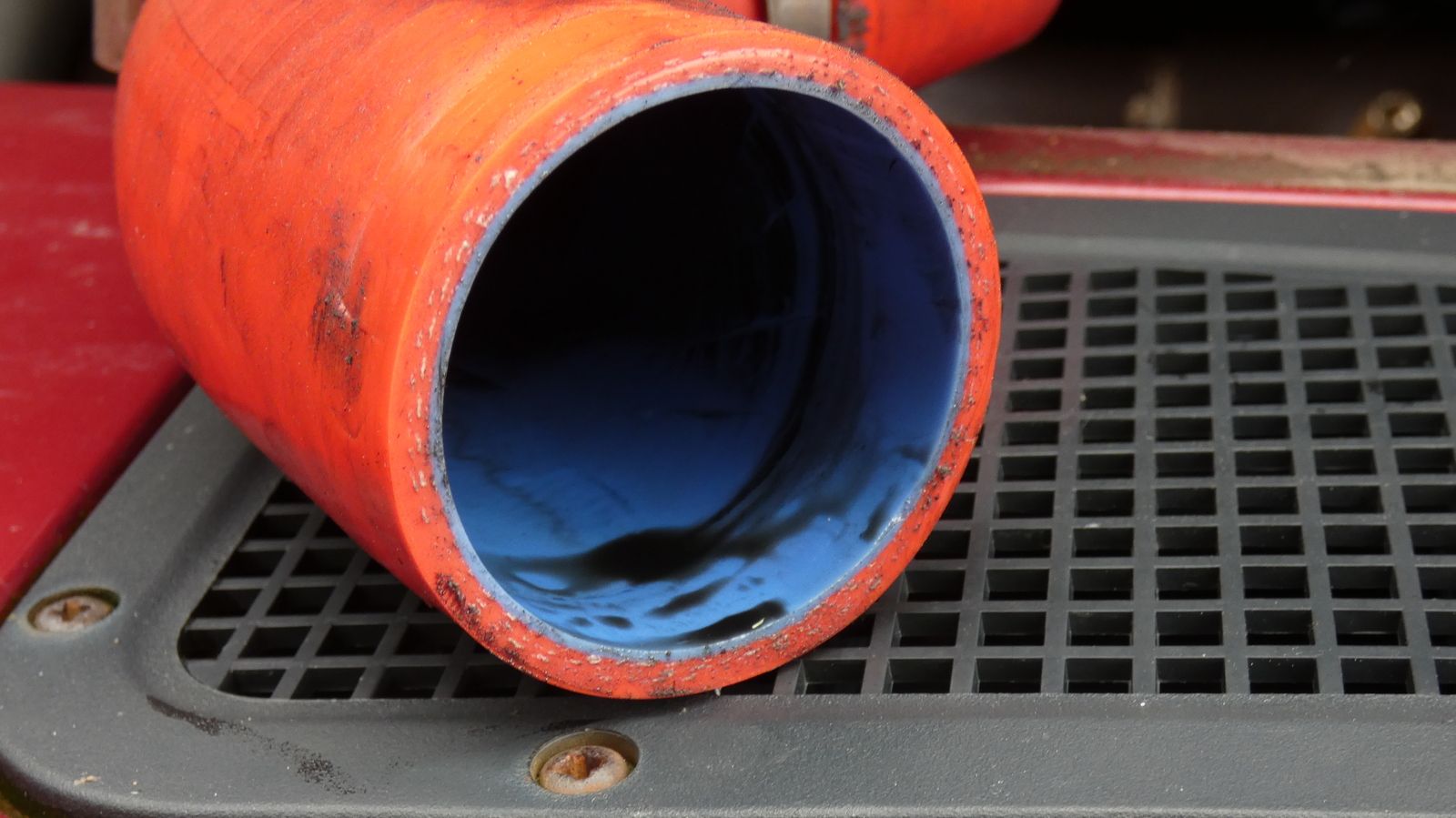

Having not used the Landy much for months, due to a sever feedback through the brake pedal issue, It's now ready to be driven as per before. So, my attention is now going to be back on to oil consumption. I think my paranoia with the oil cooler pipe has mostly subsided (for now anyway) After the engine rebuild I bought a boost gauge and oil pressure gauge to help me keep an eye on the engine. Boost gauge was straight forward, but stiil hadn't wired the light or fitted the oil pressure gauge. Done that now, but when I was fitting the oil sensor to the block I had the mrs running the engine with a few revs on so I could see if the connection was leaking. I was nearly smoked like a kipper as I lay underneath the engine I've taken the turbo hoses off to have a look. put the top hose on the radiator and very quickly oil began to trickle down and pool.

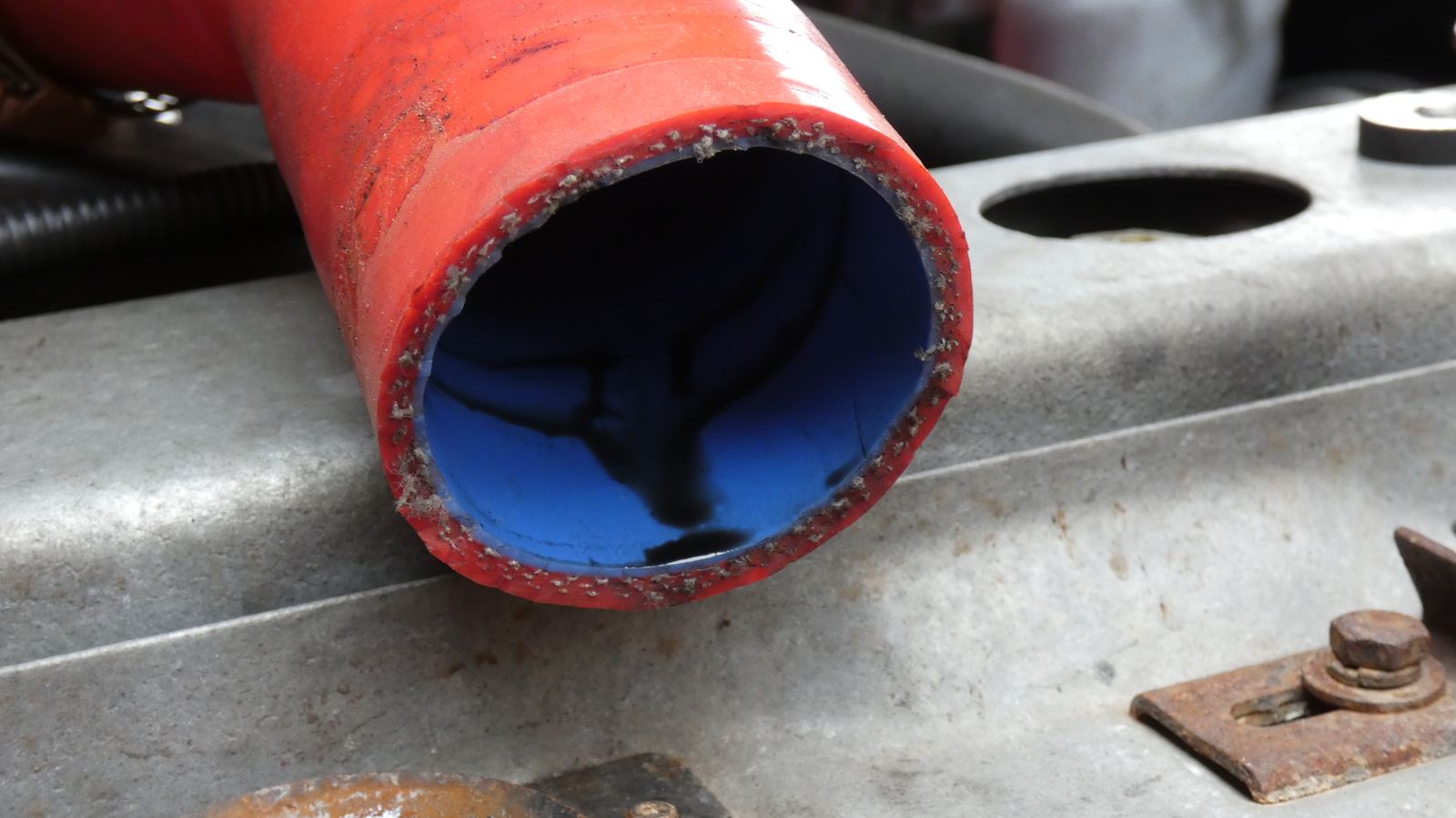

This is the short bit of pipe that attaches immediately to the turbo
I know a turbo passes oil and no one can say how much to expect. However, that does look excessive to me. Obviously, I'm hoping (maybe clutching at straws) that it is something else other than the honing.This is a replacement turbo for the initial refurbed one I put in. This one did make a massive difference to the performance of the Landy when the Turbo placed swapped the first one out. So, it's compressing better than the first one, but is still passing 'some' oil. Question is, is it enough to be my oil consumption cause? This one has been in just over a year. I might look in to changing the cartridge in it, though I'm not sure if this involves new seals? Or, can you just change the seals? More to learn!
I've taken the turbo hoses off to have a look. put the top hose on the radiator and very quickly oil began to trickle down and pool.This is the short bit of pipe that attaches immediately to the turbo
I know a turbo passes oil and no one can say how much to expect. However, that does look excessive to me. Obviously, I'm hoping (maybe clutching at straws) that it is something else other than the honing.This is a replacement turbo for the initial refurbed one I put in. This one did make a massive difference to the performance of the Landy when the Turbo placed swapped the first one out. So, it's compressing better than the first one, but is still passing 'some' oil. Question is, is it enough to be my oil consumption cause?
This one has been in just over a year. I might look in to changing the cartridge in it, though I'm not sure if this involves new seals? Or, can you just change the seals? More to learn!
Doesn't look too excessive to me - certainly wont give you the oil consumption you have. A new cartridge will have new seals, the seals that "go" are the control seals that keep the oil in the compressor/turbine shaft bearing. As far as I know taking a cartridge apart will then require the turbo being re-balanced, so best left to a remanufacturer.
Saw a clueless bloke have good fortune with a cordless drill and hone on youtube a while back if you do decide to have the head off in the end
Saw a clueless bloke have good fortune with a cordless drill and hone on youtube a while back if you do decide to have the head off in the end
- Posts
- 11,020
- Location
- North of the Wall
Obviously, that's not what I'm wanting to hear.
It looks like a lot to me I've been googling and the replacement CHRA's come already balanced. Just watched this video and it looks fairly straightforward. (warning the music is a bit repetative)
You can tell I'm trying to avoid that!
I'll have a look on Youtube for it. Was he burning oil? I haven't had the Landy back on the road long enough to do a volume of oil/mileage comparison yet, but going by the smoke the other day it must be the same or similar.It looks like a lot to me
Well, it's less than the mostly over 200k mile turbos I have exposure to haha
Aye changing a cartridge for a new one is easy, They're quite cheap from a lot of the UK re-builders as well as the 300tdi turbo is common
Can't remember the cause but it was only on one cylinder and it did stop the thirst for oil
- Posts
- 11,020
- Location
- North of the Wall
Mine's only done 10K though!
Well, another way of looking at it is only that much has collected after 10k, the inside of the pipe would be lagged with oil if it were serious, plus silicone hoses do tend to swell with severe oil exposure (which yours has not)
Someone who knows what the passings of a newish turbo should look like will be along sometime soon at any rate
- Posts
- 11,020
- Location
- North of the Wall
Your probably right.
However, (clutching at straws) the oil is just blowing through and getting burned, so not much settling in the pipe at any one time!I've asked before. I think it's tricky to know how much is passing through, as I said above, it's possibly going through as a mist and getting burned. (Hopefully)Someone who knows what the passings of a newish turbo should look like will be along sometime soon at any rate
