2a restoration..PIC HEAVY!

Discussion in 'Members Vehicles/Projects' started by joe_m, May 30, 2018.

< Previous Thread | Next Thread >
  1. joe_m

    joe_m Active Member

    Joined:
    Mar 13, 2009
    Posts:
    96
    Likes Received:
    54
    Location:
    Yorkshire

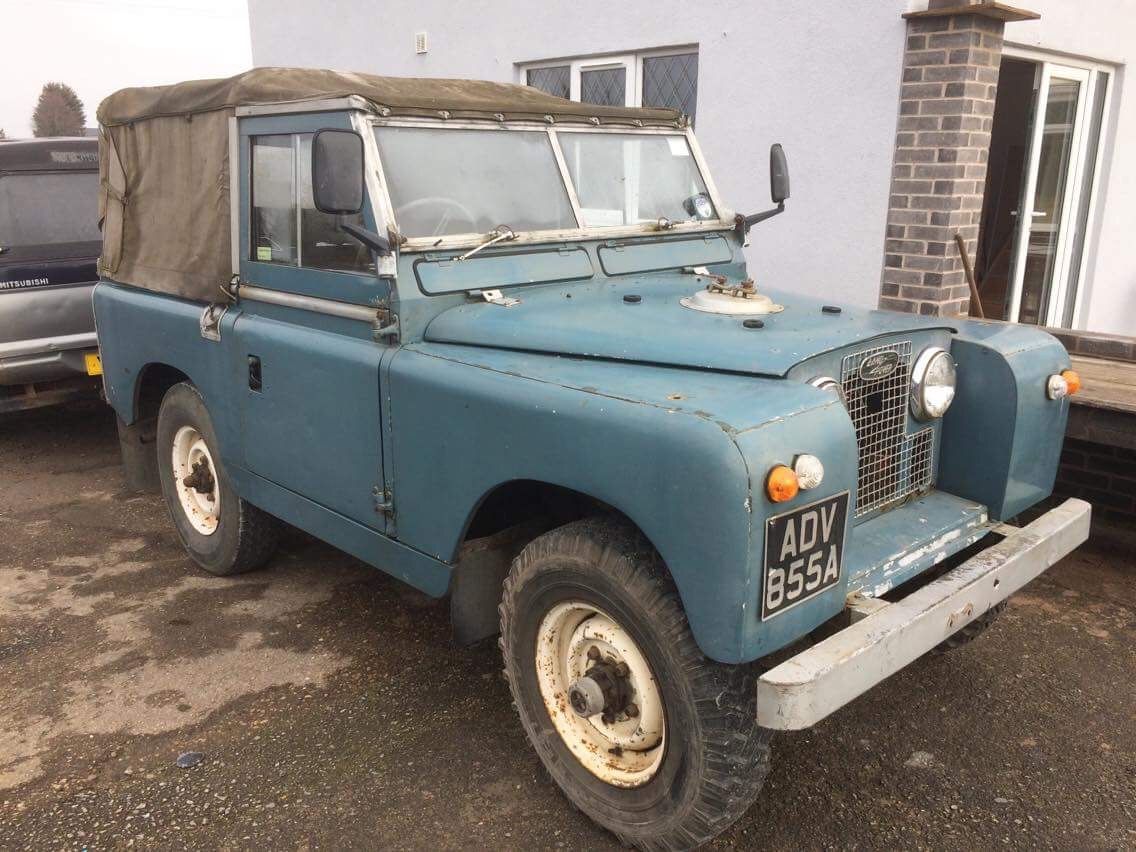

    BF1512D2-E3F7-493D-BD12-B09DF64786A1.jpeg I acquired my 2a about a month ago. It came from a close family friend. He and his friend have passed the Landy back and forth for the last 12 years.




    I’ll be putting it on a galvanised chassis. The bulkhead looks ok, though it’s had a few wonky looking repairs. So I plan on stripping it back to bare metal and trying to tidy it up.

    The engine (2 1/4 petrol) runs well..it had a misfire and was running rich. I rebuilt the carb and lapped both sides of the body. This seamed to cure it but not completely. I found that the accelerator pump was sticking, and looking at the state of it someone had some pliers around it before. The spring was kipped over, thus binding on the bore. I wanted to get the engine running right before I pulled it out.

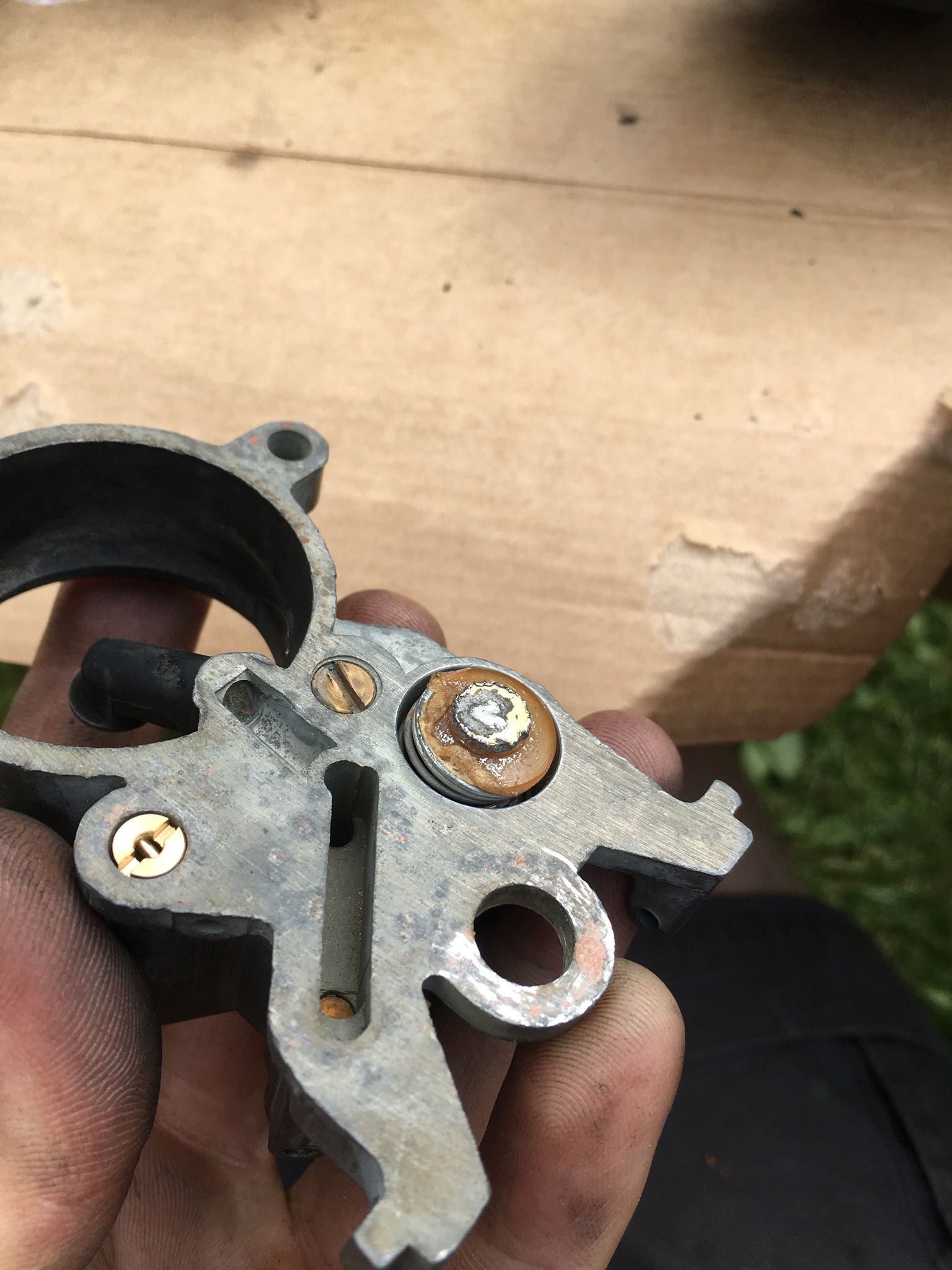

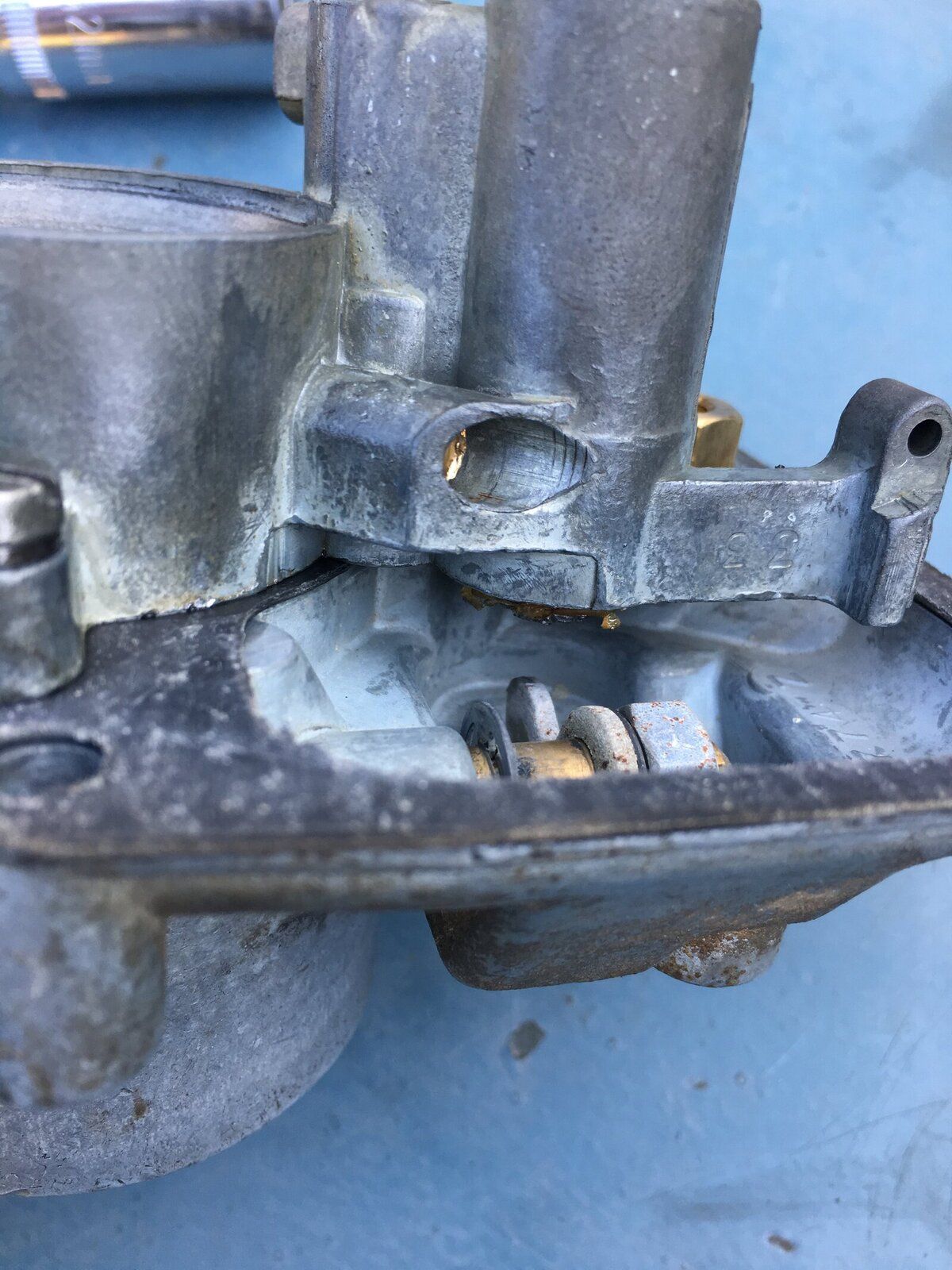

    Here you can see the accelerator pump stuck. And the damage to the end of it implies it’s been jammed in before!
    CB7556E3-AC48-4FFF-8DEB-864B88DD8726.jpeg 8DF50698-0A92-4D04-98E4-42486F008E94.jpeg

    Last edited: May 31, 2018
  2. joe_m

    joe_m Active Member

    Joined:
    Mar 13, 2009
    Posts:
    96
    Likes Received:
    54
    Location:
    Yorkshire
    Could someone please advise me on how to load pictures on to here as I can’t seem to do it

  3. joe_m

    joe_m Active Member

    Joined:
    Mar 13, 2009
    Posts:
    96
    Likes Received:
    54
    Location:
    Yorkshire

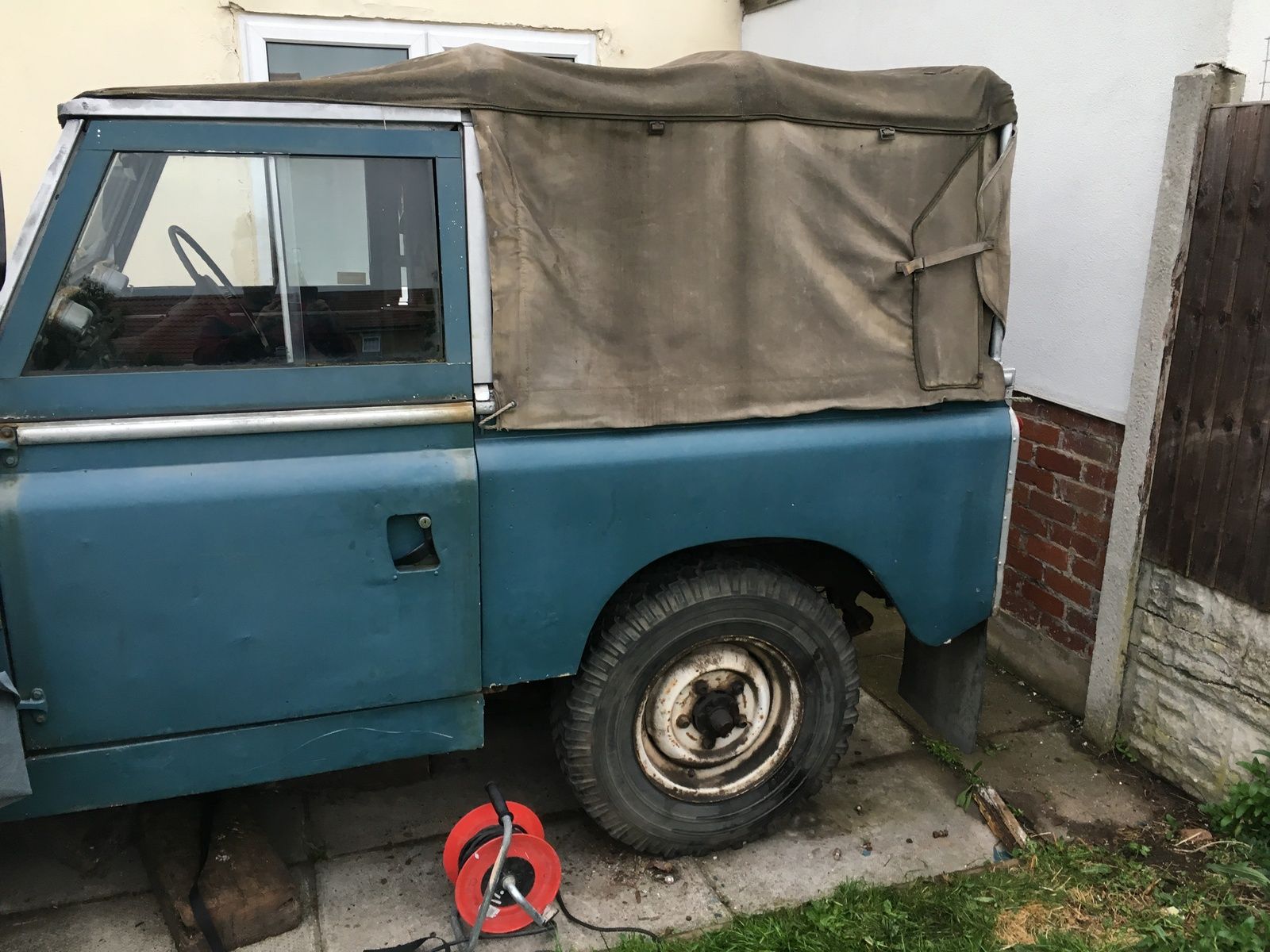

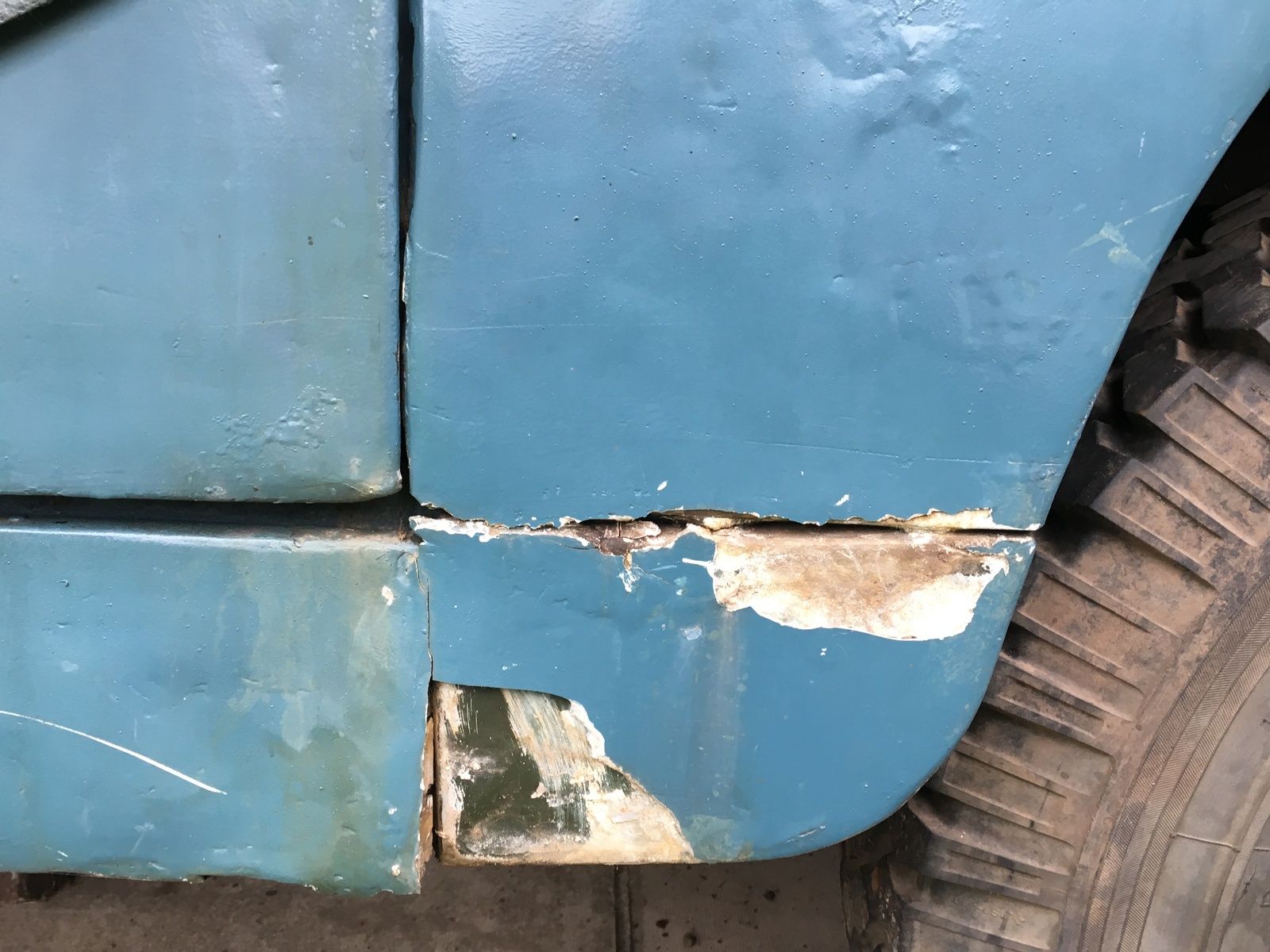

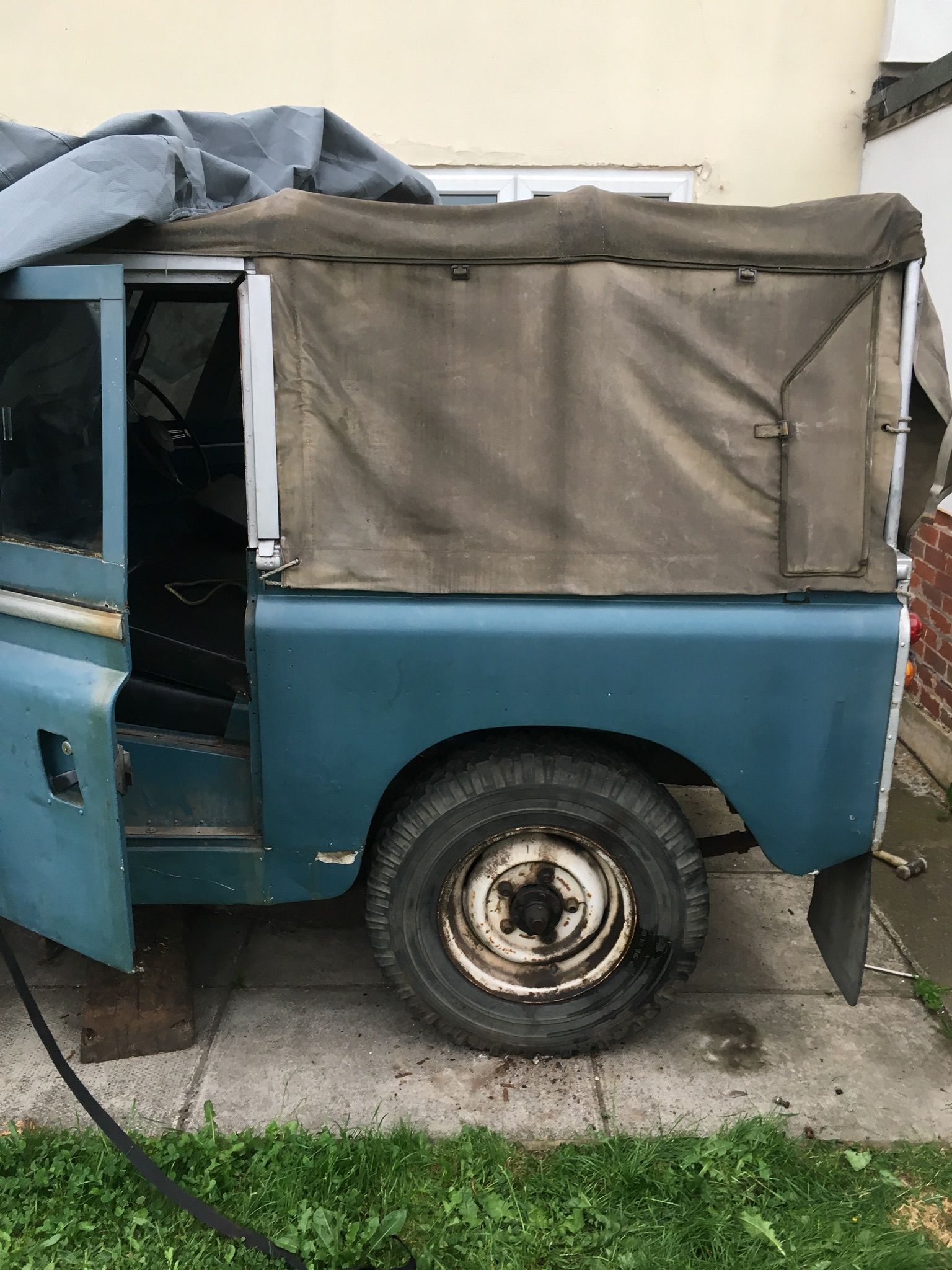

    I’ve started to take the tub off the back, and the galvanised chassis is ordered! Someone has gone a little bit mad with the body filler, filling a lot of the panel gaps/seams. The rear sections of the sill were full of the stuff!
    CAADB888-B6BF-4106-BF01-54A71A94A6ED.jpeg 8DA57DF5-D560-4867-A016-77E4B1DDABAF.jpeg

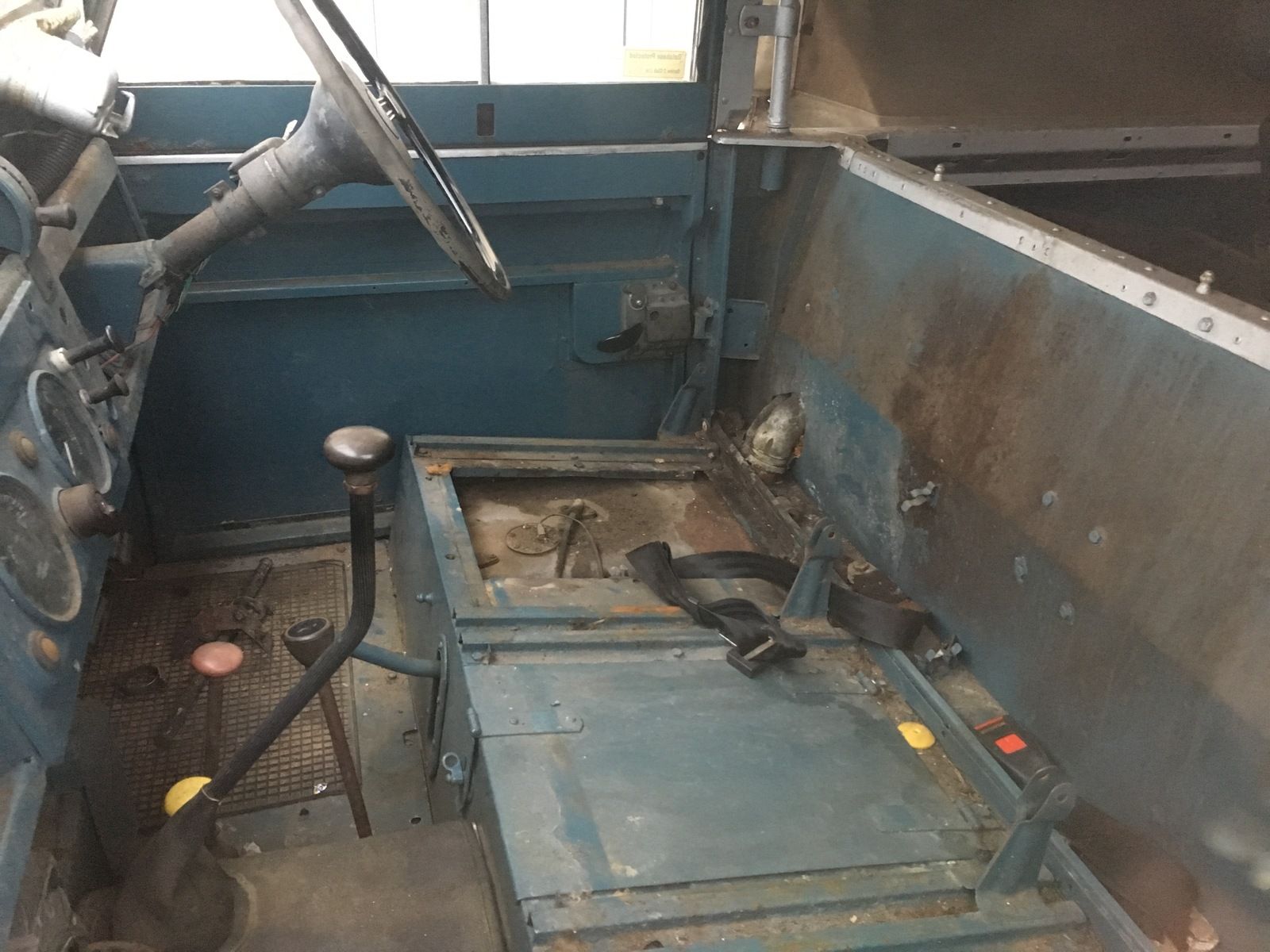

    Remarkably, the panels are all pretty bloody straight under all the filler! So I think I’ll be knocking it all out. The plan was originally to leave the bodywork as is. I like a Landy that tells a story. I can appreciate nice shiny paint work etc but it’s not my thing! But I think with the work to the panels I may have to concider painting it.

    The tub is all loose now..everything came off pretty easily. Only 2 bolts I had to take the grinder to. So hopefully tonight I will get it lifted off. I will post more updates this eve!
    5FF74FA7-E83B-4386-B837-C74F22F0251E.jpeg D11CC79A-F5A9-4A9C-B25F-FDA3323851A4.jpeg

  4. norried

    norried Active Member

    Joined:
    Feb 27, 2018
    Posts:
    210
    Likes Received:
    48
    Location:
    Stow
    The easy bit is stripping t down. It’s rebuilding that takes the time.

    Norrie.

    joe_m likes this.
  5. joe_m

    joe_m Active Member

    Joined:
    Mar 13, 2009
    Posts:
    96
    Likes Received:
    54
    Location:
    Yorkshire
    You’re right there! It’ll get done.. I think the main thing with restoration is to take your time. It’s all in the preparation

  6. Paul D

    Paul D Old, nackered 'n broke, but the Landy is fine . :) LZIR Despatch Agent

    Joined:
    Jun 3, 2007
    Posts:
    14,902
    Likes Received:
    2,517
    Location:
    Doncaster
    Nice ..

  7. norried

    norried Active Member

    Joined:
    Feb 27, 2018
    Posts:
    210
    Likes Received:
    48
    Location:
    Stow
    As for filler I’ve not used any on my panels. I’ve hit all the dents out the best I can and the rest can stay.

    Norrie.

    flat likes this.
  8. joe_m

    joe_m Active Member

    Joined:
    Mar 13, 2009
    Posts:
    96
    Likes Received:
    54
    Location:
    Yorkshire
    Thanks Paul, it will be!

    Norrie, I won’t be putting any filler back in it!! I dont. Agree with the stuff. I’d rather see an honest vehicle than one full of filler. The stuff goes against the grain for me. Especially on a Land Rover!

    Paul D likes this.
  9. joe_m

    joe_m Active Member

    Joined:
    Mar 13, 2009
    Posts:
    96
    Likes Received:
    54
    Location:
    Yorkshire

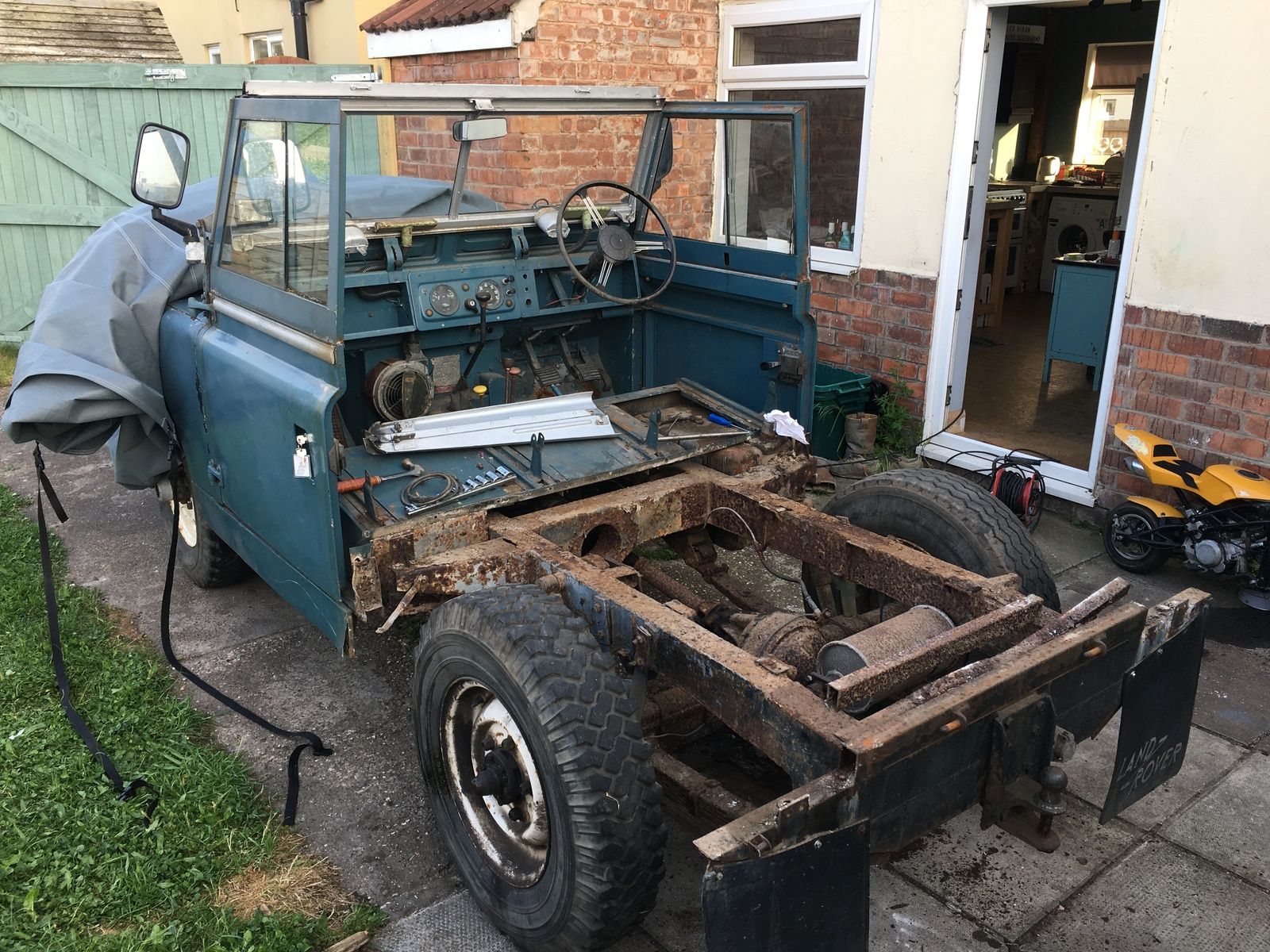

    The body is off. 3 of us managed it very easily. The back of the wiring loom was a mess. Who ever fitted the towing electrics did a rum job! Anyway; I’ll sort that when I come to put it back together!


    The top of the chassis is in pretty rough condition too. Plenty of holes to be found all around the place.

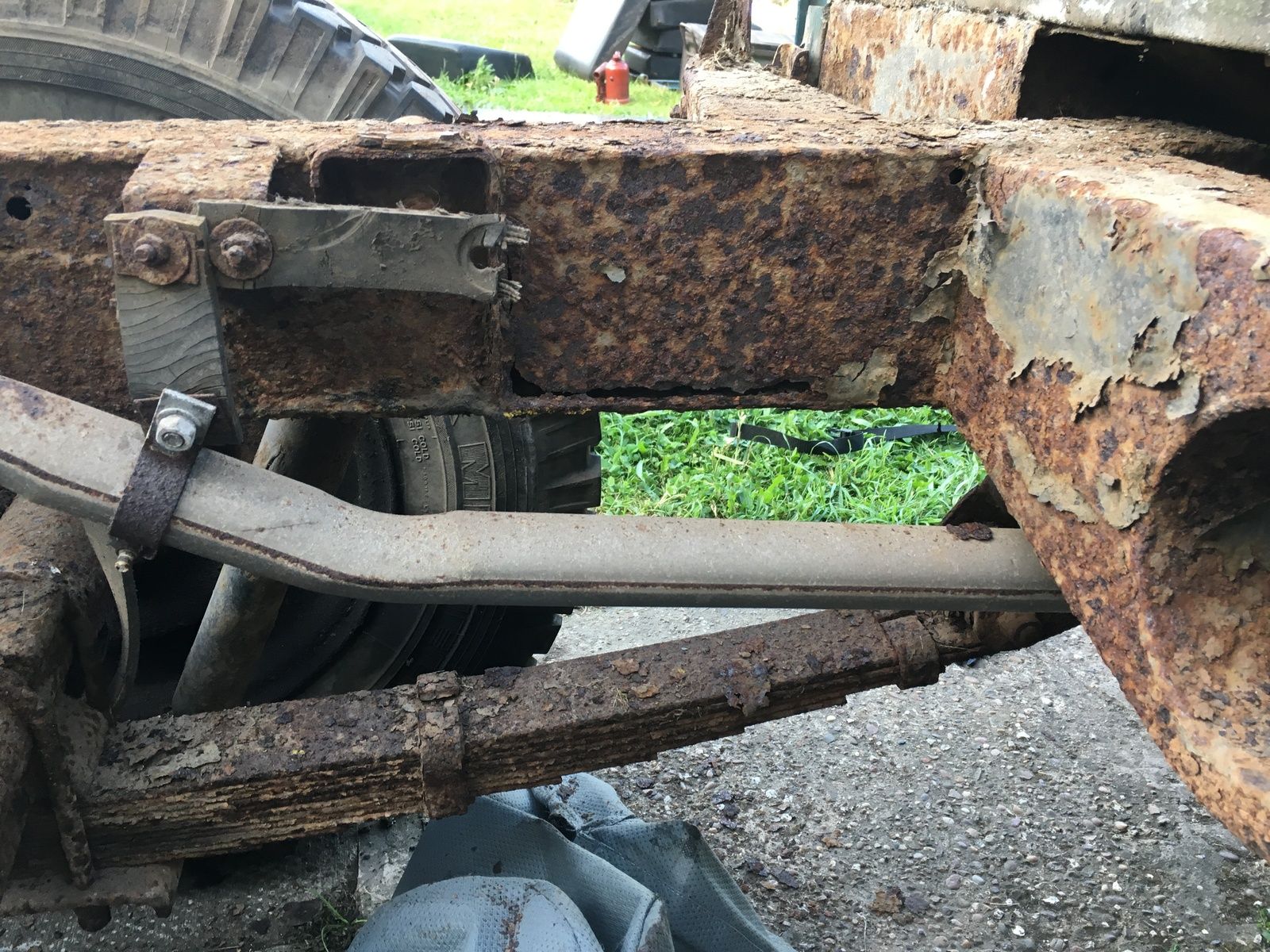

    The only shot I took of the chassis. All very thin and plenty of rough patches to be found!

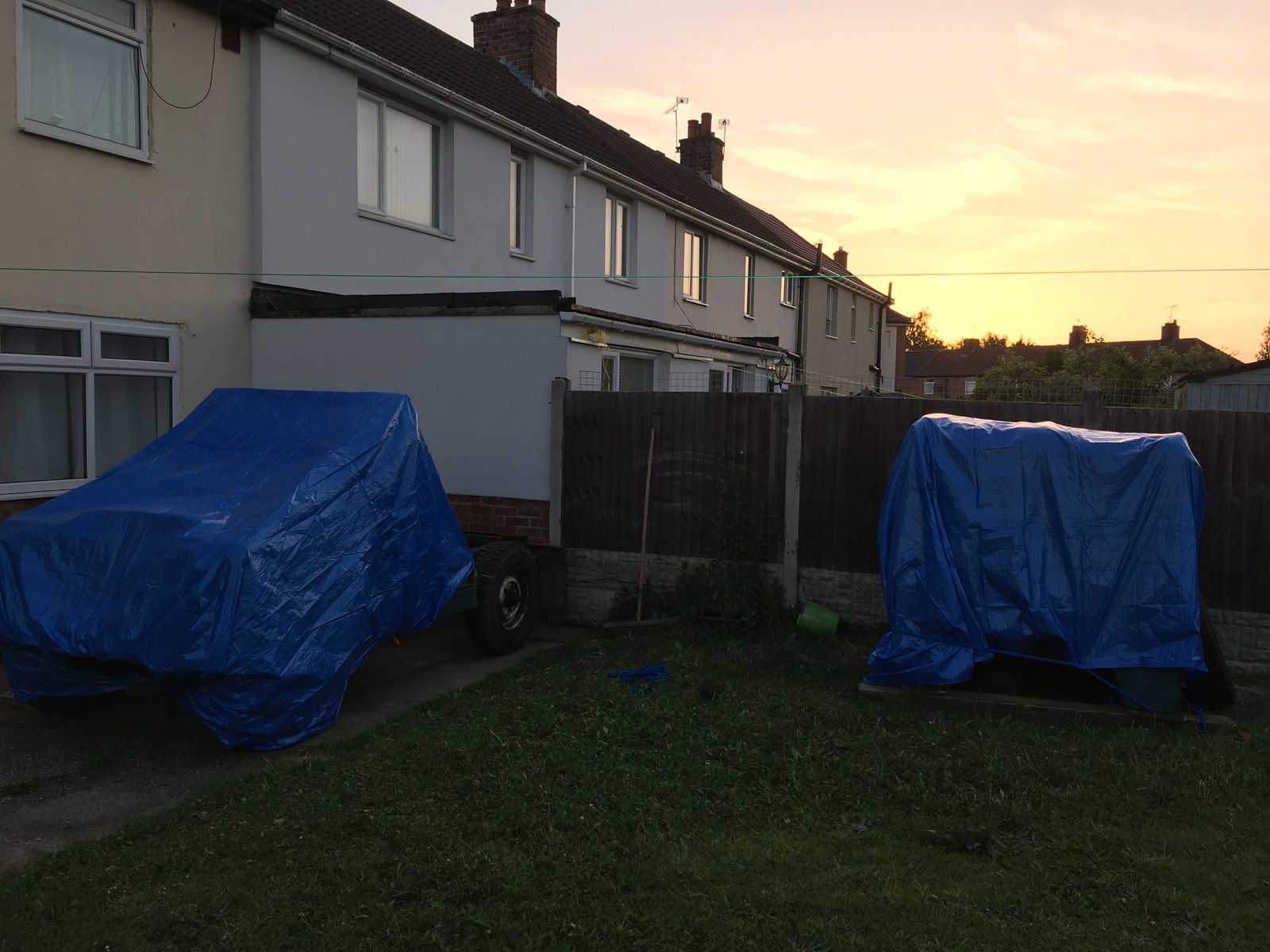

    Wrapped up for the night. Going to invest in some bungee straps. The blue nylon rope is crap! It wanted to unwind before I got time to singe the end. B4601C01-C0E9-4E54-94C9-5D323C2FFF0D.jpeg

    That’s all for this eve. Tha lass is coming to stay for the weekend so might not get much time on the landy. Going to work towards getting to the bulkhead and start work on that first! The more I look at it the more I see.

    TorsionBhudda likes this.
  10. joe_m

    joe_m Active Member

    Joined:
    Mar 13, 2009
    Posts:
    96
    Likes Received:
    54
    Location:
    Yorkshire

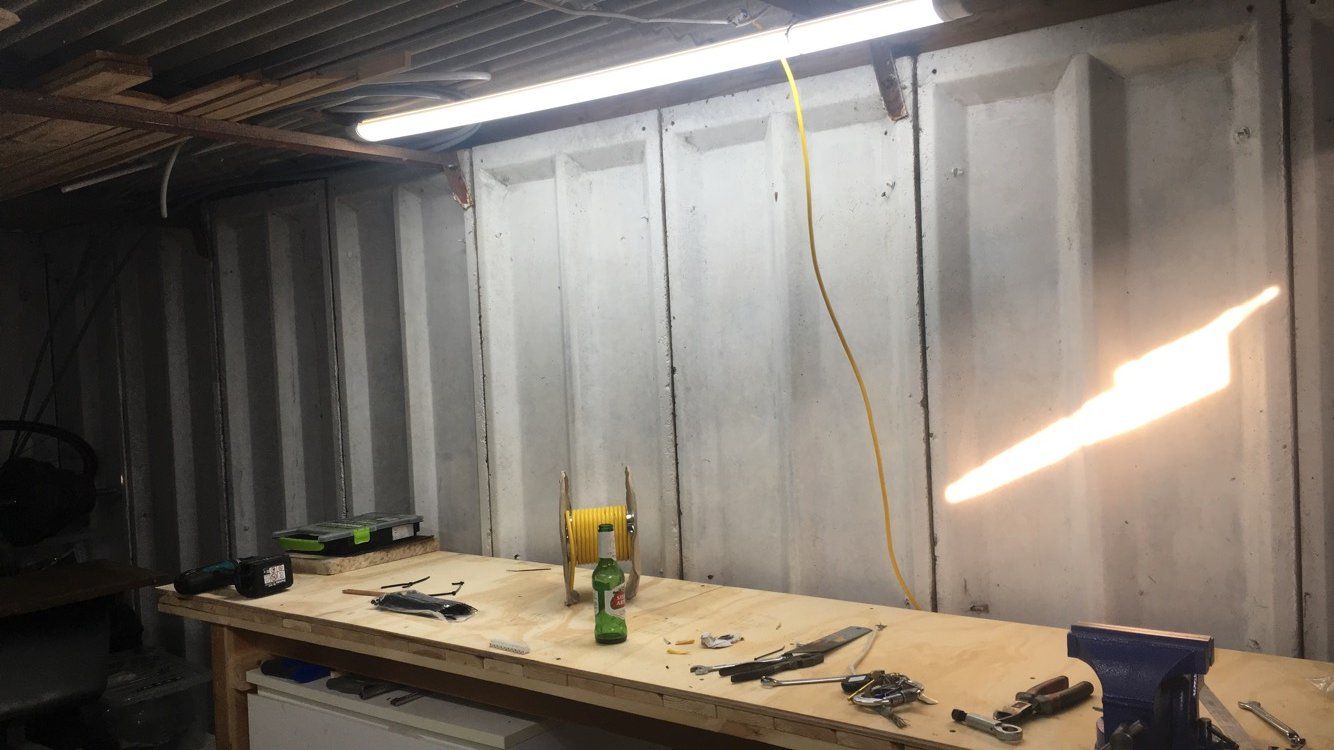

    Nowt done on the Landy tonight. But I did get time to throw a bench together at work today and sort the garage. I’ve been meaning to do it ever since I moved in 3 years ago. But unfortunately doing the house up took priority.

    Anyway, it’s a temporary permanent measure I think! CF823DE2-D59D-4BEA-9E96-1B9FA1597E14.jpeg

    TorsionBhudda and flat like this.
  11. Kev12

    Kev12 Well-Known Member

    Joined:
    Jan 1, 2018
    Posts:
    1,033
    Likes Received:
    499
    Location:
    Cornwall
    It's only temporary if it doesn't work ;)

    Looking forward to more pics

    joe_m likes this.
  12. joe_m

    joe_m Active Member

    Joined:
    Mar 13, 2009
    Posts:
    96
    Likes Received:
    54
    Location:
    Yorkshire

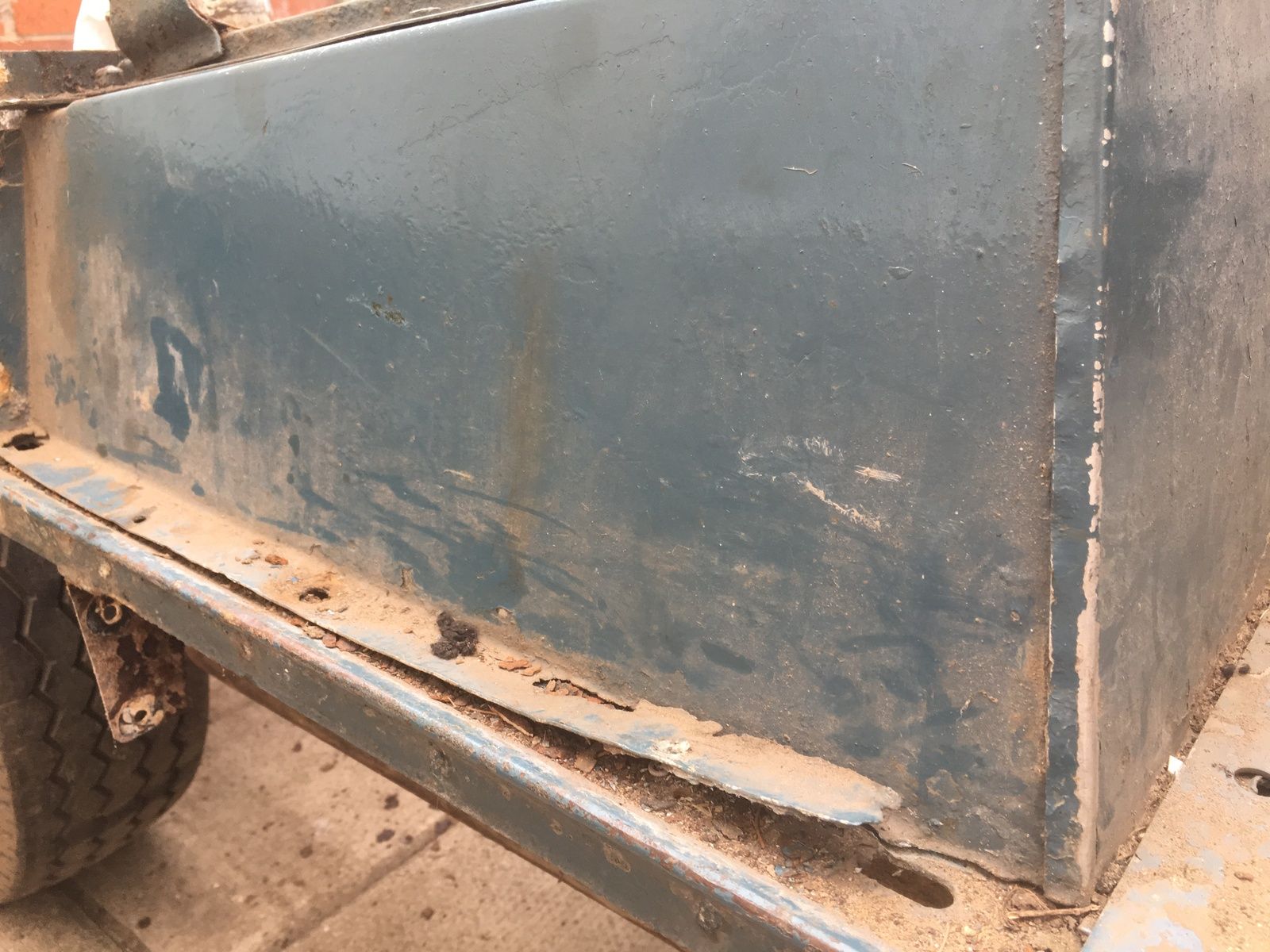

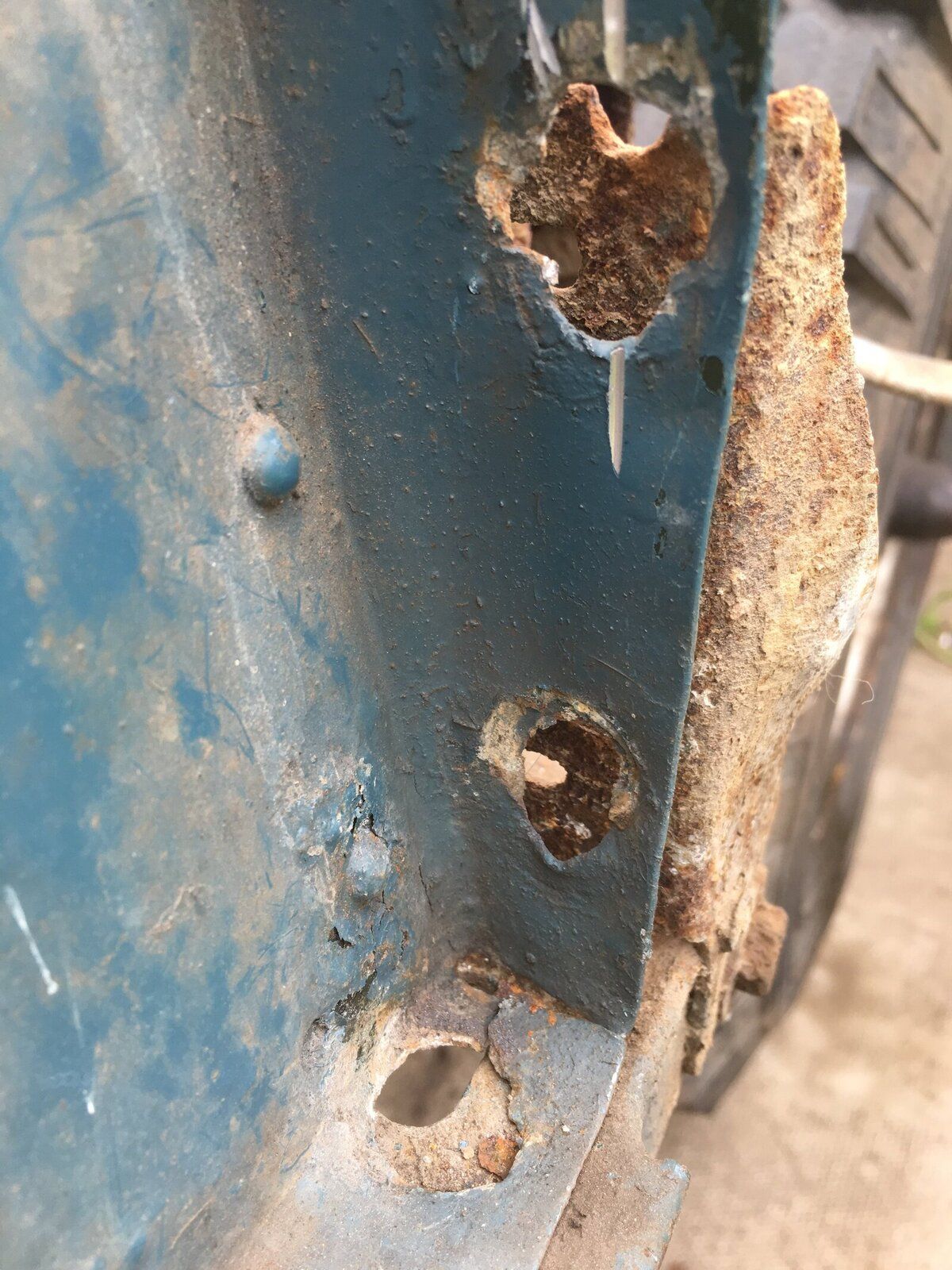

    Afternoon! Well, I’m managing to get an afternoon of work in on the Landy. Just taking sills off, floors out. Seat box etc! Discovering quite a bit of damage to the ally pannels. What do people tend to do to repair them? Any threads on it? I’m used to working with steel..and I can weld and grind that quite happily! Any input is welcome. I’ll post more pics of it falling to bits this eve!

    A4DC2CB8-79BE-4F5C-B744-D89EA52752C7.jpeg 42300182-0721-4917-9226-CD3BAD519D9F.jpeg

  13. TorsionBhudda

    TorsionBhudda Well-Known Member

    Joined:
    Nov 15, 2014
    Posts:
    1,333
    Likes Received:
    220
    Location:
    Falkirk
    You can get seatbox ends from YRM that pop rivet in and fit well. https://yrmit.co.uk/product-category/series-2-3-swb/seat-box-series-2-3-swb/

    joe_m likes this.
  14. joe_m

    joe_m Active Member

    Joined:
    Mar 13, 2009
    Posts:
    96
    Likes Received:
    54
    Location:
    Yorkshire
  15. joe_m

    joe_m Active Member

    Joined:
    Mar 13, 2009
    Posts:
    96
    Likes Received:
    54
    Location:
    Yorkshire

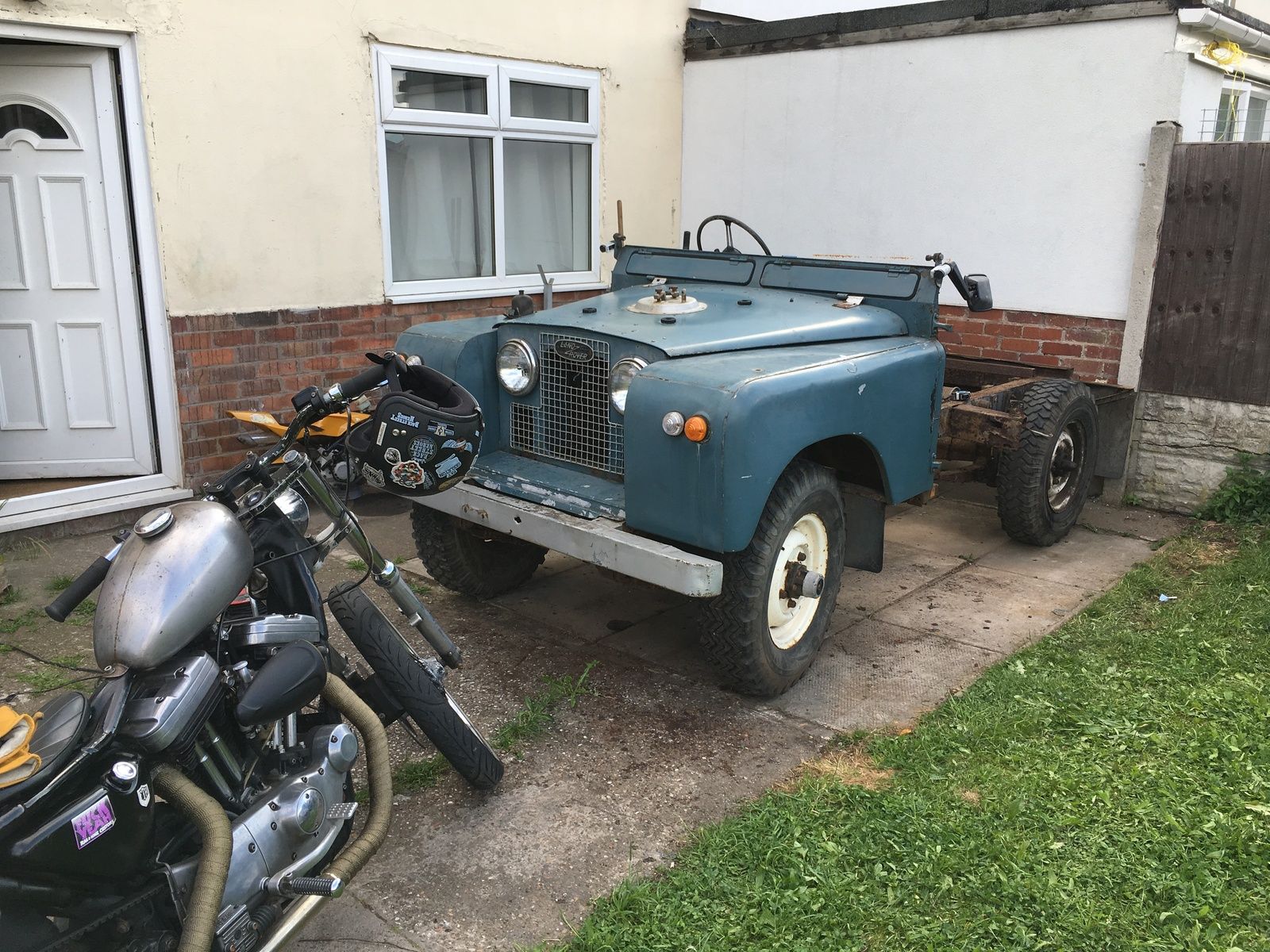

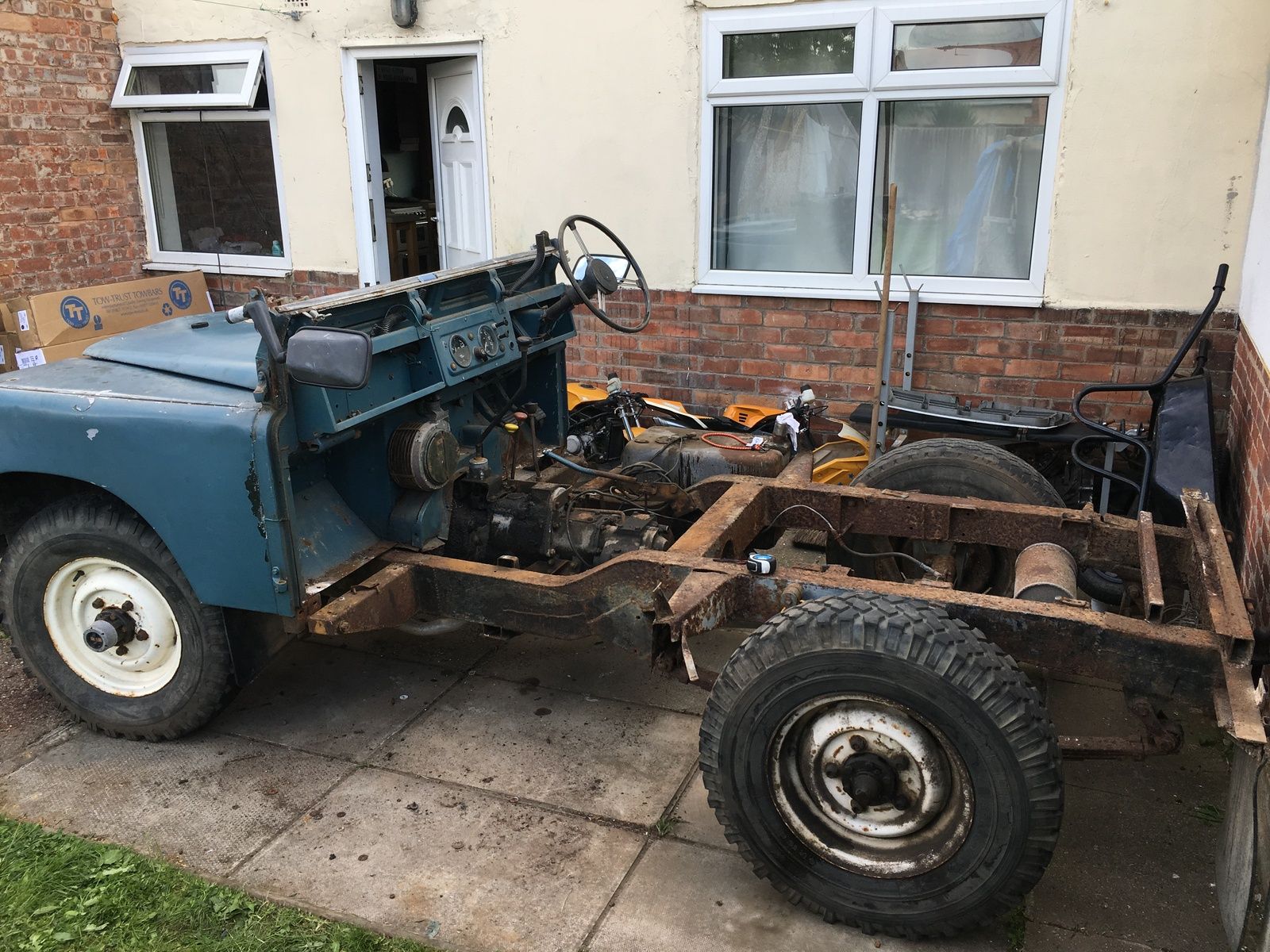

    So, not a geat deal done this afternoon. But better than nothing! Seat box is out, floors, tunnel, sills and windscreen all removed. The sill-bulkhead bolts on the o/s snapped the plate behind. So I had to cut them. The only way I could get in was to put a slit in the sill itself. But it’ll weld up!

    C89F177A-9C16-4BB4-A898-87C2C3F4D0E7.jpeg DBDE7236-7C13-4F21-9773-769DAEE4B3DC.jpeg

  16. joe_m

    joe_m Active Member

    Joined:
    Mar 13, 2009
    Posts:
    96
    Likes Received:
    54
    Location:
    Yorkshire
    This is very true mate!!

  17. TorsionBhudda

    TorsionBhudda Well-Known Member

    Joined:
    Nov 15, 2014
    Posts:
    1,333
    Likes Received:
    220
    Location:
    Falkirk
    No problem Joe they do quite a few repair panels and any i've used have been easy to fit and fit well they have detailed instructions for fitting their repair panels on website. Great Thread will be following your progress

  18. joe_m

    joe_m Active Member

    Joined:
    Mar 13, 2009
    Posts:
    96
    Likes Received:
    54
    Location:
    Yorkshire
    So I see mate. They look really good! I think I’ll be ordering a fair bit from them. Really handy to know about. Also, I see they do lots of stainless fixing kits...I’ll be sure to use those!

    Nice to know someone is out there watching!! Glad you’re enjoying it.

    TorsionBhudda likes this.
  19. Paul D

    Paul D Old, nackered 'n broke, but the Landy is fine . :) LZIR Despatch Agent

    Joined:
    Jun 3, 2007
    Posts:
    14,902
    Likes Received:
    2,517
    Location:
    Doncaster
    Gotta agree. I've used YRM a lot recently on my 90, and can vouch for the good quality and good fit. For instance, a bulkhead repair piece, an A-pillar with foot, footwell and floor pan all slotted together and only needed holding with one pin (actually a 3/4 socket ratchet in the hole) to check fit then didn't warp when welding, despite my best efforts to screw it up!

    joe_m likes this.
  20. joe_m

    joe_m Active Member

    Joined:
    Mar 13, 2009
    Posts:
    96
    Likes Received:
    54
    Location:
    Yorkshire
    Ace! Good to know. I’ll definitely use them upon that recommendation.
