200TDI Fuel injection pump
- Thread starter Gun7354
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 1,205
- Location
- The Flat lands of Cambridgeshire
200tdi Fuel Pumps, seem to be my specialist subject at the moment
Solenoid wire goes on the spade end back drivers side of pump..
The fuel pipes to injector will only go in one place if still paired together.
re the other pipes front low down but on top is the feed from filter
return is at back of pump just above solenoid
will post a couple of pics up for you after i have braved the cold and been to the shed to take pics of mine, which is just back from a dodgy diesel specialist..
Solenoid wire goes on the spade end back drivers side of pump..
The fuel pipes to injector will only go in one place if still paired together.
re the other pipes front low down but on top is the feed from filter
return is at back of pump just above solenoid
will post a couple of pics up for you after i have braved the cold and been to the shed to take pics of mine, which is just back from a dodgy diesel specialist..
- Posts
- 1,205
- Location
- The Flat lands of Cambridgeshire

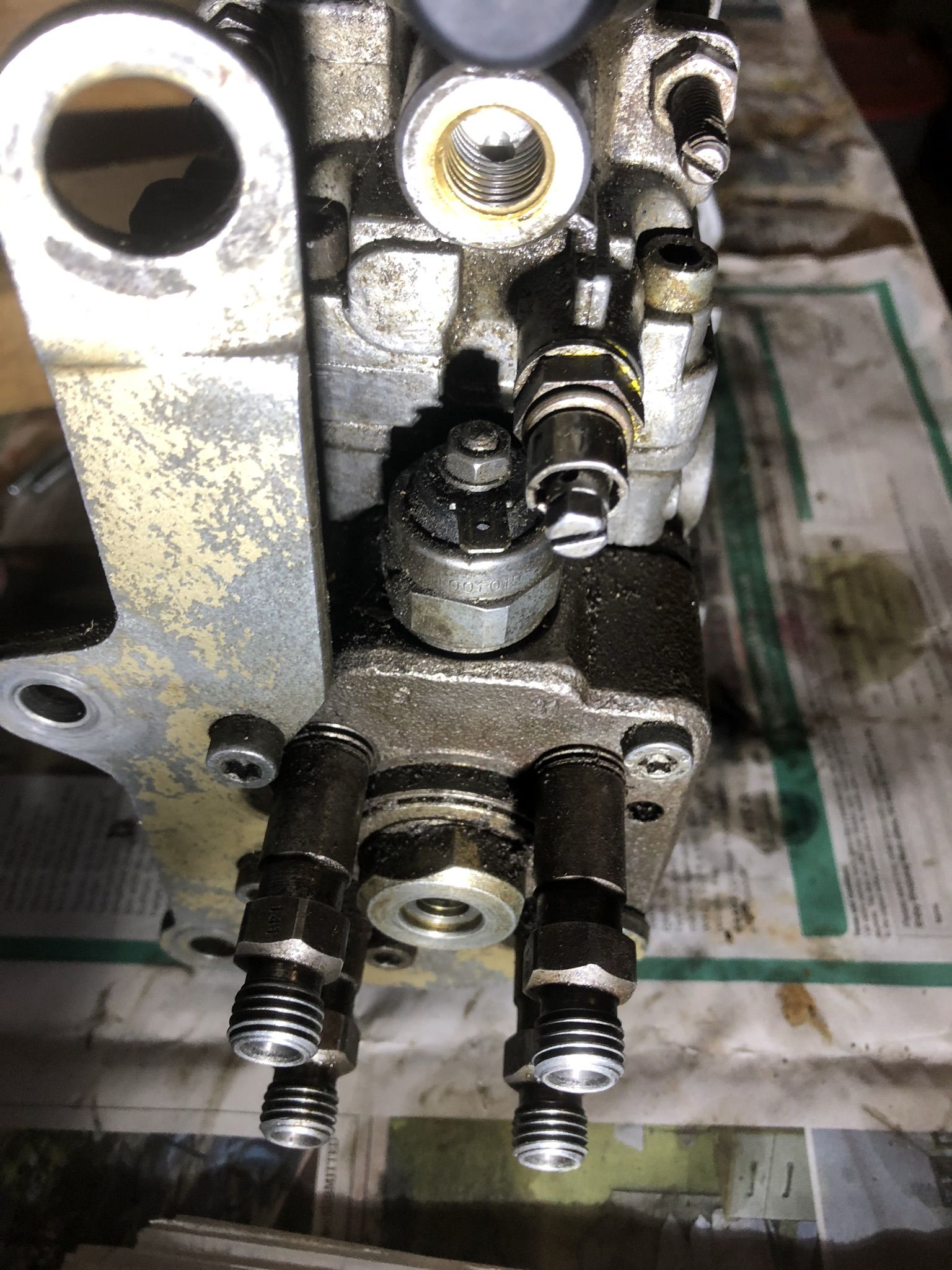

Stop solenoid and the return pipe from injectors
- Posts
- 1,205
- Location
- The Flat lands of Cambridgeshire
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
- Posts
- 1,205
- Location
- The Flat lands of Cambridgeshire
Who got heavy handed with your pump?
Cheers
mishap, my mate missed the pin still being in when we were getting ready to start it and i was inside on the key..DOh
Not as heavy handed as the diesel specialist it went to for repair, who sent it to somewhere else who said it was contaminated and the head siezed... funny it has run pre going.. so came back allegedly after a partial strip down and rebuild

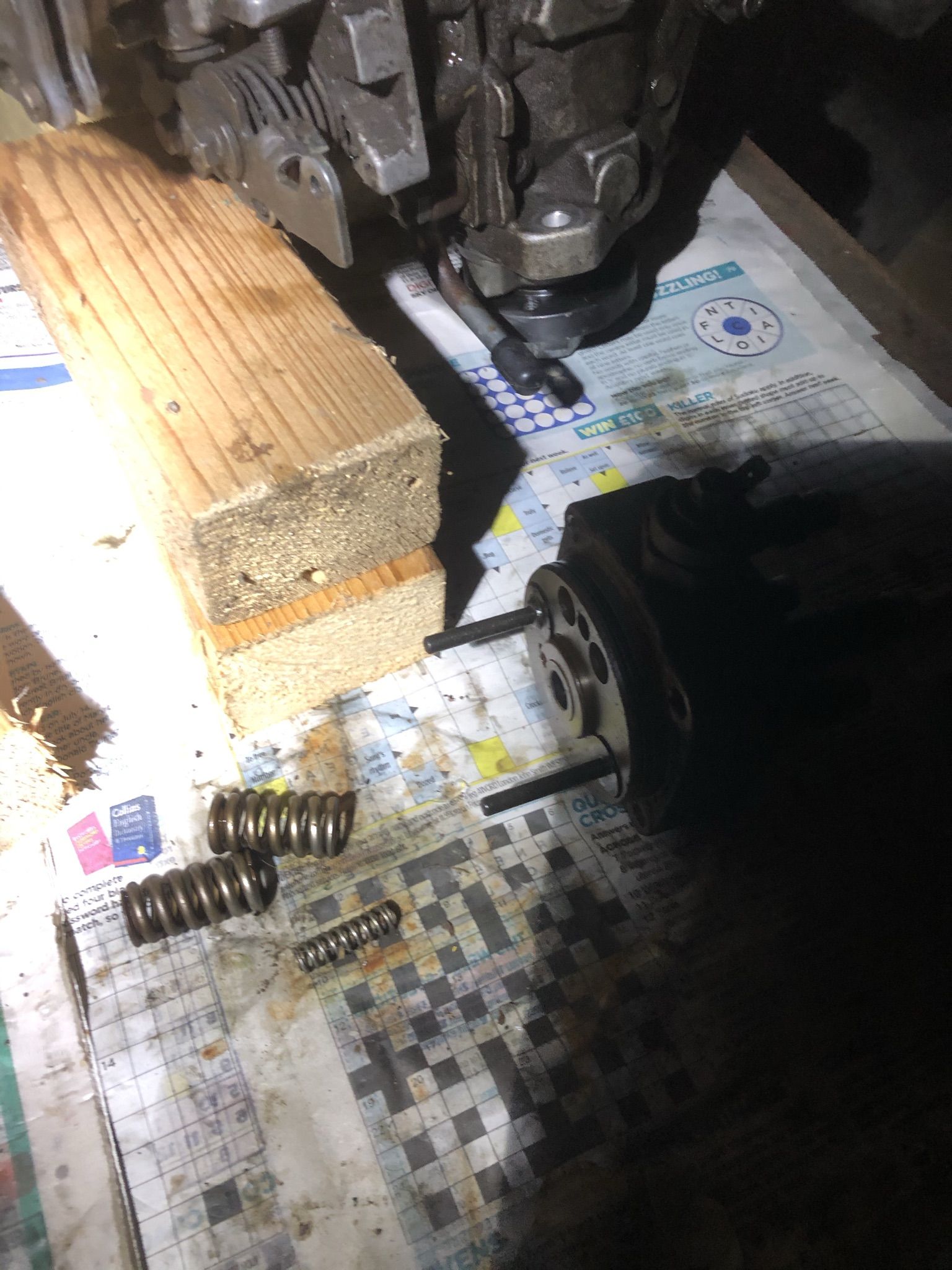

Took the head off thinking might try and swap them and make one good one out of two..

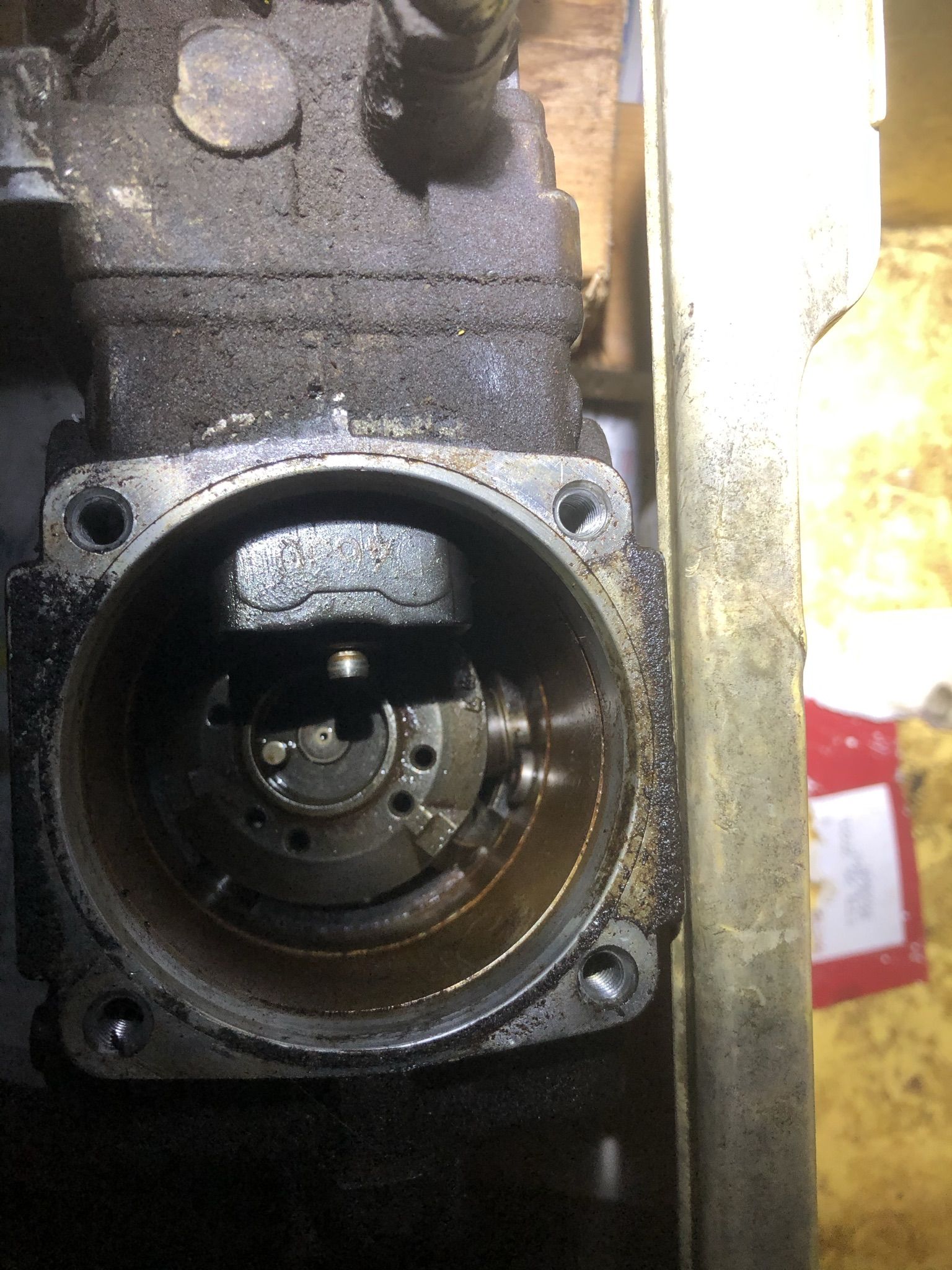

I found this
I found this

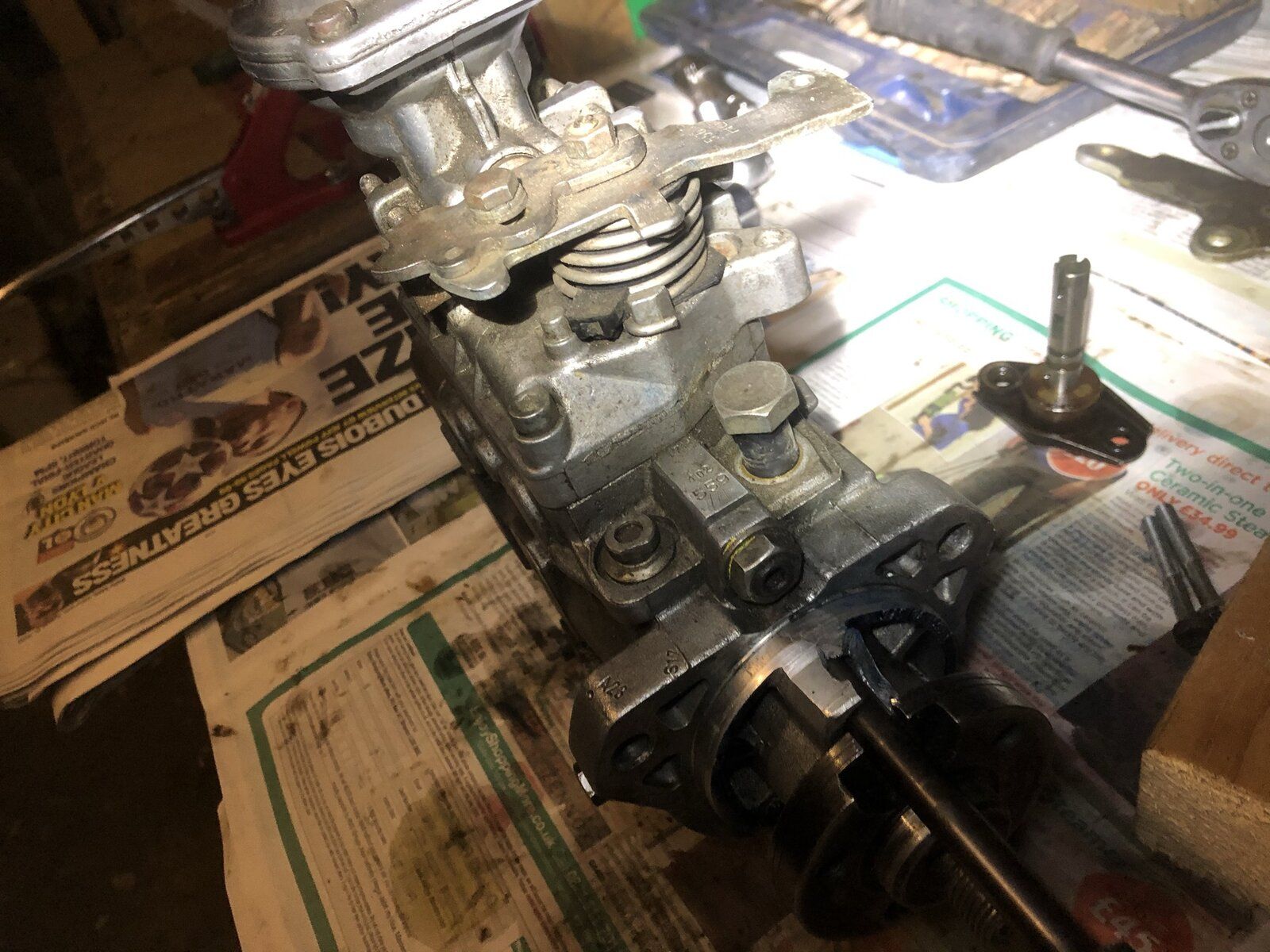

and this
So moral of story don't send Bosch Ve pumps to Fastline @ Kettering as they no longer do them, and they sent it on to Another Diesels Specialist who are clearly some cowboys..
or didn't want the job
going to be a conversation with Diesel Bob on Monday i think.
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
- Posts
- 1,205
- Location
- The Flat lands of Cambridgeshire
Not 100% but believe it was Merlin Diesel, missing a spring washers and stuff not in right place and the rotor at bottom is not seated correectly and the rollers are not in there recess..
Not happy to say the least..
Not happy to say the least..
- Posts
- 1,205
- Location
- The Flat lands of Cambridgeshire
payydg
Well-Known Member
- Posts
- 3,907
- Location
- Aberdeenshire
Diesel bob did my pump and injectors. Did a great job. Would recommend him all day long.
+1
v8250
Well-Known Member
- Posts
- 6,872
- Location
- Deepest Darkest...
@Cavey_P38 . as posted elsewhere, Diesel Bob rebuilt my pump and injectors too. They provide a great service, correctly priced and returned very well packaged. Yours will come back like this...
v8250
Well-Known Member
- Posts
- 6,872
- Location
- Deepest Darkest...
Can I share this with you all, an exploded component diagram of the Bosch VE FIP
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
v8250
Well-Known Member
- Posts
- 6,872
- Location
- Deepest Darkest...
v8250
Well-Known Member
- Posts
- 6,872
- Location
- Deepest Darkest...
I've posted this before...in addition to properly rebuilding FIP's, he also has a first rate sense of humour http://dieselbob.co.uk/SoapBox.aspx
- Posts
- 1,205
- Location
- The Flat lands of Cambridgeshire
@v8250 @neilly @Europa486 @payydg Thanks to you all, and other fellow members of landyzone
in my humble opinion that is what this forum is about, shared knowledge, shared experiences, keeping members upbeat when they are battling with their landy, shared triumphs and having a laugh along the way.
@Gun7354 Your welcome bud, have over the years received so much help and info from members am always happy to help where i can and give a bit back.
Re Diesel Bob
I saw his Rant on his website... fantastic..
Love the guy already..
Certainly highly recommended across the forum..
Will be Monday Job i think contact him and see if he wants both might ne the pump off my 300tdi project as well as that is not running right at all
in my humble opinion that is what this forum is about, shared knowledge, shared experiences, keeping members upbeat when they are battling with their landy, shared triumphs and having a laugh along the way.
@Gun7354 Your welcome bud, have over the years received so much help and info from members am always happy to help where i can and give a bit back.
Re Diesel Bob
I saw his Rant on his website... fantastic..
Love the guy already..
Certainly highly recommended across the forum..
Will be Monday Job i think contact him and see if he wants both might ne the pump off my 300tdi project as well as that is not running right at all
tottot
Well-Known Member
- Posts
- 8,073
- Location
- west wales coast
Diesel Bob nailed it there.
IT IS what all of the few people left who have any of now not so common, common sense think.
Thanks for putting it up v8250.
IT IS what all of the few people left who have any of now not so common, common sense think. Thanks for putting it up v8250.
