200tdi conversion....HELP!

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

pussa13

Active Member
Posts
160
Location
Leyburn North Yorkshire
Hi all...Help again please, just about finished you 200tdi conversion and I'm struggling with one or two things, first the air filter, what do I use ? I have the 200tdi and the old 19j pipes and filter boxes but can't figure out how to make them fit, and feel £200 + kit from Steve Parker is a bit OTT. What can I use, I never go near deep water if that helps. next is the wiring, I have been told not to wire the heater plugs up, why? Any tips on the wiring would be of help, I have both harnesses but the tdi one is just in a bag, I don't know what goes where !
Thanks.

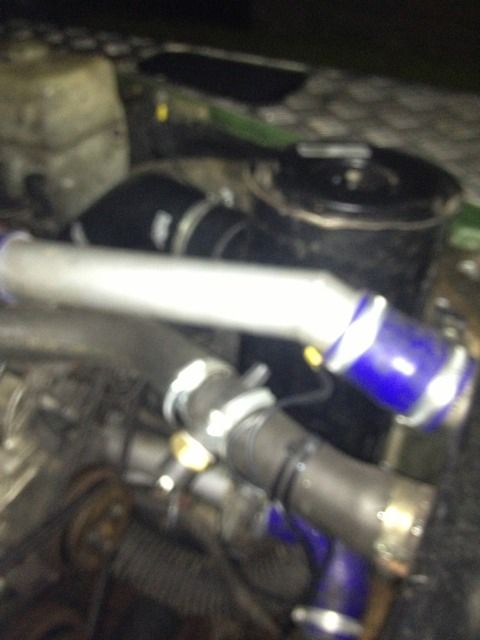

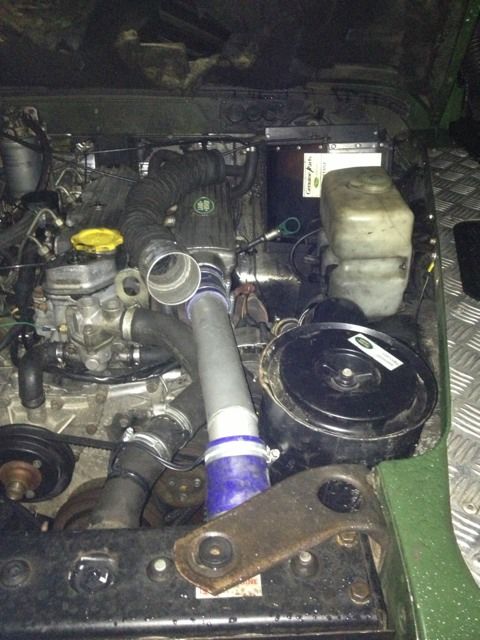

Keep the fixings that fitted the 200tdi airbox. I fitted mine vertically at the front using them. Keep all the air intake pipes as you will need them. Do you have a snorkel? ImageUploadedByTapatalk1348505245.305729.jpgImageUploadedByTapatalk1348505264.760803.jpg not easy and tight. You need a right angle silicone reducer 76mm to 63mm. Pipe runs along chassis. At top a 45° degree reducer same sizes. Mine is totally wade proof.

An alternative is flexi silicone 63mm tubing connected direct to snorkel pipe with connector. Just a couple of options
