200 tdi Engine checking / refurb??

Discussion in '200 TDi' started by steve2286w, Jun 11, 2019.

< Previous Thread | Next Thread >
  1. lynall

    lynall Well-Known Member

    Joined:
    Feb 28, 2011
    Posts:
    10,333
    Likes Received:
    3,920
    Location:
    Kent

    Nice, will be good to see it run.

    steve2286w likes this.
  2. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,073
    Likes Received:
    135
    Location:
    monkeyhangerland

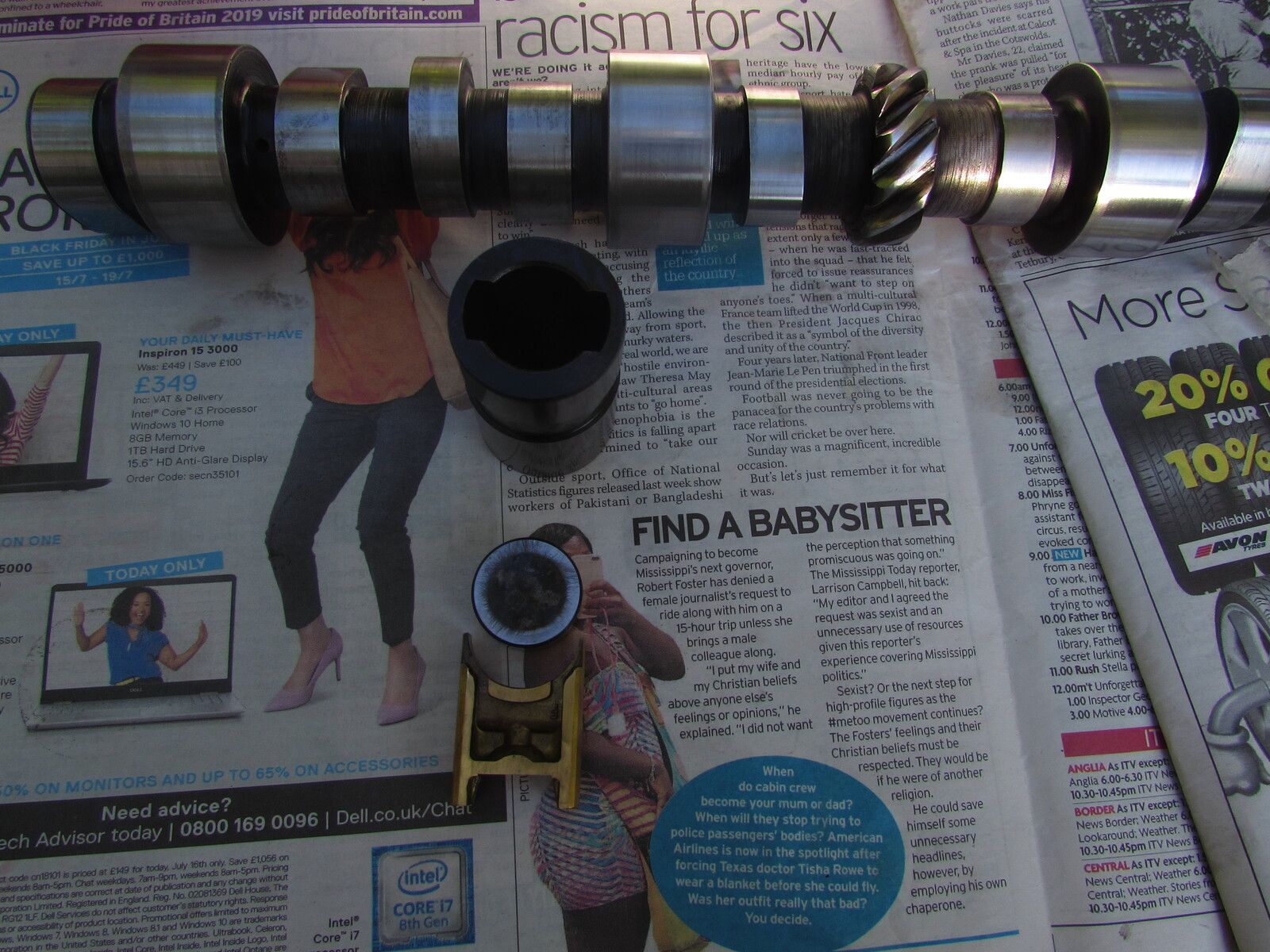

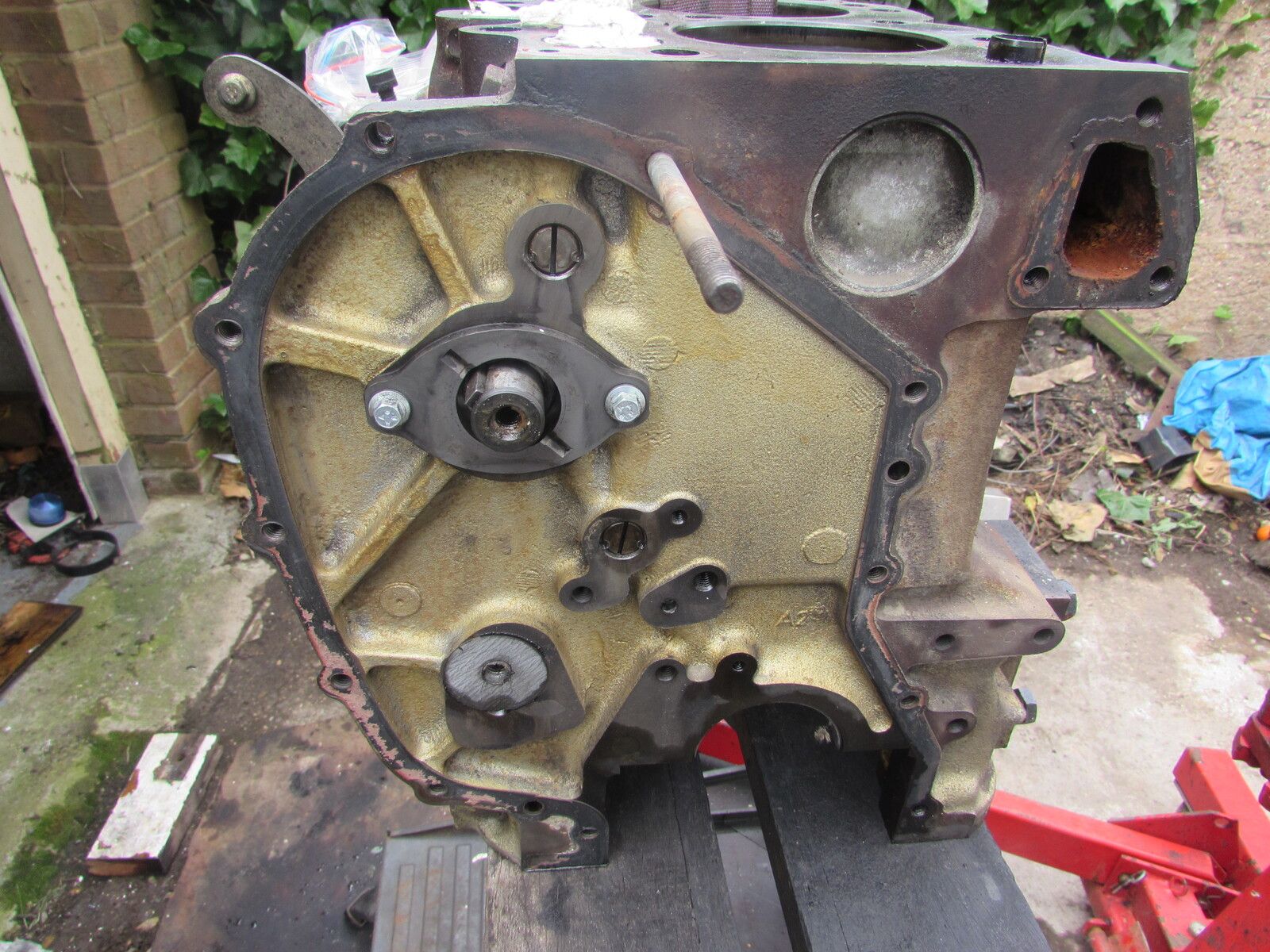

    I removed camshaft mainly to aid cleaning of the block but also to check bearings look ok, shells tight and oil holes still lined up. the tappet slide has a F marked on it
    the book says this should face the front, on mine they all faced the rear where a painted F had been marked?

    i read a horror story on another site today about fitting aftermarket tappet slides and rollers which collapsed after a few thousand miles. luckily mine look all ok
    Th end of the oil pump shaft has a tooth missing (by design) this is matched in the skew gear it mates with which i think allows oil to be pumped up to lubricate skew gear and vacuum pump so care needed to ensure gaps line up , it does fit other ways too.
    the cam bearing surfaces were cleaned with 1000 grit to remove staining , the teeth on the cam and skew gear had marks where they had been running against but no significant damage
    about time to order parts and start cleaning all the bits

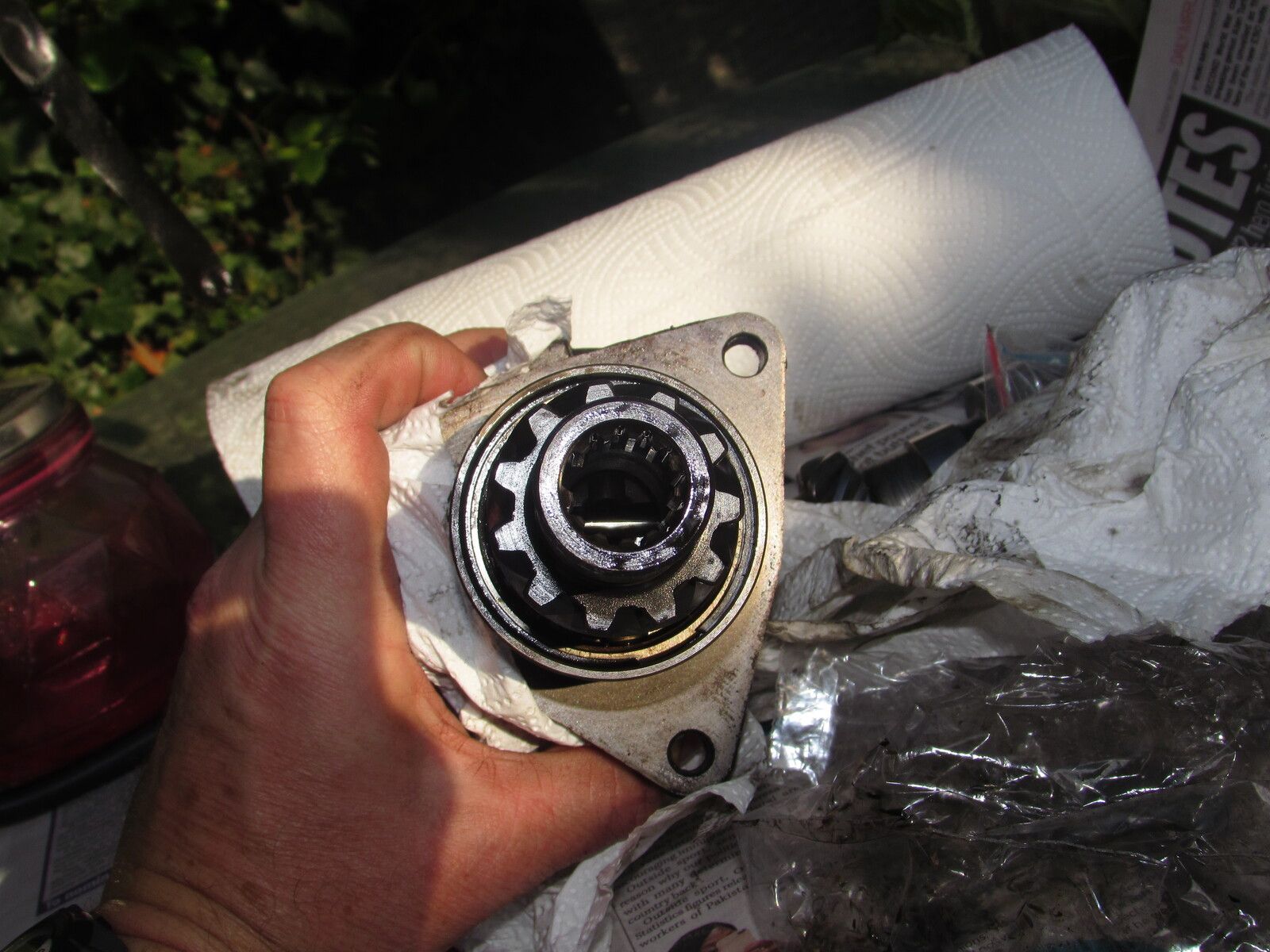

    IMG_6401.JPG IMG_6407.JPG

  3. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,073
    Likes Received:
    135
    Location:
    monkeyhangerland
    Just cleaned them tonite
    No copper washers seems the squirter just tightens onto a shoulder , wasn’t expecting a spring inside must be to stop oil in passageways draining out

  4. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    81,205
    Likes Received:
    11,493
    Location:
    louth lincs
    they have copper washers afu1887l and afu1879l

  5. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,073
    Likes Received:
    135
    Location:
    monkeyhangerland
    So I see ,that’ll be why the shoulder is there on the bolt, my parts come tomorrow, let’s hope they’re amongst this lot 33D19BE0-E8F5-4C89-94F2-54F4AC915A40.png

  6. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    6,024
    Likes Received:
    3,265
    Location:
    Shropshire
    There always in the kits when I buy them along with others that don't go anywhere.

    steve2286w likes this.
  7. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,073
    Likes Received:
    135
    Location:
    monkeyhangerland

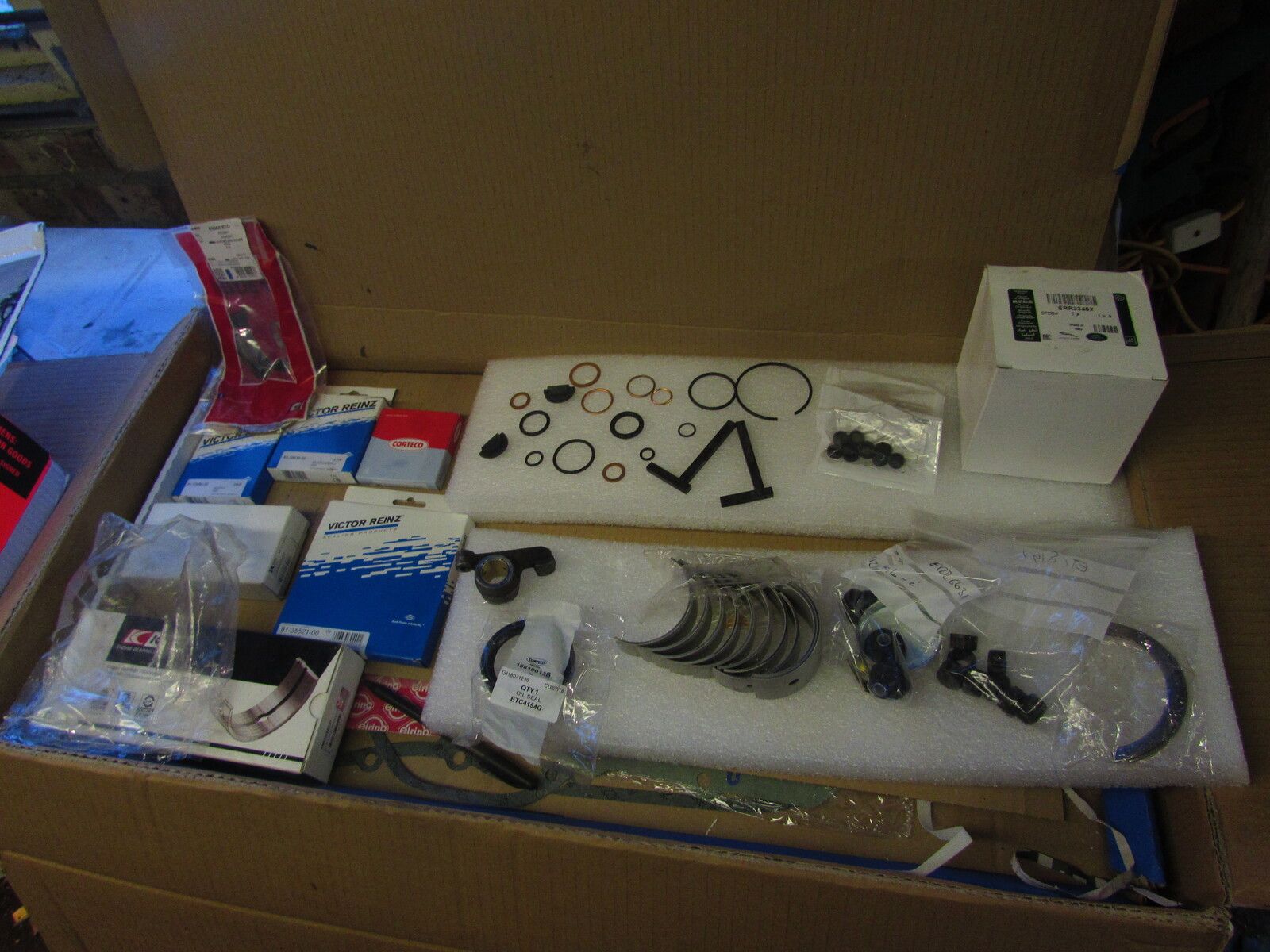

    The washers were in the kit and ill prob have a few bits left
    reading the manual and having a good look ive spotted where a few of the o rings go (I asked Turners but they don't a parts list of whats included)
    I swapped the4 big one out of the vacuum pump which was flat and brittle it broke when I prised it out of groove, manual says you can lose oil pressure on that!
    im guessing the 2 half moon bits are out of head -
    I only bought 2 core plugs , having removed one it looked a bit pitted but plenty of meat still left on it so ill leave others alone. sealant rubber was in the coolant passage behind plug
    when I drained sump there was a broken valve cap which had been punched through and damaged the rocker a bit on its wearing face( I had this on the 2286 and just smoothed them off with a mini grinder), in this case I bought a new rocker and caps
    new main bearings in and checked the nip clearance which all within spec
    then installed the crank and nipped up No3 and inserted replacement 0025 oversize thrust washers and followed up with caps 1 2 and 4 and 5 checking each time crank rotates freely, I have not fitted the T seals yet tomorrows job ,

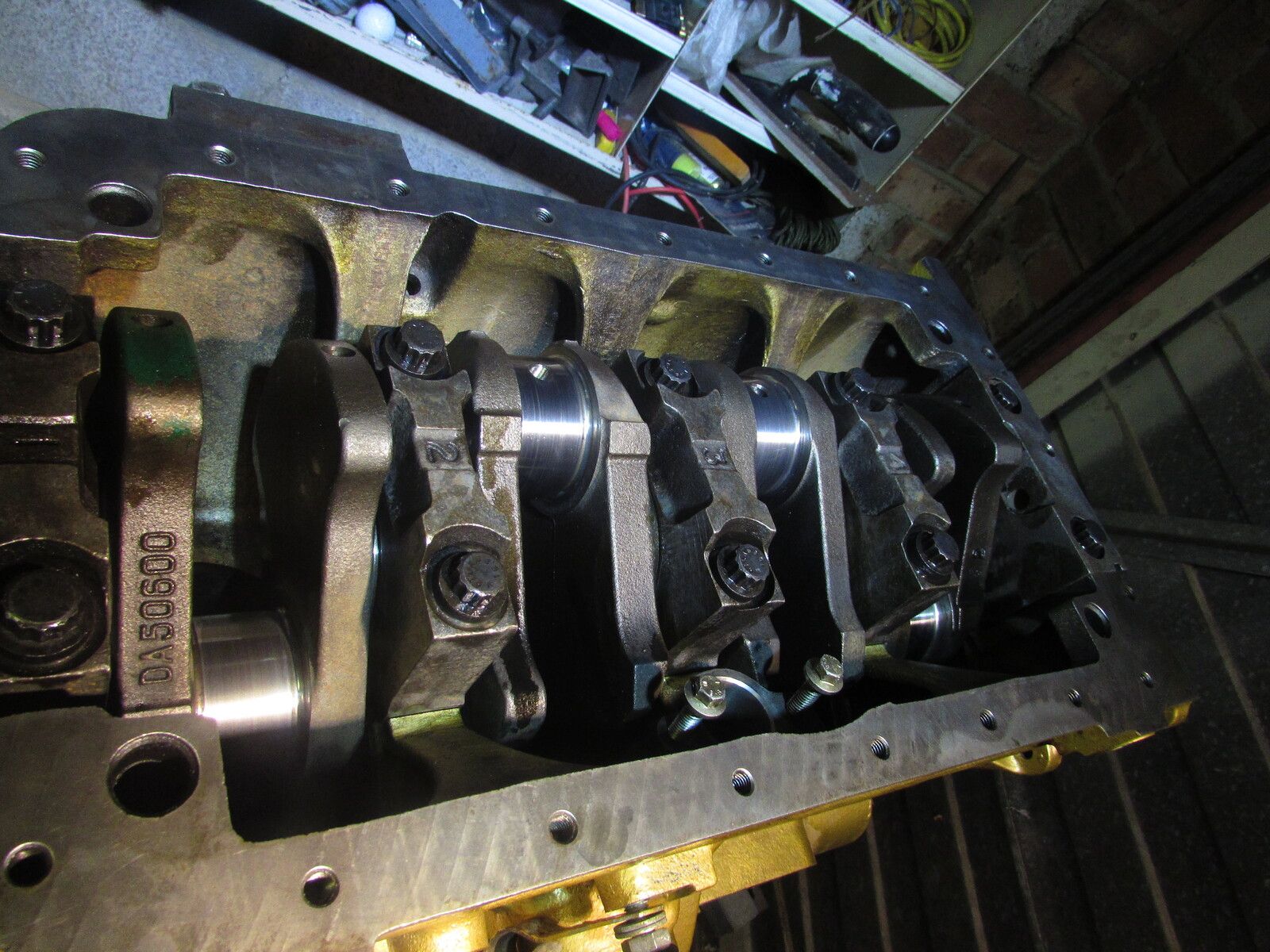

    IMG_6414.JPG IMG_6415.JPG IMG_6417.JPG sounds a bit tricky and tips for fitting welcome

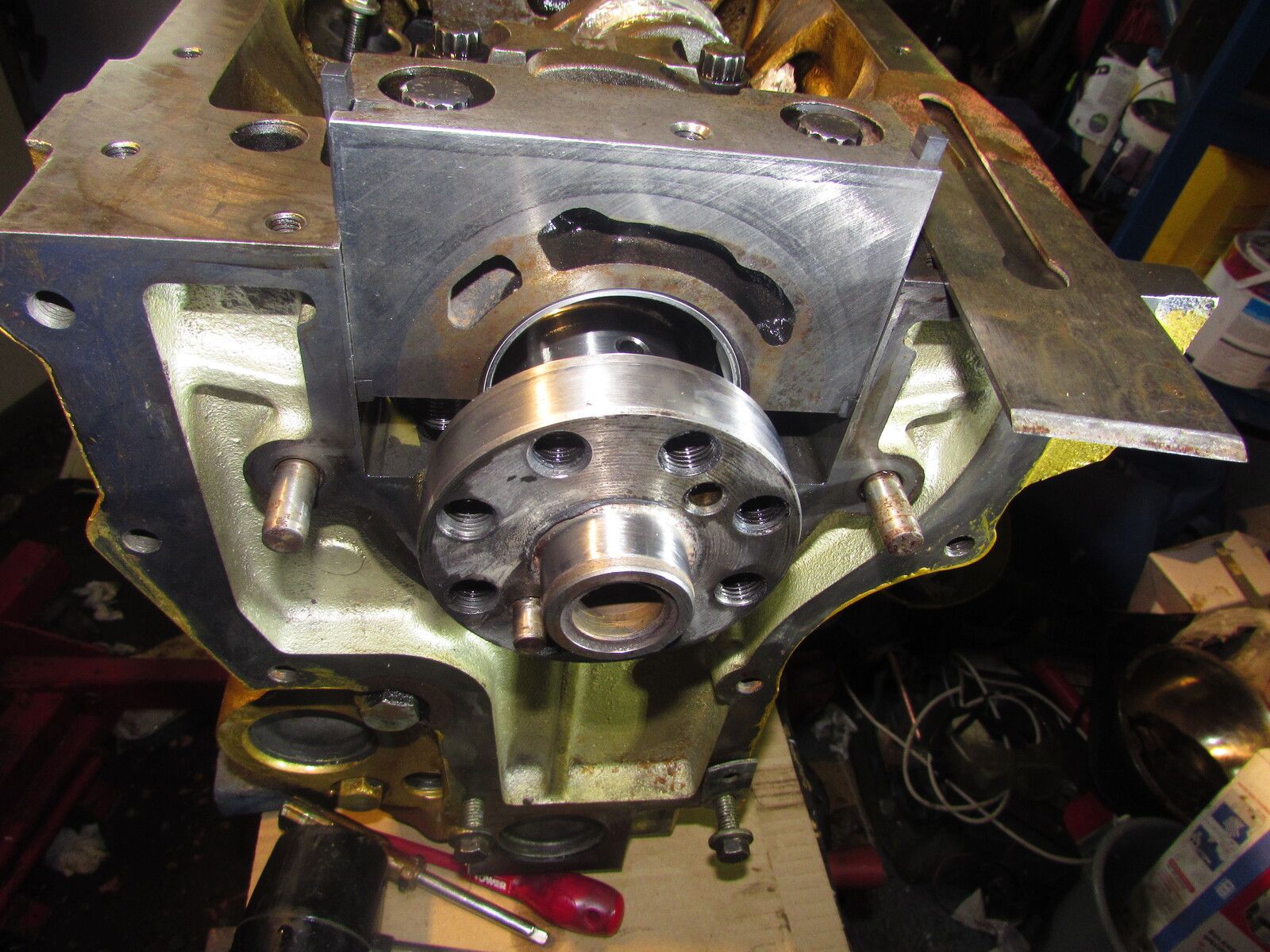

    I see the manual advises small chamfer on btm edge and use of guide blocks when inserting them which I don't have was thinking of thin feelers each side just to get them past the top edge

  8. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    6,024
    Likes Received:
    3,265
    Location:
    Shropshire
    I use thin feelers but still find it a bugger. Trim excess as per the manual.
    Replace the rear core plug regardless, it's the only one you can't renew with the engine in.

    flat and steve2286w like this.
  9. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,073
    Likes Received:
    135
    Location:
    monkeyhangerland
    It’s the front one I changed to be fair they’re easy to change just a bit worried my new ones would leak, I did use a bit is sealer too, at the rear there’s 2 big core plugs and one small see pic a few posts earlier I would guess all 3 could not be changed with engine in ?

  10. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    6,024
    Likes Received:
    3,265
    Location:
    Shropshire
    The highest large one is a waterway, I'm not sure of the others, maybe oil so don't rot?
    A smear of red hermetite on a clean hole will ensure no leaks.

  11. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,073
    Likes Received:
    135
    Location:
    monkeyhangerland

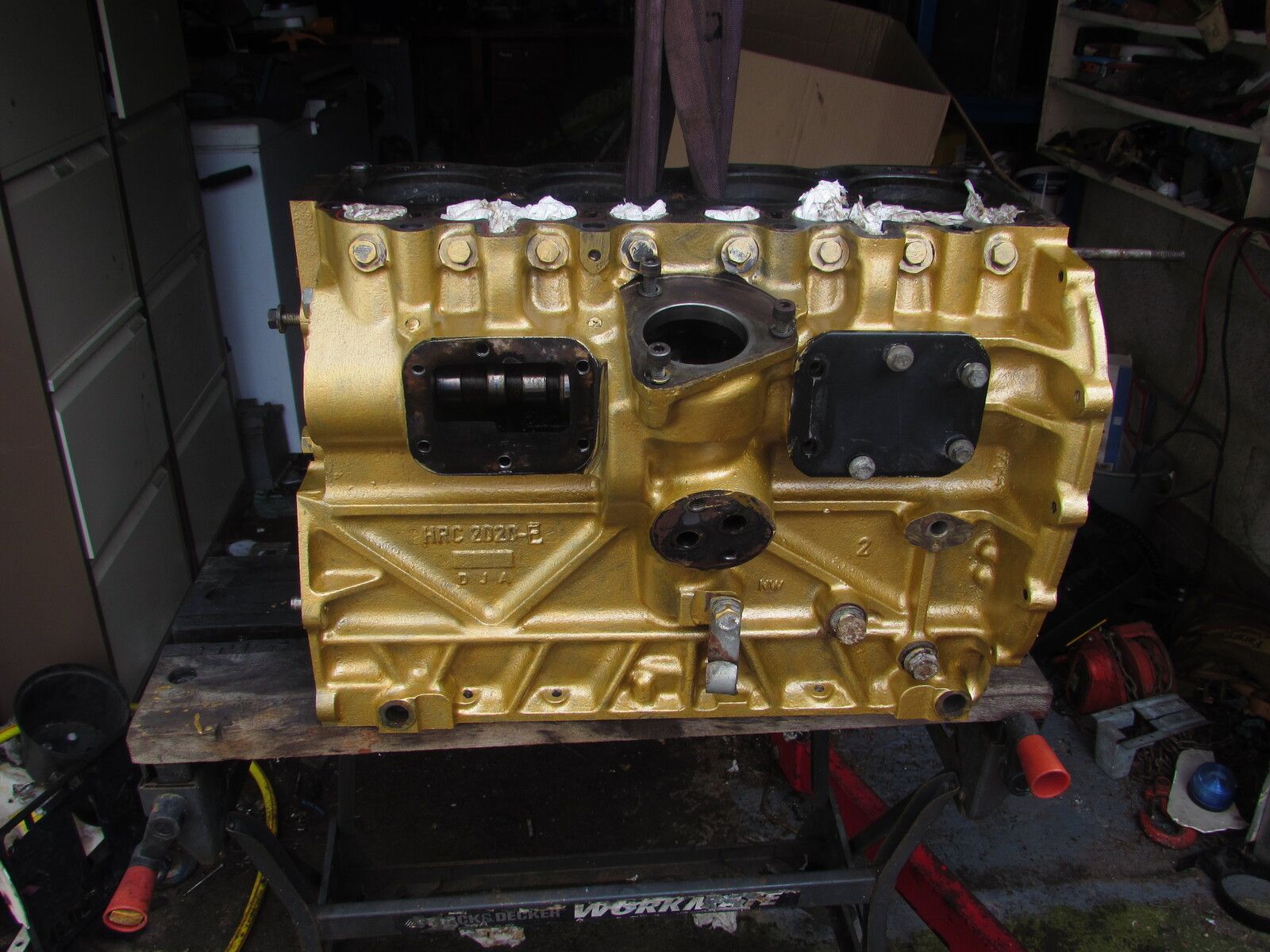

    That would make sense the plug on the newly painted bit lines up with camshaft prob to fit bearings

    lynall likes this.
  12. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,073
    Likes Received:
    135
    Location:
    monkeyhangerland
    bit more progress this weekend and then tonite a problem,
    crank in and then the T seals to do, I got the btm edges in using a steel rule for a start and then used a thin edge either side to keep the bulging seal in while tapping from above moving each side a bit at a time, it didn't shave any off but stretched the seals you can see at the top. IMG_6419.JPG
    Measurd the nip on the mains and con rods with one loose nut and all ok , pistons went in good using IMG_6427.JPG the compressor tool, set gaps to avoid thrust sides and gudgeon pin area

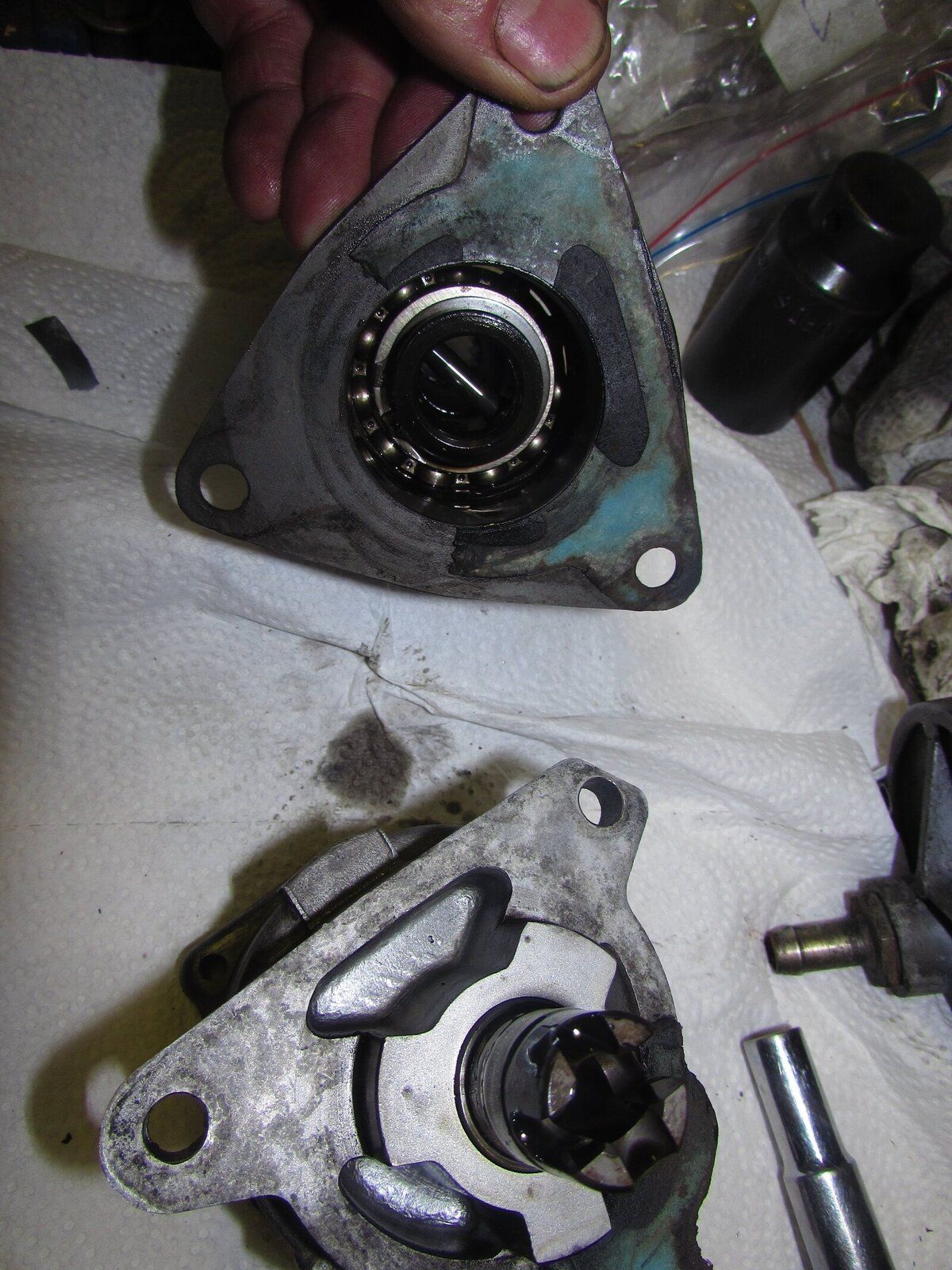

    replaced the two o rings on vacuum pump the inner shaft one was a pig, but hard and brittle and eventually it snapped and got it out with a cod hook,

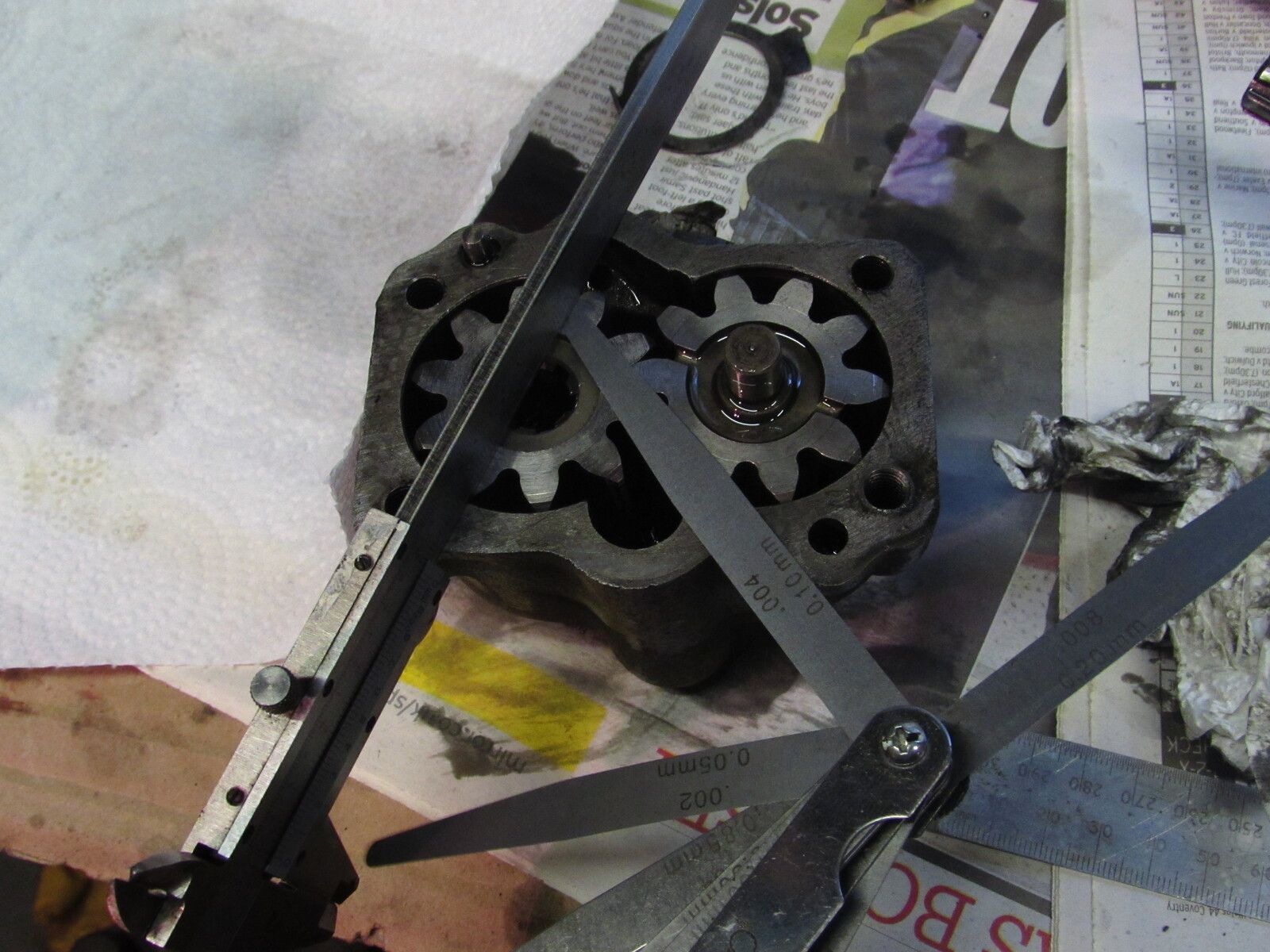

    oil pump end float ok, small amount of scoring on gears b IMG_6439.JPG IMG_6440.JPG ut will replace the plunger and spring with genuine LR bits

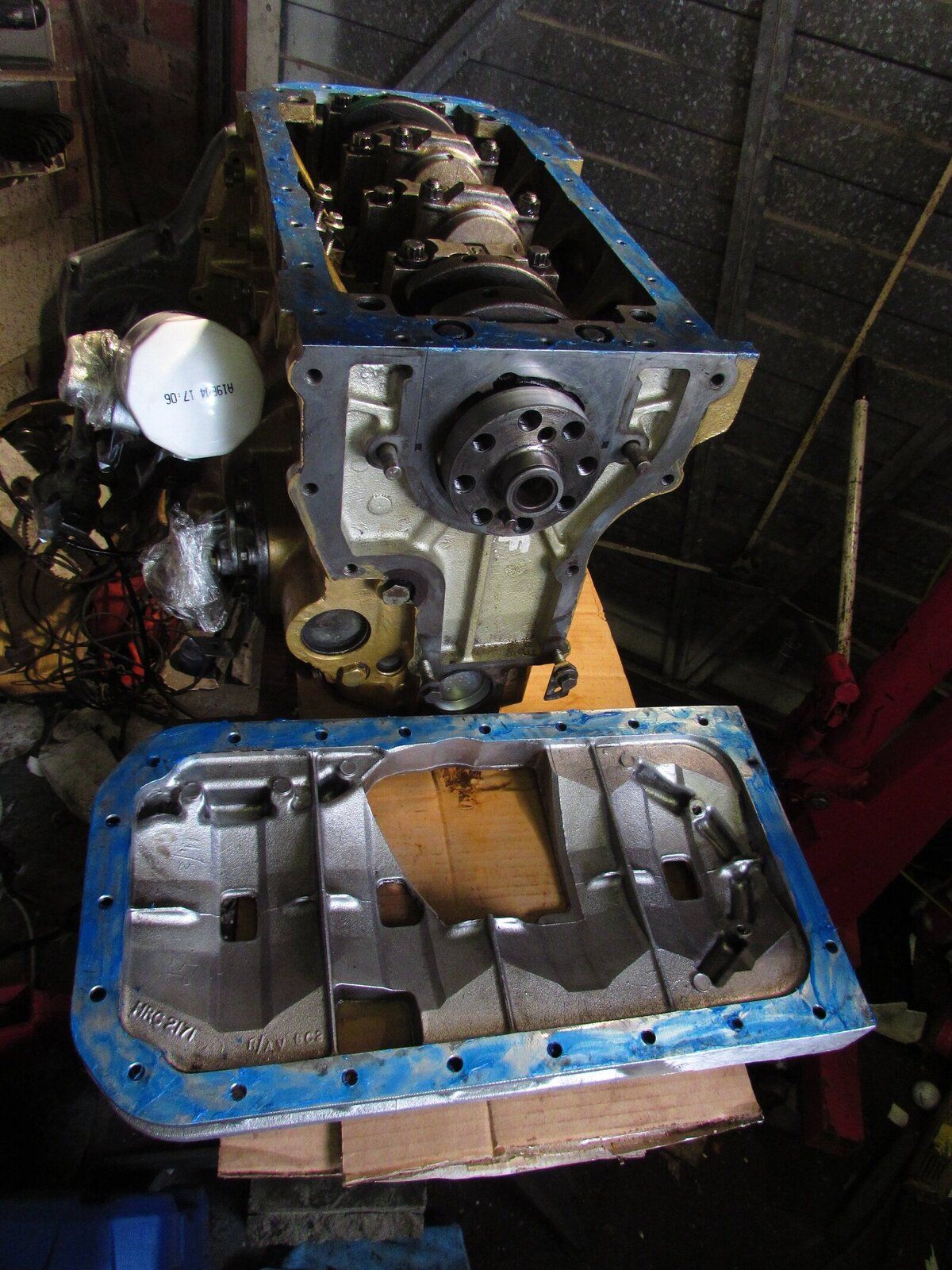

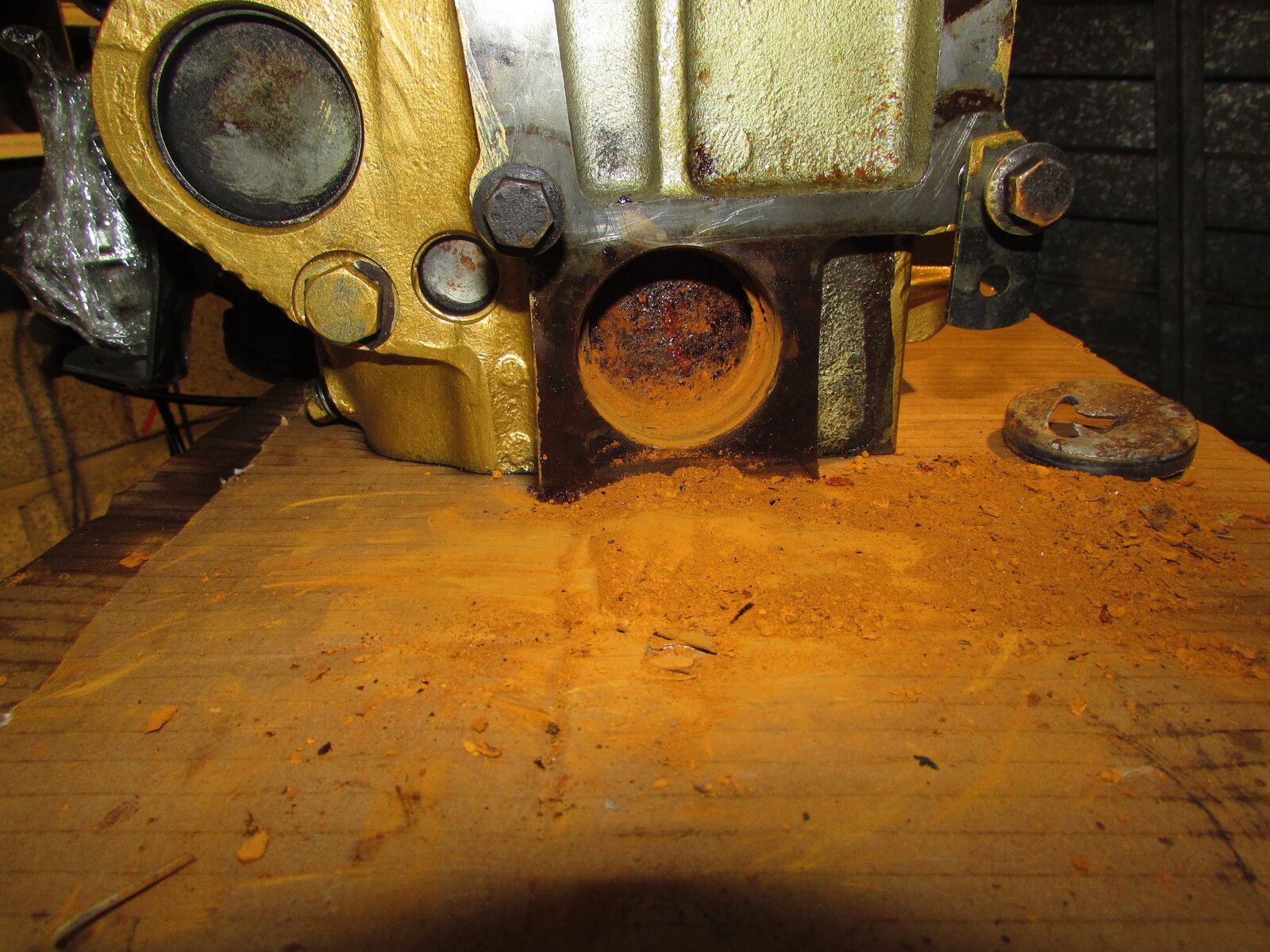

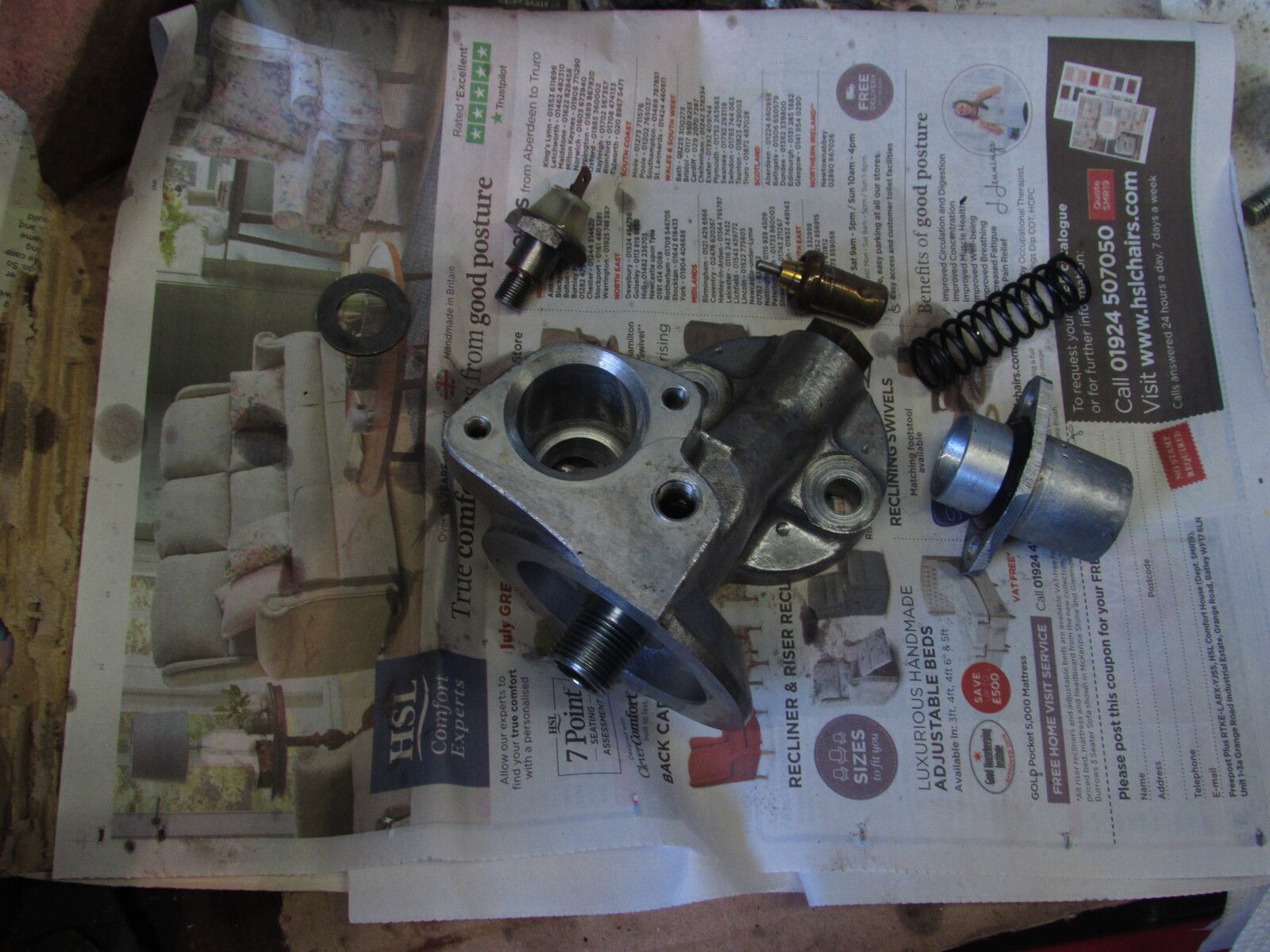

    cleaned oil filter h IMG_6442.JPG IMG_6443.JPG IMG_6445.JPG ousing

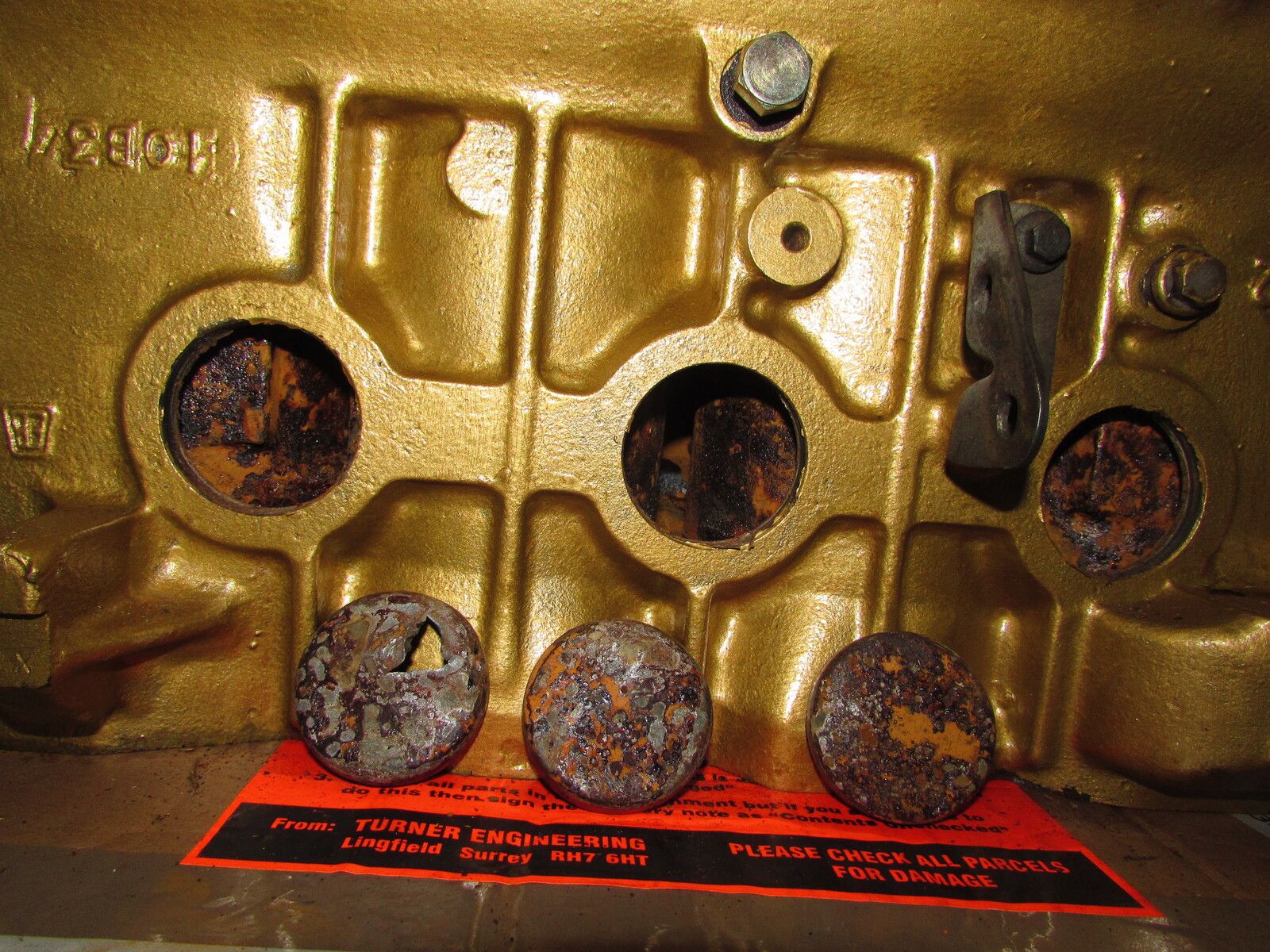

    I replaced the rear core plug it was good condition but surprised now much rust is in the passageways , plan now to remove the 3 on the side to jet wash out, ladder frame on with some blue hylomar, sounds good stuff as you can pull it apart and stick it back on

    oil pump on with a small amount of stud lock if youre lucky when you drop a bolt it may fall behind the side cover plate and you can get it with a piece of wire :) ive put the sump on loose to keep dust out until oil pump bits come

    next problem was how to get the dowty seal on that I fitted a year ago, I made a seal inserter out of an ice cream tub and cut the rounded ends off push thin end through seal and fat end on crank end went on a doddle. :)
    flywheel on and turned engine round and had a go at timing

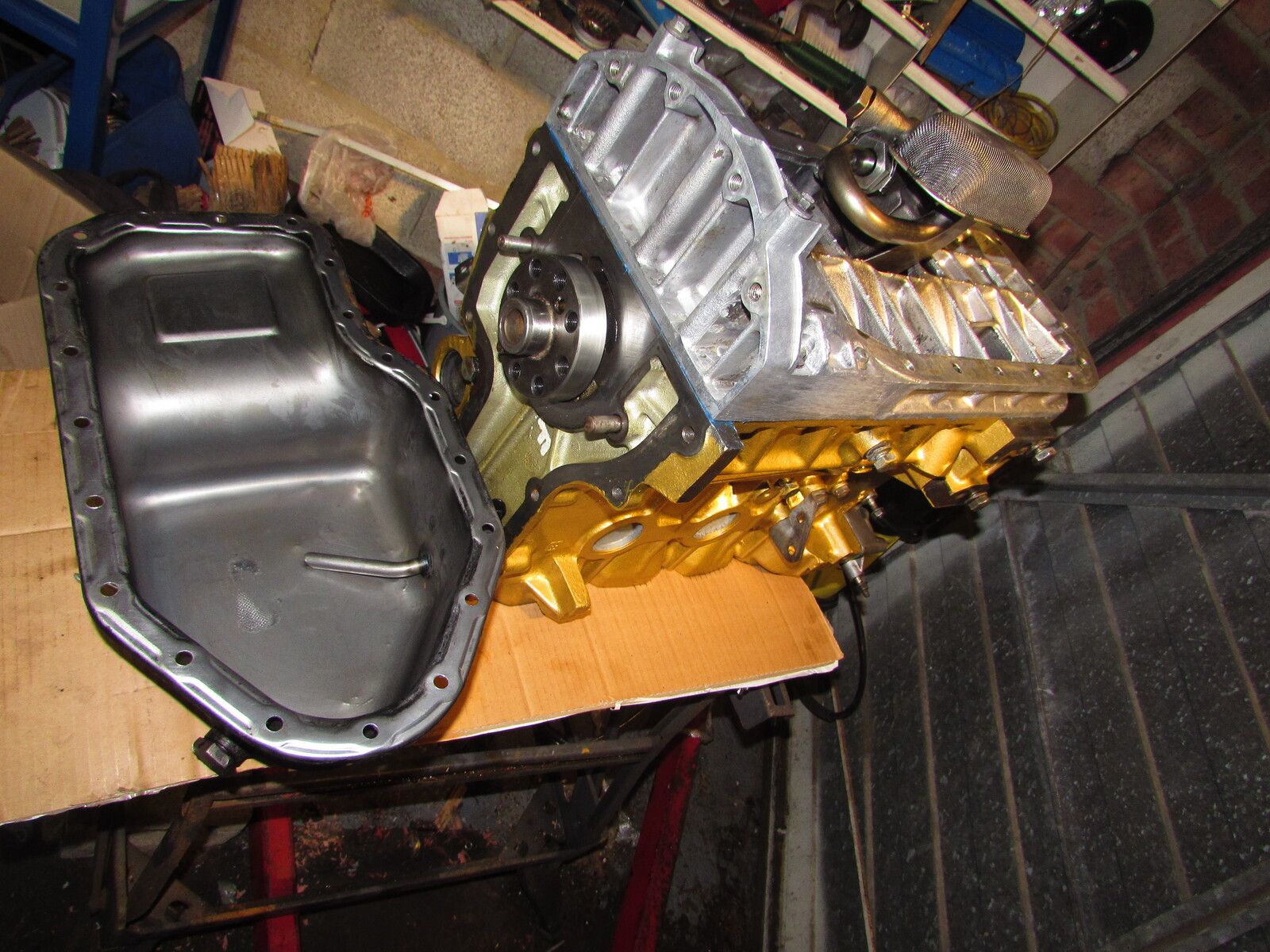

    IMG_6455.JPG IMG_6448.JPG IMG_6453.JPG

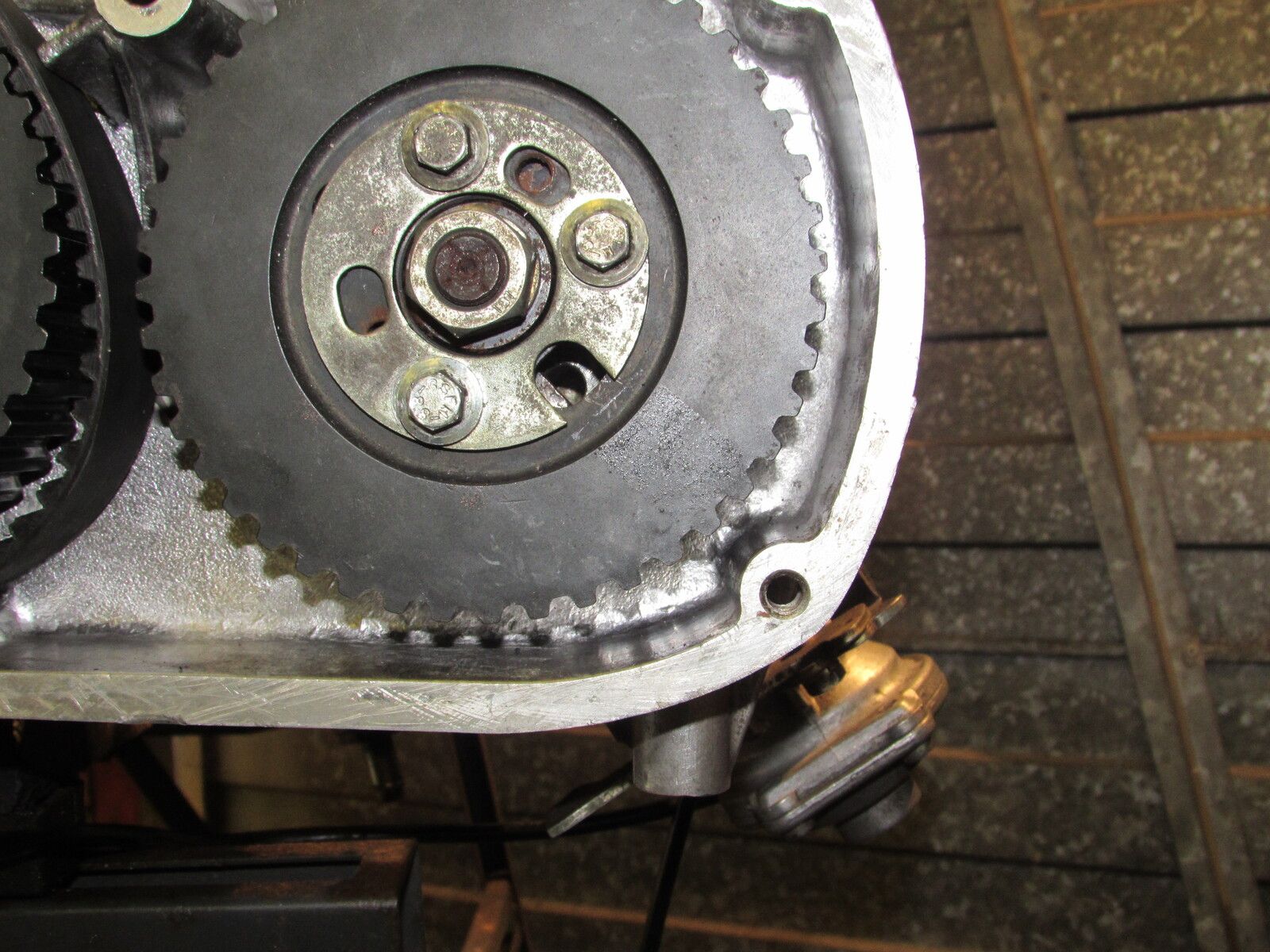

    This is the problem IMG_6457.JPG

    and im not quite sure where I went wrong I had flywheel locking pin in, and timing pin in pump, the crank key in line with arrow and the cam dot in line with marker
    I believe I tensioned up but had the 3 bolts loose and things moved a bit , the pin got tight I pulled it out with pliers and removed belt
    as you can see no way to get the pin ion now and turning the pulley wheel a bit does not sort it
    ive got the other cogs back where they should go but how do I get this sorted to get the pin back in @jamesmartin
    thanks
    apart form this hiccup next job is start stripping the head down now the workbench a bit cleaner

  13. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    81,205
    Likes Received:
    11,493
    Location:
    louth lincs
    slack bolts turn center nut till pin fits, pulley will rotate back and forth ensure pulley isnt at the anti clockwise end of the slots when fitting the belt

  14. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,073
    Likes Received:
    135
    Location:
    monkeyhangerland
    Great thanks James was thinking pump apart or something, so when you do this should the 3 bolts be tight or loose

  15. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,073
    Likes Received:
    135
    Location:
    monkeyhangerland
    5831FC4F-AECA-434C-86FF-58498210A55C.jpeg Ok nearly there mark slightly off after two turns But pin nice and free but more tinker tomorrow thanks

  16. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,073
    Likes Received:
    135
    Location:
    monkeyhangerland

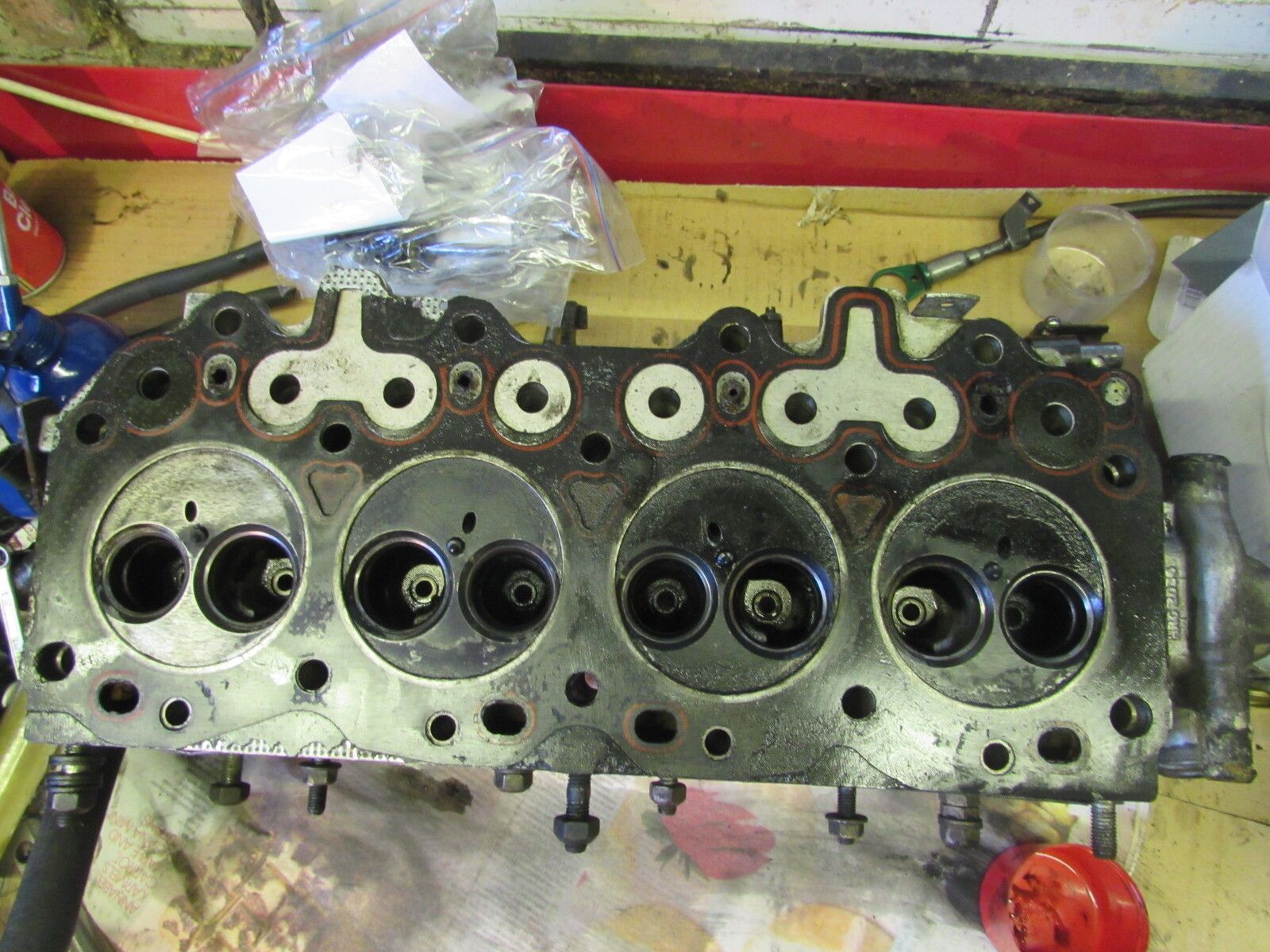

    Started to look at head, injectors came out easily, i was expecting a fancy washer rather than a plain copper one
    All valves were in spec, and i checked for play by having them in the guide but about 8-10mm from the seat and no side movement
    the seats in the head were mostly ok , Valve 5 was the one that has punched through a valve cap to for a time it must have had a big gap , perhaps that was the reason for the dull looking seat
    its probably the only one i will bother to lap with fine paste
    it has the genuine oil seals which i may fit again they seem to grip the stems ok , there was a 2-3 loose with one halfway up the valve , ill put some studlock on them to keep them i IMG_6459.JPG IMG_6462.JPG IMG_6467.JPG upload_2019-7-30_20-37-27.png n place
    I need to check spring lengths but keen to keep originals if poss, manual says discard , but what do you do

    the old bits of gasket came off nicely with a bit of 15mm copper pipe flattened, end filed and used like a chisel copper supposed to be softer than aluminium. The carbon round the valves i used a paint stripper wheel in the drill worked well and finished with some fine emery

    lynall likes this.
  17. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,073
    Likes Received:
    135
    Location:
    monkeyhangerland

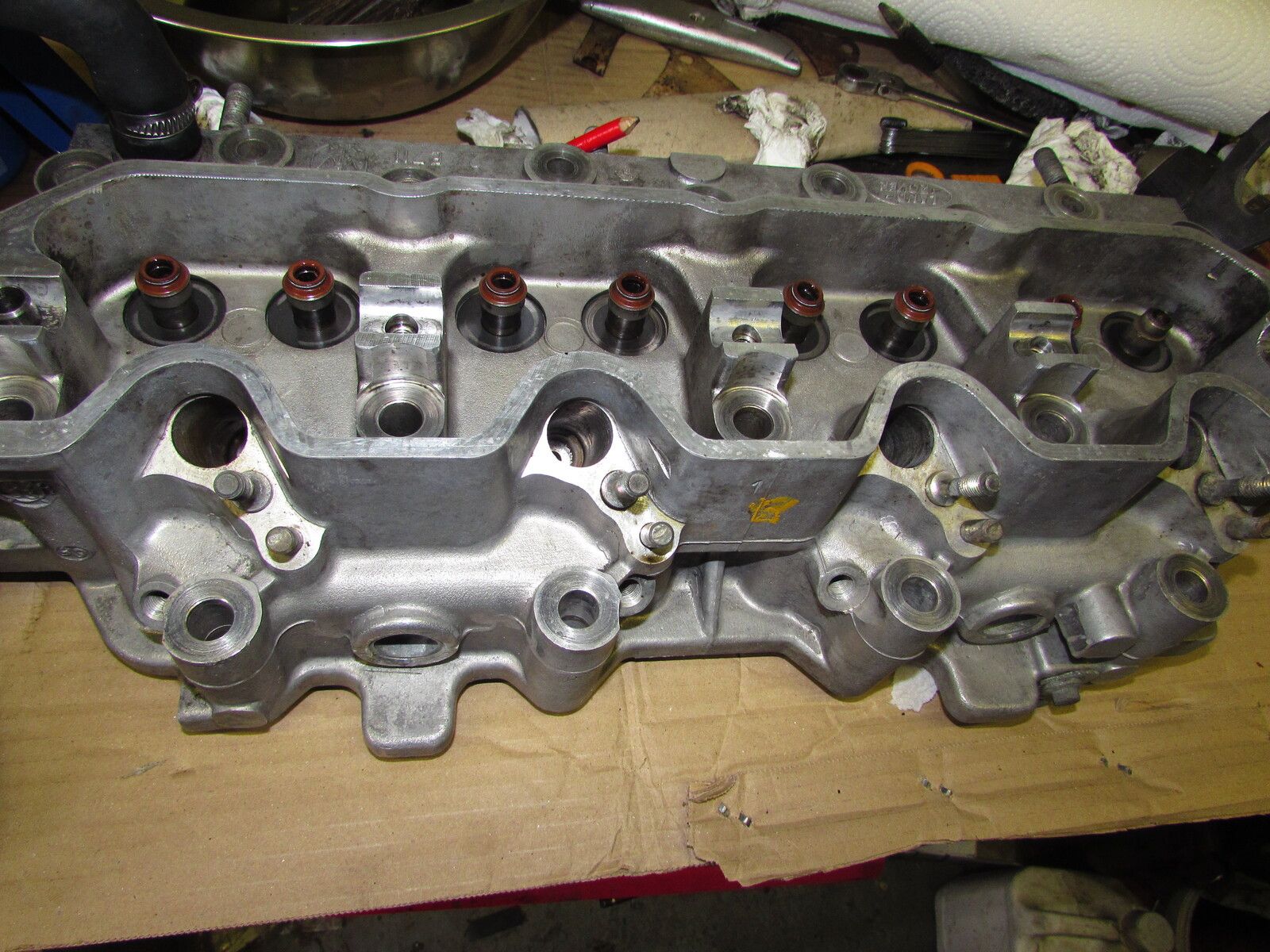

    IMG_6470.JPG IMG_6471.JPG IMG_6472.JPG IMG_6473.JPG IMG_6475.JPG IMG_6477.JPG IMG_6479.JPG IMG_6480.JPG IMG_6481.JPG IMG_6483.JPG

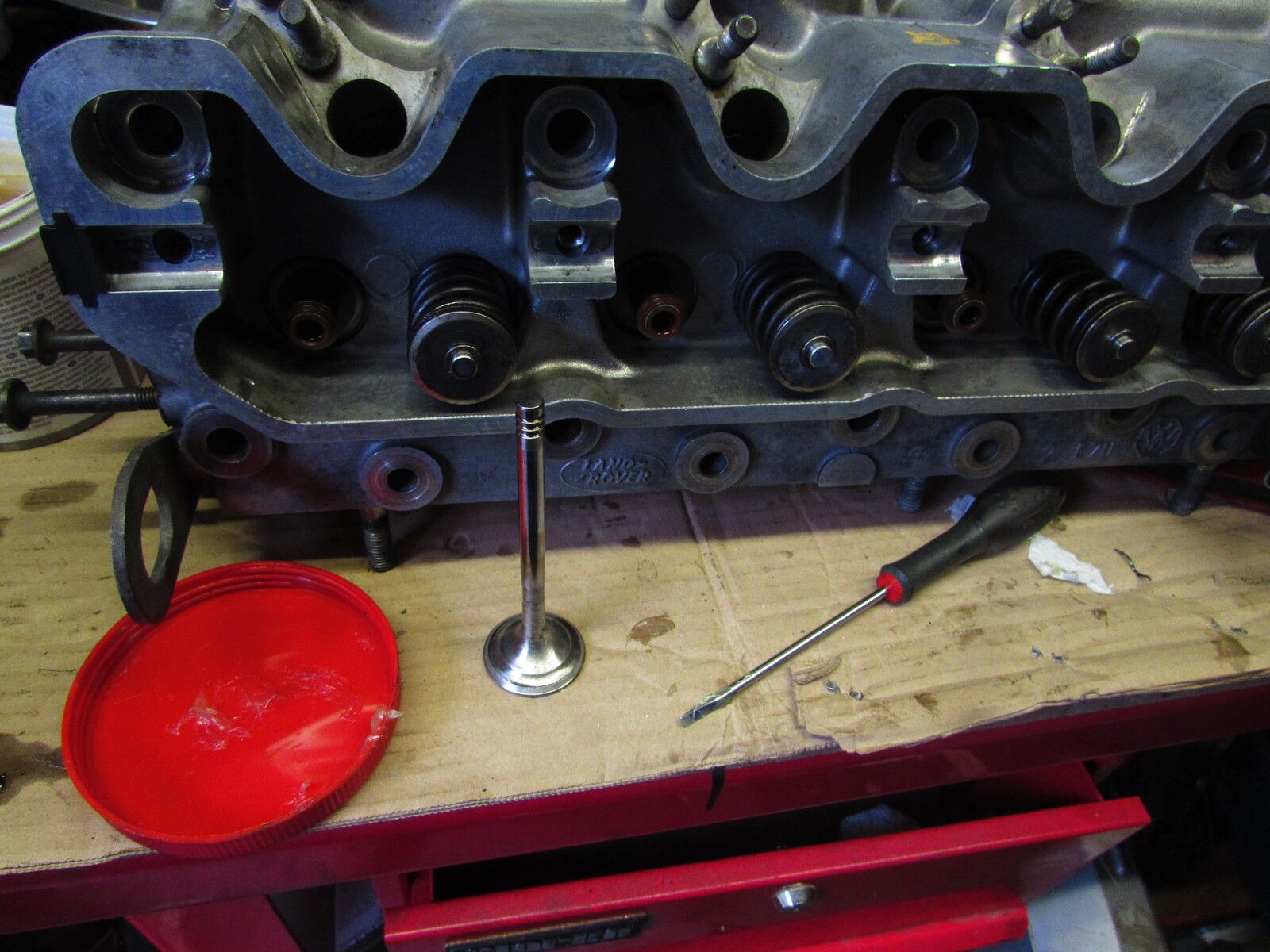

    Been working on the head last couple of days.

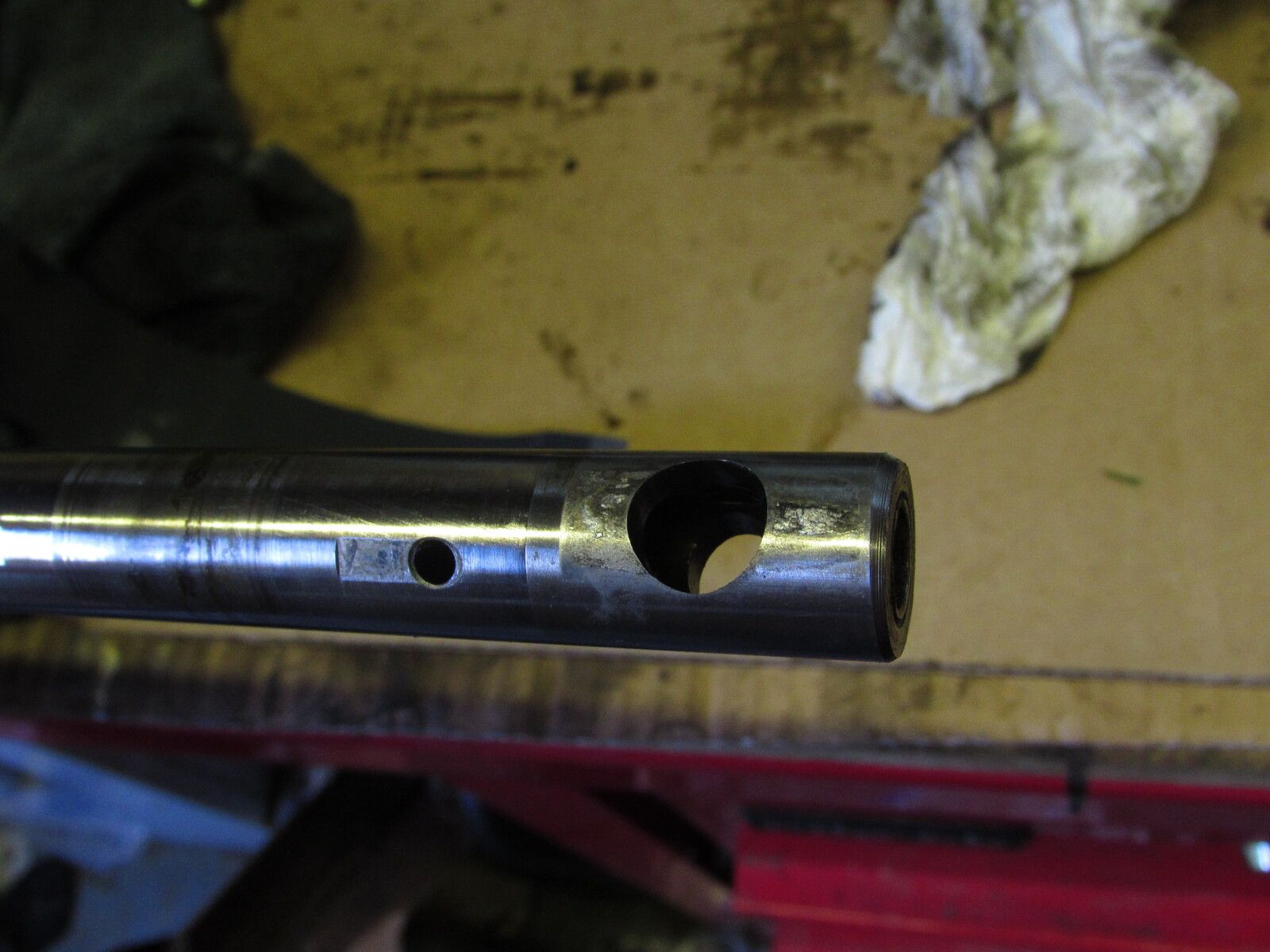

    I noticed at both ends of rocker shaft it had picked up some ally from the bottom pedestals enough so the rockers would not come off the shaft without a fight , this removed quite easily with some 1000 grit wet and dry with oil I cleaned up the rest of shaft where there was some staining.

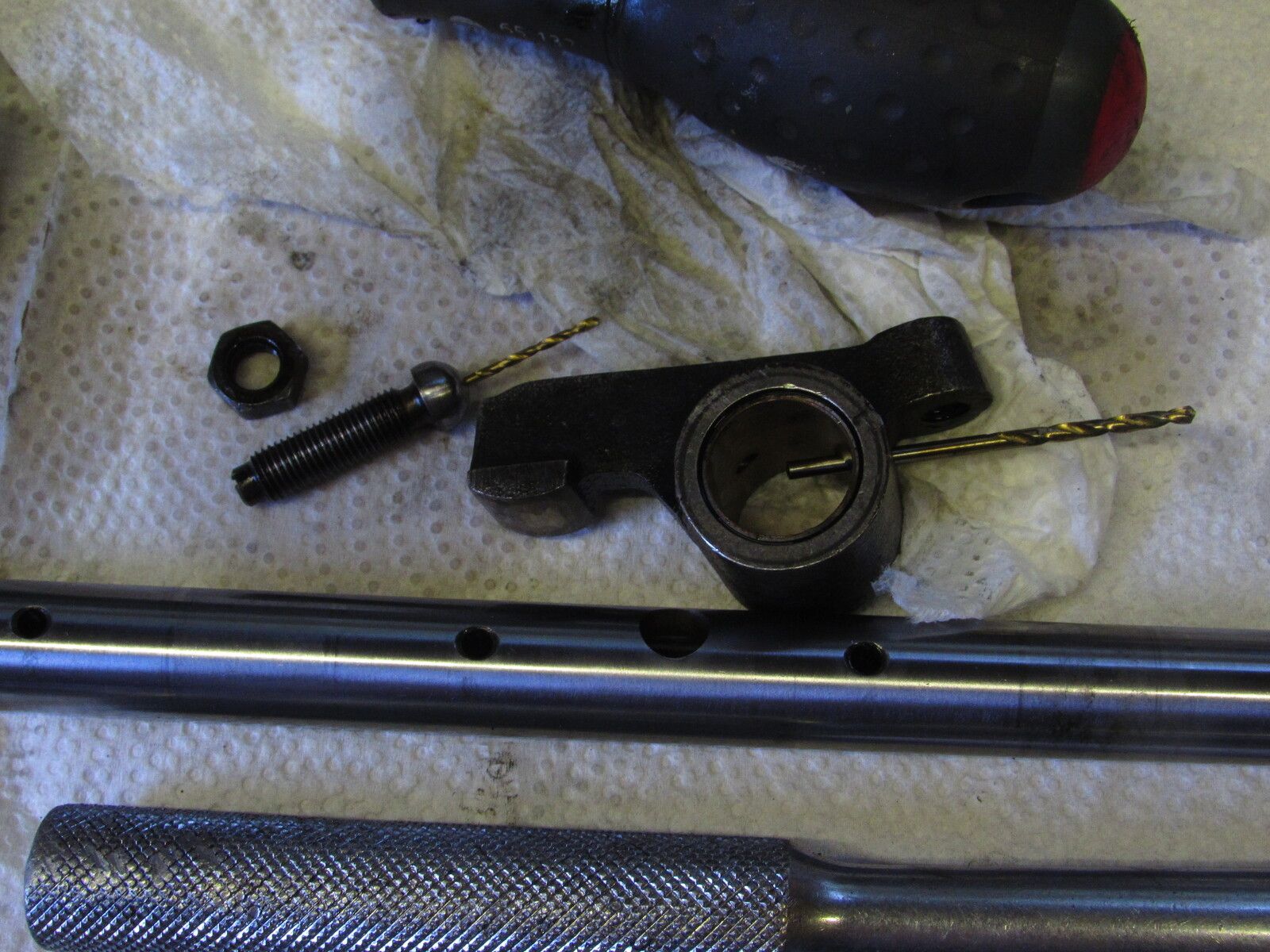

    I cleaned all the rocker oil holes out with 1.5 and I think 2.5mm drills , I have some new caps to go on as one punched through on valve 5 , you can see the damage so replaced with a Turners one.
    after the first set of collets which took an age I used some grease and pre installed them on the haft this speeded things up nicely,
    on the last photo if you look closely the middle couple of valves not sitting in the recess properly I just wedged these back in with a block of wood and a screwdriver. I came across the date stamp on the head too which confirms it was cast 07/93 there are a few dots too which might define the day or week not sure.
    Ive cleaned the injectors a bit and will prob use a bit of copper grease on the sides
    need to get some more parts ordered now

  18. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,073
    Likes Received:
    135
    Location:
    monkeyhangerland
    IMG_6484.JPG IMG_6485.JPG IMG_6486.JPG IMG_6487.JPG IMG_6488.JPG

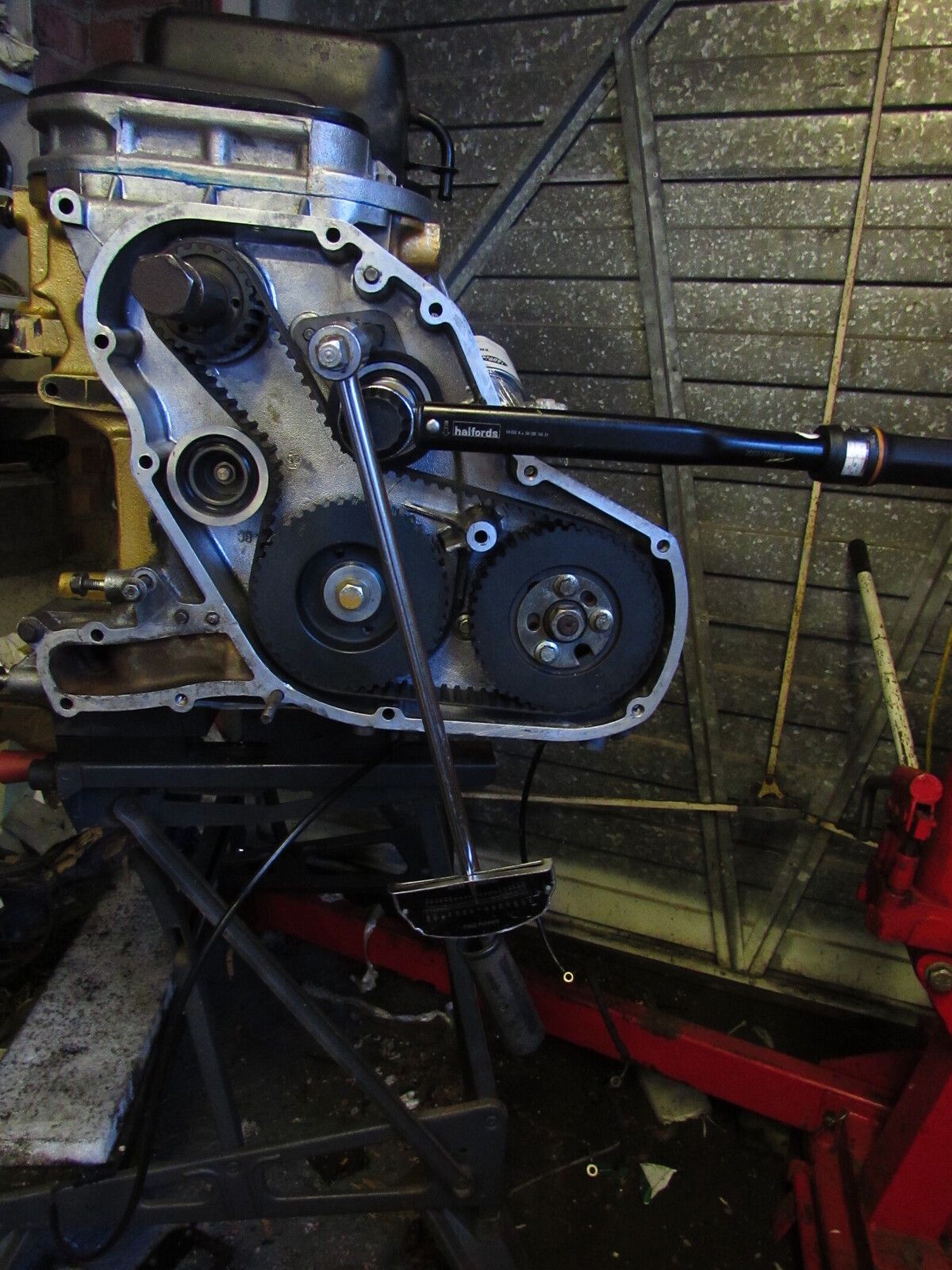

    I borrowed a torque gauge to help tension the pulley, I was concerned about the rust inside the block so removed the 3 side core plugs , they had years left in them but this allows raking crud out a bit , I was planning to jet wash inside but unsure whether to do this with head on or not at it might blast it into head , with head removed it might go in the bores
    I put some chainsaw oil in the bores as this clings more than engine oil

    the tappet securing screws I used dowty washers (there was none on previously) and a drop of medium studlock

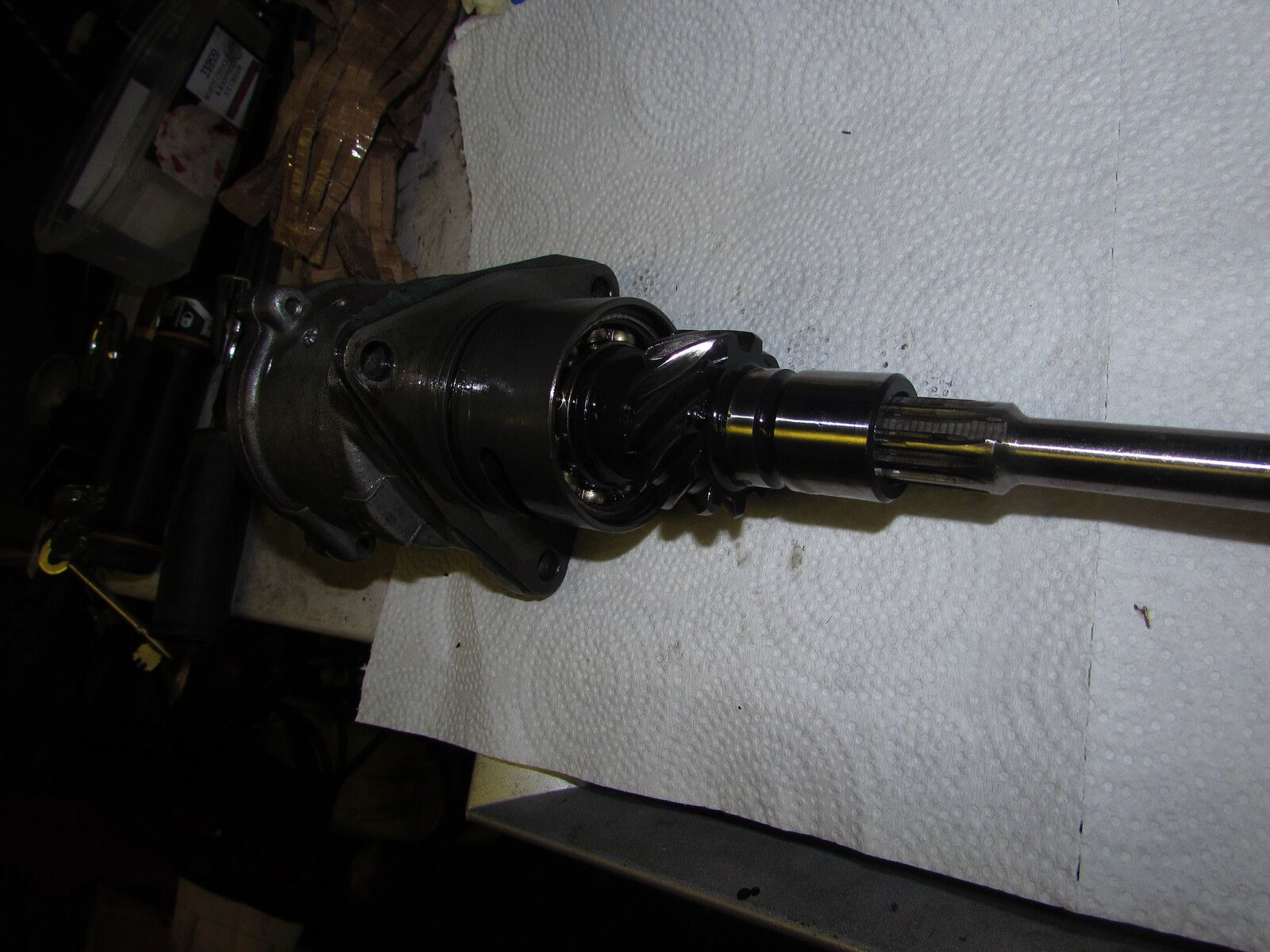

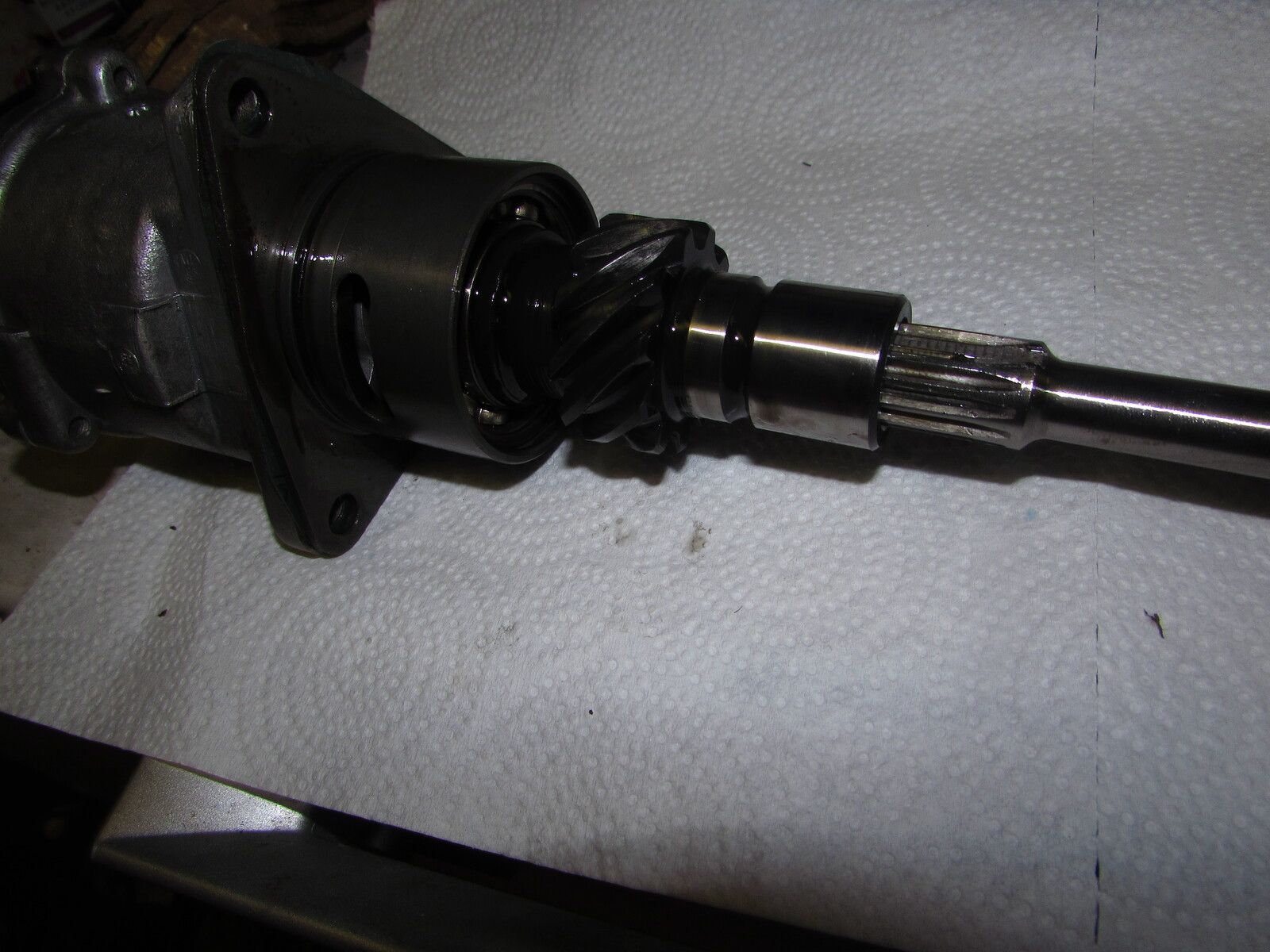

    I pulled out the vacuum pump 4 things to remember here
    • the slot in body goes to front
    • the spline missing on the oil pump drive mates to a gap in the vacuum pump
    • the vacuum pipe faces the front too
    • new o ring IMG_6484.JPG IMG_6485.JPG IMG_6486.JPG IMG_6487.JPG IMG_6488.JPG IMG_6490.JPG IMG_6491.JPG

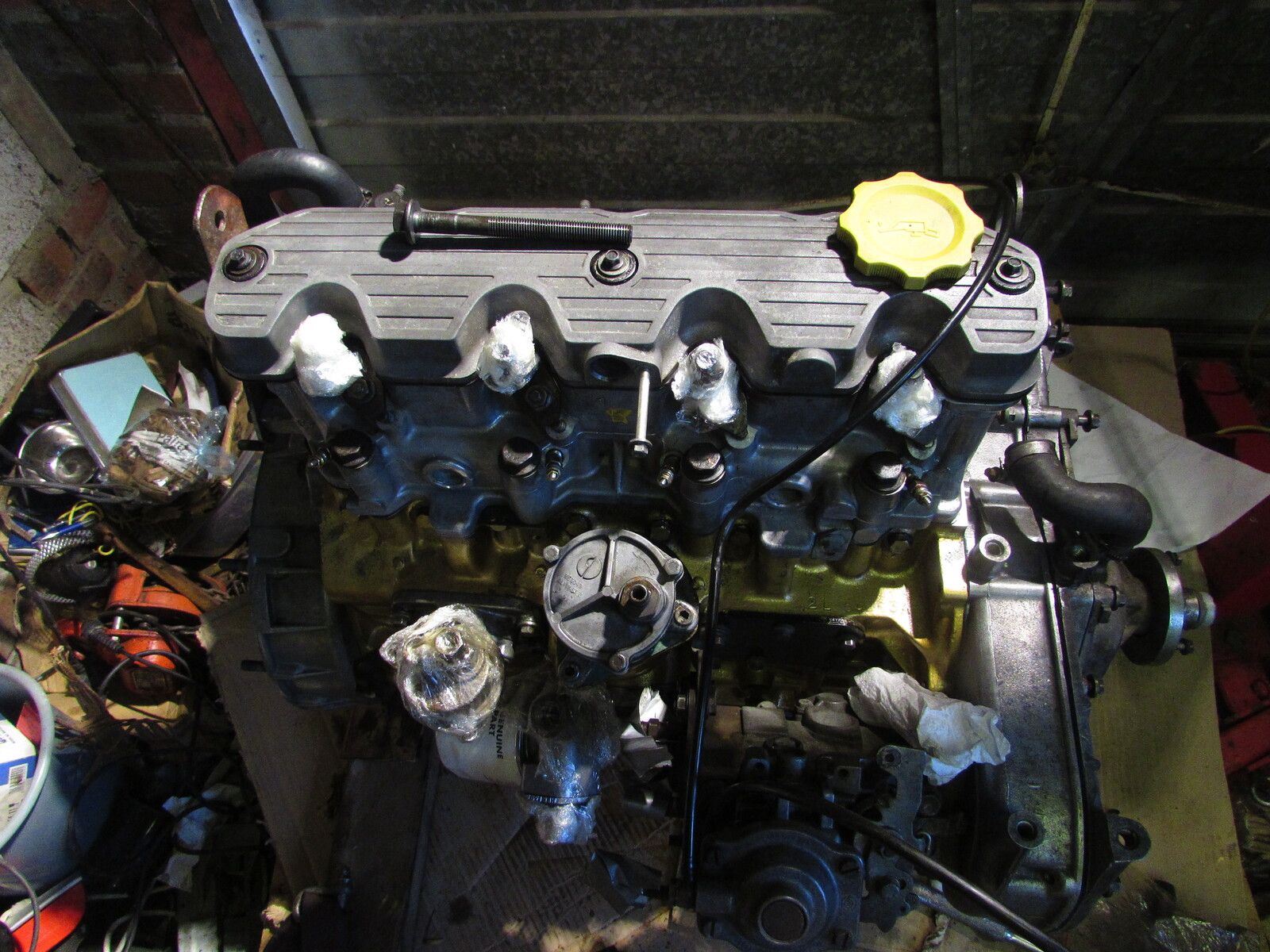

    • IMG_6492.JPG IMG_6493.JPG

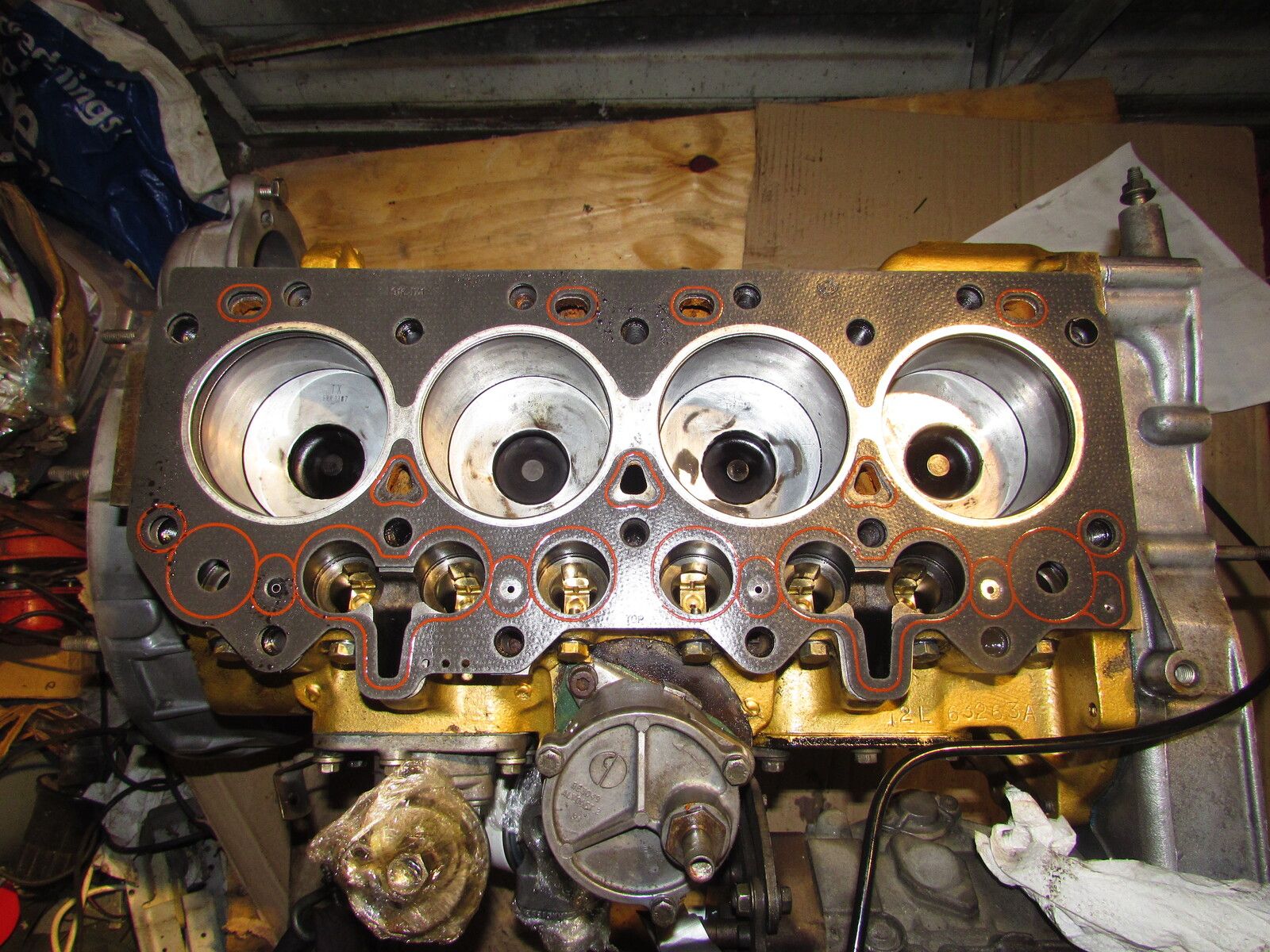

    Used an Elring 3 hole gasket same as before

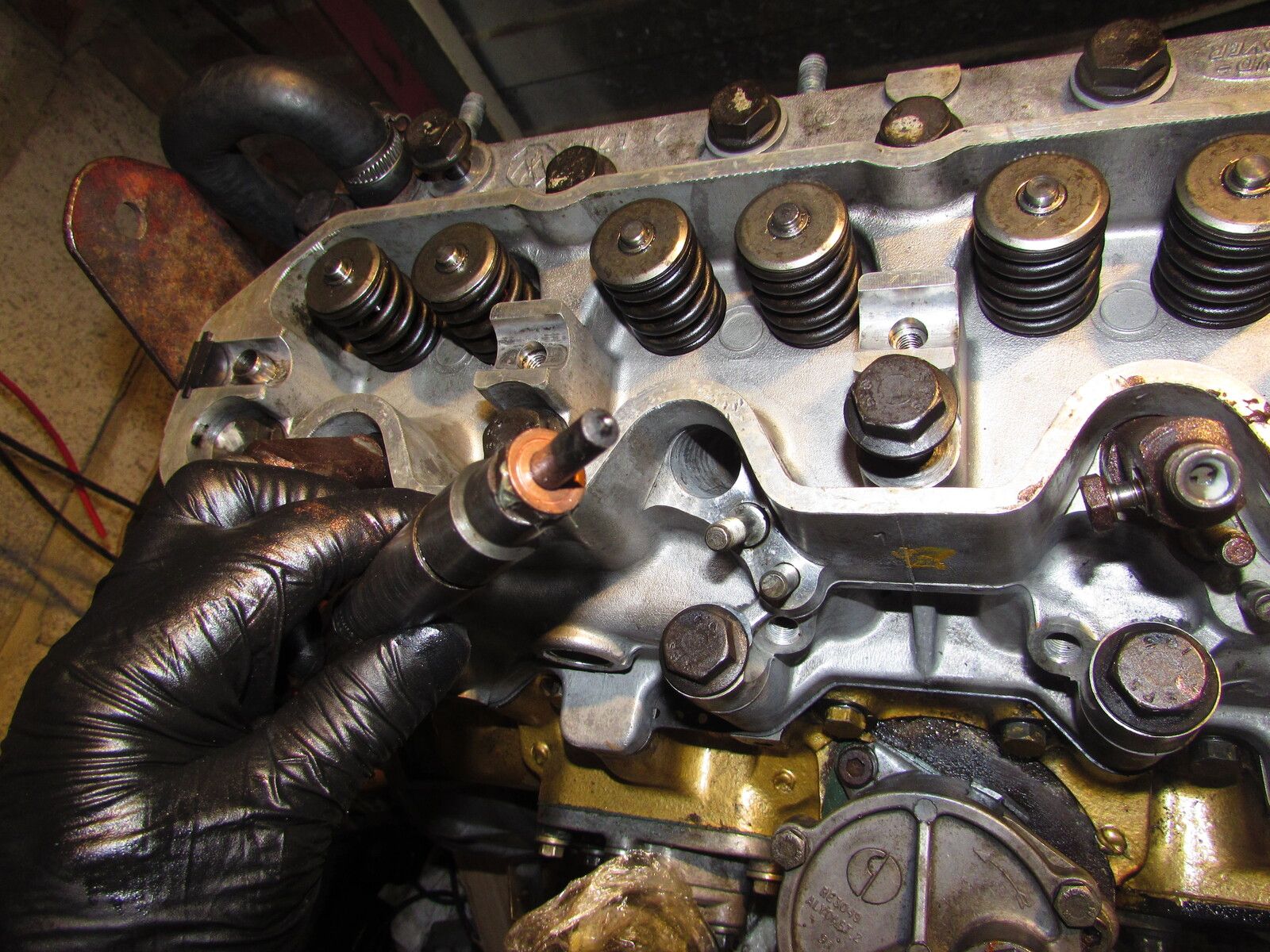

    new injector washers but not sure which is proper way round some say makes no difference
    got the new heater plugs in so come full circle as this is why this rebuild started as I could not get old ones out!
    so nearly there the eagle eyed might have noticed a bolt left over this some times happens but this one the threads are damaged so waiting for new one coming, along with new core plugs and oil pump parts
    so nearly there and now thinking about aesthetics
    considering blinging up the rocker cover and timing cover with some paint


    it would too so when it gets back together id like to get in going on the floor

    jobs to do
    oil pump and spring
    sump on
    head torqued up
    flush engine out of crud - but will this just introduce more water to start rusting again
    rockershaft and tappets


    the guide below has been very useful


    https://www.turnerengineering.co.uk/Article-200TDIEngineRebuild

    flat likes this.
  19. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,073
    Likes Received:
    135
    Location:
    monkeyhangerland

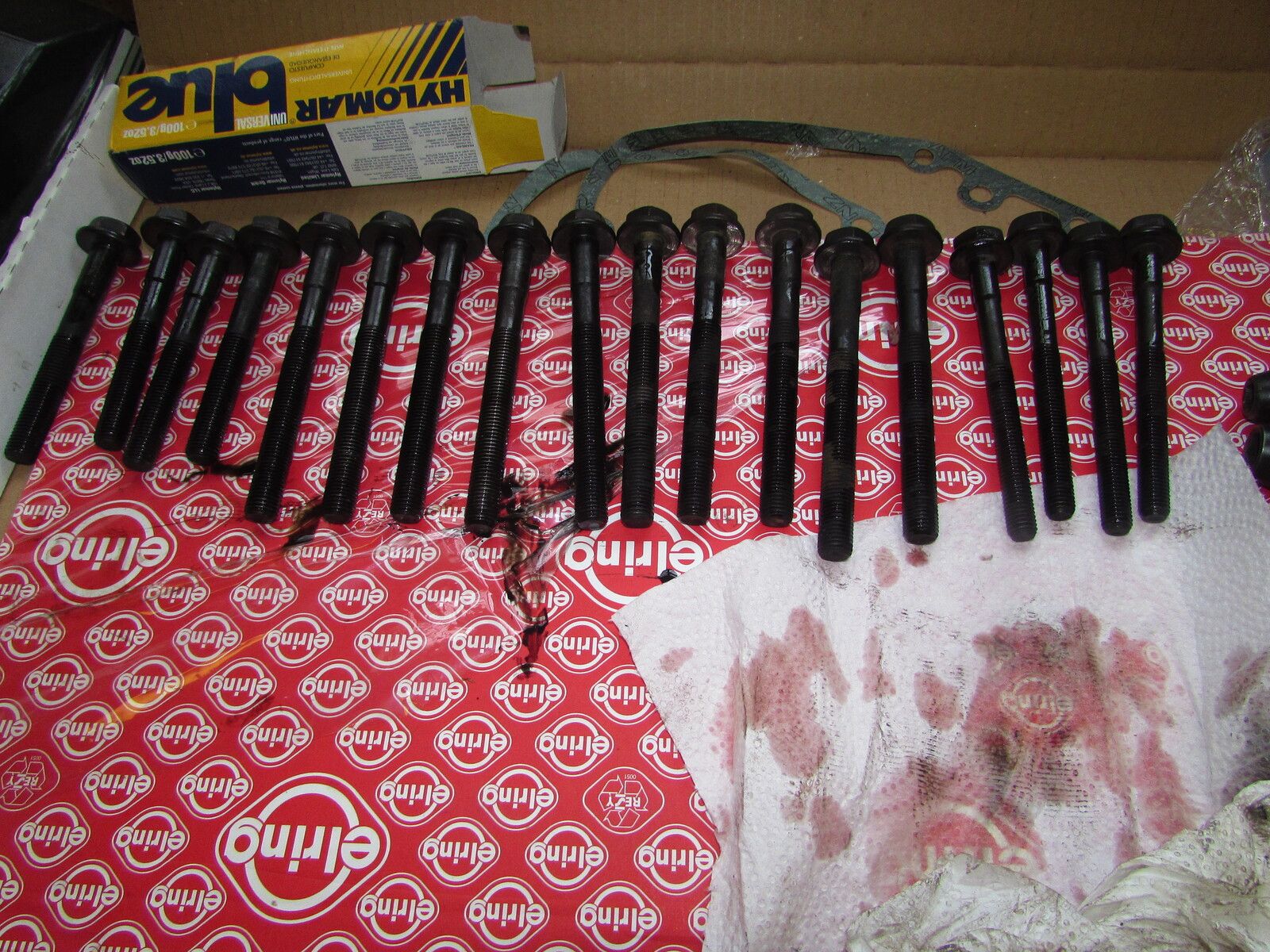

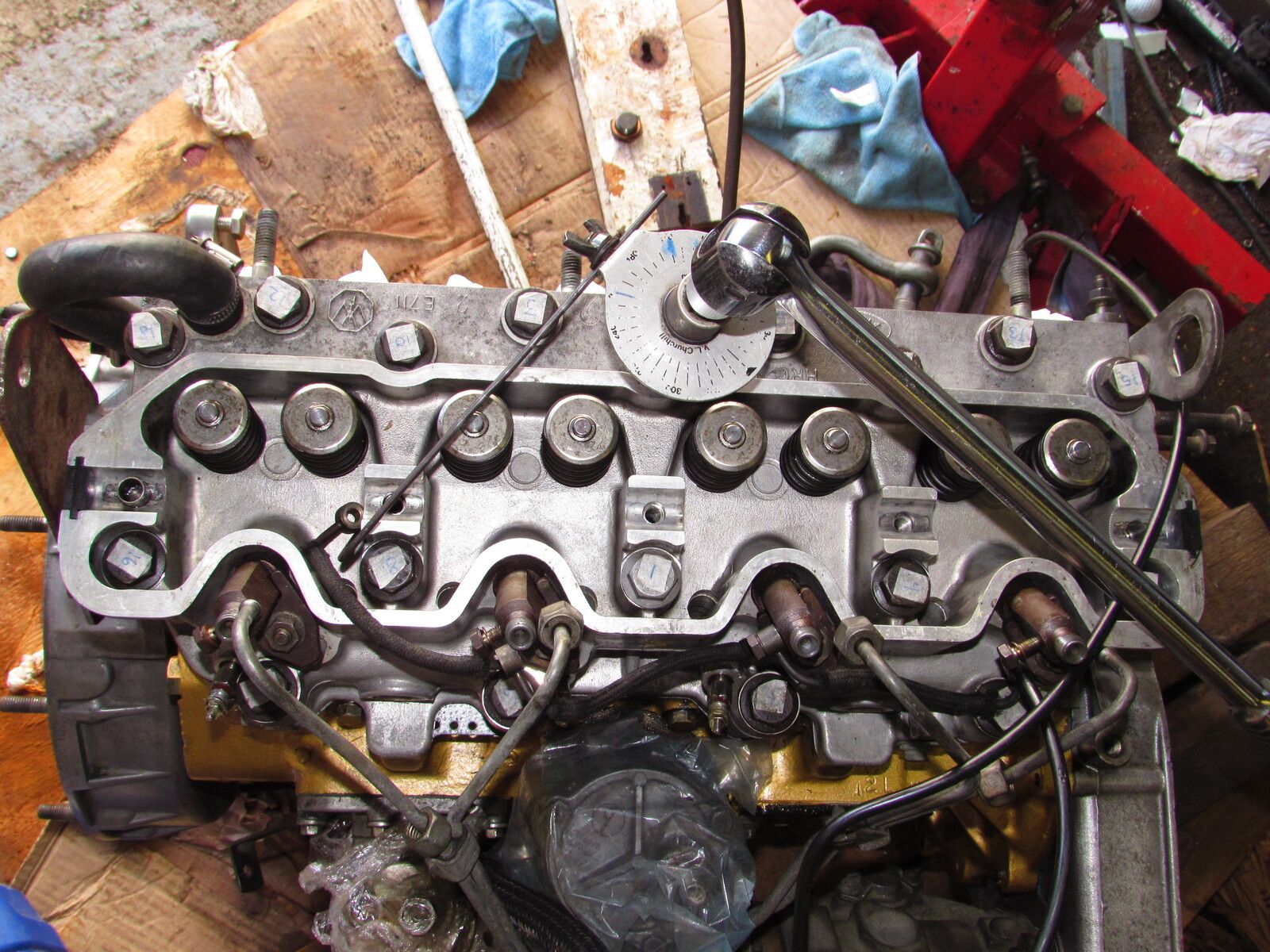

    Torqued head up to 40Nm and then two sets of 60deg further turns using a borrowed angle gauge, I removed the 3 remaining block water core plugs and flushed out with hose getting rid of some of the crud
    I got the front cover , water pump and thermostat housing sand blasted (thanks Ray) and then 2 coats of etch primer and some top coat spray paint I had in the garage from Aldi or Lidl supposed to be petrol resistant , the rocker cover and inlet manifold I used a cup brush on which gave a nice looking finish.

    New valve caps greased to stop them falling away and a lot of care to make sure the push rods were properly engaged , a bit of oil on the end and you can lift the tappet slide with suction shows its proper in.
    learning point here make sure the blind holes are clean before bolts go in doh
    ive fitted the diesel filter mainly to keep the dirt out of holes not sure if ive got it on the correct side of lift pump

    Im more used to 2286 diesel, do you need to bleed the pump on this motor and how is it done?

    I got a couple of M20 x 1.5mm blanking plugs for the oil filter housing unfortunately they bottom out in the hole, they cant be cut down so either 6mm fat washers or thread sealant/PTFE tape perhaps

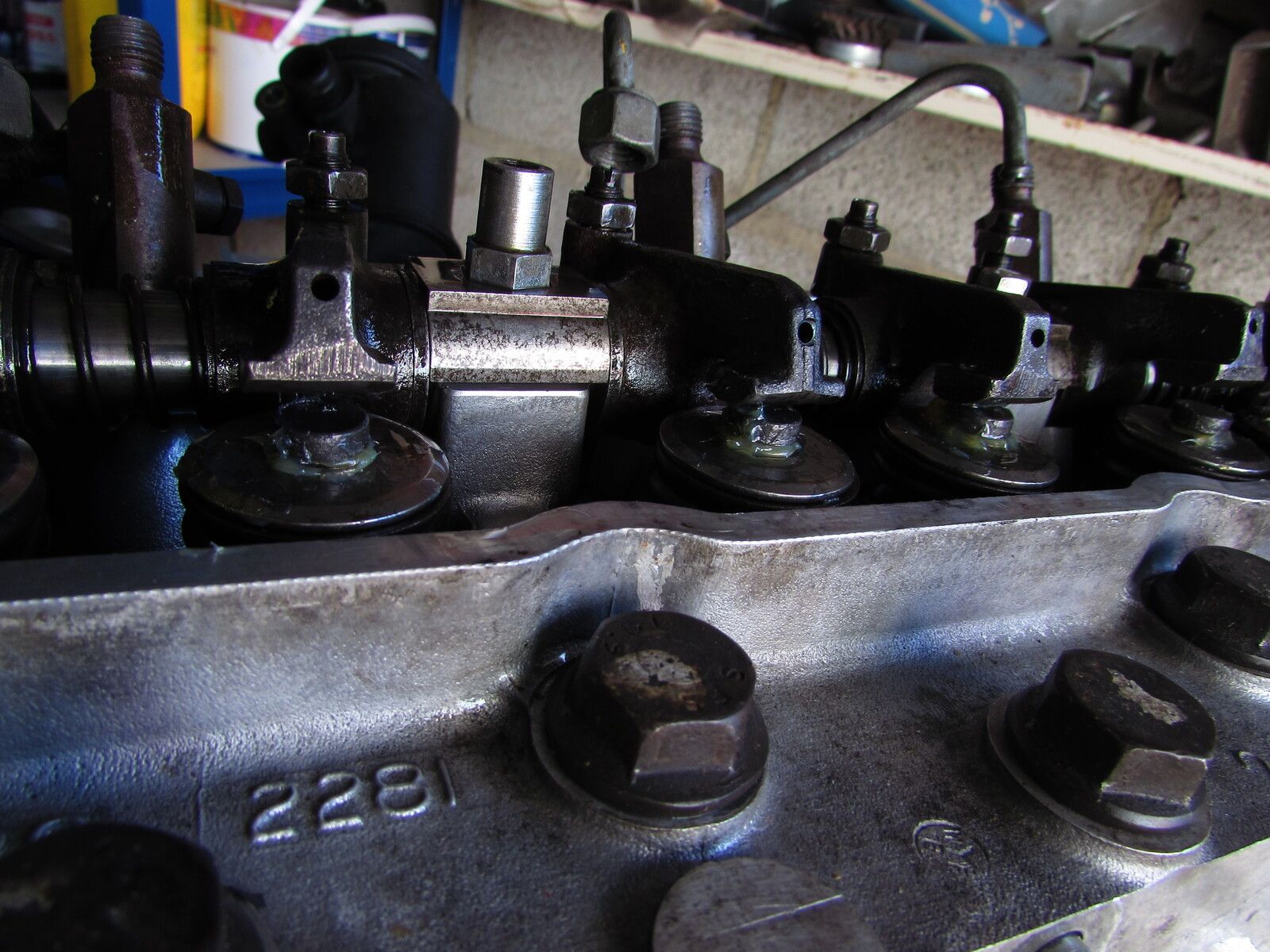

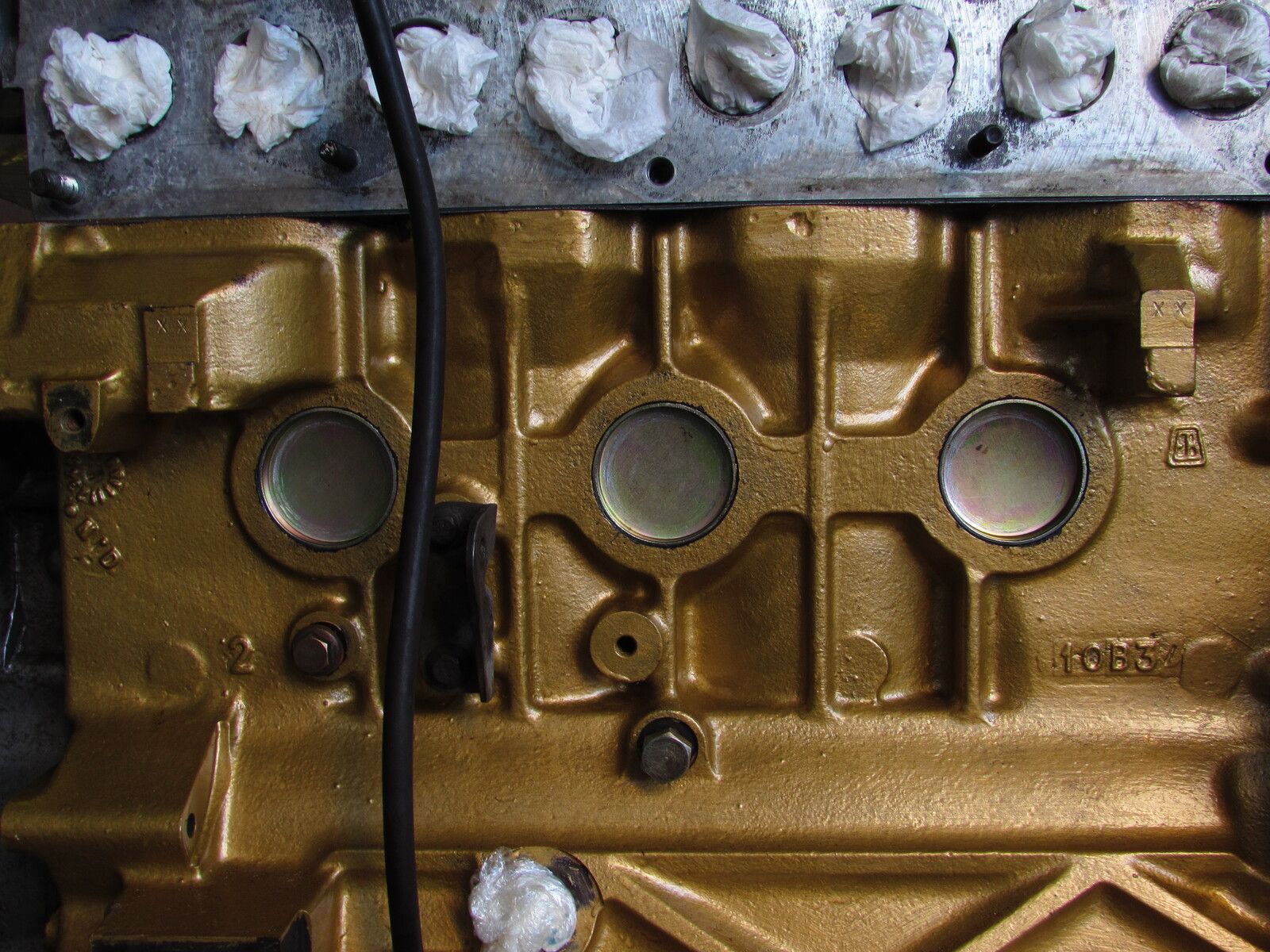

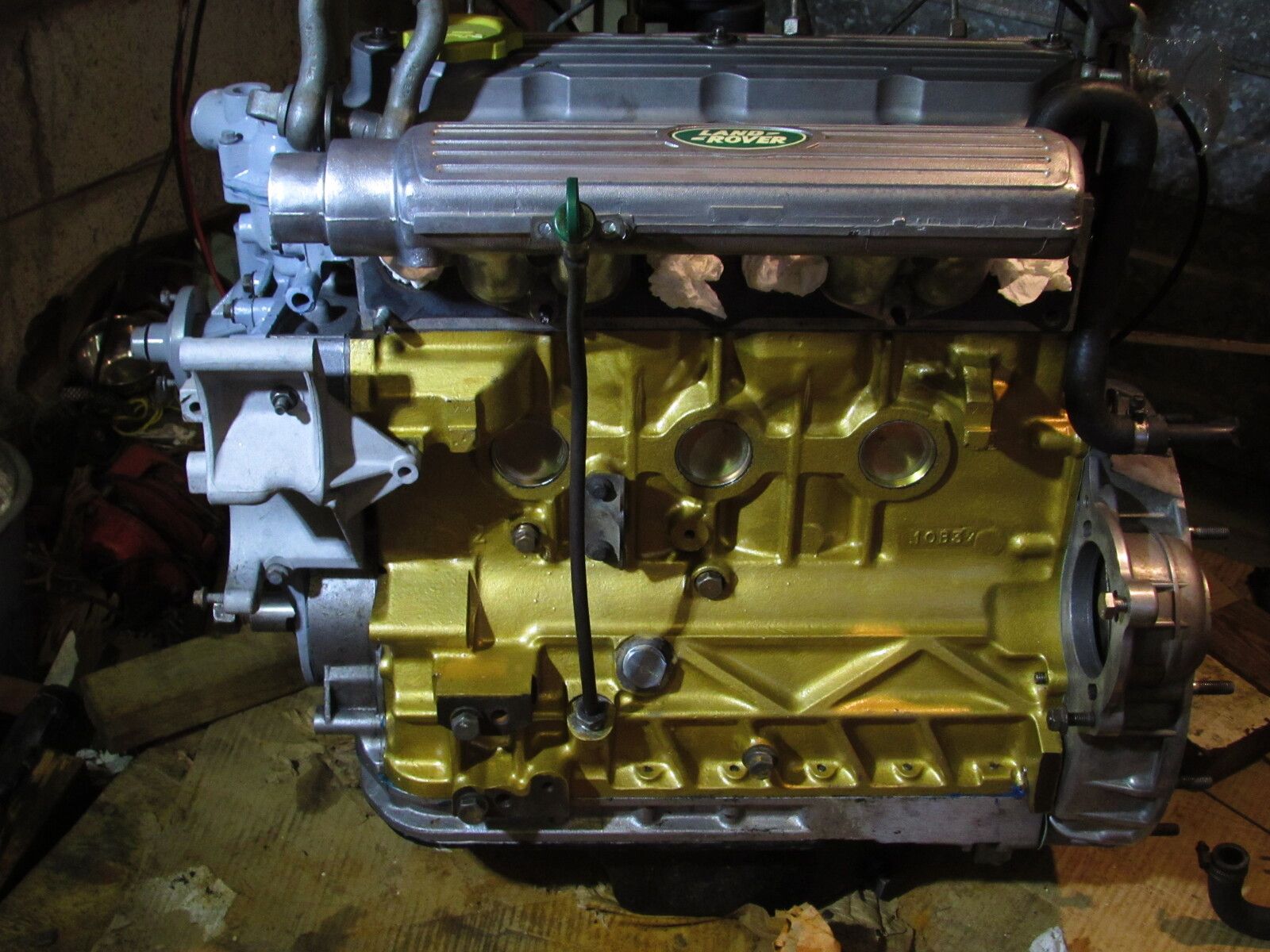

    IMG_6501.JPG IMG_6502.JPG IMG_6503.JPG IMG_6504.JPG IMG_6507.JPG IMG_6508.JPG


    Attached Files:

  20. Flossie

    Flossie Well-Known Member

    Joined:
    Sep 2, 2015
    Posts:
    6,024
    Likes Received:
    3,265
    Location:
    Shropshire
    Use the lift pump handle to get fuel up to the filter then crank and it will go.
    Oil filter bungs? What's that about.

    steve2286w likes this.
