200 tdi cracked block?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

LarryLandy93

Member
Posts
11
Location
Somerset
block 10.png
•Hi All,

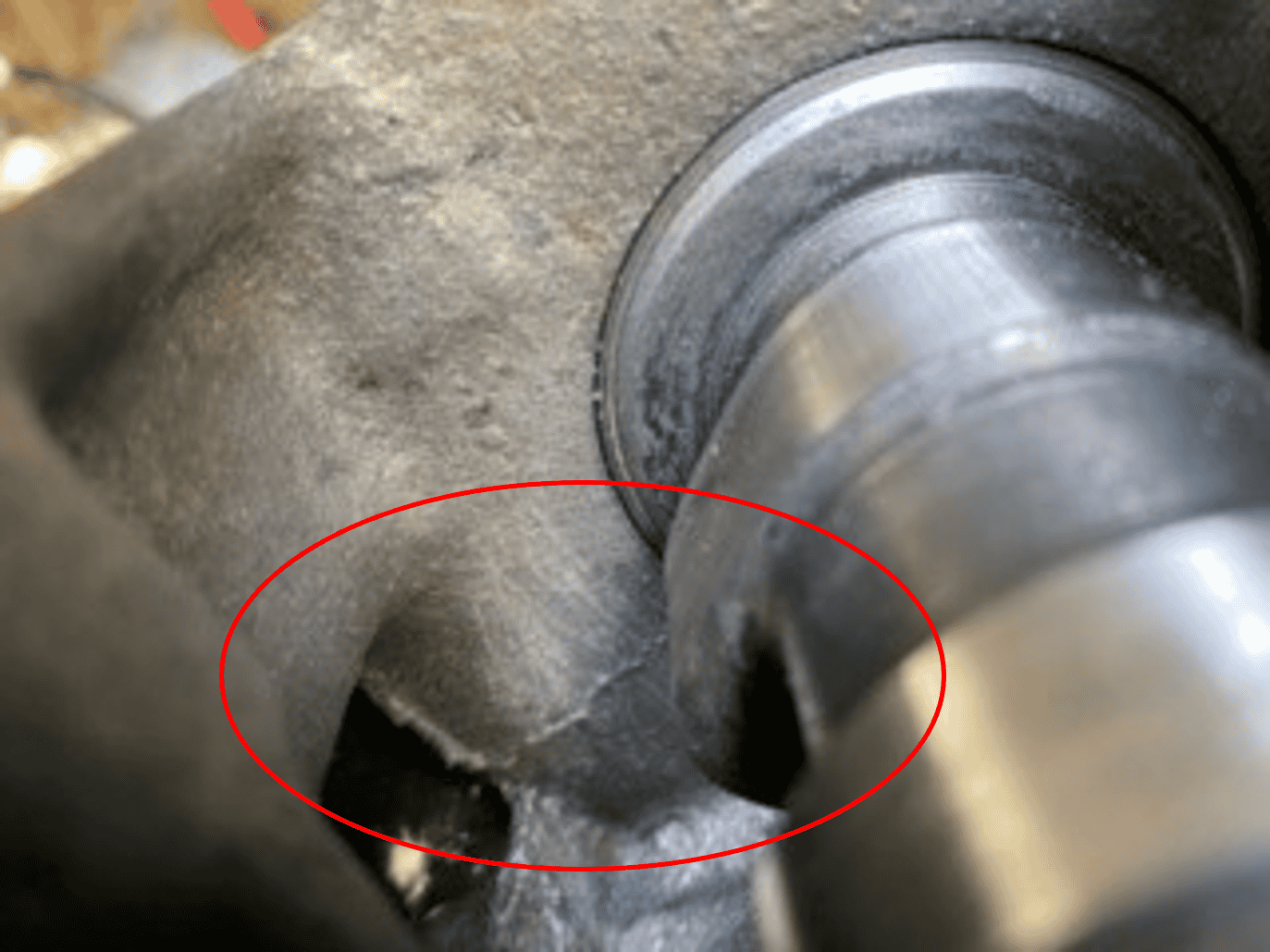

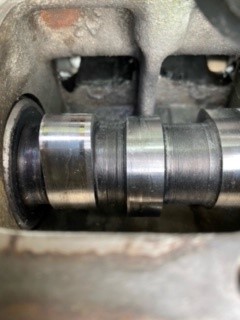

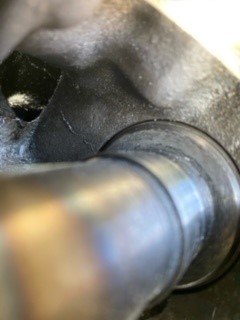

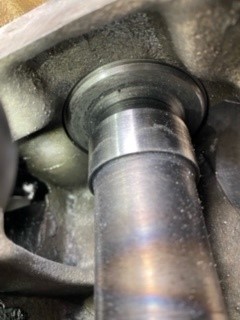

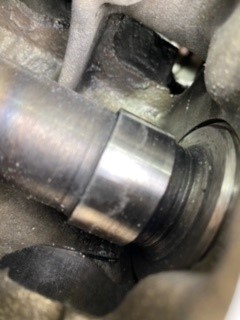

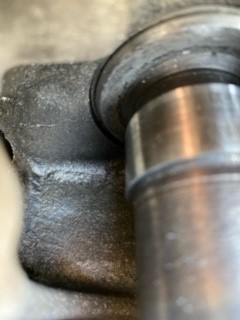

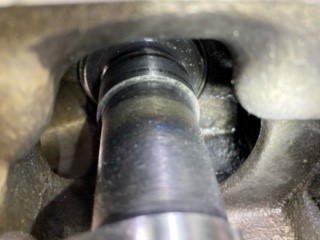

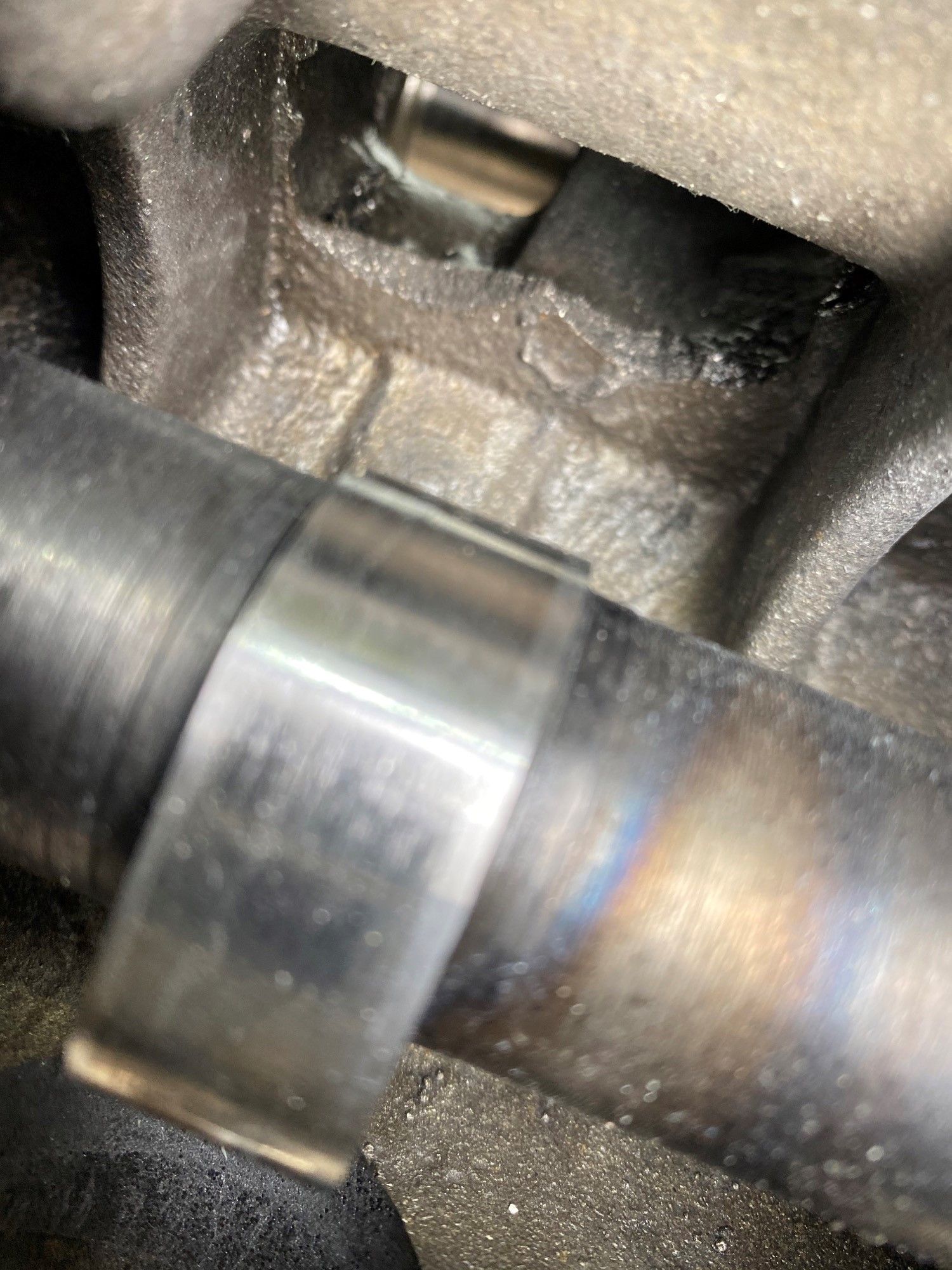

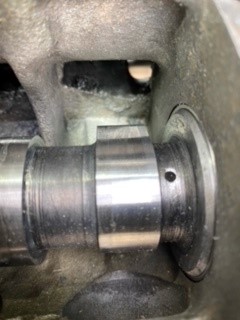

•I recently purchased a 200tdi 'project engine' to overhaul in preparation for replacing my ageing 200tdi 12L. The engine was advertised as having a broken piston ring (metal fragments in sump) but when I stripped it i found some damaged cam followers and evidence of overheat on the cam. I also found what looks like some cracks in the casting in the vicinity of the cam bearings and 'rough edges' around the orifices from the cam housing to the sump. I'm pretty inexperienced at engine rebuilds and am uncertain if I have a problem with my block or not. The lines that looks as though they might be a small cracks could be a line in the original casting? There are 4 of them in similar positions adjacent to the No1, 2, 3 and 4 cam bearings. Its hard to see if they are cracks or flaws in the surface of the casting. Can anyone please advise - is my block a right off or are these features common/usual. Many thanks


Block 3.jpg
Block 4.jpg
Block 5.jpg
Block 6.jpg
Block 2.jpg
Block 1.jpg
Block 8.jpg
Block 9.jpg


Attachments

  • Block 7.jpg
    Block 7.jpg
    20.7 KB · Views: 96
Last edited:
Can't see the photos very well but seems OK to me. They look like casting marks and the rough edges are normal

Block 8.jpg
Block 3.jpg
Block 3.jpg
Can't see the photos very well but seems OK to me. They look like casting marks and the rough edges are normal
Kev - thank you. Thats much appreciated. If you can see the pictures on a larger screen there is a fine line emanating from the bearing to the sump orifice. Thats a relief if they are casting marks. i wasn't sure if the damage/heat in the cam as a rsult of the damage had caused cracks. The rough casting edges also looked a little rough as though there had been additional damage

•Hi All,
•I recently purchased a 200tdi 'project engine' to overhaul in preparation for replacing my ageing 200tdi 12L. The engine was advertised as having a broken piston ring (metal fragments in sump) but when I stripped it i found some damaged cam followers and evidence of overheat on the cam. I also found what looks like some cracks in the casting in the vicinity of the cam bearings and 'rough edges' around the orifices from the cam housing to the sump. I'm pretty inexperienced at engine rebuilds and am uncertain if I have a problem with my block or not. The lines that looks as though they might be a small cracks could be a line in the original casting? There are 4 of them in similar positions adjacent to the No1, 2, 3 and 4 cam bearings. Its hard to see if they are cracks or flaws in the surface of the casting. Can anyone please advise - is my block a right off or are these features common/usual. Many thanks


View attachment 232608 View attachment 232609 View attachment 232610 View attachment 232611 View attachment 232613 View attachment 232614 View attachment 232615 View attachment 232616
you cam journals arent showing signs of overheating i think your looking at the result of the hardening process

Thats also a relief. Thanks James. I really appreciate the expert advice. The rough edges to the casting holes through from the cam housing to the sump just looked too rough to be the result of a normal manufacturing process. If that's how they are that's a relief there isnt anything more serious to worry about. Thank you

Thats also a relief. Thanks James. I really appreciate the expert advice. The rough edges to the casting holes through from the cam housing to the sump just looked too rough to be the result of a normal manufacturing process. If that's how they are that's a relief there isnt anything more serious to worry about. Thank you
yes thats how they are, they are only drain holes so finish isnt important
