2.25 petrol not run for years

Discussion in 'Series Land Rovers' started by Landrover130, Dec 21, 2019.

< Previous Thread | Next Thread >
  1. Landrover130

    Landrover130 Member

    Joined:
    Jun 29, 2013
    Posts:
    69
    Likes Received:
    6
    Location:
    Orkney
    I bought this 109 4 years ago and never tried to start it till last week. Glass bowl only has 3/8 of an inch of what I would describe as grey sand like mixture,solid in btm. I know it’s previous owners were putting lead replacement liquid in tank, could it be this substance that’s been left after petrol evaporated? Cleaned the stuff out and on charge hopefully to start it tomorrow. 44EA0025-8081-4429-AD60-B2CF6712F816.jpeg

  2. rob1miles

    rob1miles Well-Known Member

    Joined:
    Sep 22, 2017
    Posts:
    3,555
    Likes Received:
    1,467
    Location:
    Slough and Bath
    Take the plugs out and motor it on the starter uil the oil light goes out. Better safe than sorry

    wreckrunner likes this.
  3. Dippypud

    Dippypud Never Knowingly Understood Full Member

    Joined:
    May 2, 2011
    Posts:
    60,344
    Likes Received:
    43,468
    Location:
    The Wooly Witch
    Not got a starting handle ?

    Best to turn by hand first to see if it's free ....

    Even if you prop it up on blocks, put it in gear and turn a wheel ...

    wreckrunner likes this.
  4. Dippypud

    Dippypud Never Knowingly Understood Full Member

    Joined:
    May 2, 2011
    Posts:
    60,344
    Likes Received:
    43,468
    Location:
    The Wooly Witch
    And when you do go to start on the key, please put some coolant and oil in it ...

  5. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    3,102
    Likes Received:
    627
    Location:
    Tyneside
    Take the plugs out and drop some oil down the bores to give it a little lubrication before attempting to start.

  6. Landrover130

    Landrover130 Member

    Joined:
    Jun 29, 2013
    Posts:
    69
    Likes Received:
    6
    Location:
    Orkney
    Turned over by hand without plugs, solenoid clicked but nothing else, terminals on it were very rusty so decided to remove it. Bakelite broken around main contacts for some reason so need to replace, removed starter to check brushes that’s ok I’ll replace earth cables whilst I wait for solenoid to arrive.

  7. Landrover130

    Landrover130 Member

    Joined:
    Jun 29, 2013
    Posts:
    69
    Likes Received:
    6
    Location:
    Orkney

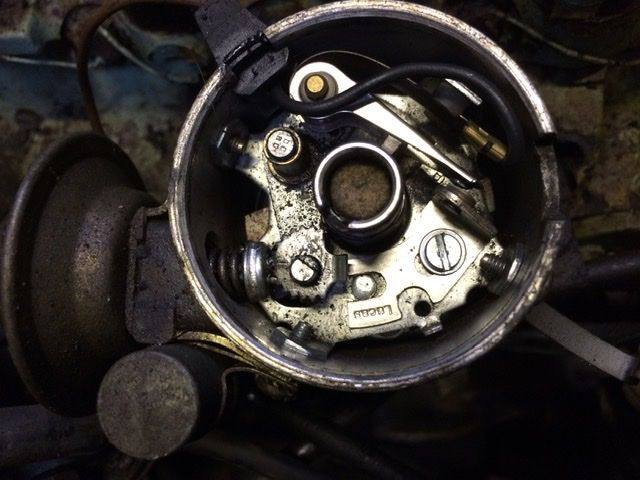

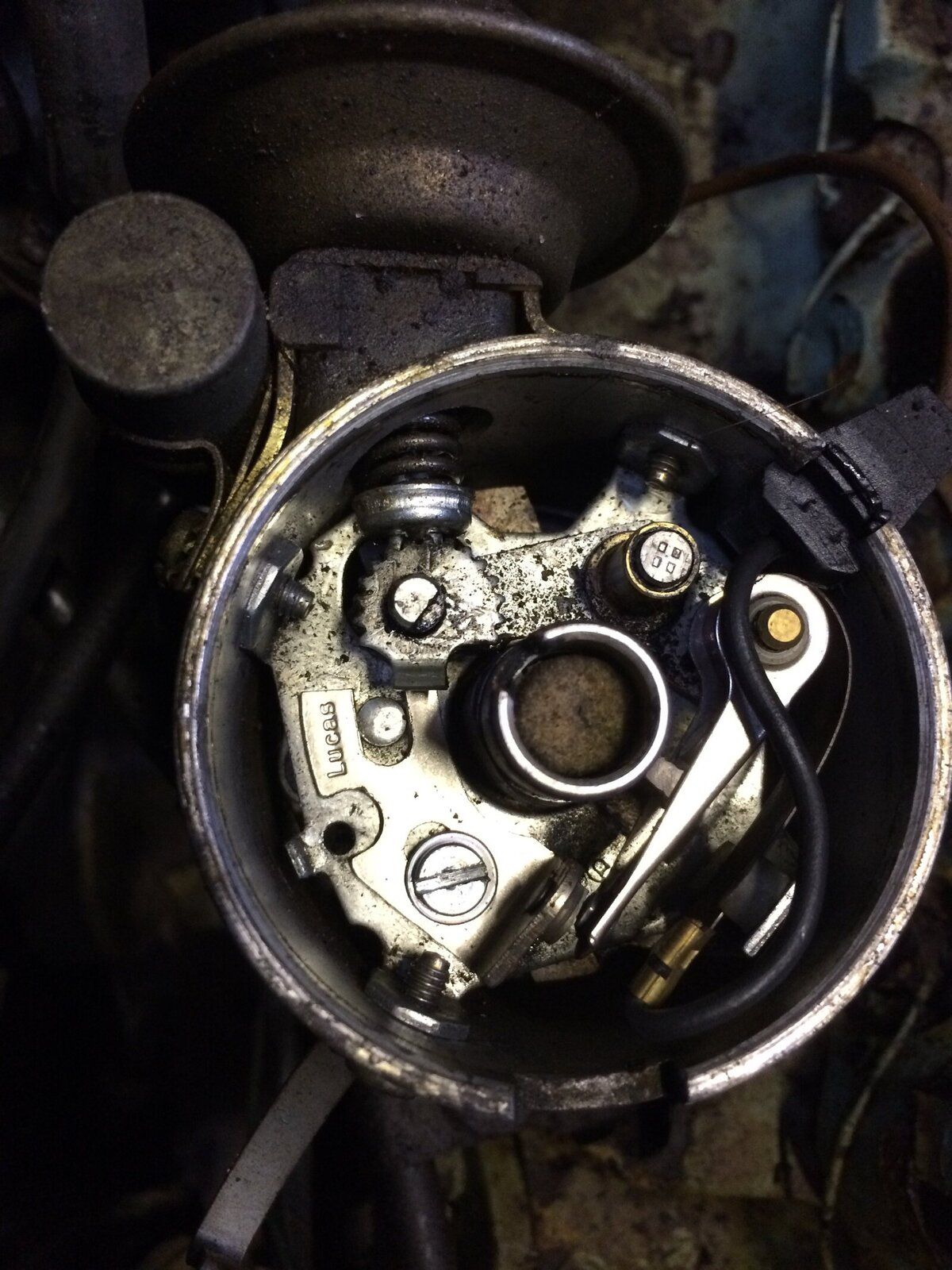

    2880239A-4C33-4F5C-9DBA-732D06A8ED24.jpeg Replaced solenoid and starter turns ok now, no petrol through carb so removed top and put air through jets etc needle not stuck so filled bowl up with fresh petrol and replaced top. Still not starting or even trying, throttle pump spraying petrol ok even tried a bit of petrol down carb. Checked for a spark at plugs and nothing, so checked coil wire to distributor and no spark either, low tension has power through coil so coil must be duff. I’ve added a picture of distributor as I’ve never seen this with condenser on outside, is it correct?.


    Attached Files:

  8. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    8,416
    Likes Received:
    9,158
    Location:
    Thatcham
    The gap in the points looks a bit large, well, quite a lot large.

    Col

    Turboman likes this.
  9. Wildefalcon

    Wildefalcon Well-Known Member

    Joined:
    May 28, 2015
    Posts:
    470
    Likes Received:
    249
    I forget how points work. Does the body of the points need to be insulated from the distributor?

  10. Landrover130

    Landrover130 Member

    Joined:
    Jun 29, 2013
    Posts:
    69
    Likes Received:
    6
    Location:
    Orkney
    Looking at the picture now the gap does look big, but I think it’s the angle I am holding phone at that gives that impression, will check it.

  11. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    3,102
    Likes Received:
    627
    Location:
    Tyneside
    Check the plate the points are fixed too should be a small wire connecting the plate to earth on the body of distributor.
    With ignition on do you have a voltage at the coil +ve with points open.
    Check the order of plug leads on distributor , remember the distributor goes anticlock wise from memory check the manual.

  12. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    18,388
    Likes Received:
    22,483
    Location:
    North Shropshire
    Points look burnt to me!

  13. Landrover130

    Landrover130 Member

    Joined:
    Jun 29, 2013
    Posts:
    69
    Likes Received:
    6
    Location:
    Orkney
    You were correct the gap was very large, I’ll admit to not checking previously and blame my 63 year old eyes. Thanks.

  14. Landrover130

    Landrover130 Member

    Joined:
    Jun 29, 2013
    Posts:
    69
    Likes Received:
    6
    Location:
    Orkney
    So after setting points gap and checking for a spark it fired up with a bit of choke. Not sure if I trust the low oil pressure warning light as it went out very quick after only a couple of turns of the starter and took a while before it came back on after switching off ignition and leaving switch in position 1, does that sound right?. I found out it’s a Ducellier distributor are they reliable? I think I will replace points and condenser. Thanks everyone for your input.

  15. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    18,388
    Likes Received:
    22,483
    Location:
    North Shropshire
    I've got a ducellier, never had any issue, but non standard when you need to buy a new cap or rotor arm

  16. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    3,102
    Likes Received:
    627
    Location:
    Tyneside
    Oil pressure sounds ok to me if you only ran it a short while.

  17. Landrover130

    Landrover130 Member

    Joined:
    Jun 29, 2013
    Posts:
    69
    Likes Received:
    6
    Location:
    Orkney
    Update, did not start very easy this morning I had to pump throttle and use full choke and it eventually started.When it started it ran very smoothly I have ordered points and condenser, plugs were a nice sandy colour so have left them alone at the moment. What is best starting procedure re the use of throttle and or choke, I’ve not done anything with a petrol engine for 40 years so new to this. The throttle spindle is leaking petrol, I have a spare carb that is in very good clean condition inside, in fact it’s either been rebuilt or is very new so I think I will fit it, only thing is it is very black inside the body where the choke butterfly is. It has an electrical connection on which I think may be something to do with emissions from what I’ve read does this need connecting?. I found it’s a fuel cut off valve does it need a supply from ignition?.

  18. Landrover130

    Landrover130 Member

    Joined:
    Jun 29, 2013
    Posts:
    69
    Likes Received:
    6
    Location:
    Orkney
    It seems it’s not as simple as just putting a feed to the fuel cut off valve, can I just remove it and fit a plug, or is it not that simple.

  19. kermit_rr

    kermit_rr Green Member Full Member

    Joined:
    Dec 9, 2018
    Posts:
    18,388
    Likes Received:
    22,483
    Location:
    North Shropshire
    Which carb is fitted? Could well be gummed up which is why it was hard to start from cold.
    Some carbs require the accelerator to be pumped before you attempt starting

  20. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    8,416
    Likes Received:
    9,158
    Location:
    Thatcham
    I use full choke and a couple of blips on the accelerator before turning the key. If the engine runs smooth, there can't be too much wrong with the carb. With the filter removed from the top of the carb, get an assistant to blip the throttle with the engine off whilst you look down the throat of the carb. You should see a jet of petrol being squibbed in as the throttle is pressed. I have 4 zenith carbs all from series 3s and each of them is different. Don't muck about with the carb unless it is essential.

    Col
