110 Wolf doors, repair, or replace?

Thanks v8250.

Have checked spares...no spare, but they are these

https://southco.com/en_gb_int/d8-336-400-121

or in st/st

https://southco.com/en_gb_int/d8-336-400-200

available on fleabay

https://www.ebay.co.uk/itm/272381624834?epid=19028769658&hash=item3f6b35c202:g:cmwAAOSwTA9X3wYO

Wolf Pack said:

Can anyone tell me what these grille clips are called? I need one backing retainer:

Click to expand...

the Land Rover part number is RRC3983
Stud Turnlock Fastener

Great, that's one more thing out of the way.

Now got a nasty wire chop behind the convoy switch to sort out and I'm no sparks.

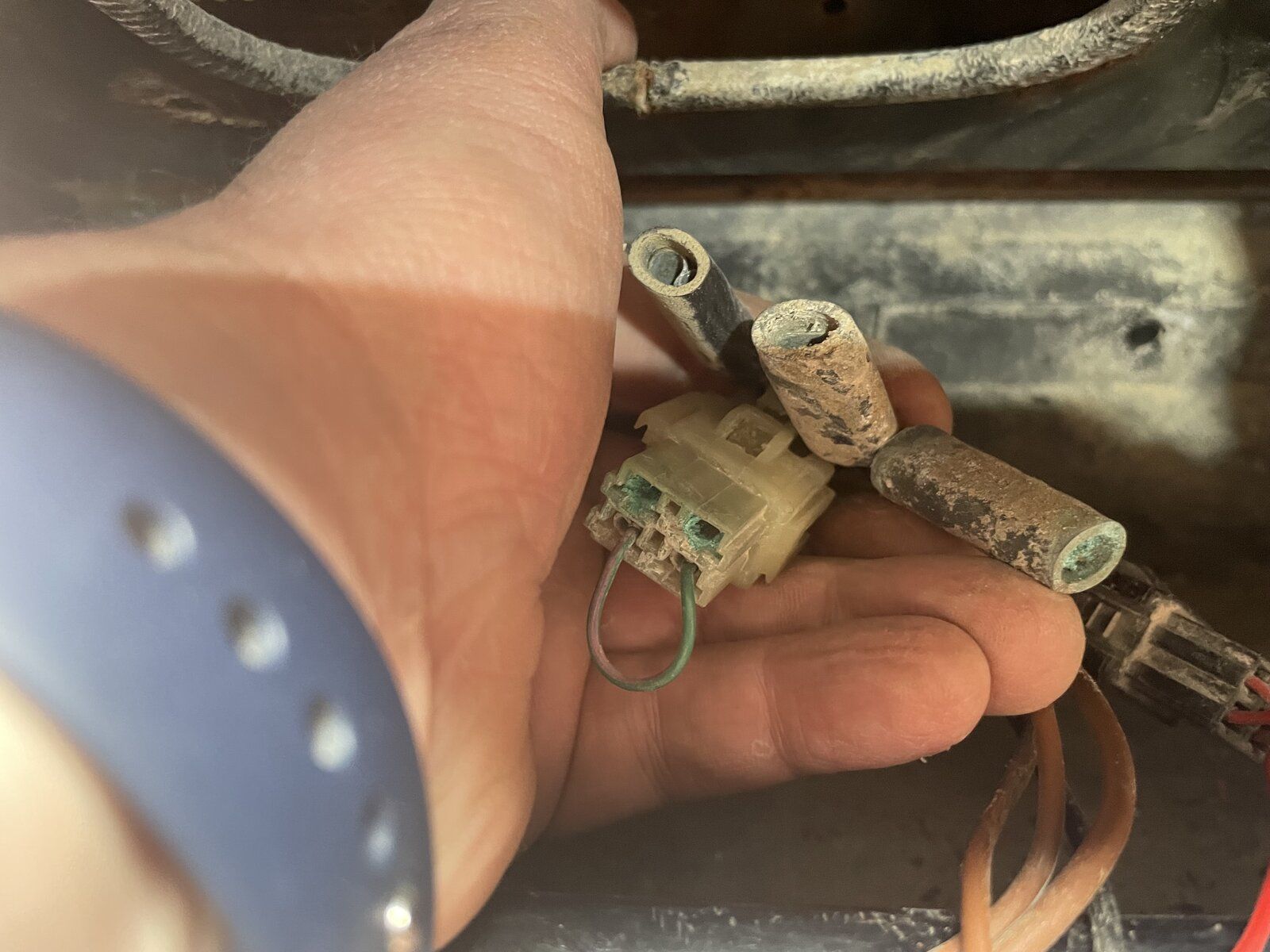

Any clues what these wires are, especially the shorted out connector?

The colour of the wires should tell you what job they do. Has your 6-position light switch has been bypassed?

http://www.expeditionlandrover.info/Lucaswirecode.htm

The 3x brown double bullet females are permanent live / output from the fuse box - but check with your DVM. The green-brown [purple?] link is non-std, what colour wires are on the connector input?

Suggest getting both Haynes and Workshop Manual for wiring diagrams. MOD Landy wiring is not too different from Civvy Landies. All that mud/crud on your wiring will can be cleaned with a good dose of WD40 and a rag

eta: whatever you do don't chop any wires, far better to thoroughly clean and inspect, then work out where the wires go.

note: most MOD Landies have spare brown wires behind the centre dash/rotary light pod - I've used my spares for a cigar lighter, twin USB port and a flexible map reading lamp

Rougharse Racing said:

Has your 6-position light switch has been bypassed?

Click to expand...

I was thinking the connector may be a replacement for the RIST convoy connector

Part of the convoy switch works, part does not. I'll look again when I get home. There is a broken wire in the fuse box, supposedly the passing light and horn feed - does that sound correct?

What colour is the broken wire?

Genuine Q...do you have a DVM [digital volt meter] and know how to buzz out wires/electrical ccts for continuity/volts/measure resistance/current? If not, buy a DVM and learn how to do this, it's a much needed skill with car wiring. Really recommend the Haynes car electrical manual



and something like this



The best thing with these books is that one can learn each of the techniques live on your Landy without doing much harm. Just don't short out your ignition/starter ccts to ground whilst trying to start the engine as you'll get a big surprise!

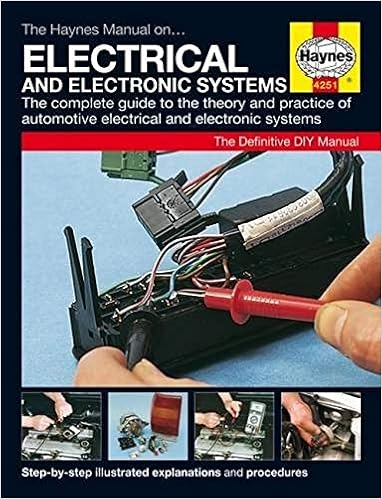

Haynes manual is now on order.

Is the Workshop manual a single volume? I've seen online downloads in 5 parts and a "Repair" manual is separate again.

v8250 said:

What colour is the broken wire?

Genuine Q...do you have a DVM [digital volt meter] and know how to buzz out wires/electrical ccts for continuity/volts/measure resistance/current? If not, buy a DVM and learn how to do this, it's a much needed skill with car wiring. Really recommend the Haynes car electrical manual

and something like this

The best thing with these books is that one can learn each of the techniques live on your Landy without doing much harm. Just don't short out your ignition/starter ccts to ground whilst trying to start the engine as you'll get a big surprise!

Click to expand...

I do have a meter, or AVO, as I knew them, so I'll get that Haynes as well.

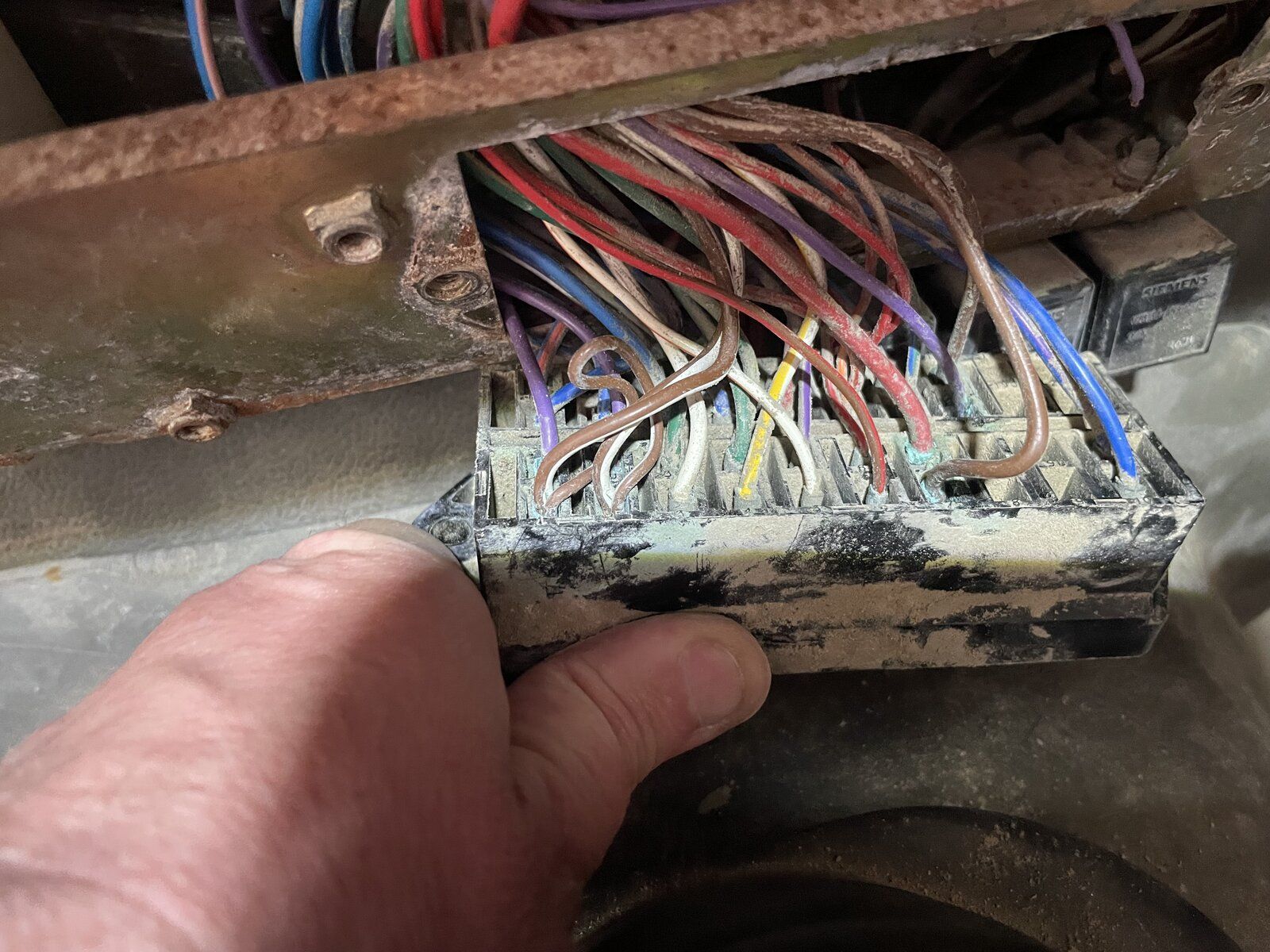

I opened the fuse box and the broken wire is purple, as per this pic. Where ought that to be attached and is it a bayonet fitting?

Purple = Horn, Clock, sometimes cigar lighter [this can also be brown], interior light, horn and hazards. Is there a broken purple wire on the output of any of the fuses?

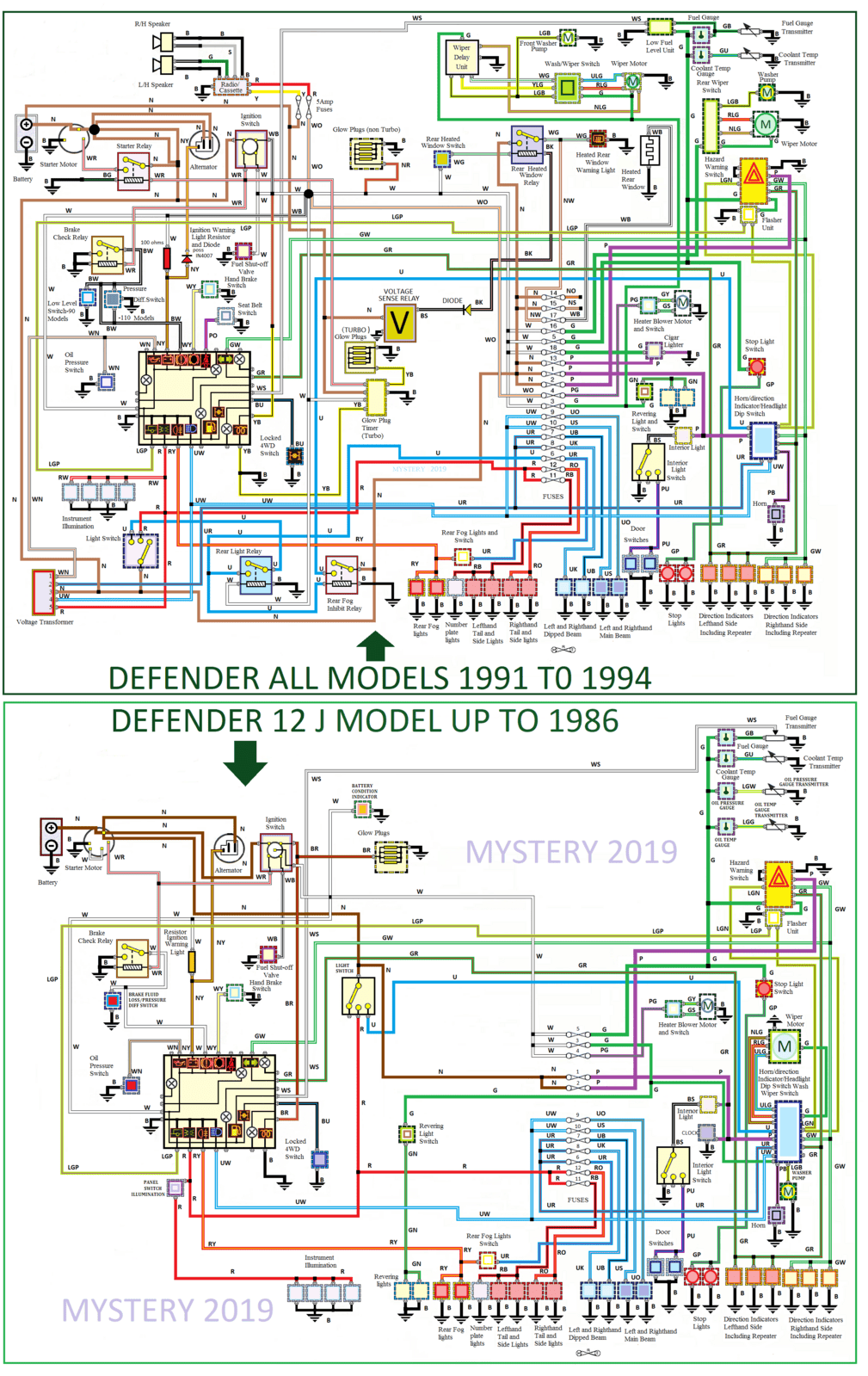

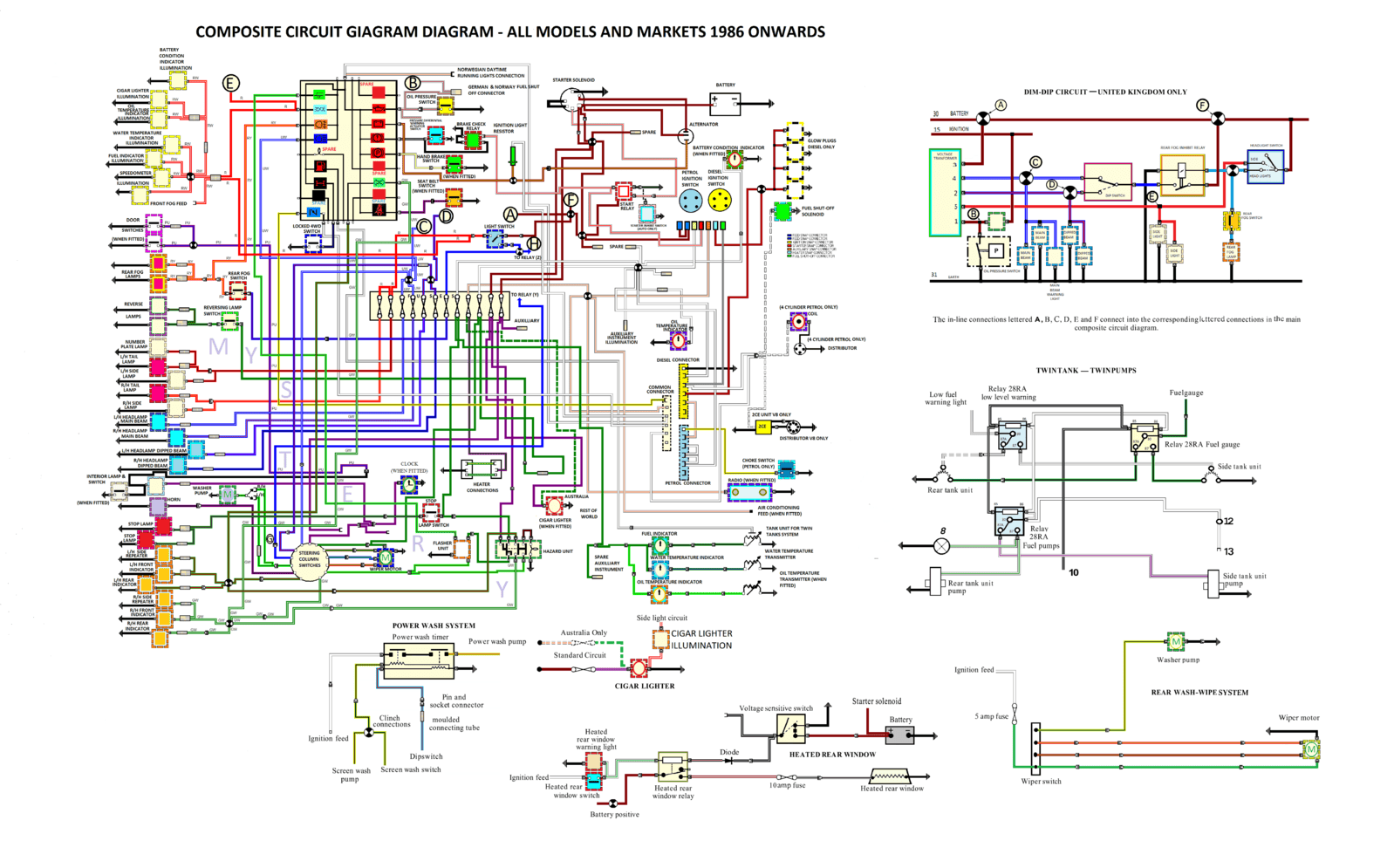

Pls use these as ref'

Thank you v8250, I will go and pull the fuse panel and look.

Which colour wire deals with the passing/headlight flash circuit please?

Pulled the small fuse holder and there is no obvious missing connection into a fuse, but there are two spliced wires and half of Somalia in there:

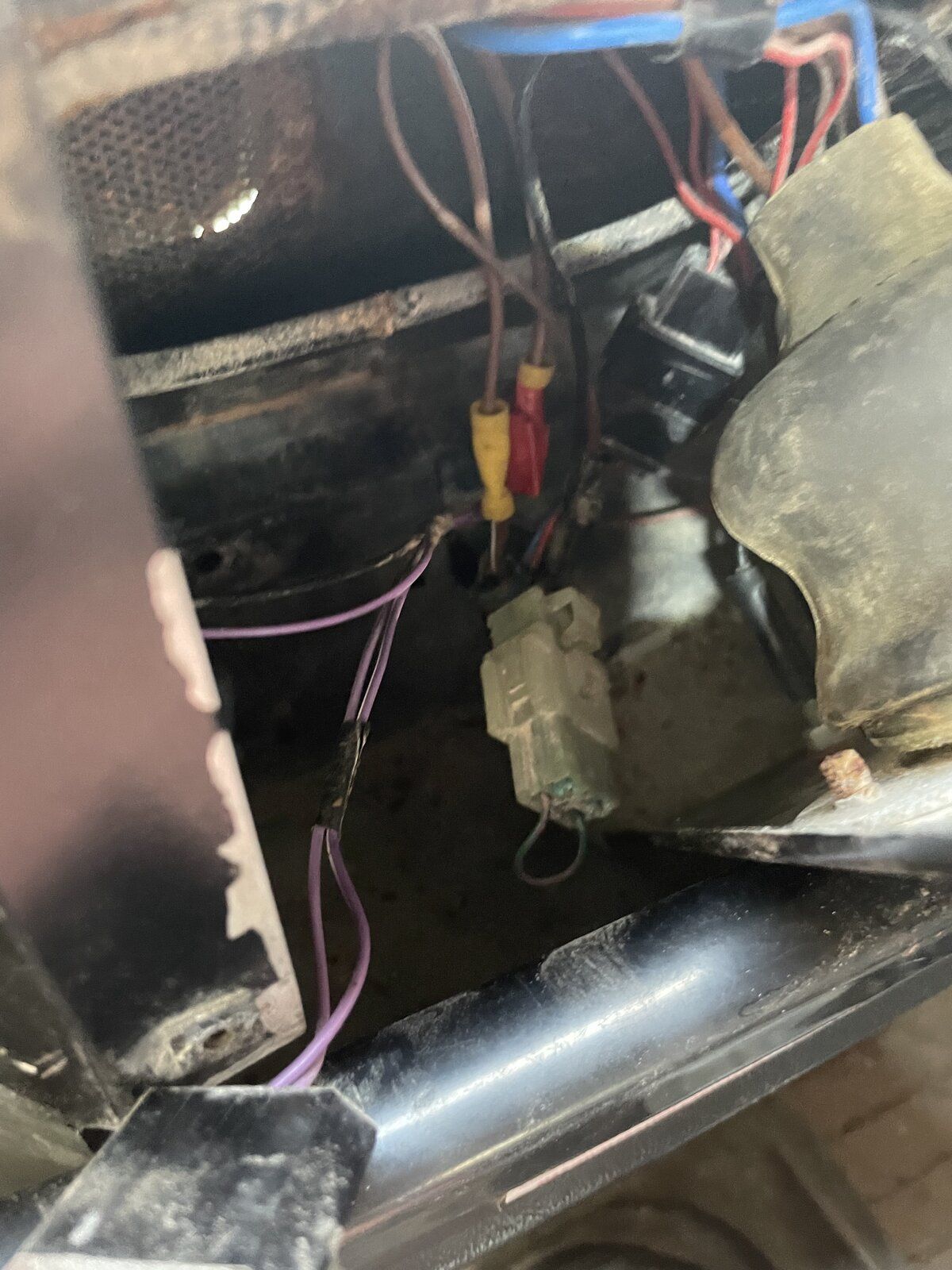

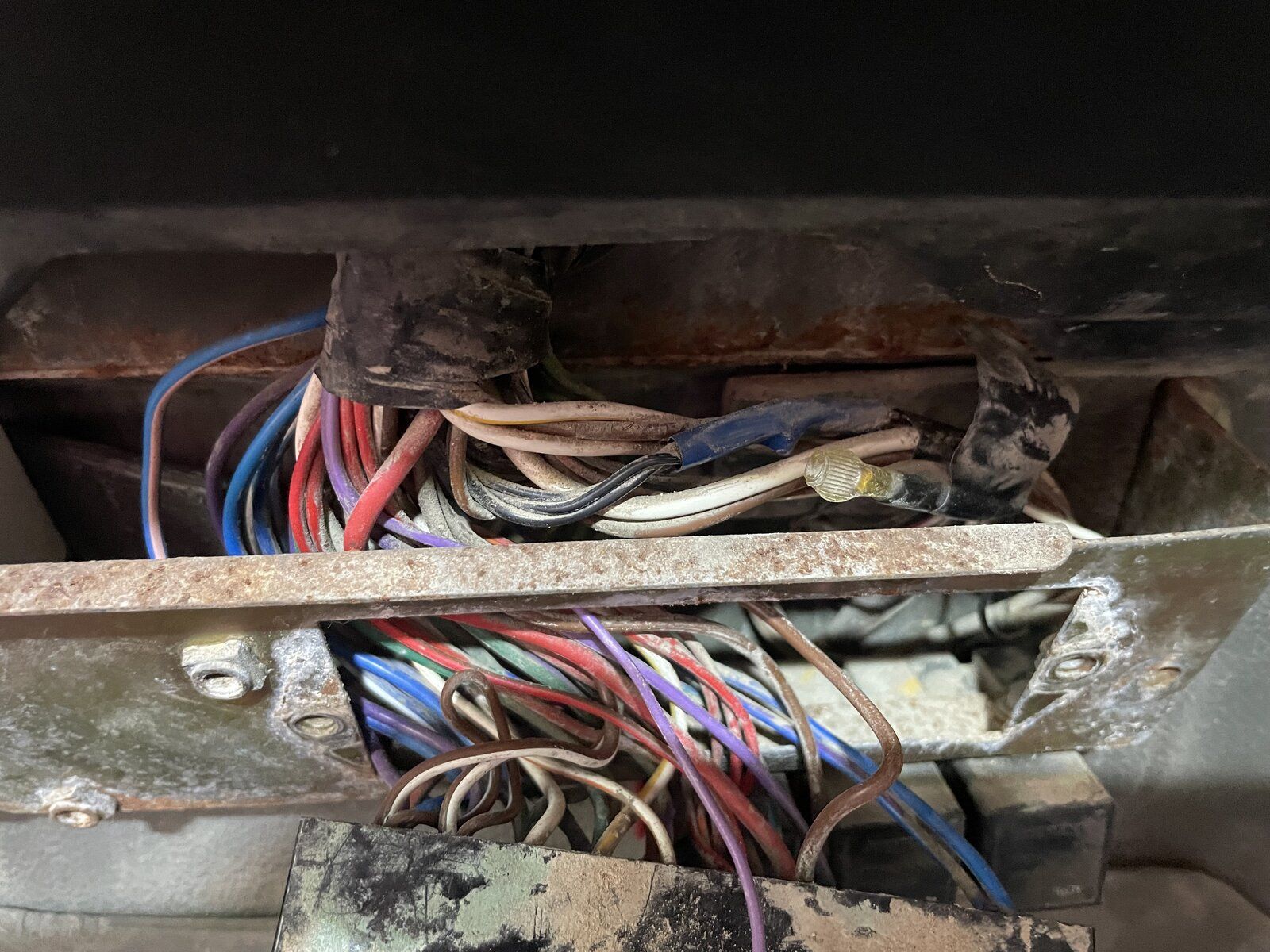

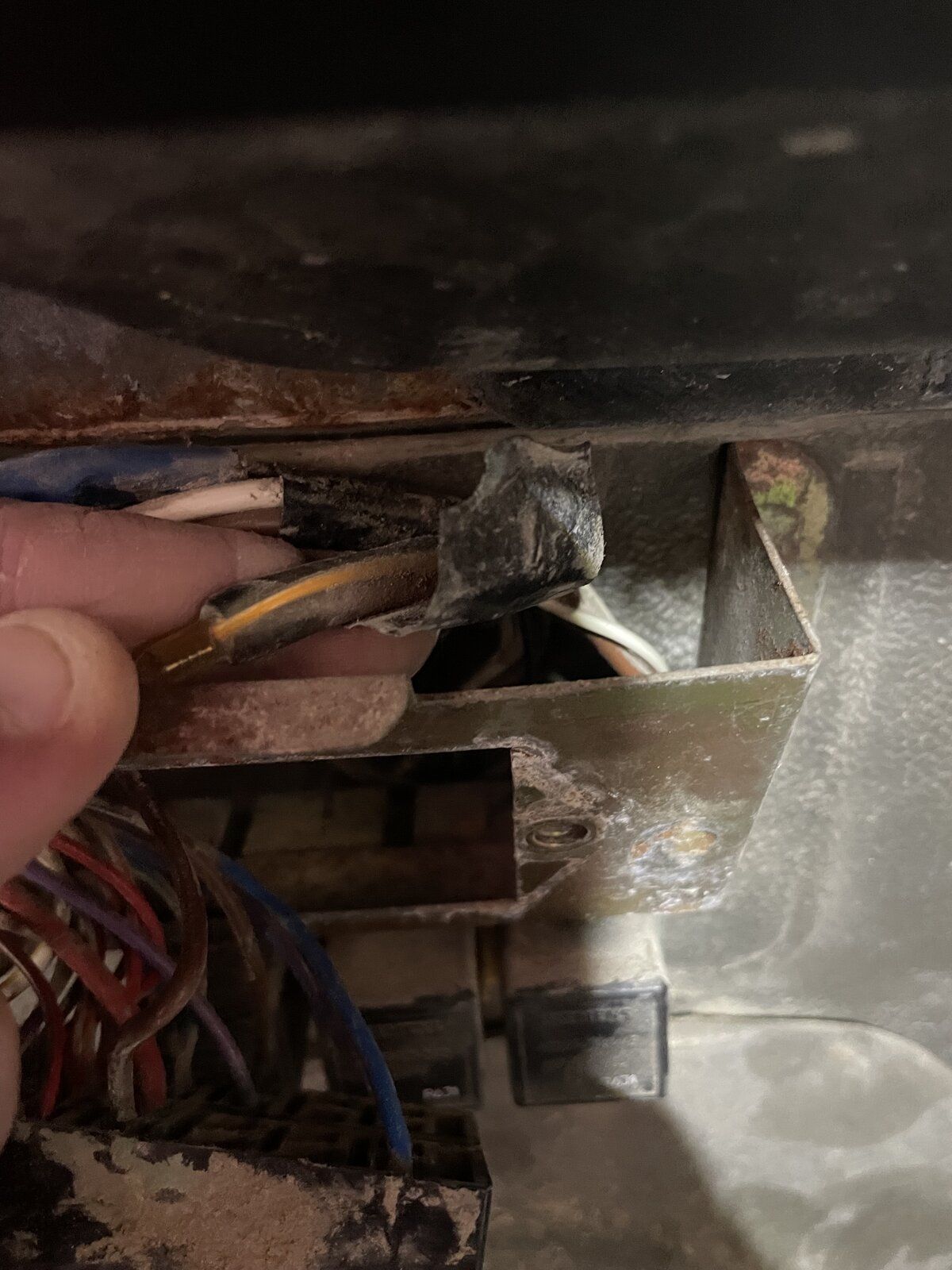

A few more pics:

That's mess, typical Landy wiring. I'd be inclined to thoroughly clean and inspect all wiring, and then trace and note all the wires to their points of use...then replace the bodged wiring with fresh correctly coloured wires.

Welcome to MOD Land Rovers...

I agree.

What would a new front harness cost these days?

look on Autosparks...but be seated when you do...

I see what you mean.

£656.51? Then it wants fitting which would be several hours, if not a day's work, I imagine?

v8250 said:

What colour is the broken wire?

Genuine Q...do you have a DVM [digital volt meter] and know how to buzz out wires/electrical ccts for continuity/volts/measure resistance/current? If not, buy a DVM and learn how to do this, it's a much needed skill with car wiring. Really recommend the Haynes car electrical manual

and something like this

The best thing with these books is that one can learn each of the techniques live on your Landy without doing much harm. Just don't short out your ignition/starter ccts to ground whilst trying to start the engine as you'll get a big surprise!

Click to expand...

Found this one, slightly different title: https://www.ebay.co.uk/itm/174783345901?hash=item28b1e634ed:g:CXYAAOSwdE9gr3q6
