Series 1 wots this for

honolulujoe · Sep 19, 2015

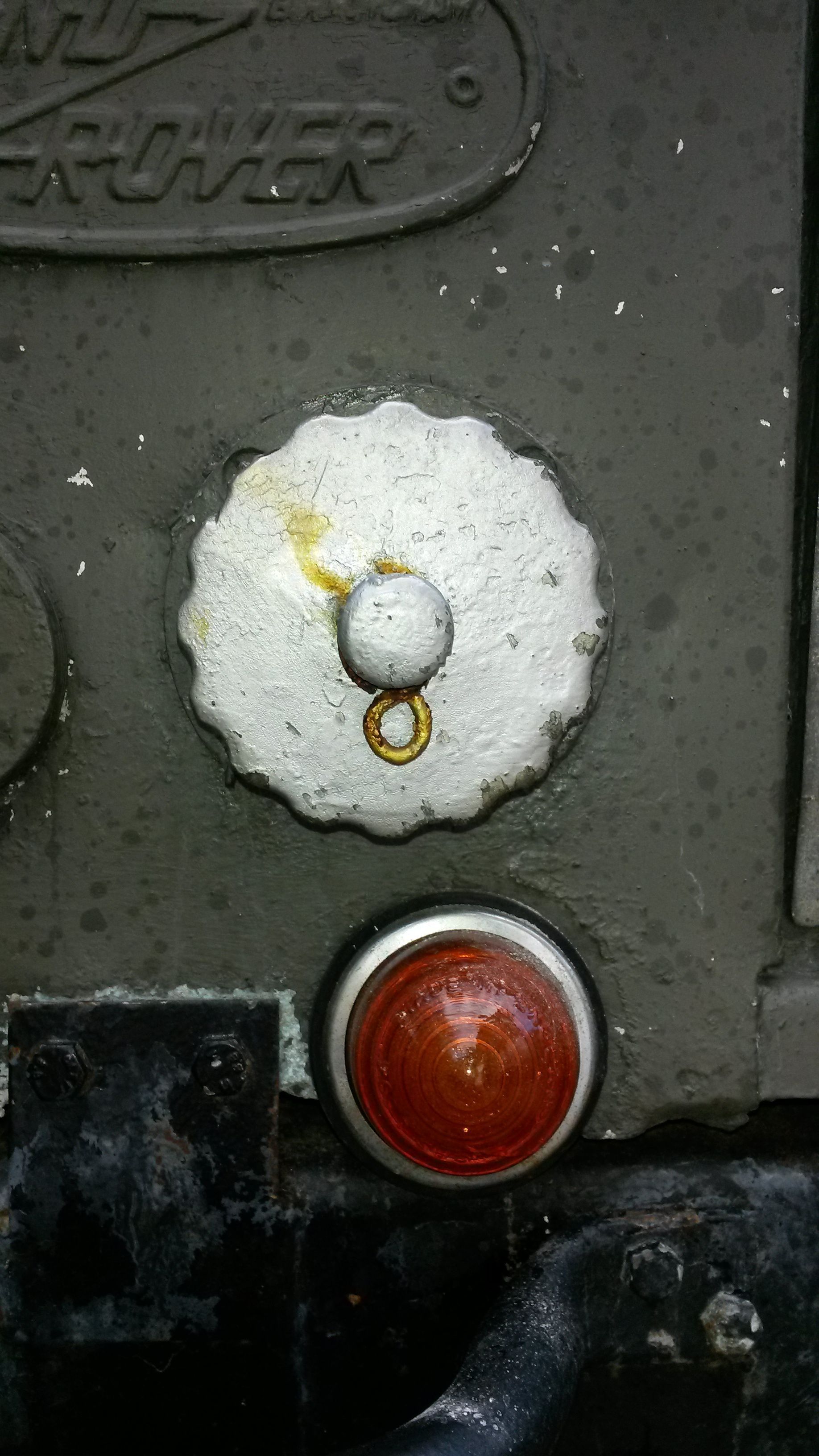

I assume its for towing (trailer) or convoy lights as my s1 is ex-mod.

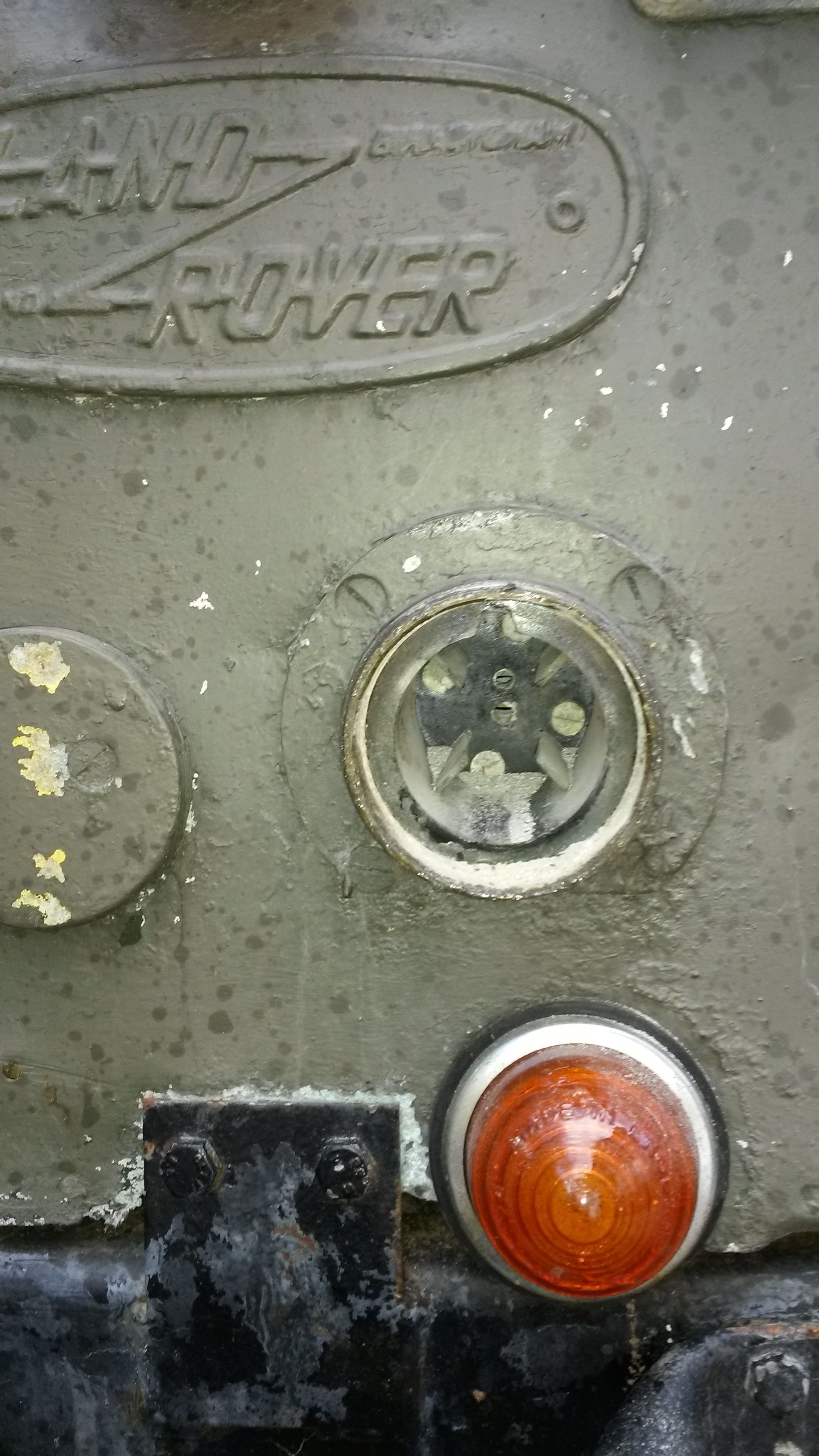

thought it would be rusted in but managed to get a big stilson on it and loosen it, looks like something electrical shoves in, unfortunately the four wires on the back have just been cut off so they go nowhere

jailon · Sep 19, 2015

Yep trailer connector,

honolulujoe · Sep 19, 2015

thx, wish they had left it wired in, part of the vehicles mojo, wonder if there is a wiring diagram anywhere on the net so I can reconnect it

ajb403 · Sep 19, 2015

I'm not sure it'd be much use reconnecting it, from memory the old four pin military sockets will not wire up the trailer indicators, I think the pins are for rear lights, brake lights, convoy lights and earth but don't quote me on that.

honolulujoe · Sep 20, 2015

yes, probably no point in reconnecting it, just a bit miffed as it is part of the vehicles history.

tottot · Sep 20, 2015

Yes ajb403 got it right,military socket and the thing on the left was stowage for the cap when in use.

honolulujoe · Sep 20, 2015

ah thx, now you have said that about the other bit on the left it is so obvious
