Series 3 Won't start up!

Discussion in 'Series Land Rovers' started by Jake P, Jan 14, 2020.

< Previous Thread | Next Thread >
  1. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,983
    Likes Received:
    511
    Location:
    monkeyhangerland
    You have had the starter working properly
    Was the lead from battery positive to starter a jump lead needs to be big to take current and was this done with fully charged battery
    As rob said above go through all the heavy connections including earths to body remove and rub each clean and shiny with sandpaper/ emery cloth
    The glow plugs best removed and checked or check resistance with meter

  2. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,983
    Likes Received:
    511
    Location:
    monkeyhangerland

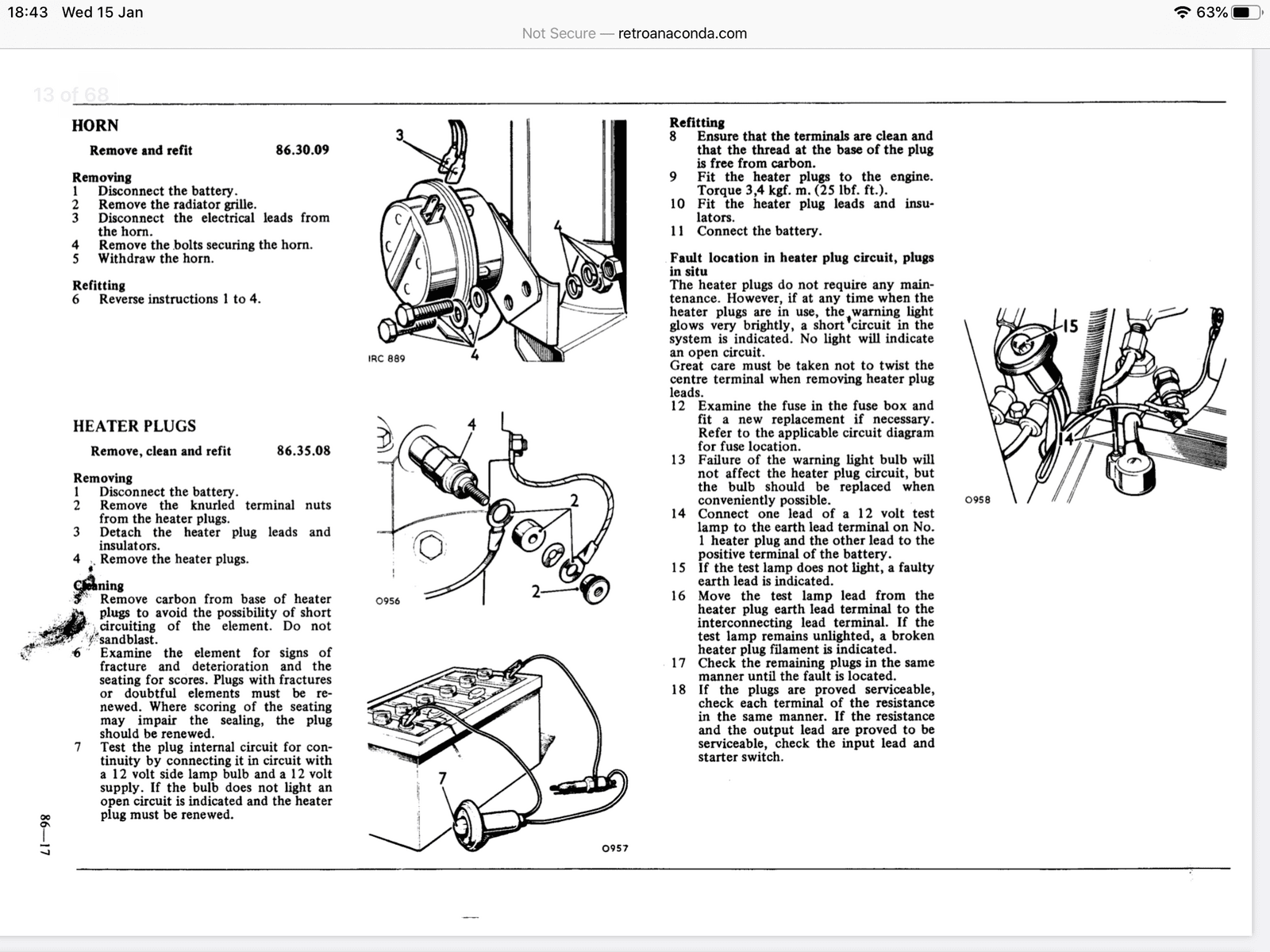

    Note the lead from heater plug no 1 to the block , if this is missing then they won’t work 2630BCFF-3910-4804-9CB6-FDD68A85ADE0.png

    Jake P likes this.
  3. Jake P

    Jake P Member

    Joined:
    Jan 1, 2020
    Posts:
    25
    Likes Received:
    6
    Location:
    Malta
    Yes Steve, lead was big and the battery fully charged. Questioning the starter now that it is poorly turining

    steve2286w likes this.
  4. Rubins4

    Rubins4 Well-Known Member

    Joined:
    Feb 1, 2013
    Posts:
    810
    Likes Received:
    162
    I've a slow turning starter on my 2.25 petrol. New starter and leads. I suspect the solenoid but I'm slightly nervous about shorting it with a screw driver. Am I being a big Jessy? Also where are people getting new solenoids from?

  5. Jake P

    Jake P Member

    Joined:
    Jan 1, 2020
    Posts:
    25
    Likes Received:
    6
    Location:
    Malta
    Don't worry mate, you might have some sparks flying but don't be afraid hehe

  6. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    7,381
    Likes Received:
    7,389
    Location:
    Thatcham
    If a diode in the alternator has gone, the battery will drain when the engine isn't running. Is it always hard to start or only when it's been left for a few days?

    Col

  7. Jake P

    Jake P Member

    Joined:
    Jan 1, 2020
    Posts:
    25
    Likes Received:
    6
    Location:
    Malta
    Its always hard to start however I remove the negative terminal when I'm not using it.

  8. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,805
    Likes Received:
    509
    Location:
    Tyneside
    The original glow plugs are powered in series via a resistor putting 12V to each plug is likely to burn them out.From memory each glow plug only gets 2V across its two connections.
    Possible to fit later parrallel glow plugs easy to tell series will have two wires on each glow plug parrallel only one wire.

  9. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    4,993
    Likes Received:
    1,332
    Location:
    west wales coast
    The bulb in the circuit pictured above limits the flow to the plug and you are only making a short contact just to test that it lights proving the plug has continuity.

  10. Jake P

    Jake P Member

    Joined:
    Jan 1, 2020
    Posts:
    25
    Likes Received:
    6
    Location:
    Malta
    Excuse my ignorance but how do you suggest to check the plugs please?

  11. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    18,317
    Likes Received:
    20,892
    Location:
    Manchester
    Your plugs are the old type. You can tell by the way the terminals are separated by the ceramic isolation. Electrickery fairies travel down to number one plug and dance on its end until warm. They then skip along to number two via the glowing end. If number one has burnt out they can’t use it as a bridge to number two so none of the others will work. If number two is brokid then three and four won’t work etc.
    You can pop one out and earth it on the side of the block rather like a spark plug test and see if it glows. Be warned though, do it with pliers. They get ‘red’ hot.

    Conversion kits to the more modern type ain’t that dear but seem to have several wiring instructions depending on their source. The good thing about those is if one is bust, the others still work.

  12. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    18,317
    Likes Received:
    20,892
    Location:
    Manchester
    Sorry about getting all technical. :oops:

  13. Jake P

    Jake P Member

    Joined:
    Jan 1, 2020
    Posts:
    25
    Likes Received:
    6
    Location:
    Malta
    Awesome explanation, will give it a go then!

  14. steve2286w

    steve2286w Well-Known Member

    Joined:
    Jul 6, 2007
    Posts:
    1,983
    Likes Received:
    511
    Location:
    monkeyhangerland
    Jake P likes this.
  15. Jake P

    Jake P Member

    Joined:
    Jan 1, 2020
    Posts:
    25
    Likes Received:
    6
    Location:
    Malta
    So I guess I got it figured out tonight...I went to the pump station I got my new battery from (he's a good family friend) and he gave me a new battery to try out and a voltmeter. I hooked up the new battery and the landy fired up nice and loud (happy moment). The alternator seems not to be working as the voltage remained around 12.6v throughout, even when revving.
    I then connected my battery and the starter wouldn't even turn over. I'll get the battery charged up real good and see from there. Perhaps its defective as well. Thanks for your help guys! I'll keep you posted

    Jake

    Hicap phill likes this.
  16. Blackburn

    Blackburn Well-Known Member

    Joined:
    Feb 21, 2013
    Posts:
    2,805
    Likes Received:
    509
    Location:
    Tyneside
    Reason for my comment OP quote above.

    Jake P likes this.
  17. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    7,381
    Likes Received:
    7,389
    Location:
    Thatcham
    Don't fart about, change the alternator. I don't know why there was all the chatter about glow plugs.

    Col

    Jake P likes this.
  18. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    18,317
    Likes Received:
    20,892
    Location:
    Manchester
    There can be many reasons for poor starting. If your having to crank the bejesus out of your battery every day for short journeys then they are worth checking regularly.
    Glad to hear one of the issues has been solved and I’m sure discussing other possible problems helps familiarise everyone with potential faults.

    For not much more money it may be worth while getting an upgraded alternator with a bit more umph as the standard LR part may struggle if you add more modern ancillaries later on.

    Jake P likes this.
  19. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    7,381
    Likes Received:
    7,389
    Location:
    Thatcham
    The original post said the starter was struggling to turn the engine over, diesels need a good umph to get them going so it seemed the battery, starter or alternator was the issue, I couldn't work out why glow plugs came into the equation but I might have missed a post or two.

    Col

  20. Rodeo Joe

    Rodeo Joe Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    1,578
    Likes Received:
    704
    Location:
    norfolk
    Yes I think you did... The point was that the engine ought to fire in a few turns if it doesn't then one reason could be the heater plugs aren't working properly.
