Wont engage 3rd or reverse in high but will in low ratio?

Where abouts are they? can the be seen from underneath? from inside?

Thanks

I think you must have some weird failure of either the trim around the gearlevers - which could be jamming them, or something similar. As Brian says, above, the two gearboxes are completely seperate from a selection point of view.

Worth checking all the oil levels though - and changing them too.

CellumH said:

read on another forum about the gear selector can drupe or something so gets in the way on gates?
not sure tho

Click to expand...

You may have to take out the centre consul to access the gear shift area.

While you are there make sure your difflock lever works as well.
You may need to drill out the rivets around the gear lever to access from the top.

Cheers

neilly said:

Filter? on a manual?

Cheers

Click to expand...

there is a filter in side ,you just cant change it without pulling rear extension case off

CellumH said:

Dont suppose anyone has an idea as to whats happened?
many thanks

Click to expand...

does the gear stick actually move forward and rearward when trying to select or is it jamming and not but does in other gears

jamesmartin said:

there is a filter in side ,you just cant change it without pulling rear extension case off

Click to expand...

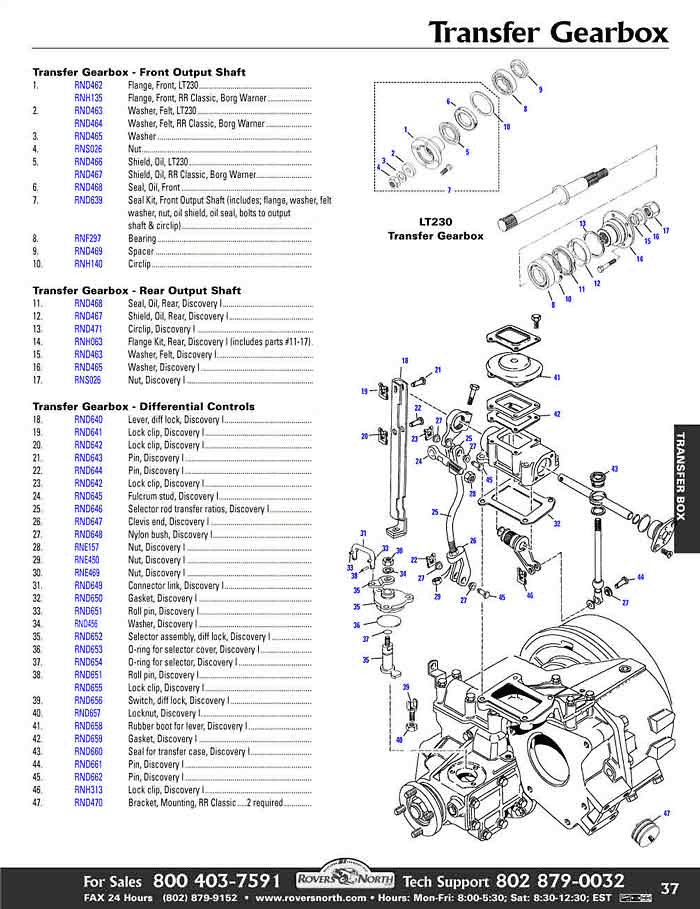

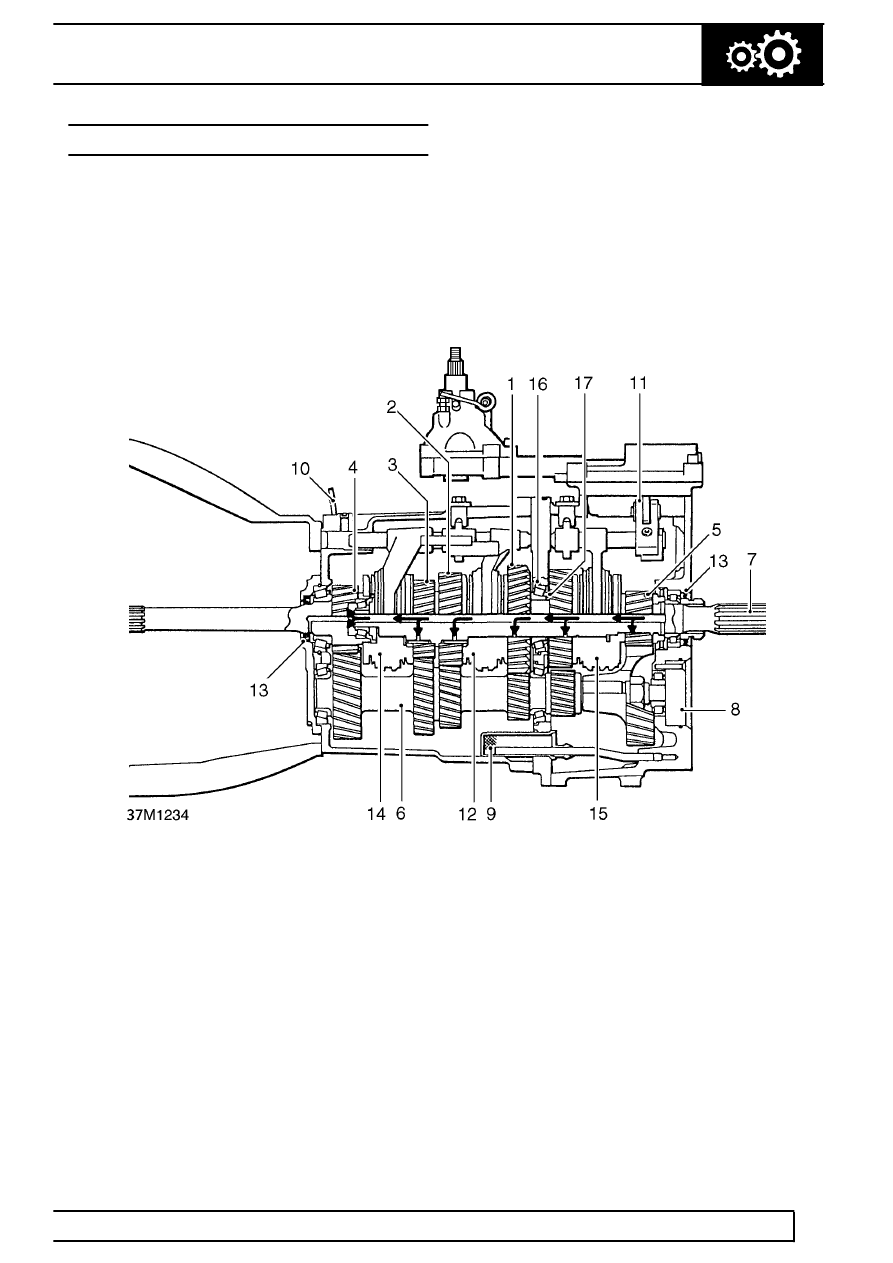

Part 9 for @neilly

Right ive just driven it if you wiggle the gear knob in gear it selects gear in hi and lo? so could be something bent?
Thanks

Speckydude said:

Part 9 for @neilly

View attachment 121214

Click to expand...

Thanks, not exactly a filter you would change as part of normal practice and that would cause the gearbox not to select in HI. Sierrafery was talking about an Auto box which is why I questioned it. Obviously I will have to be less subtle for some of you. ........................

Cheers

CellumH said:

Right ive just driven it if you wiggle the gear knob in gear it selects gear in hi and lo? so could be something bent?
Thanks

Click to expand...

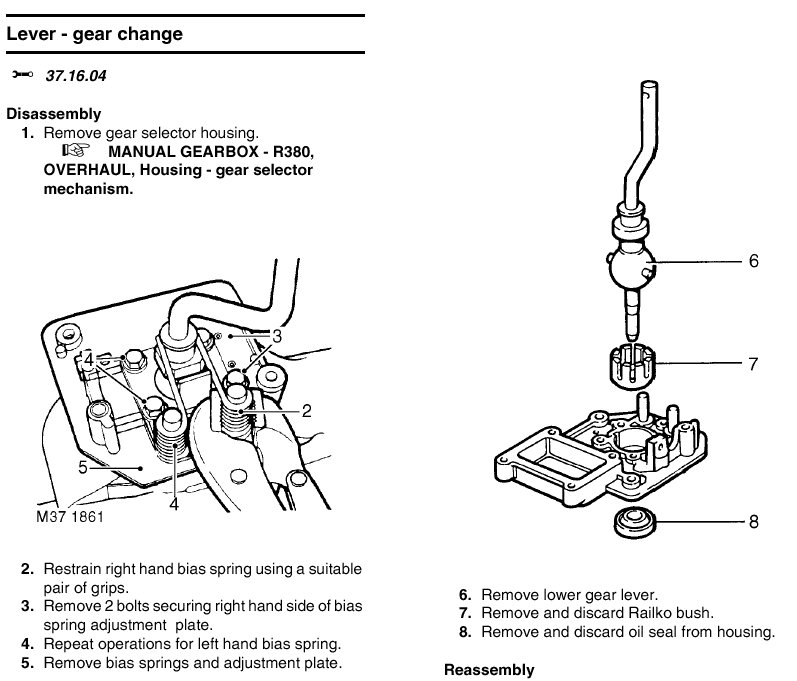

id think your bias plate has broken and tab is jamming the lever ,there are other issues you get with the selector yoke but you have to get to bias plate first

How easy can this be done? not alot of knowledge so dont even know where this is?

CellumH said:

How easy can this be done? not alot of knowledge so dont even know where this is?

Click to expand...

remove the consol then transmission plate

remove that then new plate? just reading up on here and people have mig welded theres?

neilly said:

Thanks, not exactly a filter you would change as part of normal practice and that would cause the gearbox not to select in HI. Sierrafery was talking about an Auto box which is why I questioned it. Obviously I will have to be less subtle for some of you. ........................

Cheers

Click to expand...

I know, I too was teasing - and to be fair to all, it is more of a strainer than a filter.

CellumH said:

remove that then new plate? just reading up on here and people have mig welded theres?

Click to expand...

Getting the springs on is easier than tacking the tabs back on.

See what you have to do first.

Does anyone have any pictures as to what im looking for? good or bad

Thanks

CellumH said:

Does anyone have any pictures as to what im looking for? good or bad

Thanks

Click to expand...

The spring/s may be broken.
The tab/s on the plate may be broken.
The bolt/s may have worked loose.
It may be something else entirely.

That looks good to me! I shall have a look tonight lets hope its that!!
Will let you all know how i get on

Thanks guys

Sounds like the synchros struggling to line up the gears for engaging. So the difference in rotation speed in low box compared to high box will make it easier for the gears to align and slide into place. Just my thoughts. Like others have said, try changing the oil first FOR THE CORRECT GRADE. Don't mess about with cheaper alternatives or "what you can get away with" Land Rover gear boxes just like the oil they were designed for, nuff said.

Also, get one of these for the fluid change if you don't already have one.
http://www.ebay.co.uk/itm/Oil-Fluid...397639?hash=item2ec9382d47:g:AtIAAMXQmXlR590O
