Windscreen wipers not working
- Thread starter Kaz1308
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
What do you want a seven day weather forecast ?
I take you have cheked the appropriate fuases/relays.tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
Sorry, that sounds a bit offhand.What do you want a seven day weather forecast ?
Datatek
Well-Known Member
- Posts
- 45,023
- Location
- Near Poitiers SW France
Pray that it doesn't rain. Seriously check the fuses, otherwise you might be into needing diagnostics. Nothing is simple on the L322.
- Posts
- 19,309
- Location
- Buckinghamshire, UK. ('95 DT)
Should be easy for Southport. I predict grey and overcast with a chance of rain.
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
It's glorious up here, oh Southport, God's waiting room, lovely,just smells of used incontinence knickers and the pavements full of zimmers.
- Posts
- 83,296
- Location
- Embasinga stocæ
have you got a diagnostic tool?
- Posts
- 16,488
- Location
- Benfleet, Essex
It's L322 long-range weather forecasting. No need for wipers for the foreseeable future. God those cars are so clever.
If the fuses are good and the relays too, is the stalk-switch bust?
What if you put 12V on the motor directly?
If the fuses are good and the relays too, is the stalk-switch bust?
What if you put 12V on the motor directly?
Henry_b
Think outside, no box required.
- Posts
- 15,509
- Location
- somewhere else
gold rover
Well-Known Member
- Posts
- 10,292
- Location
- dùthaich Dhè fèin
- Posts
- 83,296
- Location
- Embasinga stocæ
holidaychicken
Well-Known Member
- Posts
- 4,014
- Location
- Kent

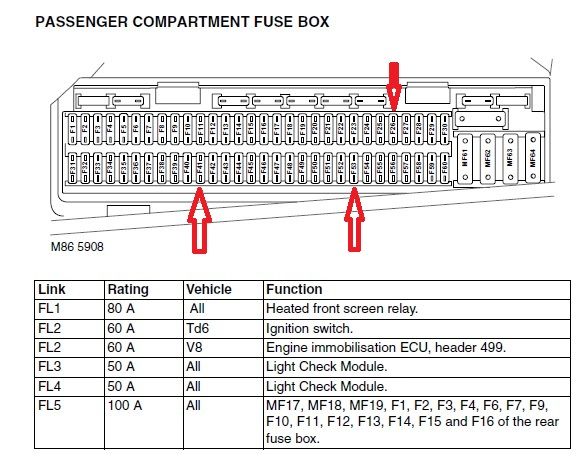

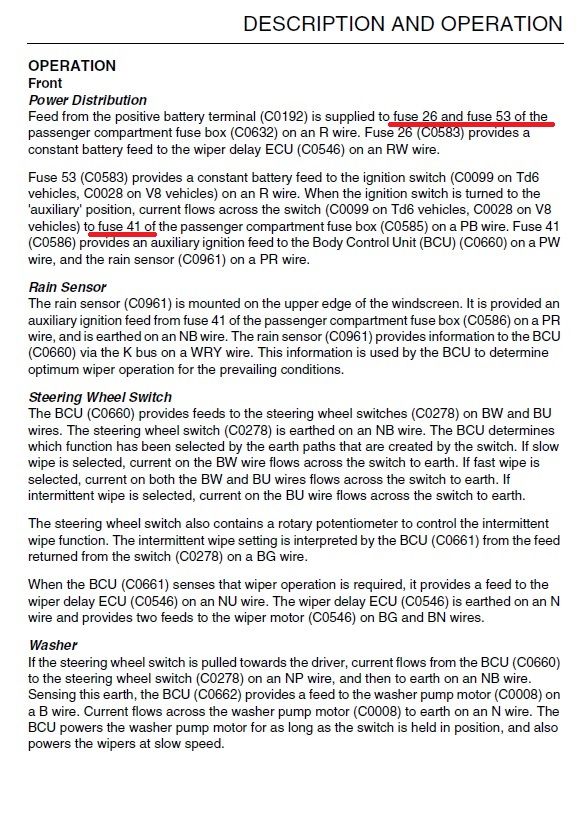

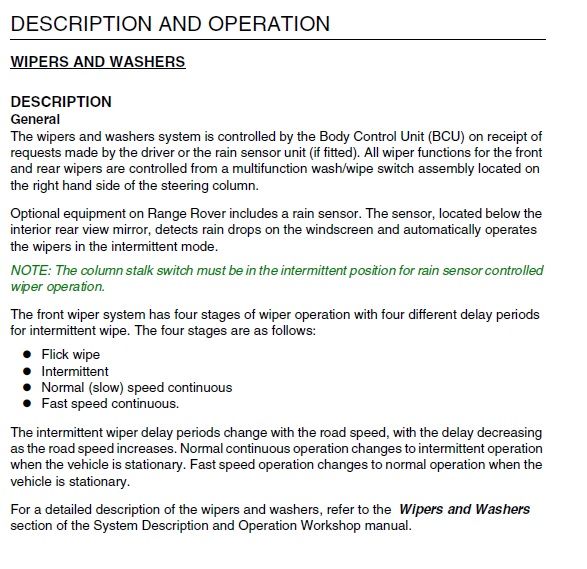

There are about 20 pages just on wipers alone in the 3 Rave manuals, I would start with the fuses as already mentioned shown on the attached, if you would like a lesson on basic manners then my advice for that is also free.
Failing that, you could test the voltage supply to the motor but as it is all controlled via the BCU then diagnostics should give you an idea of what is going on.
I would remove the fuses to test as this may also reset the wiper system.
Do the washers work and rear wash wipe?
Last edited:
Thank you, I have checked the fuses I an going to check the relay today and take it from thereThere are about 20 pages just on wipers alone in the 3 Rave manuals, I would start with the fuses as already mentioned shown on the attached, if you would like a lesson on basic manners then my advice for that is also free.
Failing that, you could test the voltage supply to the motor but as it is all controlled via the BCU then diagnostics should give you an idea of what is going on.
I would remove the fuses to test as this may also reset the wiper system.
Do the washers work and rear wash wipe?
View attachment 157068
View attachment 157069
View attachment 157070
- Posts
- 16,479
Our previous L322 would have issues with the wipers all of sudden stop working if left in the continuous setting while raining - turned out to be the wiper relay sticking.....
- Posts
- 83,296
- Location
- Embasinga stocæ
You really do need one with a Rangie, as it costs an arm and a leg getting dealers to do it.
- Posts
- 16,488
- Location
- Benfleet, Essex
I guess google doesn't work where you are?
Does this help?
- for reasons best known to some Land Rover or BMW Design Engineer, the front wiper relays are not put with all the other relays and fuses in the waterproof box of electronics in the engine compartment. It would be so much easier if they were. They're up against the bulkhead, behind the battery and the only way to get at them is to remove the battery first, then remove a plastic cover to even see them. Once the cover is off, it all should be reasonably obvious.
Does this help?
- for reasons best known to some Land Rover or BMW Design Engineer, the front wiper relays are not put with all the other relays and fuses in the waterproof box of electronics in the engine compartment. It would be so much easier if they were. They're up against the bulkhead, behind the battery and the only way to get at them is to remove the battery first, then remove a plastic cover to even see them. Once the cover is off, it all should be reasonably obvious.
Thanks I've googled it several times and kept telling me different places, much appreciatedI guess google doesn't work where you are?
Does this help?
- for reasons best known to some Land Rover or BMW Design Engineer, the front wiper relays are not put with all the other relays and fuses in the waterproof box of electronics in the engine compartment. It would be so much easier if they were. They're up against the bulkhead, behind the battery and the only way to get at them is to remove the battery first, then remove a plastic cover to even see them. Once the cover is off, it all should be reasonably obvious.
