will this plug stop v8 from starting

CHUNKY3 · Sep 12, 2009

as title

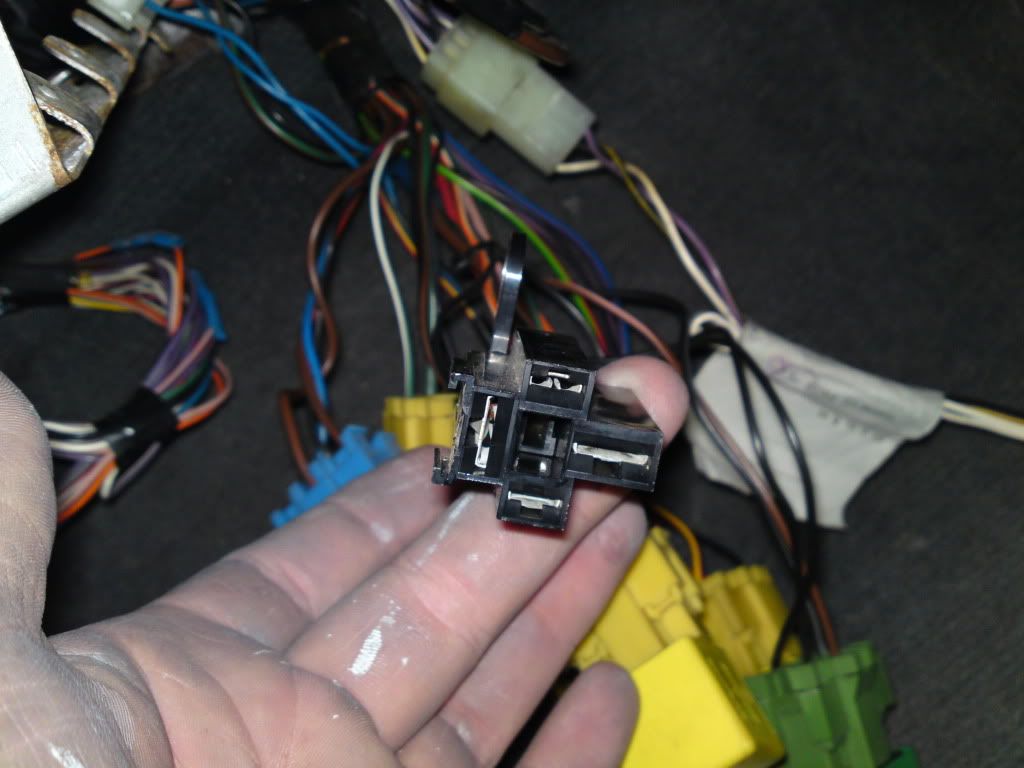

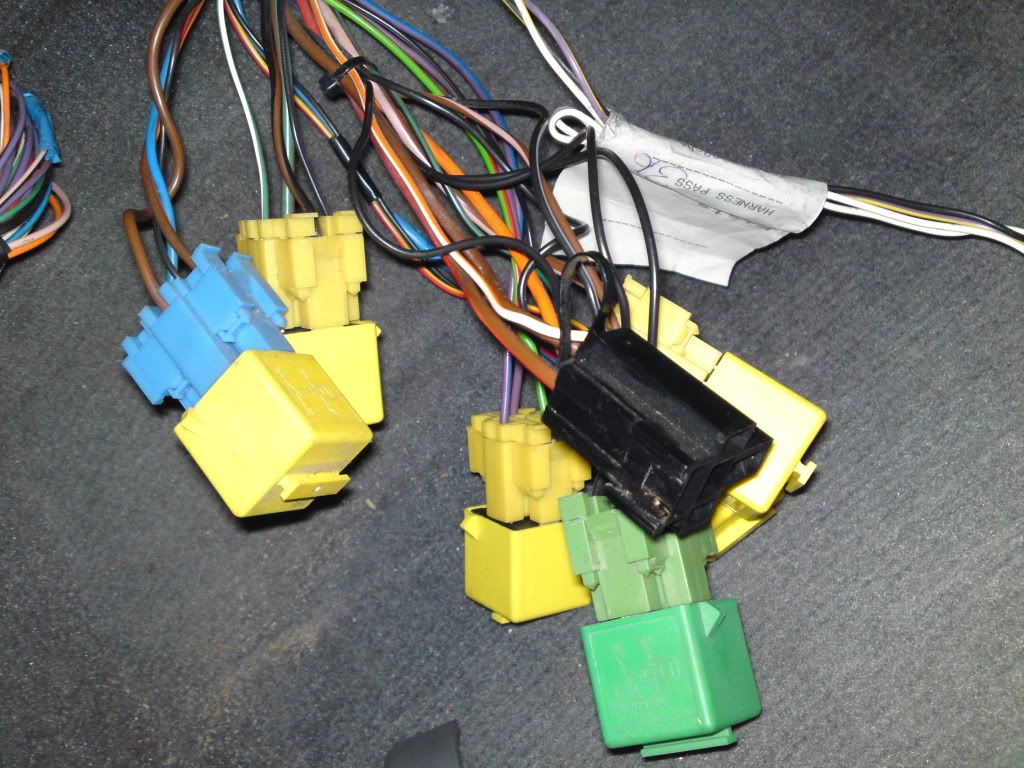

right this relay is missing so went to local scappy to get one
found a 3.9 v8 discovery look to find this relay and it doesnt have one
all wires and fuses ok but i have no spark

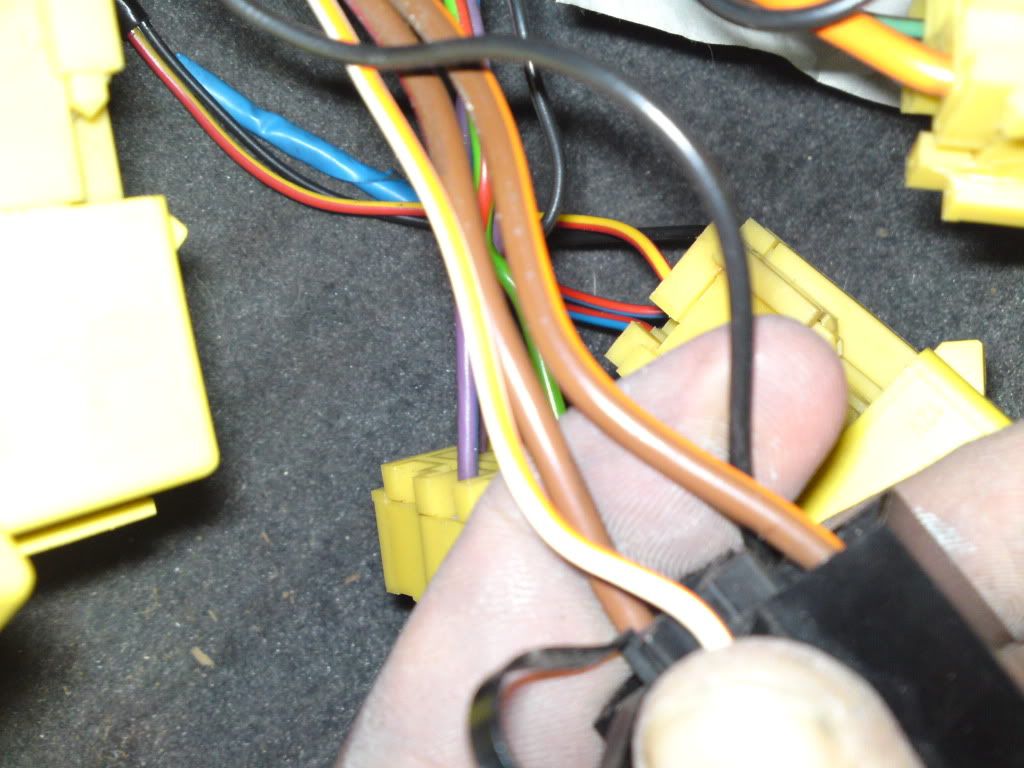

the wire colours are brown orange/brown white/orange and black

thanks in advance

classic kev · Sep 13, 2009

Best bet is check Rave/haynes wiring diagram that should tell you what the circuit is for.

If it is either the main EFI relay or fuel pump relay it will be one of those expensive Bosch ones with an in line capacitor to protect the sensitive circuit from voltage spikes. The relay is quite easy to spot, silver (metal) case not a a plastic one.

Just for testing purposes you could try a standard 30A relay and see what happens but it could also be the case that you are looking at a spare relay holder that is part of the standard loom and your car isn't fitted with whatever piece of kit it is supposed to supply.

listerdiesel · Sep 13, 2009

It looks like a main feed relay, such as the start interlock etc., but there are so many relays in the circuits section of the manual that it just isn't practical to go through and check every one for a match.

Where would that have been in the vehicle? that might help.

Could you also check the colours again and number of wires? Four terminals shown, three wire colours given.

Peter

CHUNKY3 · Sep 13, 2009

the colours are brown & orange/brown/white&orange/black/ i think ive figured it i reckon its abs relay but i still have no spark. power at the coil but no spark from distributor.:scratching_chin:

classic kev · Sep 14, 2009

CHUNKY3 said:
the colours are brown & orange/brown/white&orange/black/ i think ive figured it i reckon its abs relay but i still have no spark. power at the coil but no spark from distributor.:scratching_chin:

Check you have a spark from the king lead - if yes then check rotor arm/dizzy cap. If no you have a faulty coil or faulty ignition amplifier or the inductive pick up in the dizzy isn't working to trigger the coil.

CHUNKY3 · Sep 14, 2009

at last it runs it was the coil that was dodgy cheers for the replys fellas
