1992 200tdi Defender 90 wiring!

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

Ajcrabb

Member
Posts
21
Location
Wiltshire UK
Hello, hope this is the right spot to post!?

Currently trying to help my dad restore his 1992 200tdi 90, its just the interior and dashboard to fit, the car Currently runs and all the light work, its just the gauge cluster and dash to do, we are left with these connectors in the centre of the dash any help would be appreciated! Strill trying to get out heads round all the wires! Says im not allowed to post photos?

I will try to explain, all of the following come out behind the gear stick above the fues box,

1. 2x2 black connector 2 solid brown 1 brown and orange 1 brown and light blue

2. 3 way flat connector with 5 wires going in 2 green 1 white and red 2 purple

I will try and figure out how to upload some pictures we are going to be fitting a raptor engineering binical and centre dash.

Thanks for you help in advance!

Ash

Hello, hope this is the right spot to post!?

Currently trying to help my dad restore his 1992 200tdi 90, its just the interior and dashboard to fit, the car Currently runs and all the light work, its just the gauge cluster and dash to do, we are left with these connectors in the centre of the dash any help would be appreciated! Strill trying to get out heads round all the wires! Says im not allowed to post photos?

I will try to explain, all of the following come out behind the gear stick above the fues box,

1. 2x2 black connector 2 solid brown 1 brown and orange 1 brown and light blue

2. 3 way flat connector with 5 wires going in 2 green 1 white and red 2 purple

I will try and figure out how to upload some pictures we are going to be fitting a raptor engineering binical and centre dash.

Thanks for you help in advance!

Ash


Attachments

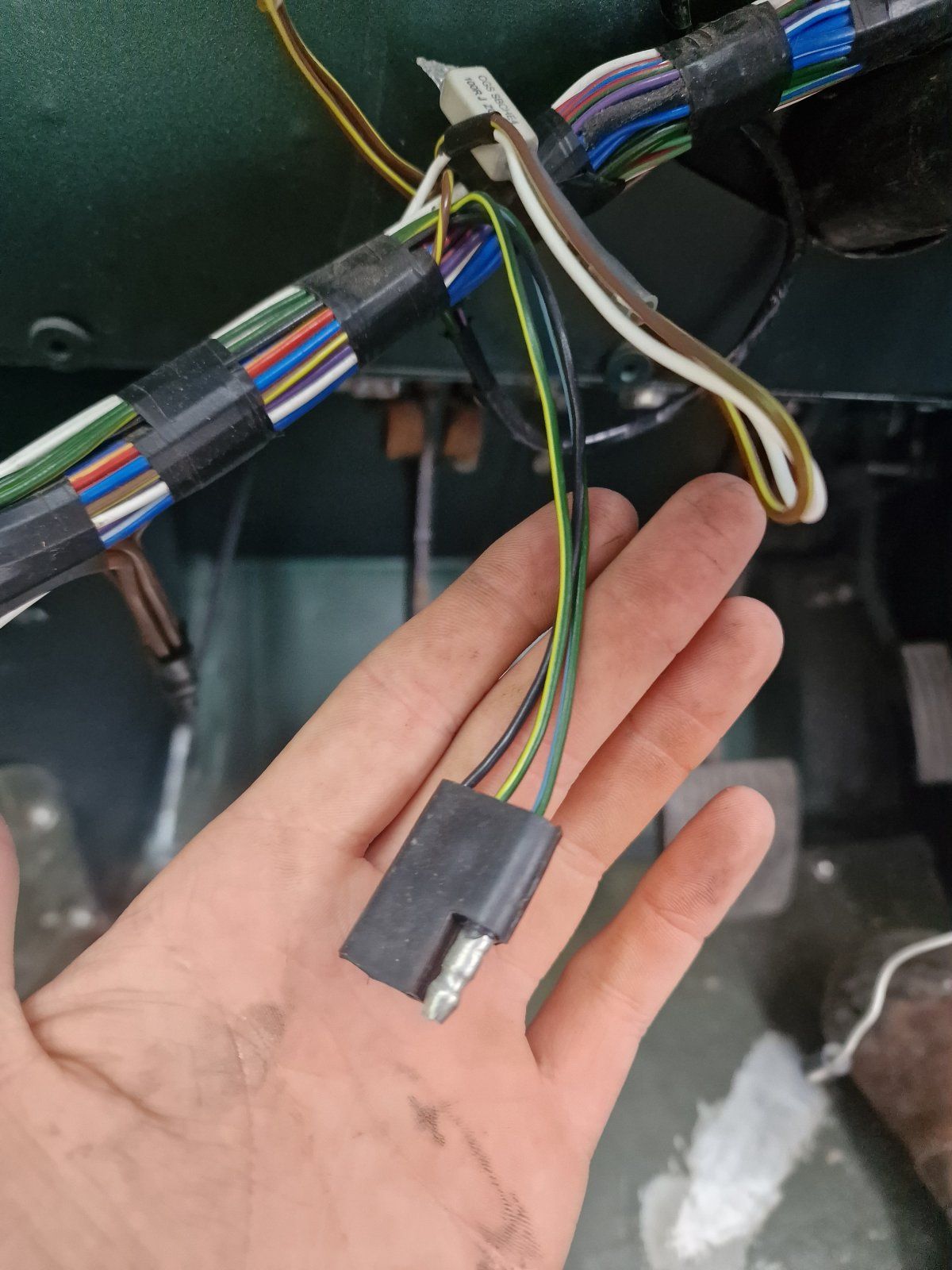

  • 20230421_115320.jpg
    206.7 KB · Views: 243

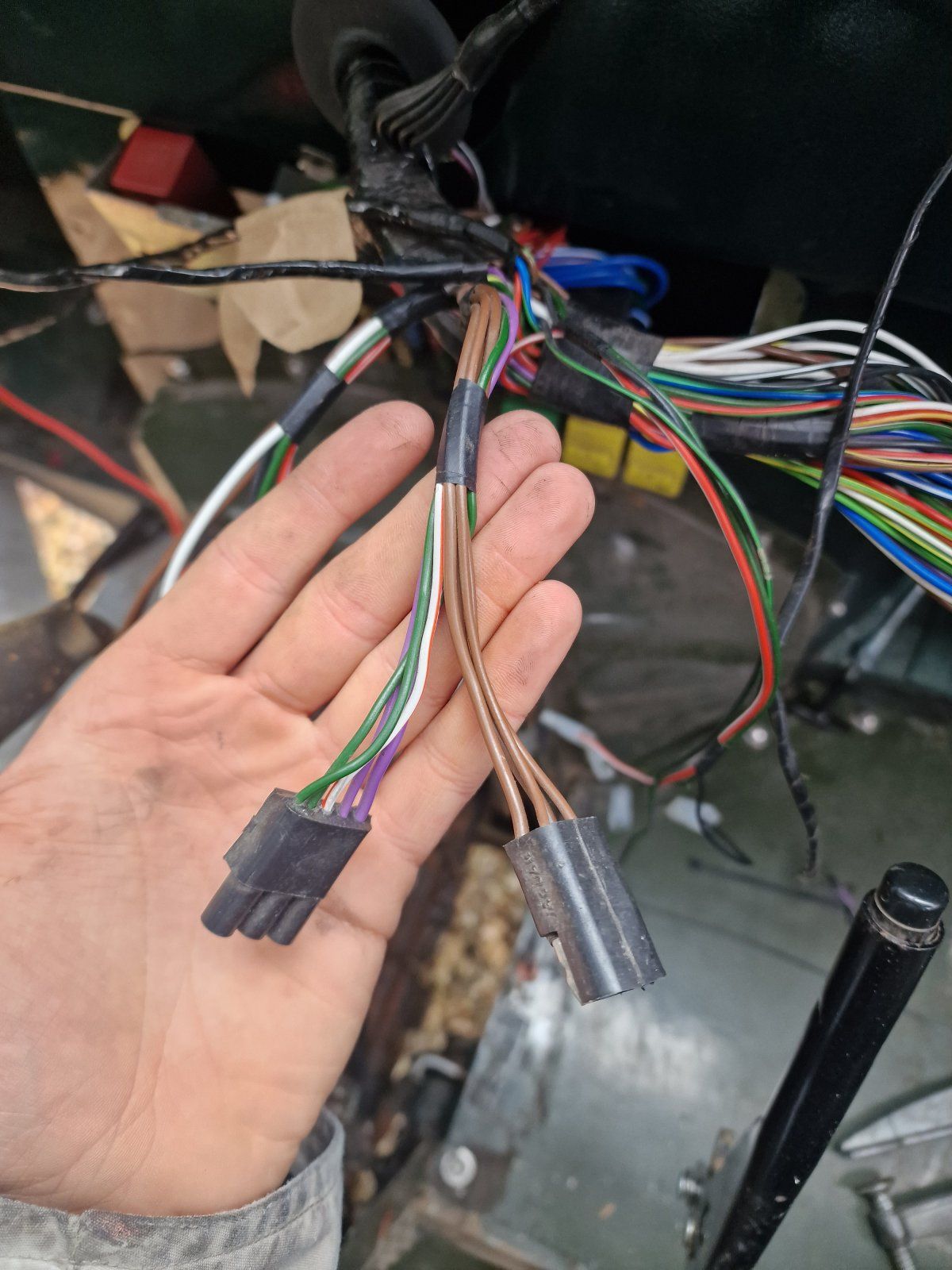

  • 20230421_115211.jpg
    216.8 KB · Views: 190

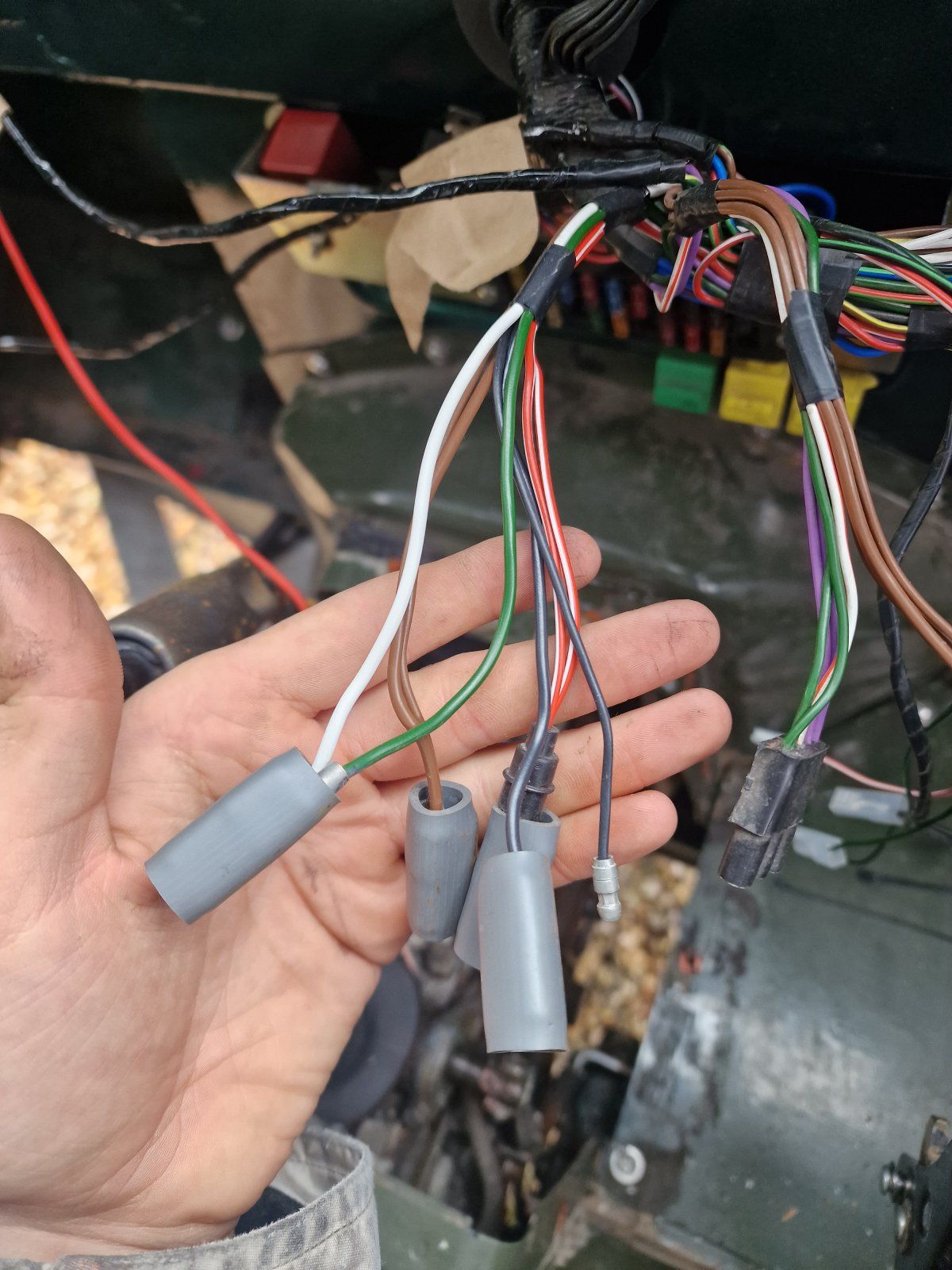

  • 20230421_115315.jpg
    233.8 KB · Views: 226
It is a bit of a rats nest in there, my 1990 Ninety probably much the same. Some wires are not used in thre standard model but were in export models with extras.
Mystery may well be along here shortly, he has all the wiring diagram.:)

Last edited:
I think your first picture with the green/yellow, green/grey, black. is for the heater fan control, and there is an additional loom that plugs into this to then connect to the switch. the other two are possible unused, certainly form memory the brown ones were in my dash before I swapped to a 300tdi wiring loom.

may help


Attachments

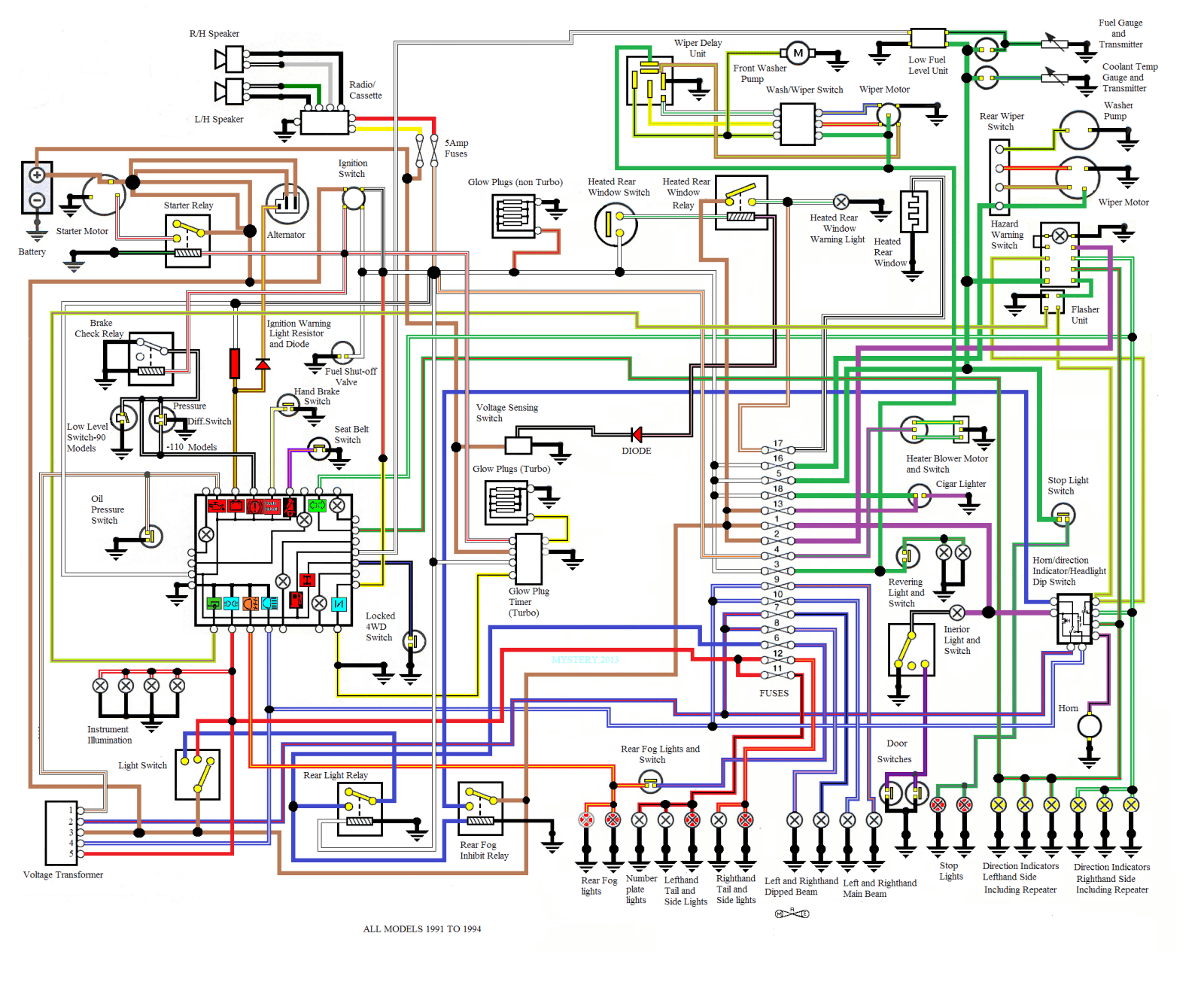

  • Copy of Defender 1991 t0 1994 master - Copy - Copy.png
    Copy of Defender 1991 t0 1994 master - Copy - Copy.png
    321.6 KB · Views: 282

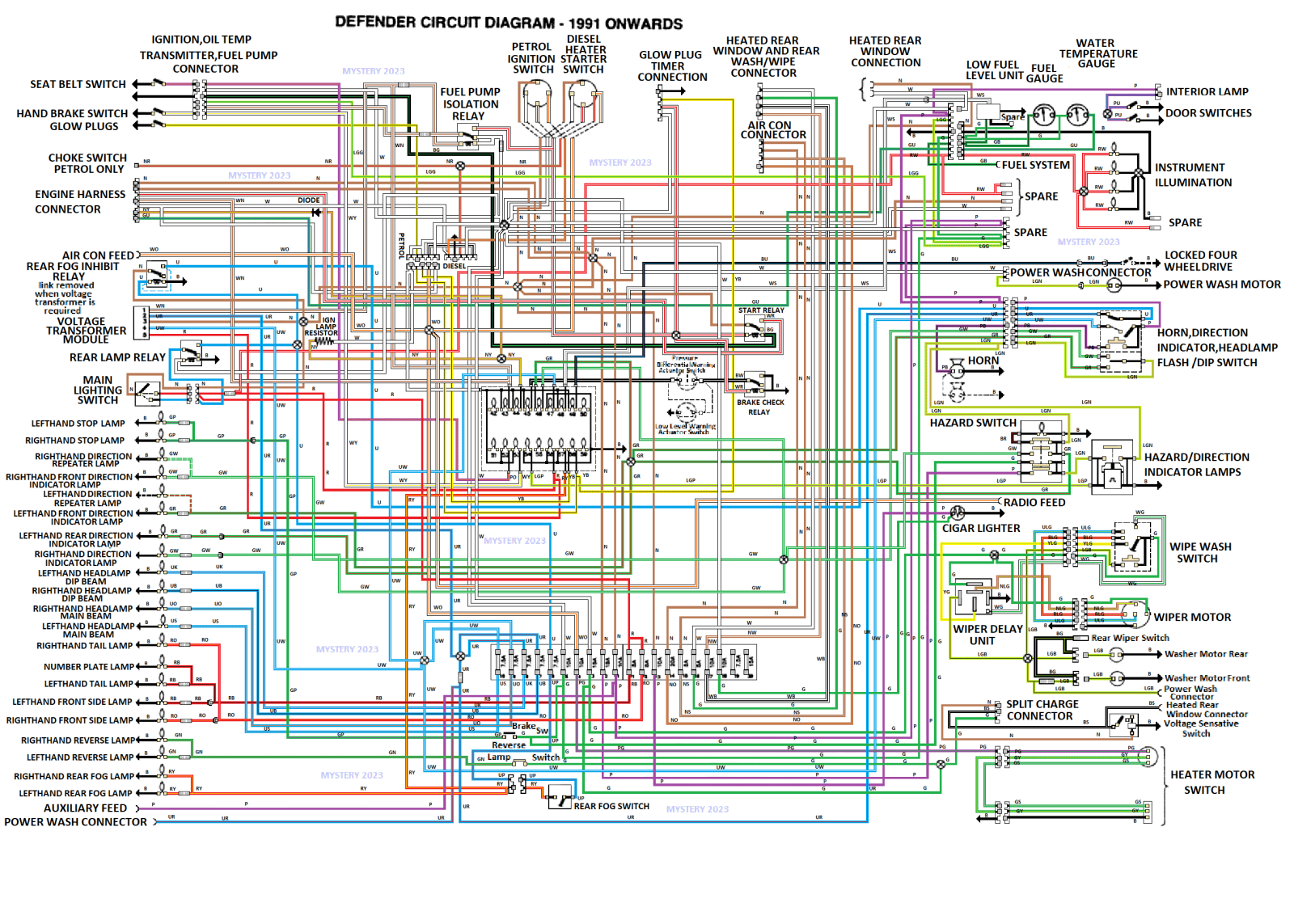

  • Defender 1991 MASTER LARGER - Copy - Copy - Copy.png
    Defender 1991 MASTER LARGER - Copy - Copy - Copy.png
    224.3 KB · Views: 331
