where are all 10 body mounts

where are all 10 body mounts on a disco 1 i've seen 6 of the 10 means there must be 4 under bonnet area???
am i right:blabla:

discoboy84 said:

where are all 10 body mounts on a disco 1 i've seen 6 of the 10 means there must be 4 under bonnet area???
am i right:blabla:

Click to expand...

I assume you mean you haven't found the front body mounts then. I've not checked a Disco but on RRC they are under the front each side of radiator then the next two I think under the front bulkhead. If you lift the carpets, you will find some grommets, some of the bolts for the body mounts can be seen under them. The others are obviously at the back off the rear cross member and then there are some small hook type bolts toward the middle or something like that. Hope that helps ya.

i've seen the rear bumper ones the ones under carpets\grommets and the ones in grille, haven.t been under yet but i know i have 10 mounts to put a 2 inch spacer under 4 my bodylift. i'll get under it again at weekend

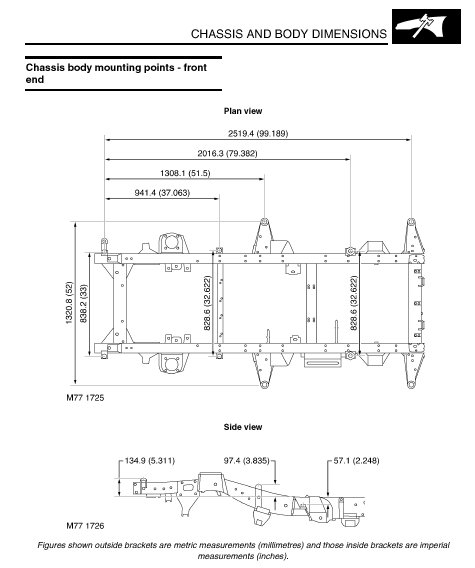

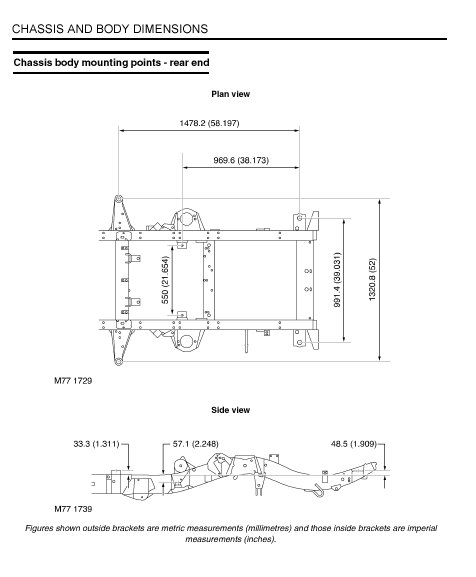

See pictures for the Disco 2 mountings.

Peter

there are four that hold the body floor to the inside of the chassis. two rear just above the rear axle and two front at the side of the gear box then you have the body mounts with the rubber vibration discs that are easy to find.

you will need to get under the disco and look where i have said, they are just brackets welded to the floor with a 'hinged' type bolt held in with a pin, this in turn fastens to a braket on the inside of the chassis. if you cant find em pm me and ill tek ya sum piccys of the one im doing
