P38A What's this tube for?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Flossie

Flossie

Well-Known Member
Posts
10,635
Location
Shropshire
2001 2.5.

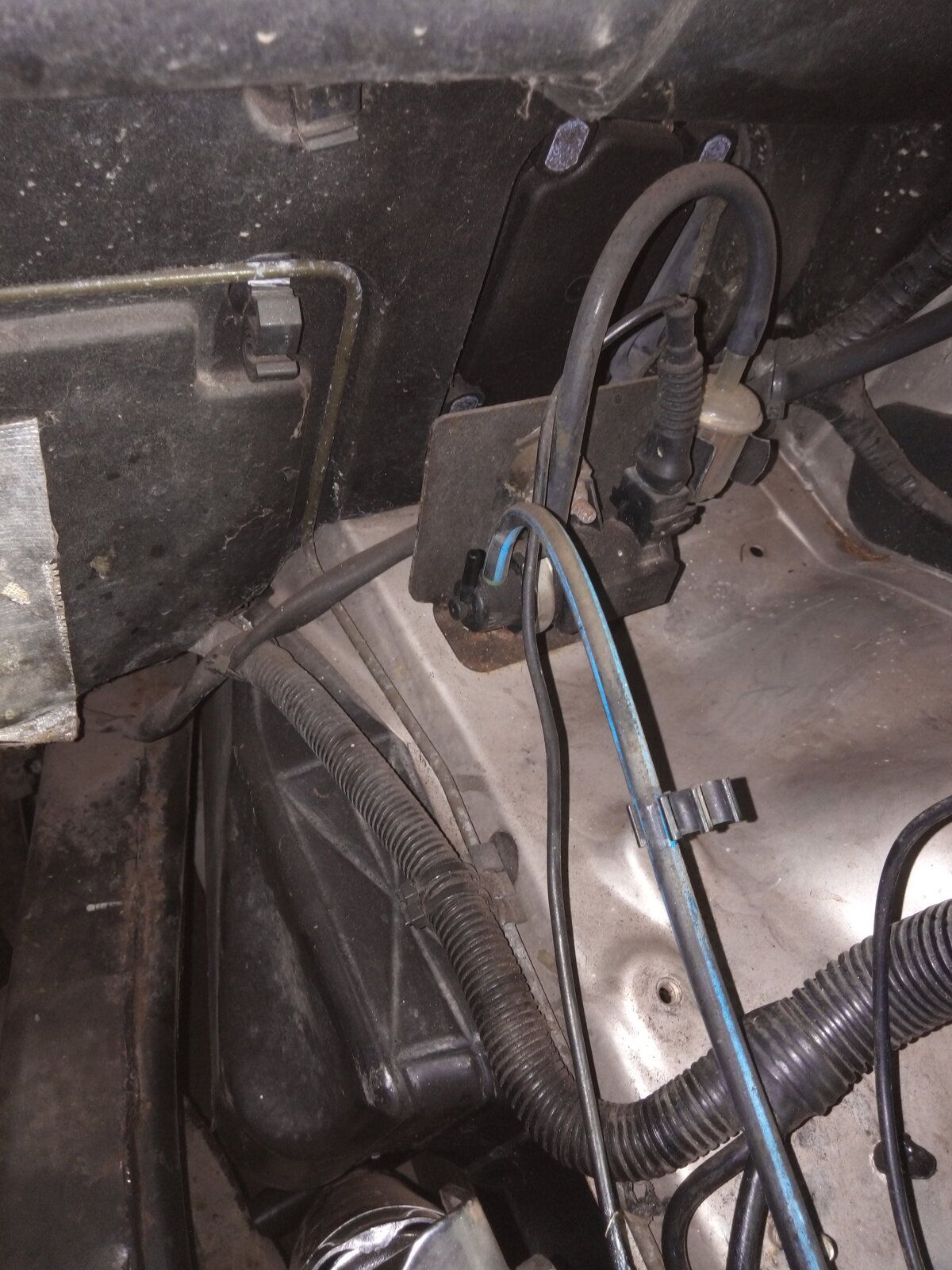

Thin tube, leak off pipe size, badly rotted. Fits on this steel pipe and heads off to the egr filter area on the compressor side of the bulkhead. I've blanked the egr exhaust inlet btw.
Can I just plug the end of the steel pipe that the rotted hose connected to? Or do I need to fit a new length of tubeing?

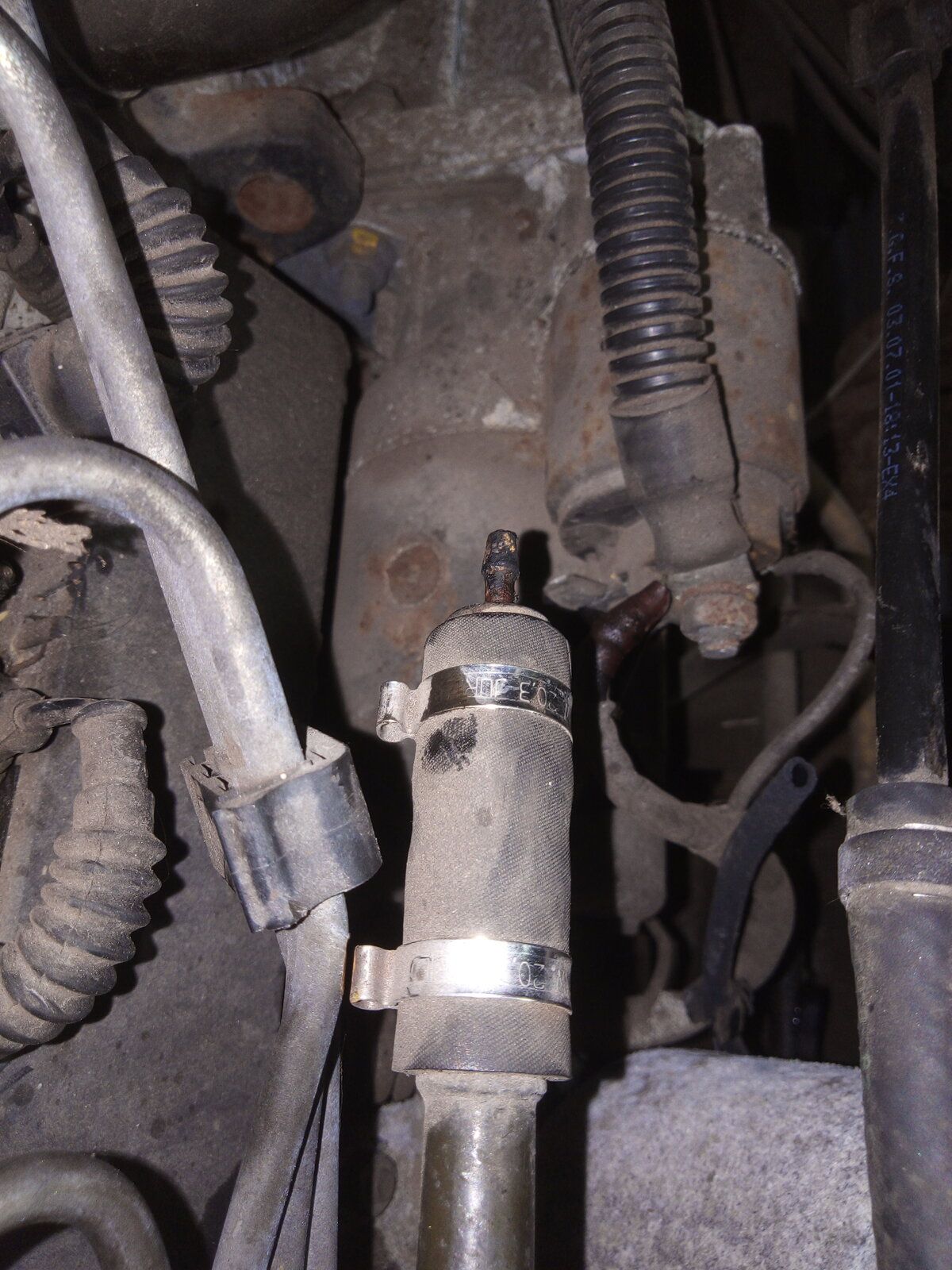

Centre of pic is the steel pipe that the rotted hose connected to. It's proper rotted, crumbles between the fingers.:eek:

Anyone? I'm passing the local Indy tomorrow morning so I can pick up a length of spill pipe of needs be.

Rubberknees said:
Just had a look for you

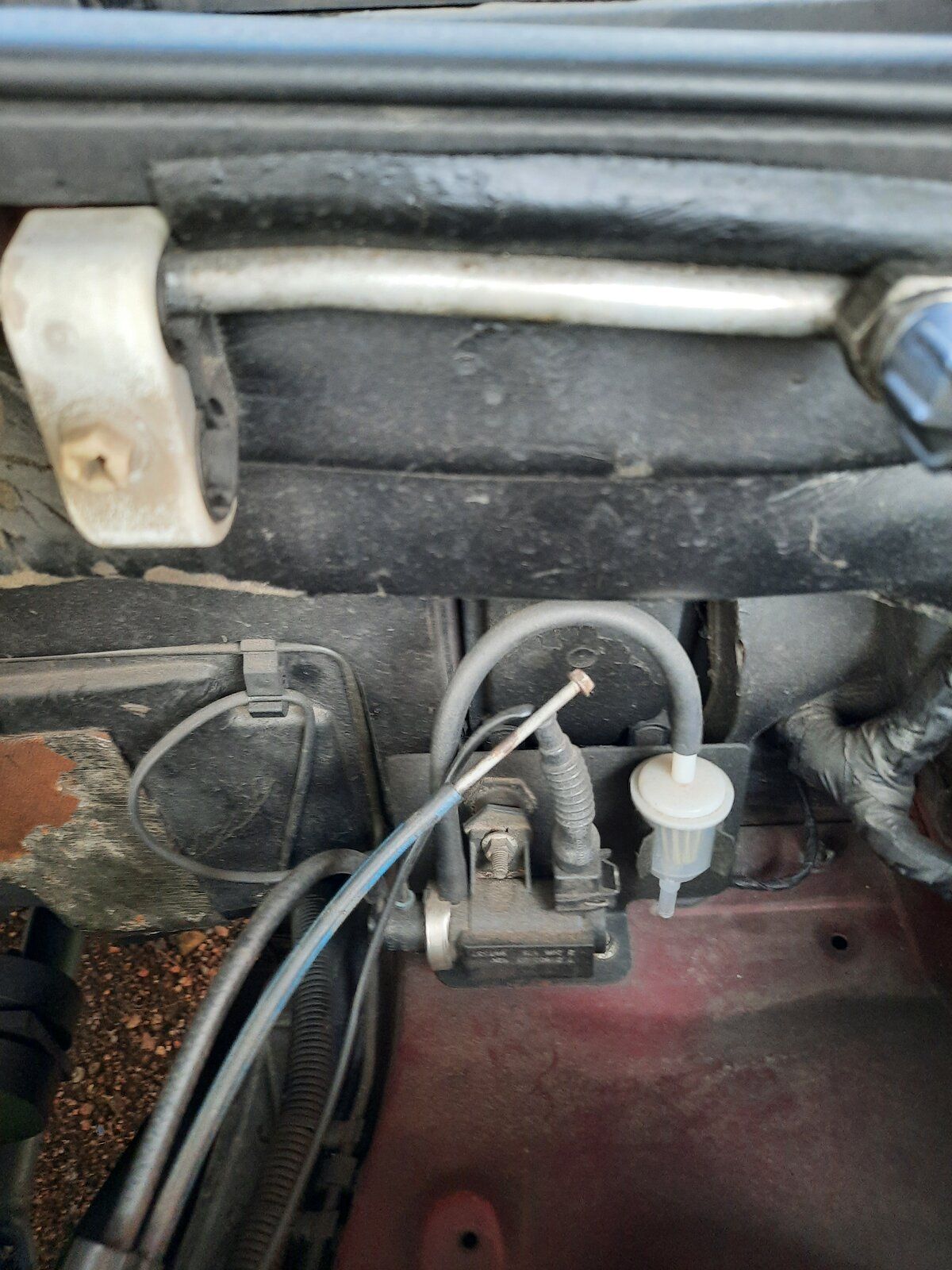

View attachment 249690
Click to expand...
That rubber tube to the left of it is what goes to the metal tube in my pic above. Only just got home and had another look, the metal tube runs along the engine then 90 Deg bends around the front and connects via a short rubber hose to a round plate inline with the camshaft, what's that round thing, vac pump?

Flossie said:
That rubber tube to the left of it is what goes to the metal tube in my pic above. Only just got home and had another look, the metal tube runs along the engine then 90 Deg bends around the front and connects via a short rubber hose to a round plate inline with the camshaft, what's that round thing, vac pump?
Click to expand...
The round thing is indeed the vac pump.
