What's this thread?

Discussion in 'Defender 90 / 110 / 130' started by flatlander, Jun 9, 2018.

< Previous Thread | Next Thread >
  1. flatlander

    flatlander It's not broken! Donater

    Joined:
    Apr 4, 2011
    Posts:
    1,744
    Likes Received:
    407
    Location:
    In the middle, somewhat elevated

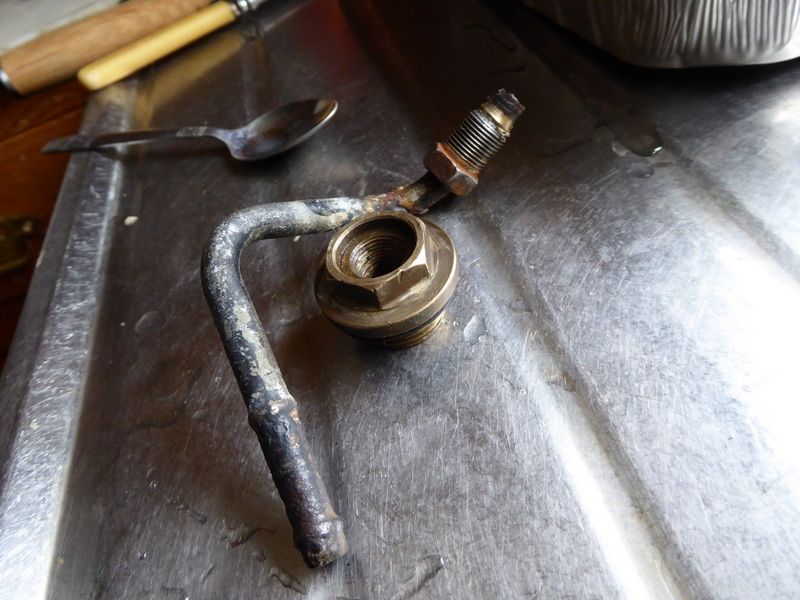

    P1020876.JPG Does anybody know what this thread is? It's on the radiator fill / balance pipe, coming from the header tank. The rad is from a Disco, and none of my various pipe fittings fits. The local plumber shop can't help either. It seems not to be BSP. I need to fit a new bit of tube, but don't want to upset anything until I know I can get a replacement if needed.


    Attached Files:

  2. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    83,727
    Likes Received:
    13,498
    Location:
    louth lincs
    id need a better description

  3. TorsionBhudda

    TorsionBhudda Well-Known Member

    Joined:
    Nov 15, 2014
    Posts:
    1,333
    Likes Received:
    220
    Location:
    Falkirk
    NPT possibly

  4. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    83,727
    Likes Received:
    13,498
    Location:
    louth lincs
    never seen that set up on a rad,

  5. flatlander

    flatlander It's not broken! Donater

    Joined:
    Apr 4, 2011
    Posts:
    1,744
    Likes Received:
    407
    Location:
    In the middle, somewhat elevated

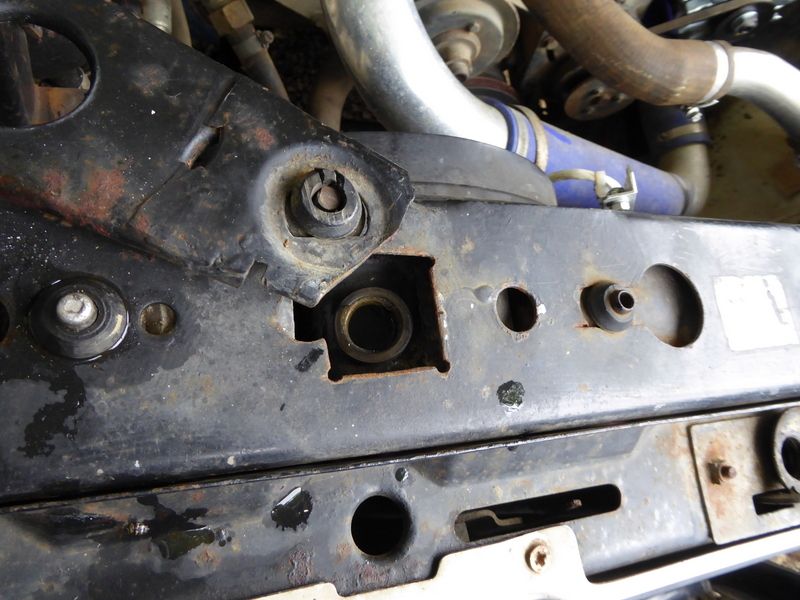

    The second pic shows where it comes from. The OD is 12mm, and the thread pitch is (as far as I can see) one thread per mm. My local hydraulic shop is open on Monday, so I can take it in there to see if they can help. P1020877.JPG

  6. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    83,727
    Likes Received:
    13,498
    Location:
    louth lincs
    its not the rad thread then but the pipe union,what spanner size is the fitting

  7. Mingus

    Mingus Active Member

    Joined:
    Jan 3, 2015
    Posts:
    98
    Likes Received:
    38
    looks like a brake pipe with a flared union.

    Hicap phill likes this.
  8. Jam1

    Jam1 Well-Known Member

    Joined:
    Jul 11, 2013
    Posts:
    1,283
    Likes Received:
    231
    Location:
    Staffordshire
    Am I missing something? Why not just reuse that fitting with a new pipe?

  9. flatlander

    flatlander It's not broken! Donater

    Joined:
    Apr 4, 2011
    Posts:
    1,744
    Likes Received:
    407
    Location:
    In the middle, somewhat elevated
    Sorry James, my first post wasn't clear. A 14mm spanner fits the nut.

  10. flatlander

    flatlander It's not broken! Donater

    Joined:
    Apr 4, 2011
    Posts:
    1,744
    Likes Received:
    407
    Location:
    In the middle, somewhat elevated
    The pipe shows signs of having been brazed while in place. If I bugg3r the fitting removing the pipe I want a fighting chance of replacing it.

  11. Oldseadog

    Oldseadog Well-Known Member

    Joined:
    May 27, 2011
    Posts:
    9,270
    Likes Received:
    1,051
    Location:
    Tynemouth
    14mm could possibly be 9/16" which could make the fitting an old-style 1/4 clutch pipe male end with an olive fitted.
    The pipe is easily available as are the ends. However, I would beg or borrow a flaring tool to make off the end rather than fit an olive.

  12. tottot

    tottot Well-Known Member

    Joined:
    Nov 7, 2010
    Posts:
    4,253
    Likes Received:
    896
    Location:
    west wales coast
    What ever it is it is not standard.What does it do?

  13. flatlander

    flatlander It's not broken! Donater

    Joined:
    Apr 4, 2011
    Posts:
    1,744
    Likes Received:
    407
    Location:
    In the middle, somewhat elevated
    The larger thread is 1/2"BSP, so tomorrow I will be drilling and tapping the brass adaptor to BSP, which means I will be able to use a 90 degree bend and hose adaptor I have to hand. Problem solved, thanks to everyone who responded.

  14. flatlander

    flatlander It's not broken! Donater

    Joined:
    Apr 4, 2011
    Posts:
    1,744
    Likes Received:
    407
    Location:
    In the middle, somewhat elevated
    It joins the rad balance tank, permitting coolant to flow between the header / balance tank and radiator.
