What have you done to your Freelander today

Discussion in 'Land Rover Freelander' started by Freelaner, Sep 21, 2012.

< Previous Thread | Next Thread >
  1. GrumpyGel

    GrumpyGel Well-Known Member

    Joined:
    Oct 31, 2013
    Posts:
    14,937
    Likes Received:
    9,539
    Location:
    Christchurch, New Zealand
    Time flys when you're a lazy bugger.

    Having not done anything with the wing mirrors, and losing the cover on our first fishing trip post lock down, the wing mirror has been rather naked. It needs its WOF (MOT) this week and I don't like the car looking to much like a tatty mess for the examiner in case it puts them in the mind to fail it before they start, so decided to swap the parts one over today.

    Having taken the decision - that meant taking the drill to the door, if I cock it up, so be it. I didn't have a drill anywhere near big enough for the screw molding on the mirror to fit through, so used a 'countersink' bit! It didn't like cutting metal, but got the hole done in the end with some tidying up with a regular bit. I had to cut a few mils off the screw molding with an angle grinder, but having drilled and cut, the mirror went on OK. It's not aligned perfectly, but good enough. Having drilled the door for the '3rd' screw, I realised I'd lost the one from the parts car - so that isn't in at the moment till I can find a replacement, and the white 'clip' at the top for the 'top screw' snapped as well (stupid little fecker that is) - so the mirror really is only held on with the 2 main bolts.

    Booked in for WOF 10:30 tomorrow.

    Still haven't done the heater matrix and the car's still sopping wet.

  2. FLZambezi

    FLZambezi New Member

    Joined:
    Jul 22, 2020
    Posts:
    9
    Likes Received:
    4
    Location:
    South East
    Pluribus likes this.
  3. DevonGuy

    DevonGuy Well-Known Member

    Joined:
    Nov 21, 2013
    Posts:
    1,568
    Likes Received:
    3,288
    Location:
    North Devon
    Changed the tailgate drop glass for one with a working demister. That's going to be an absolute luxury this winter. Had the door handle off and checked all was well, no rust. Cleaned whole car outside, discovered it is black, not brown. Will clean the inside one day soon when I can be arrsed to bring the wheelbarrow round from the garden so I can tip the resultant mud into a raised bed. That's enough for now.

  4. GrumpyGel

    GrumpyGel Well-Known Member

    Joined:
    Oct 31, 2013
    Posts:
    14,937
    Likes Received:
    9,539
    Location:
    Christchurch, New Zealand
    As luck would have it, our daughter was going out after work tonight, so I dropped her off at work... and got a text to say a brake light was out on the car. So replaced the bulb before its WOF test.

    However, still failed the test :(

    All it failed on was the front/center diff mount. Which is amazing really as the car has been 2WD for 7 years now!

    Any how, they are cheap as chips. Well $15 (£7.50) is cheap as chips, $65 once you add delivery is a bit more! Tried other UK suppliers, but the delivery on that 1 item was was expensive and a couple of the suppliers had warnings about delivery delays at the moment, so possibly wouldn't be here before the free retest. In the end I managed to source 1 in NZ (probably Sh*tpart) for $38 + $8 delivery. Not bad for 6 months road worthyness. Will cost a bit for the next WOF though as it will need at least 2 tyres, so that's at least $500.

  5. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    20,419
    Likes Received:
    4,441
    Location:
    Near Newquay
    Today I continued to removed various parts from the FL2 engine, including the starter, fuel rail, air filter housing and various other bits, relating to getting the cylinder head off.

  6. Muskett

    Muskett Member

    Joined:
    Feb 13, 2009
    Posts:
    58
    Likes Received:
    13
    Location:
    East Sussex
    Nothing on my Freelander takes a day.

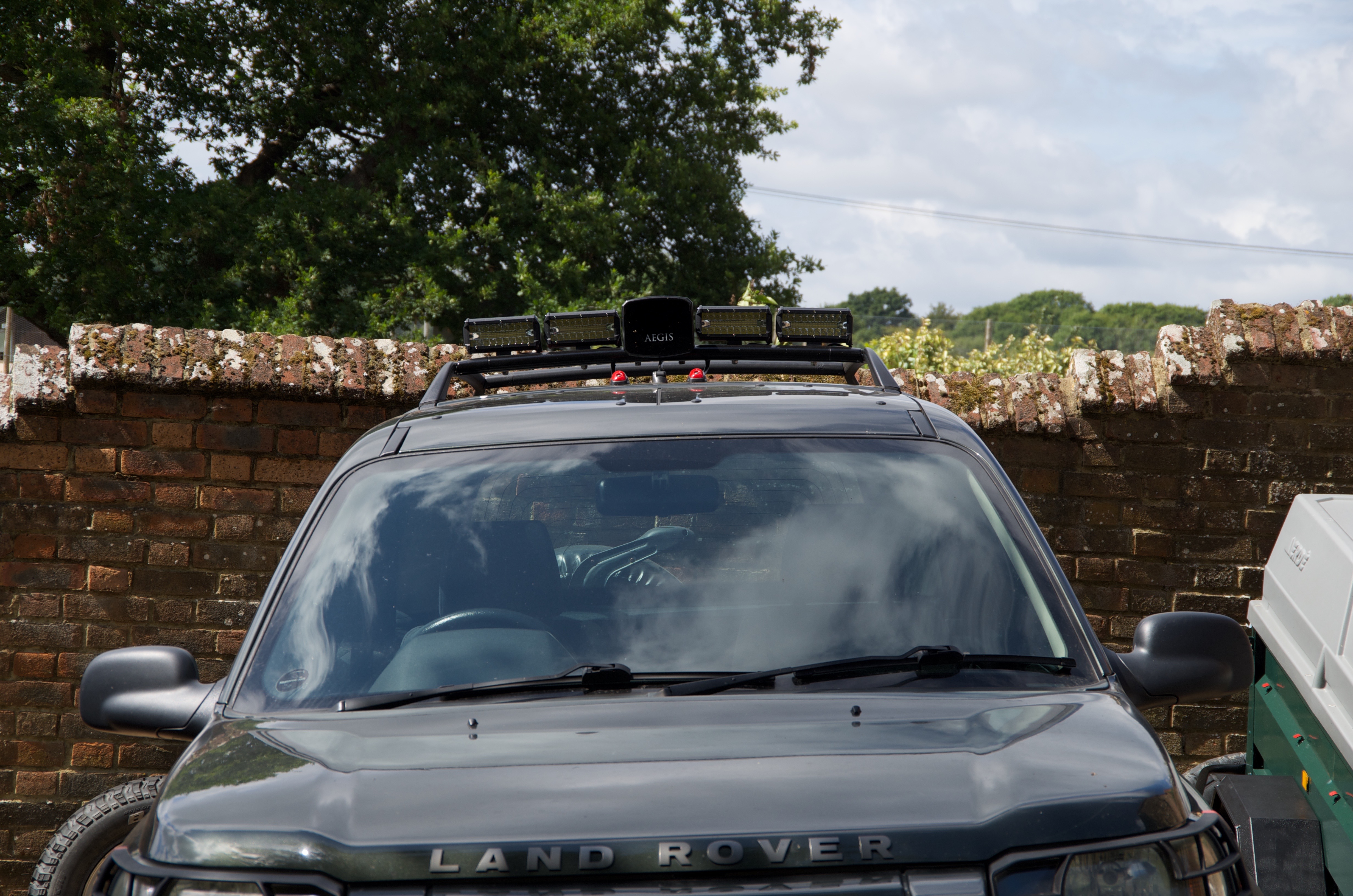

    Last week finished and fitted the Lightbar.
    Well that took surplus parts, respraying parts, digging through the spares box,and a long shopping list from ebay. Its fitted and wiring into the car. Next week hopefully have it wired in and finished.
    [​IMG]

    [​IMG]

    Golf GTi Oak Green, similar to Epson Green but not an exact match:
    [​IMG]
    Note the red theme that I've taken to the Freelander just for the fun of it all.

    Last edited: Aug 1, 2020
    Pluribus likes this.
  7. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    560
    Likes Received:
    148
    Location:
    Pedronapper (Peterhead)

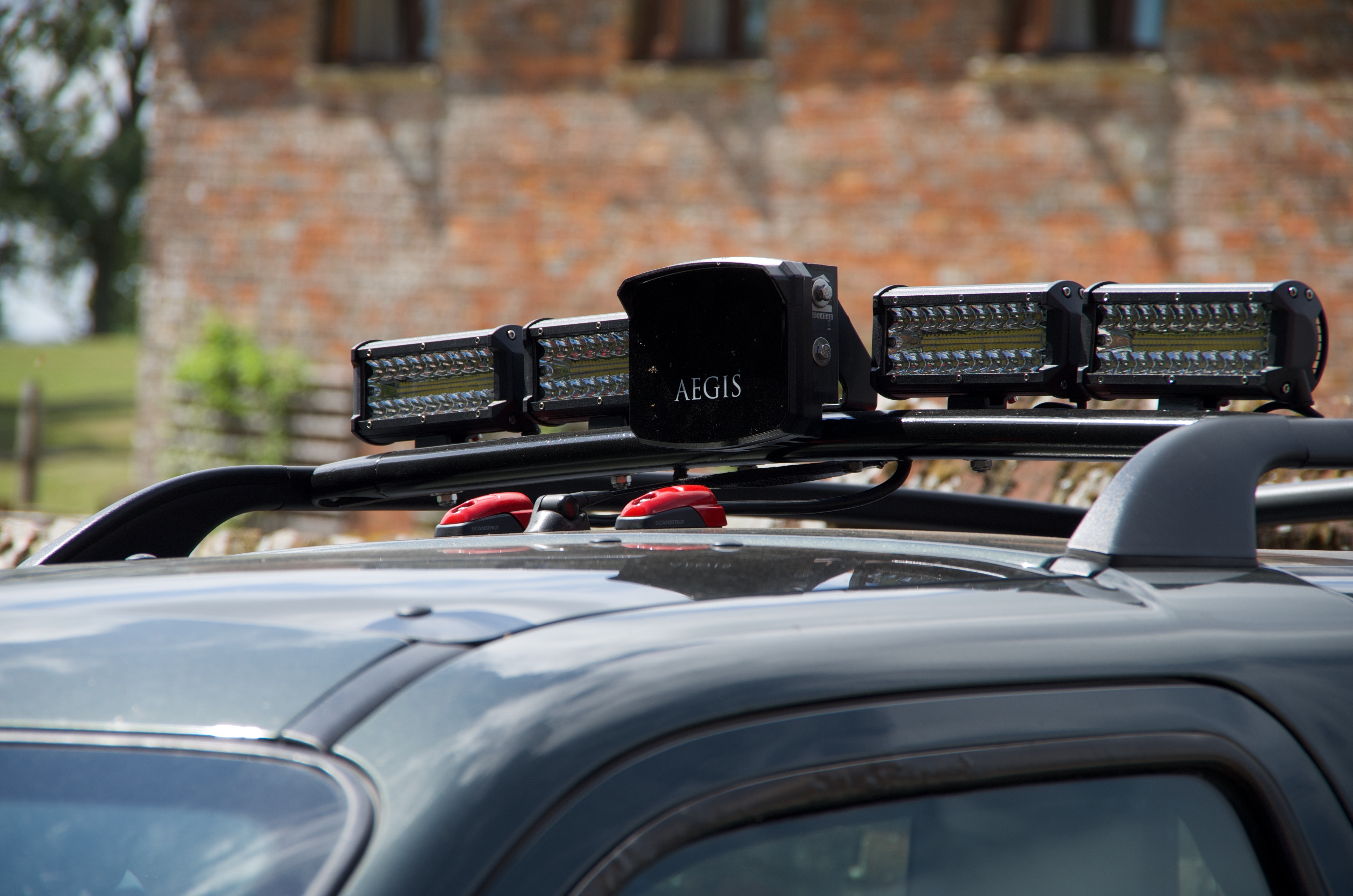

    Looks good - but what is the Aegis unit in the middle of the light bar?

  8. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    20,419
    Likes Received:
    4,441
    Location:
    Near Newquay
    Done more stripping of the FL2 engine.

  9. paul99

    paul99 Active Member

    Joined:
    Mar 19, 2020
    Posts:
    196
    Likes Received:
    56
    Location:
    Right here, right now.
    Got the aircon refilled at Kwikfit. Good news is that it took a charge without any trouble. Bad news is that the compressor doesn't kick in. :( Well at least I got the refill for free, after that. Just need the new CV joint boot to be delivered so I can right the major wrongs on the old girl. I'm thinking I have a bad wheel bearing and an exhaust hanger left to sort out.

  10. Muskett

    Muskett Member

    Joined:
    Feb 13, 2009
    Posts:
    58
    Likes Received:
    13
    Location:
    East Sussex
    Infra Red so I can drive the fields with night vision.

    Pluribus likes this.
  11. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    560
    Likes Received:
    148
    Location:
    Pedronapper (Peterhead)
    That is super cool!

  12. Muskett

    Muskett Member

    Joined:
    Feb 13, 2009
    Posts:
    58
    Likes Received:
    13
    Location:
    East Sussex
    Its stealthy.
    One day I did this to my old Freelander, now that is stealthy:
    [​IMG]

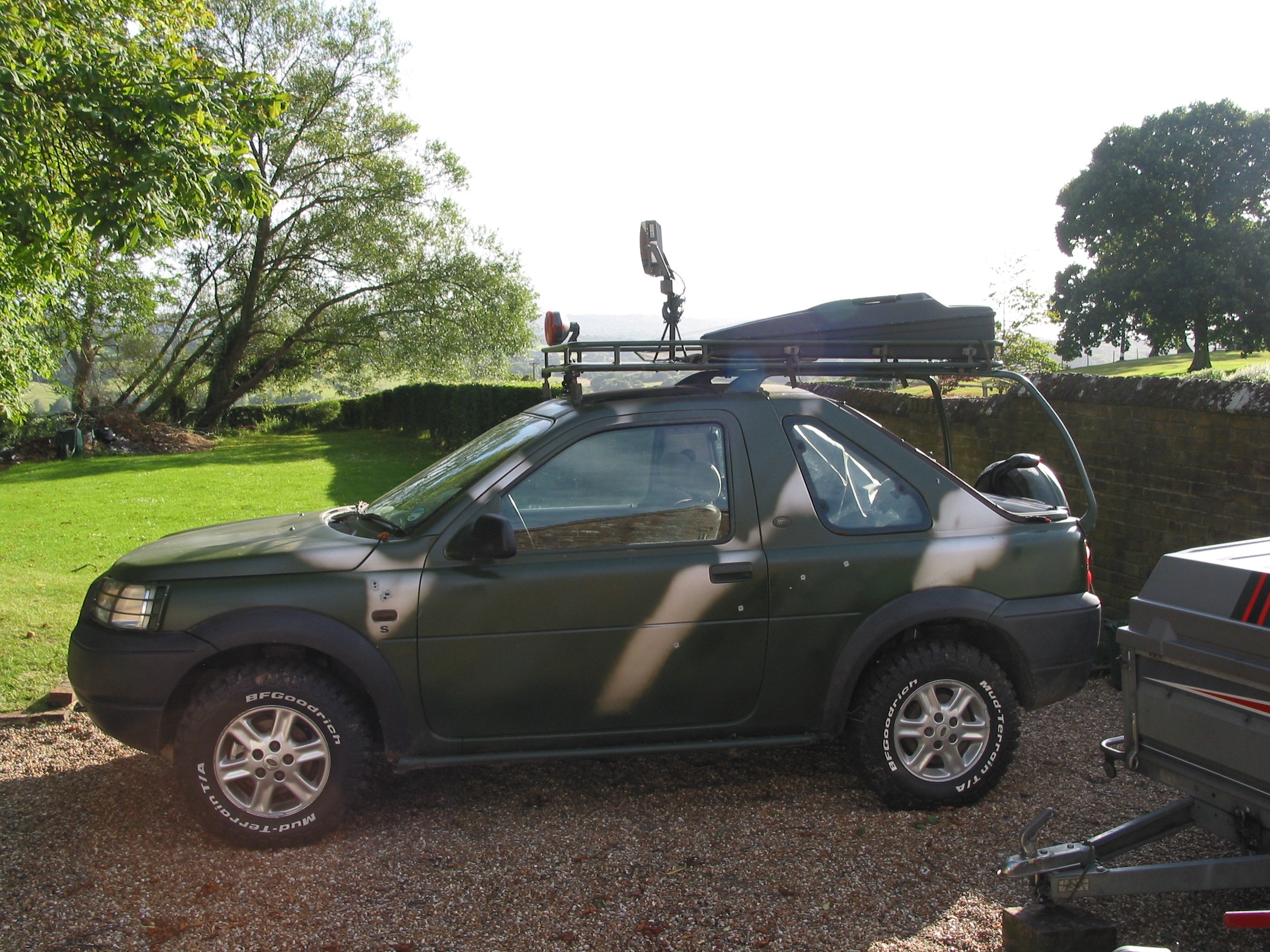

    This is the old one when first done:
    [​IMG]

    However, it had to be retired after 10 or so years. The new one looks a whole lot smarter, cost a good bit more, but will be doing the same job. Night Vision has improved no end too. Most is Deer Warden work, helping out the Emergency Services with deer related RTA's.

    Last edited: Aug 2, 2020
    Bounty likes this.
  13. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    20,419
    Likes Received:
    4,441
    Location:
    Near Newquay

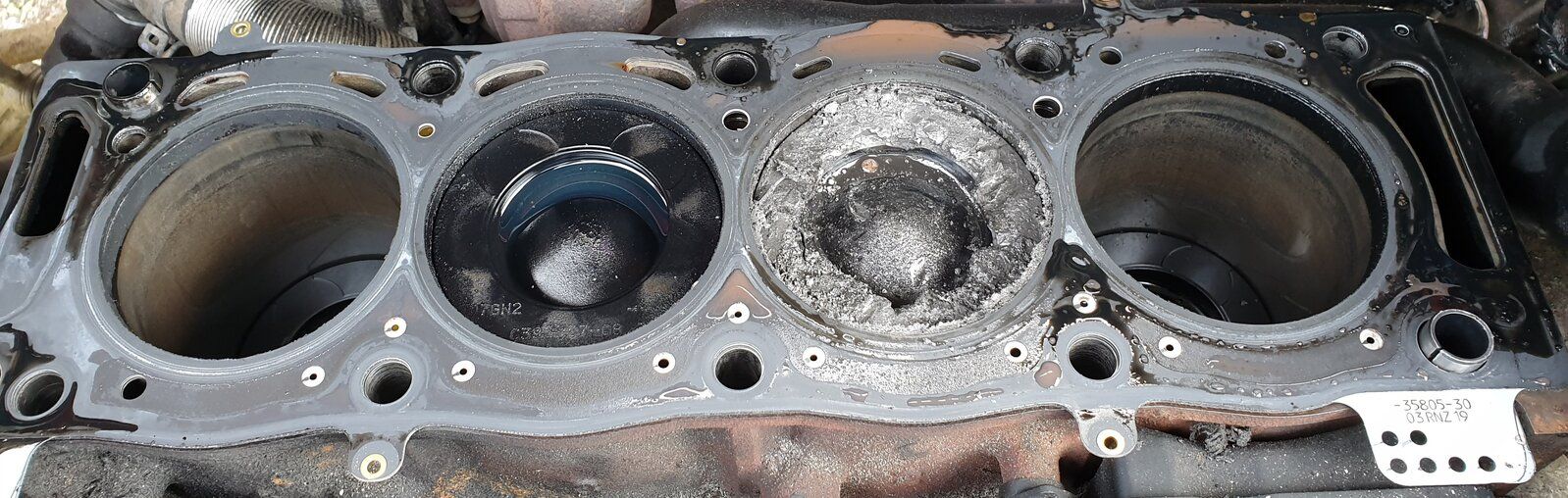

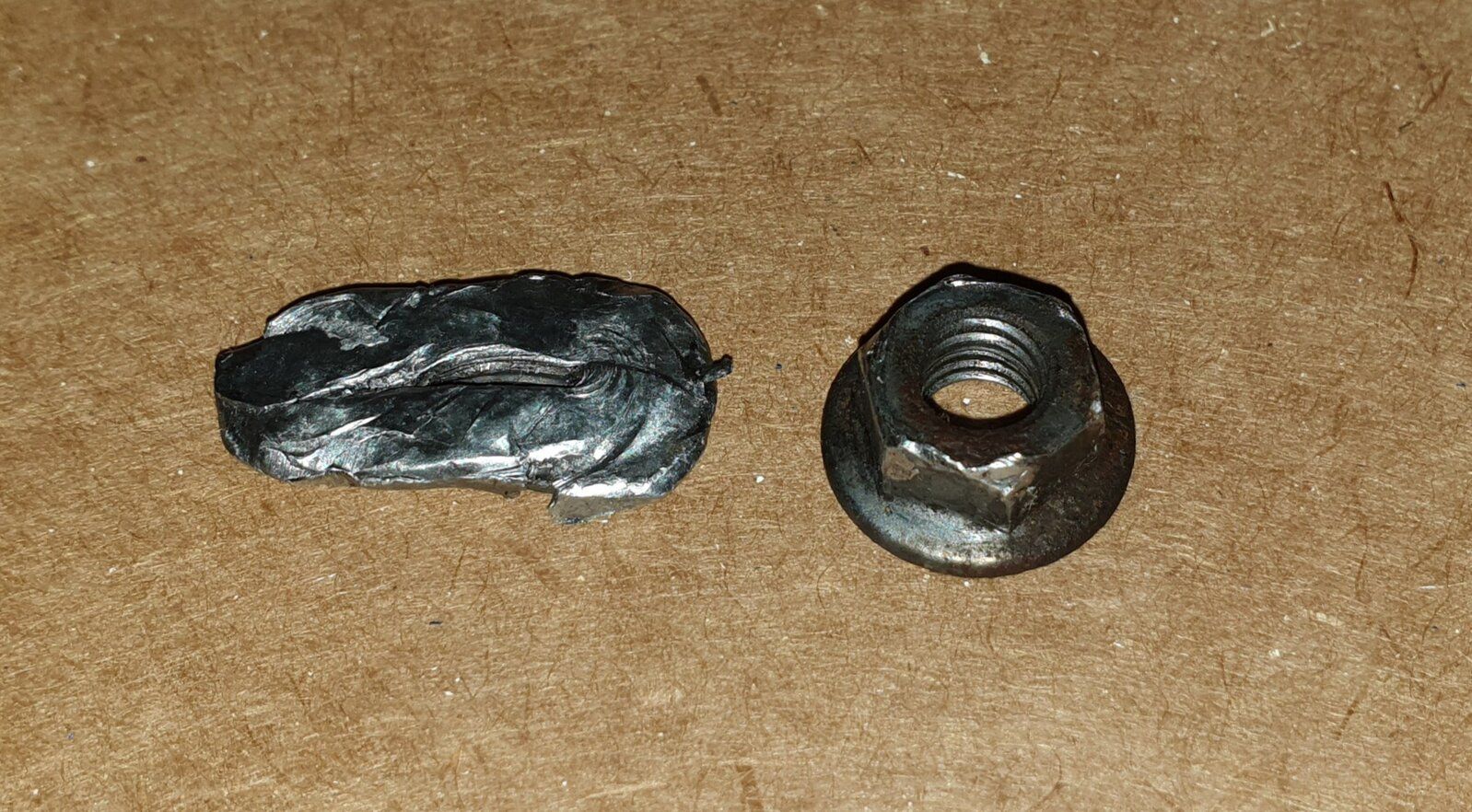

    Discovered this (mangled nut on left) 20200802_175759.jpg sitting on the piston of my FL2, no wonder it was running on 3 cylinders, with the piston looking like this. 20200802_163232.jpg

  14. paul99

    paul99 Active Member

    Joined:
    Mar 19, 2020
    Posts:
    196
    Likes Received:
    56
    Location:
    Right here, right now.
    Yeah, mangled nuts are a generally bad thing, except maybe as an ice cream topping. Verified my AC clutch isn't engaging and spotted a bit of an oil leak. It's marked its territory on the driveway.

  15. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    560
    Likes Received:
    148
    Location:
    Pedronapper (Peterhead)
    Apart from the obvious mangled piston, but the other three are a weird assed shape, its almost like they have a cup holder recess in the centre of them, whats that all about?

  16. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    20,419
    Likes Received:
    4,441
    Location:
    Near Newquay
    It's a diesel, and the head face is flat, so the air is squeezed in to that round recess with a domed centre to create swirl. The injector sprays in the centre and as the mixture is swirling about, it mixes well and burns cleaner. It's a pretty standard shape of a modern diesel piston, actually it's a pretty standard shape even for an old diesel engine. ;)

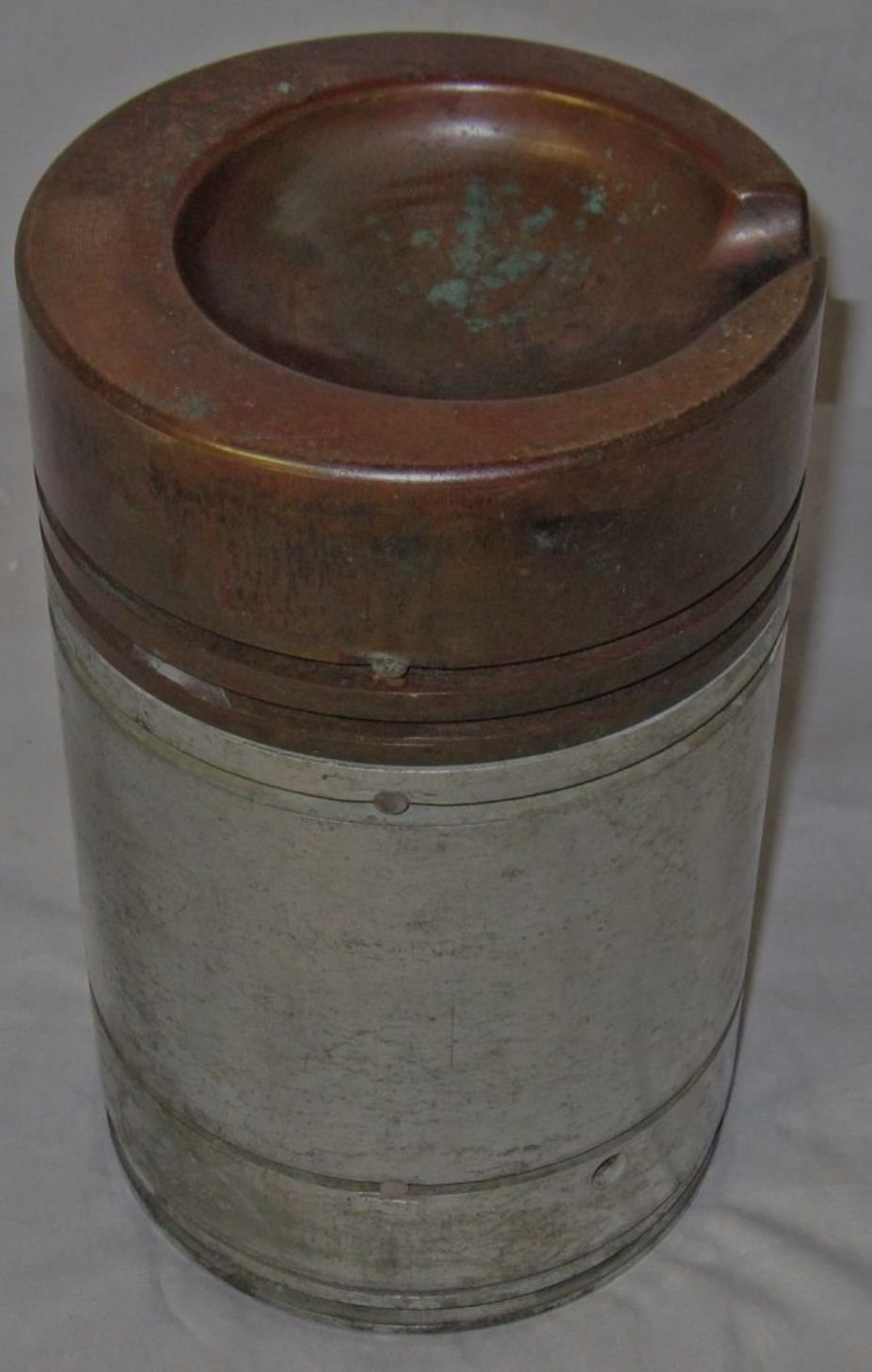

    This is a piston from a Napier Deltic engine which shows a very similar recess in the crown. 20200803_214643.jpg

    Last edited: Aug 3, 2020
  17. Jayridium

    Jayridium Well-Known Member

    Joined:
    Aug 23, 2013
    Posts:
    560
    Likes Received:
    148
    Location:
    Pedronapper (Peterhead)
    It was the aspect ratio of the depth and narrowness of the depression that caught my attention, I'm used to dealing with pistons more like this:
    [​IMG]

    Whereby the concave element is broader but shallower than the FL2's pistons.

  18. Pluribus

    Pluribus Active Member

    Joined:
    Jul 7, 2013
    Posts:
    241
    Likes Received:
    50
    Location:
    Sevenoaks, Kent
    Ouch... How does damage like that happen and not feck the entire engine?

  19. Nodge68

    Nodge68 Well-Known Member

    Joined:
    Nov 15, 2011
    Posts:
    20,419
    Likes Received:
    4,441
    Location:
    Near Newquay
    A small nut isn't enough to totally wreck the whole engine, just one piston and dented the head/bent valves. The hollow in the piston is quite large, so this will have been a refuge for the nut a majority of the time. Unfortunately the nut obviously got trapped between the edges of the crown and the valves. :(

    I suspect that if I'd not driven it the 103 miles home, then there would have been less damage, but that's the luck of the draw I guess.

    At least there's plenty of cheap parts available for it, so with some luck and time, it'll be running again soon.:)

    Pluribus and Alibro like this.
  20. GrumpyGel

    GrumpyGel Well-Known Member

    Joined:
    Oct 31, 2013
    Posts:
    14,937
    Likes Received:
    9,539
    Location:
    Christchurch, New Zealand
    That looks a right state!

    Must have run terribly. Sounds like its damaged the valve, hope there's not to much more damaged like turbo etc.
