Other what have u done on ur disco today

neilly · Apr 7, 2017

Found the pesky oil leak from the transfer box, looks like t is the intermediate shaft. A couple of stupid little O rings mean I have to pull the t box backwards to get clearance.

Luvbly jubbly

Cheers

gstuart · Apr 7, 2017

neilly said:
Found the pesky oil leak from the transfer box, looks like t is the intermediate shaft. A couple of stupid little O rings mean I have to pull the t box backwards to get clearance.

Luvbly jubbly

Cheers

always the way, when u have to strip a lot of parts out of the way to just fit little gaskets or o rings

think a lot of us are trying to get the landies fixed for lz13 , lol

Co-Pang-Yang · Apr 7, 2017

gstuart said:
old plumbing trick , can sandwich pieces of rubber either side of the old hole, backed with some thin sheets of metal

then using some nuts and bolts to secure it all, first putting some silicone on the rubber as u squeeze it up tight with the nut and bolt

reminds me from my plumbing and heating days, using pipes , glands, fittings etc to get a waterproof seal

but like u say ref kits etc

not sure how the breather pipe is supposed to be set up, wonder if kit instructions may shed some light or another forum member

don't think ur too far away from me, but if u ever need a hand plse feel free to give me a shout

always good to meet other forum members and lend a hand

hope that's not being disrespectful in any way

Ah yes I think I get what you mean.
What I need to do is rip out the airbox and all the pipework to gauge a proper idea of what I can do to neaten it all up and more importantly seal it.

Would think a decent D3 snorkel kit would have parts for the breather system.

Don't think I would ever think offering a hand as disrespectful mate. I live over in Colchester, Essex.

Magicgrotto · Apr 7, 2017

This is wot the pipe work looks like on a 300tdi that should have ABS !

Co-Pang-Yang · Apr 7, 2017

That's what I'm after I reckon.
Block the front opening up and add that S shaped pipe up the the snorkel

Co-Pang-Yang · Apr 7, 2017

Magicgrotto is the airbox still attached to the car by the original mounts in that photo?

Magicgrotto · Apr 7, 2017

No Mate it's got a plate with two lugs that shift it to the right a bit to let the pipe fit down the left hand side !

Co-Pang-Yang · Apr 7, 2017

Ah yes, looking back on the photo I see what you mean. Might try that myself

Magicgrotto · Apr 7, 2017

Here's 1 after a tidy up ! you can see the brkt with the lugs better !

Co-Pang-Yang · Apr 7, 2017

Ah yes think I get what you've done.

Cut lugs off airbox, glue them to a plate and screw the plate to the airbox

Magicgrotto · Apr 7, 2017

No the plate has the lugs on when you get the kit !

Marmaduke · Apr 7, 2017

@Co-Pang-Yang I'll put you a picture up of mine when I get chance (and my airbox)

Co-Pang-Yang · Apr 7, 2017

Magicgrotto said:
No the plate has the lugs on when you get the kit !

Didn't know you could get a kit lol

Marmaduke said:
@Co-Pang-Yang I'll put you a picture up of mine when I get chance (and my airbox)

I'll show you mine if you show me yours

Magicgrotto · Apr 7, 2017

Co-Pang-Yang said:
Didn't know you could get a kit lol

Yep yu can ! But it wunt be hard to make the brkt to shift it over !

Co-Pang-Yang · Apr 7, 2017

Yes think that'll be my little project as at the moment it just sits there not attached to anything

gstuart · Apr 7, 2017

Magicgrotto said:
Yep yu can ! But it wunt be hard to make the brkt to shift it over !

good when a plan comes together

Steviecops · Apr 7, 2017

Just out of curiosity, is the seal between the top and bottom of the air box water tight once it's clipped on?

gstuart · Apr 7, 2017

just fitted the two x curtain airbags

had enough for today , next will be the passenger electric seat to go in

then fingers crossed the srs light will go out

as i've gone through the system, will be like celebrating if the light goes out after i fit the seat

Marmaduke · Apr 7, 2017

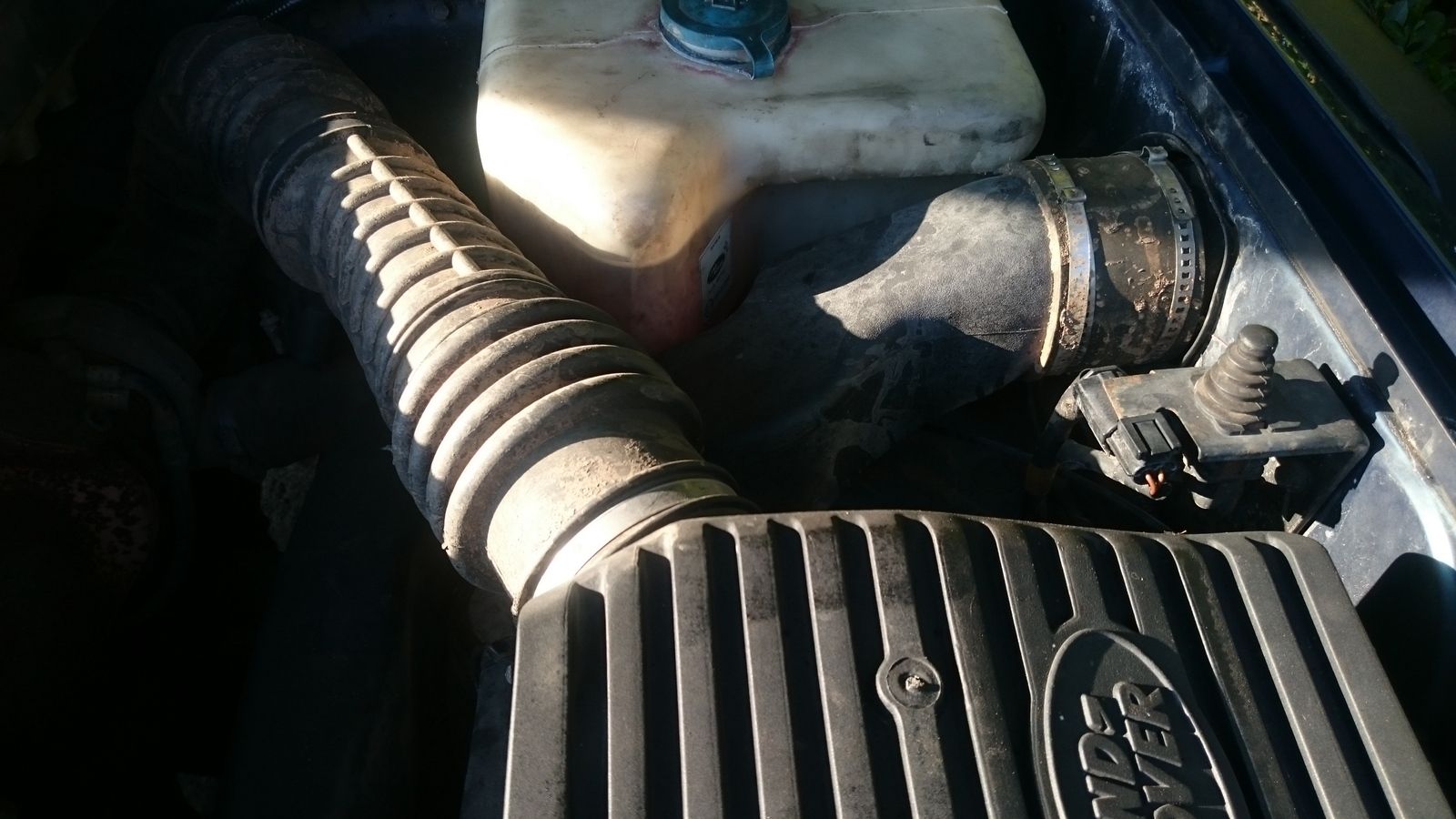

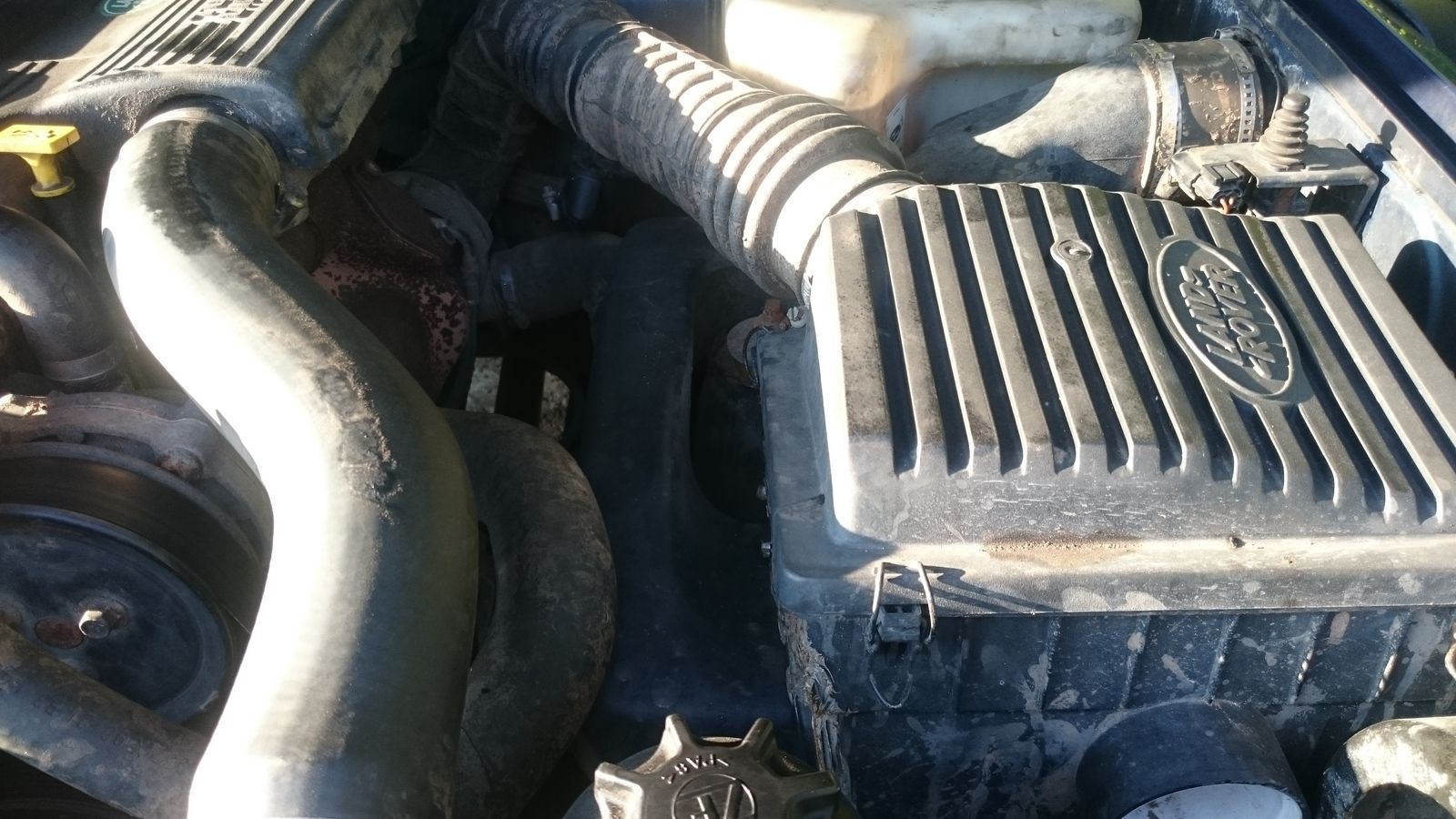

This is my airbox

notenoughtime · Apr 7, 2017

I bought another td5 disco 2 does that count on this thread?
