    When the height settings are done it is important to get the front within two bits side to side. As the car slows to 1 mph or stops both front valves open to equalise pressure across the axle. If one side has more pressure in it than the other the nose drops slightly then rises back to the sensor settings. If you have your foot on the brake suspension will not rise until brake is released or two minutes elapses. So as you stop start it gives the impression the front is dancing.

    marjon likes this.
  2. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,771
    Likes Received:
    4,840
    Location:
    Trapped inside my head @ LZ asylum
    It will go back together once I have an actual complete exploded view for people to see instead of a sh*te Haynes illustration of little significance. Rings seem fine since they’ve just stood there protected away, little grease might help them sit back tidy?

    then on to the next part ;)

    So many people ask about EAS, biggest cost to original owner of my vehicle, I want them to see for themselves that someone never seen one can do it with patience. May give them answers or the confidence to try themselves.
    Honestly anyone that has put a Lego set together for a 6yr old at Xmas could do this with a few warnings and principles of not mixing things up

    - other possibility is I completely ruin it and put them off, but atleast they can see what is talked about in tech section is not over technical :)


    I’ve read things in search bar about nose dancing and bobbing in traffic, can’t remember where I’m afraid, was never particularly relevant to me :(

    marjon likes this.
  3. marjon

    marjon Well-Known Member

    Joined:
    Jul 15, 2018
    Posts:
    4,993
    Likes Received:
    4,675
    Location:
    Bulgaria
    Thanks @wammers.

    I guess as I have no reason to believe the whole system is not all original,and never been touched,
    It will need a good look at over the whole system.

    J

  4. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,896
    Likes Received:
    3,876
    Location:
    Near Poitiers SW France
    There are no contacts, they are electromagnets, the valve stem is the armature.

    RangeRoller dt likes this.
  5. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,771
    Likes Received:
    4,840
    Location:
    Trapped inside my head @ LZ asylum
    I see, there must be a coil in there somewhere.
    people may need to change them so we will pull one apart show them as there’s a fiddly bit get the wire out if they need to swap one over

  6. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,896
    Likes Received:
    3,876
    Location:
    Near Poitiers SW France

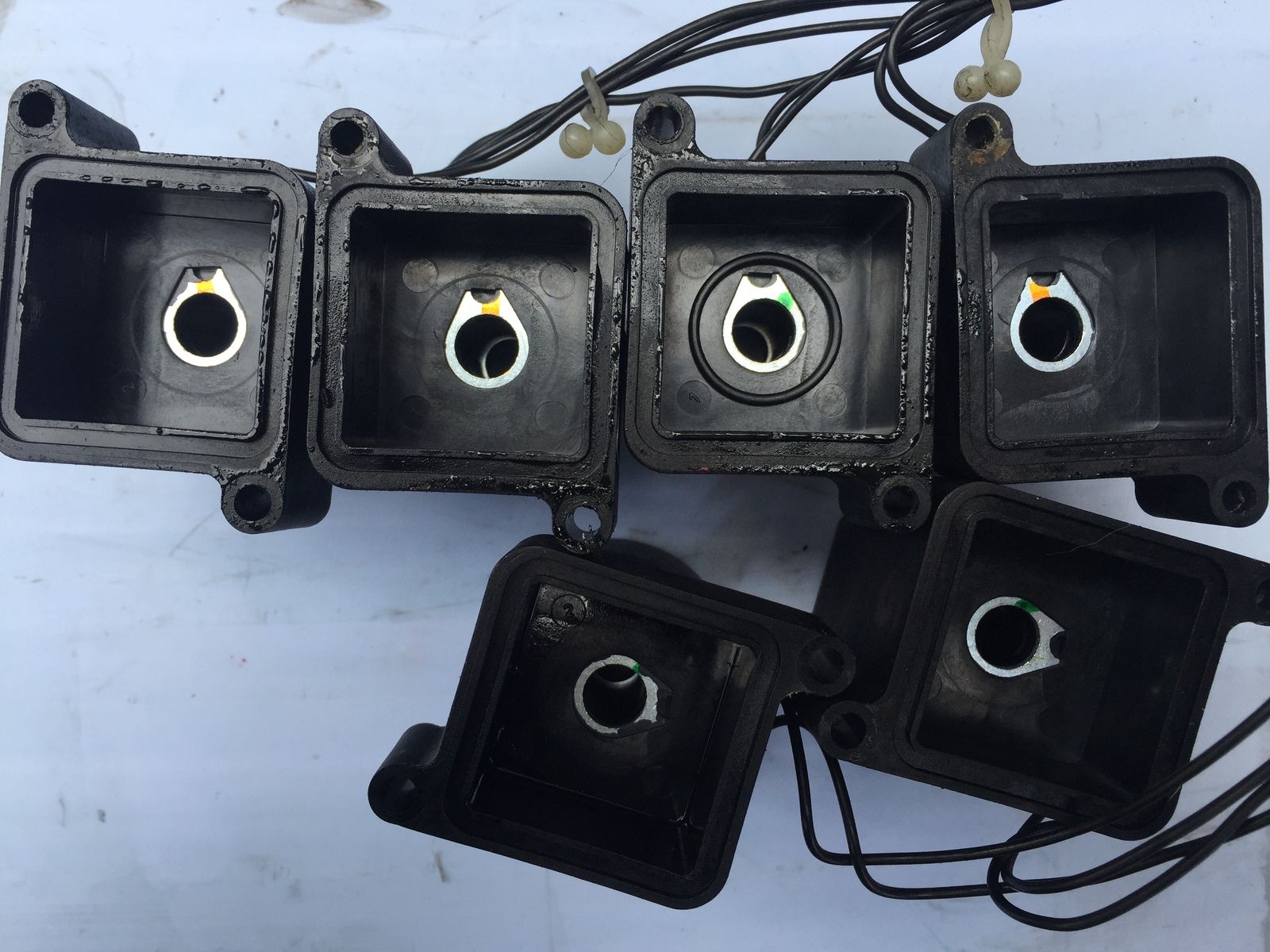

    The coil is in the cover where the wires go in, the coil cannot be removed, you change the whole cover if needs be.

  7. al-one-arm

    al-one-arm Active Member

    Joined:
    Jul 24, 2008
    Posts:
    307
    Likes Received:
    14
    Location:
    burnham-on-sea,somerset
    you test it with a DVM. if its open circuit, its broke

    RangeRoller dt likes this.
  8. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,771
    Likes Received:
    4,840
    Location:
    Trapped inside my head @ LZ asylum
    I think you need to use existing wires if you change the cover, you could just cut/solder but I think there is a way get them out whole. I can cut them up for us to see if they want anyhow

  9. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,896
    Likes Received:
    3,876
    Location:
    Near Poitiers SW France
    A new cover comes with the wires attached, they do need fitting to the connector though. They rarely fail.

  10. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,771
    Likes Received:
    4,840
    Location:
    Trapped inside my head @ LZ asylum
    I’m guessing these little bits I’m putting together add €€€ up !

  11. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,896
    Likes Received:
    3,876
    Location:
    Near Poitiers SW France
    I'm inclined to think you are wasting your time messing with the coil assemblies, they do not often fail and second hand ones are freely available.

  12. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,771
    Likes Received:
    4,840
    Location:
    Trapped inside my head @ LZ asylum
    For you possibly, you know all this - and I don’t actually have an issue (yet :rolleyes:).
    As mentioned in post #1 tis just bit of fun and It’s my time to waste ; feel free to do whatever you want on your bankholiday ;)
    Marjon is working on the ‘why’ :D, he’s like my LZ therapist

    You are correct , the wires come out of the connector other end you need a tiny tool to release them

    marjon likes this.
  13. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,771
    Likes Received:
    4,840
    Location:
    Trapped inside my head @ LZ asylum

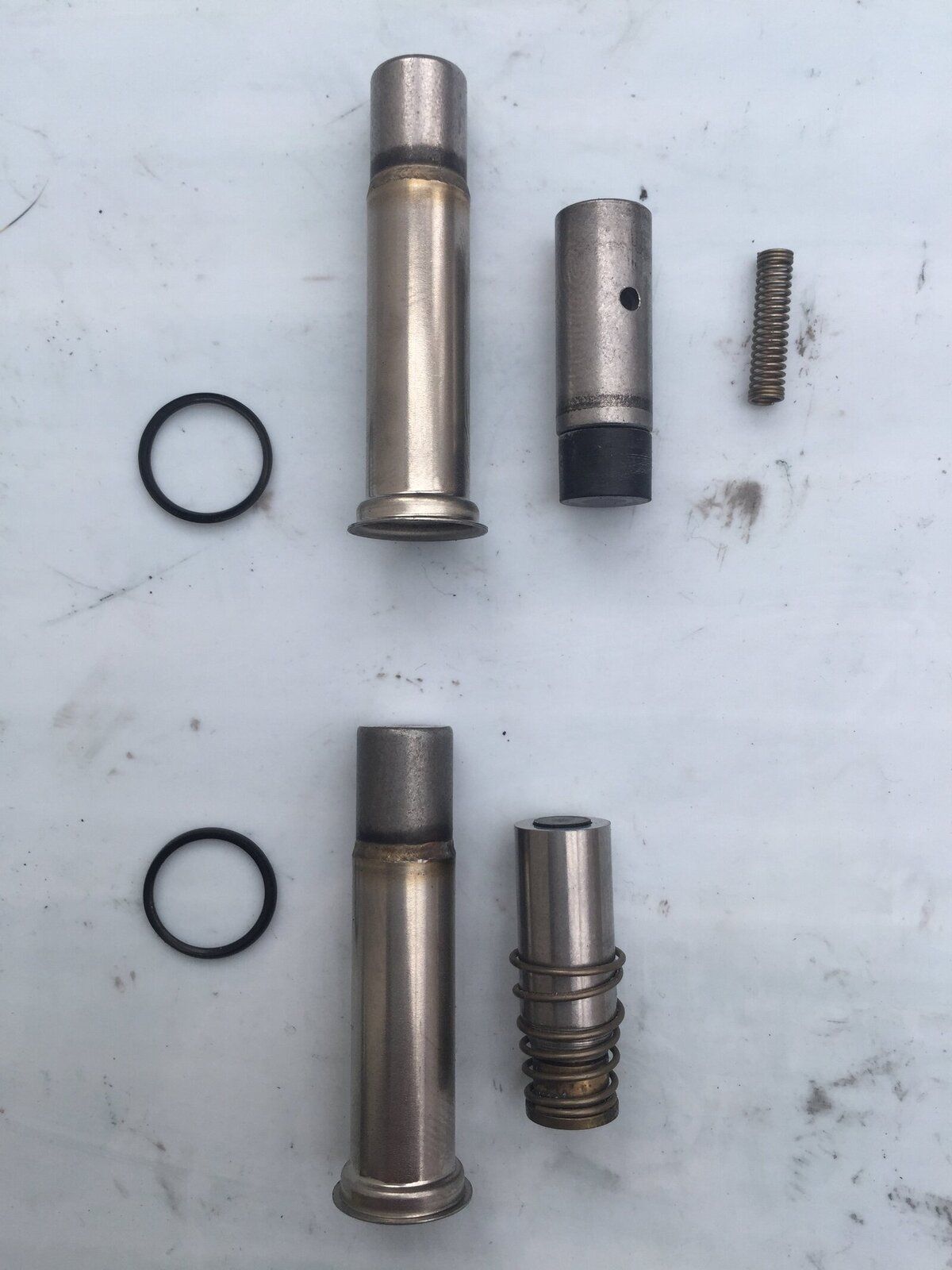

    So there are two types. Two have rubber end with spring inside top, the others have a Spring bottom. The top spacer comes off then twist gently to remove. There was a bit of muck and scale in there

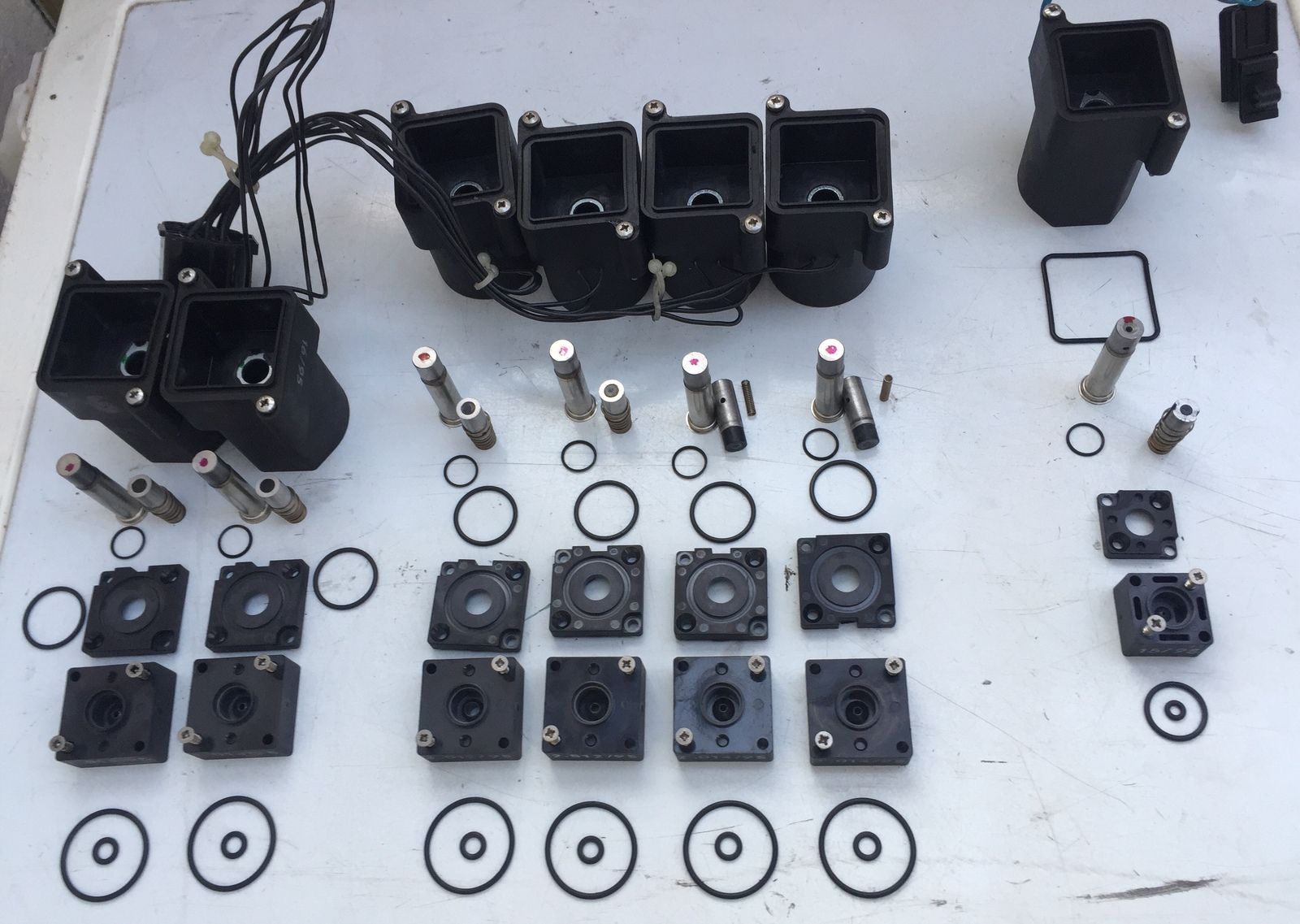

    So this is how it looks. You can zoom in :)

    You have the solenoids which must remain in order of type

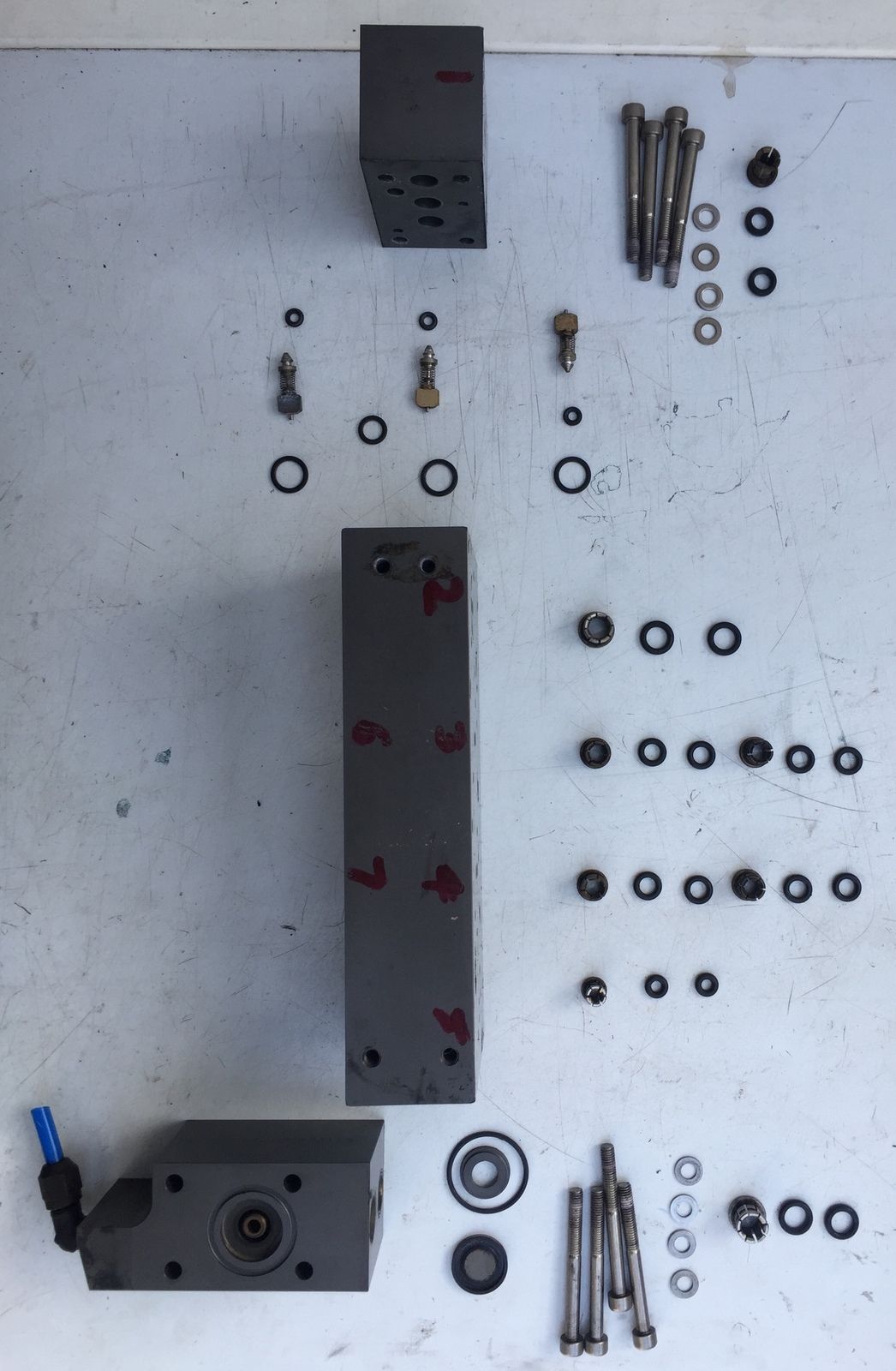

    They bolt onto the block with their assortment of rings.
    The block bolts together only one way with a few internal valves&rings plus the pipe connections&rings in the back. Hard to go wrong they only fit where they are supposed to be.

    Grrrrrr and marjon like this.
  14. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    36,896
    Likes Received:
    3,876
    Location:
    Near Poitiers SW France
    The valves and the coils can be transposed if you are not careful.

  15. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,771
    Likes Received:
    4,840
    Location:
    Trapped inside my head @ LZ asylum
    I’m not wearing gloves, I’m not a golfist :)


    * a glove

  16. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    57,943
    Likes Received:
    11,443
    Location:
    Preston Lancs.
    We now enter the world of the old mechanics maxim. Anybody can take something apart. :D:D

  17. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,771
    Likes Received:
    4,840
    Location:
    Trapped inside my head @ LZ asylum
    Total of 51 o-rings, diaphragm seal and 1 square-ring. 28screws (14 of both types), 8 Allen bolts with washer each, 8 pipe connectors in the rear with 2 o-rings each.

    One of the internal NRVs is in opposite direction to the other two as pictured.

    How do I put it back together? :confused::eek::oops:

  18. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,771
    Likes Received:
    4,840
    Location:
    Trapped inside my head @ LZ asylum
    Only joking

    Refit is reverse of removal obviously as found in RAVE.
    I just need to RTFM
    :D:D:D:D

    Grrrrrr likes this.
  19. RangeRoller dt

    RangeRoller dt Well-Sprung Member

    Joined:
    Dec 23, 2018
    Posts:
    10,771
    Likes Received:
    4,840
    Location:
    Trapped inside my head @ LZ asylum
    I don’t have a picture of the bucket of oily rags and grit that came from this. Itl go back better.

    If you do an NVQ - you will be professionally qualified to do this.
    If you do this instead - you won’t need the NVQ

    Horology is another good one apparently. Don’t do this to injectors ;)

    Last edited: Jun 2, 2019
    Mark Piercy likes this.
  20. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    57,943
    Likes Received:
    11,443
    Location:
    Preston Lancs.
    Qualified and capable are totally different words with totally different meanings. :D:D

    RangeRoller dt likes this.
