Series 2 Weber carb too small to fit

Eieio · Aug 10, 2020

Evening,

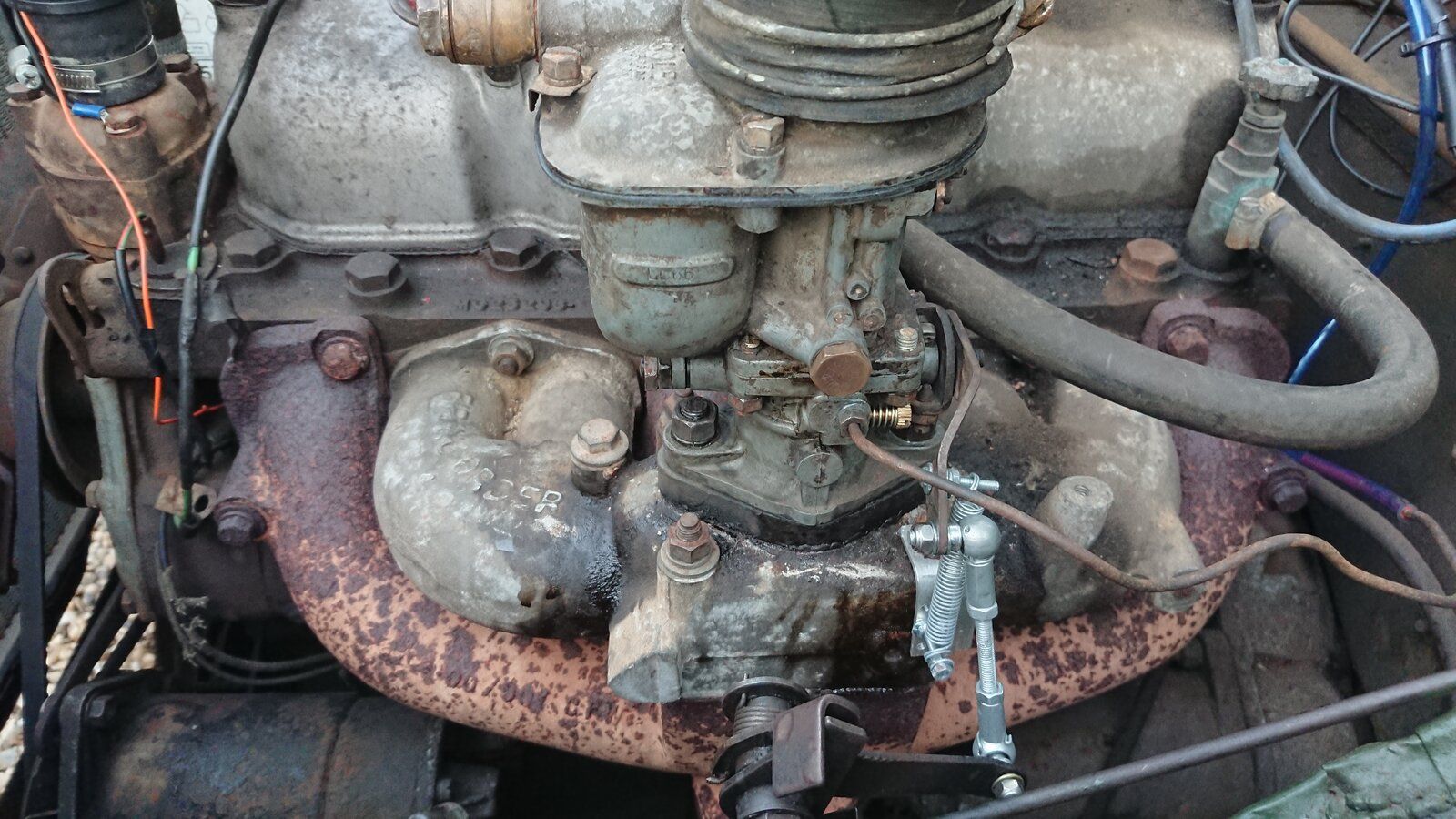

Ordered a Weber carburettor from John Craddocks to replace the worn out Solex on my series 2a 2.25, went to fit it tonight and the stud holes in the webber are too small and too close together to fit on the manifold.

Have I got an odd ball intake manifold or am I missing something simple?

TheMegaMan · Aug 10, 2020

Doesn't a webber need a 90 degree adapter to fit it? That might also correct the mounting stud/hole position problem.

marjon · Aug 10, 2020

Think you may need an adaptor. But may be wrong but looking at your pics and comparing a quick google.

https://www.britishautoparts.com.au/inc/sdetail/37131

[URL]http://www.glencoyne.co.uk/carbs.htm[/URL]
https://www.britishautoparts.com.au/inc/sdetail/37131

More research needed.

good luck.

J

tottot · Aug 10, 2020

Need adaptor, thought they came with the carb.

Eieio · Aug 10, 2020

Ahh, didn't realise i needed an adaptor! nice easy fix, many thanks for your swift replies.

TheMegaMan · Aug 10, 2020

TheMegaMan said:
Doesn't a webber need a 90 degree adapter to fit it? That might also correct the mounting stud/hole position problem.

Either ERC2974 or 554175. Not quite sure of the details. I have something like this on mine, and the webber dropped straight on.
