Water pump interchangeability 2.5 petrol

W

Wildefalcon

Well-Known Member

Posts

1,685

• Dec 24, 2019

• #1

Morning, I'm planning on putting a 2.5 petrol into my lightweight, but would like to make it as series like as reasonably possible.

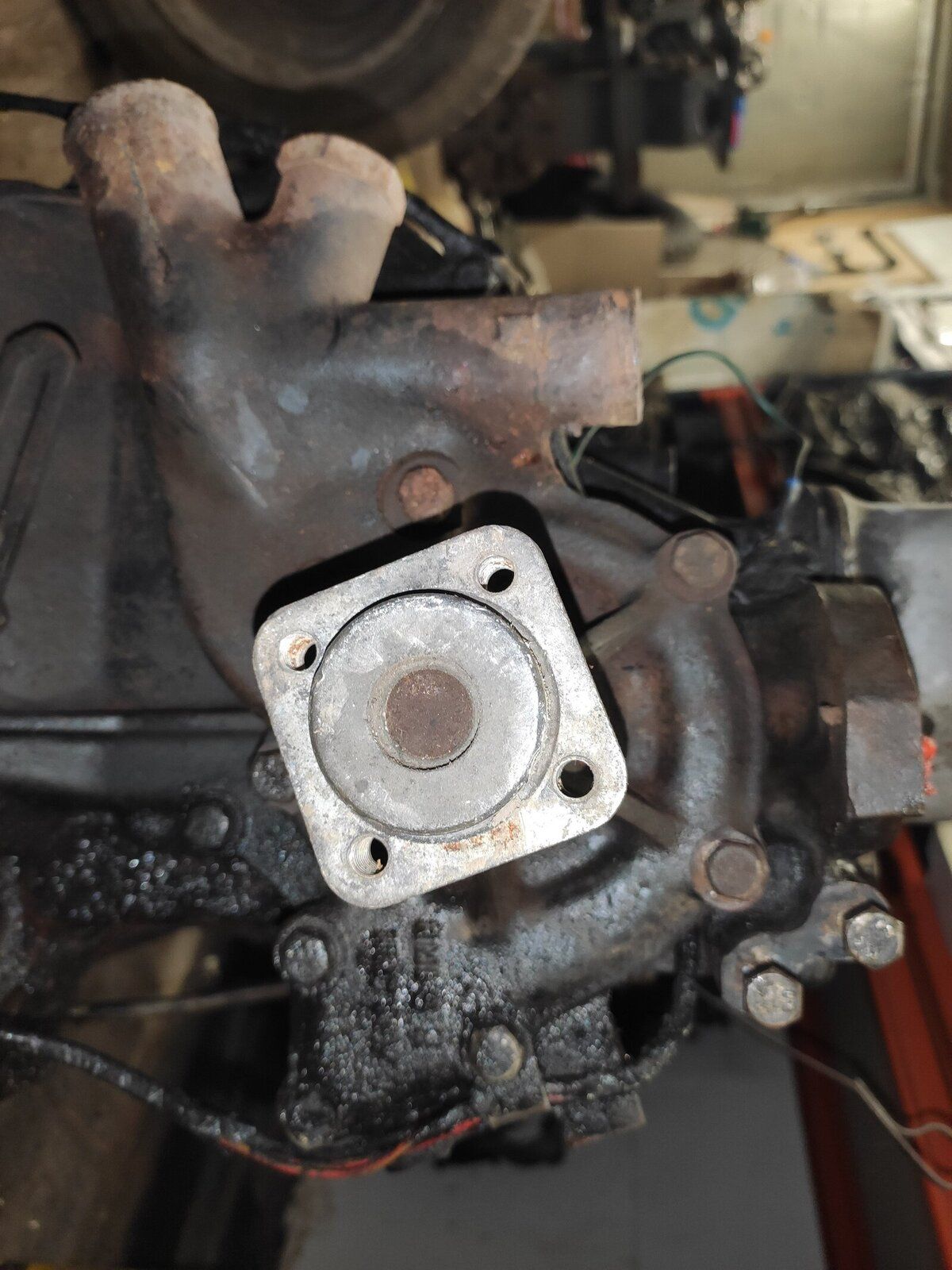

The water pump on the 2.5 petrol looks a bit like the military 7 bolt from a series, any one know if they are interchangeable?



Attachments

•

  229.5 KB · Views: 139

Blackburn

Well-Known Member

Posts

3,105

Location

Tyneside

• Dec 25, 2019

• #2

The series 7 bolt version only has two pipes. try getting a gasket for each and compare them.



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Dec 25, 2019

• #3

no different



W

Wildefalcon

Well-Known Member

Posts

1,685

• Dec 28, 2019

• #4

I've ordered a gasket. I think Mr James is right, but before I buy a NOS pump I want to check.



W

Wildefalcon

Well-Known Member

Posts

1,685

• Dec 31, 2019

• #5

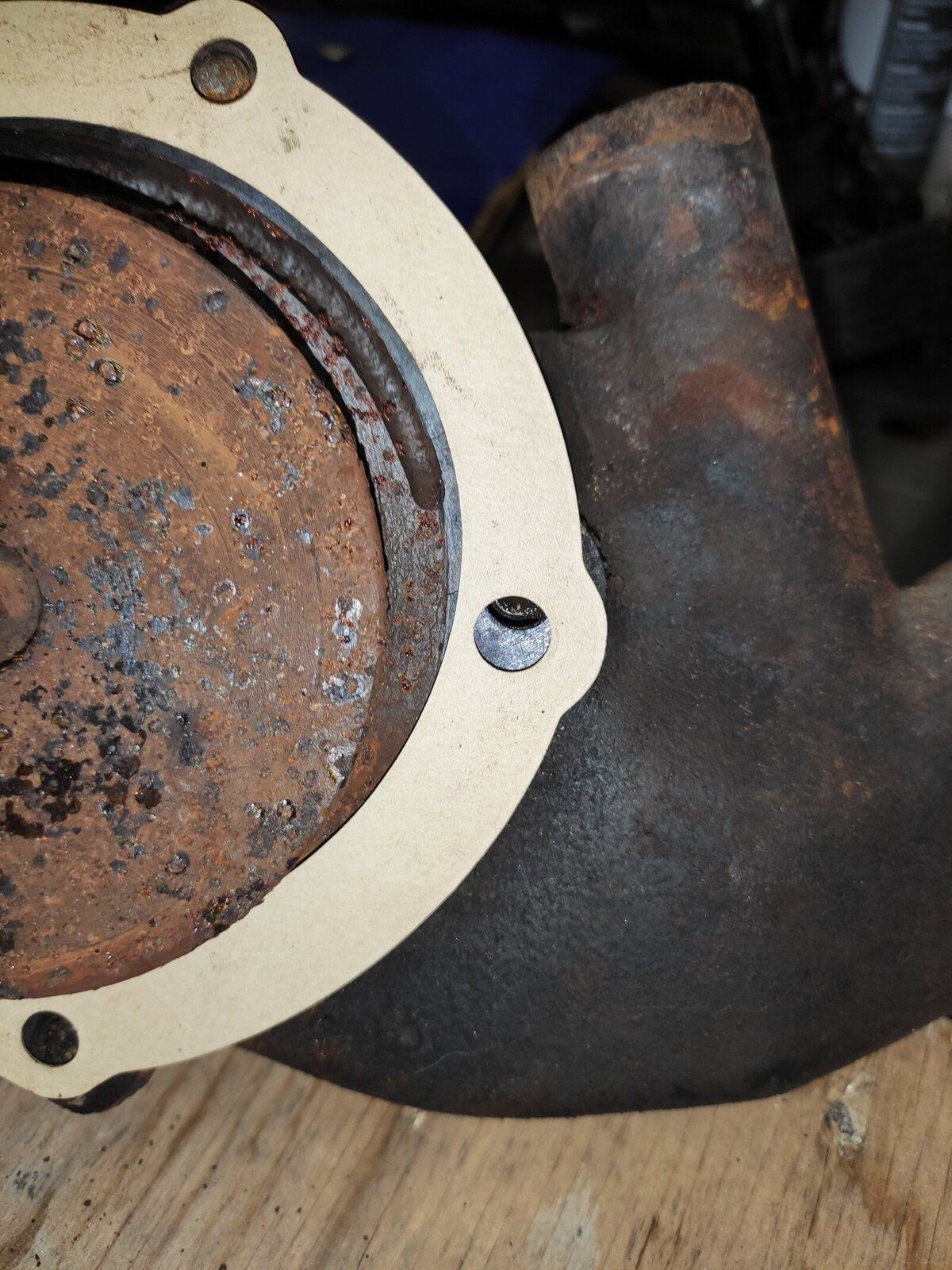

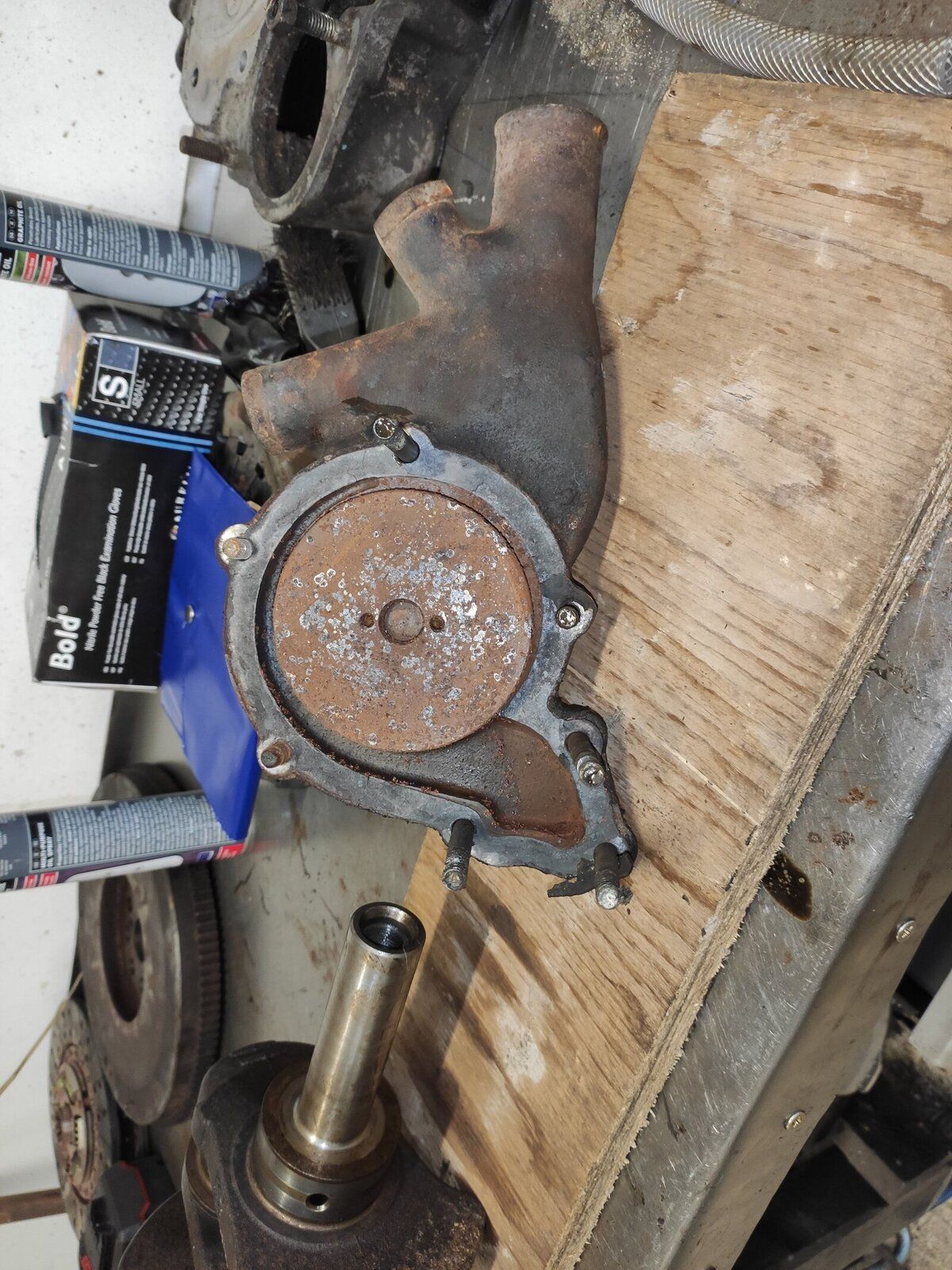

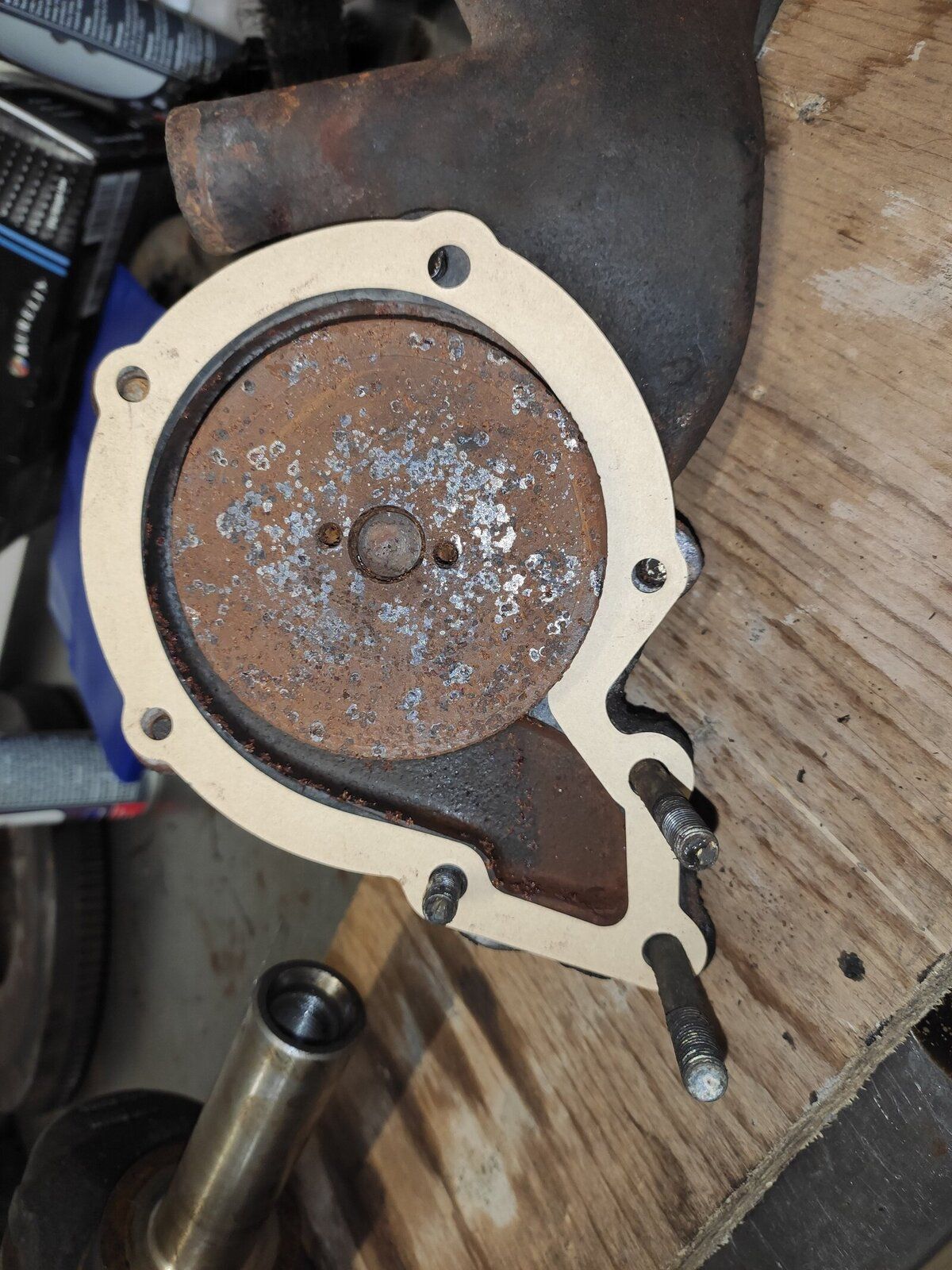

No joy. The generic gasket ALMOST fits.

Some holes are perfect. Some aren't.
Unless the generic gasket is massively wrong, then the pump isn't likely to fit.

I'll rebuild the old one and paint it duck egg blue.

I wonder if I could use the blanked spout for a Thermotop?



Attachments

•

  355.4 KB · Views: 165
•

  320.2 KB · Views: 162
•

  310.5 KB · Views: 194
