P38A Viscous fan capacity?

Discussion in 'Range Rover' started by Mark Piercy, Mar 18, 2018.

< Previous Thread | Next Thread >
  1. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    49,975
    Likes Received:
    5,952
    Location:
    Preston Lancs.
    ;);):D

  2. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    2,168
    Likes Received:
    405
    Location:
    sud ouest France
    Bingo...
    Ok, sit back and be smug.
    At speed, the aircon is blowing bloody hot, yes?
    If the electric fan isn't pulling 100% air from the total face of the rad even under normal circumstances, it won't pull the additional bloody hot from the Aircon bloody hot and cool its own bloody hot as well in an efficient manner.!!
    Mine didn't rhyme.....
    Say it.. go on


    :oops:

  3. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    2,168
    Likes Received:
    405
    Location:
    sud ouest France
    Were as a viscous would cut in and out with it's shroud regardless of vehicle and engine speed.... Damn it wammers...
    I going to sit out back....
    With the dogs.....

  4. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    2,168
    Likes Received:
    405
    Location:
    sud ouest France
    DONT REMOVE THE SHROUD...

  5. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    49,975
    Likes Received:
    5,952
    Location:
    Preston Lancs.
    And remember. It's not the cough that carries you off, it's the coffin they carry you off in. ;):D:D

    sheriff and Mark Piercy like this.
  6. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    2,168
    Likes Received:
    405
    Location:
    sud ouest France
    Ok...."Poet who don't know it"
    24hr smart ass.:p

  7. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    8,997
    Likes Received:
    1,273
    Location:
    Buckinghamshire, UK. ('95 DT)
    So how come the petrol kicks the aircon fans in for extra cooling?

  8. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    49,975
    Likes Received:
    5,952
    Location:
    Preston Lancs.
    So does the diesel 1999 and on and it is all directed towards the viscous fan by the shroud.

    Grrrrrr likes this.
  9. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    8,997
    Likes Received:
    1,273
    Location:
    Buckinghamshire, UK. ('95 DT)
    I might actually do that mod. When I am towing a full load the temperature does creep up on the big hills. I'll keep the viscous though!

  10. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    29,312
    Likes Received:
    337
    Location:
    Near Poitiers SW France

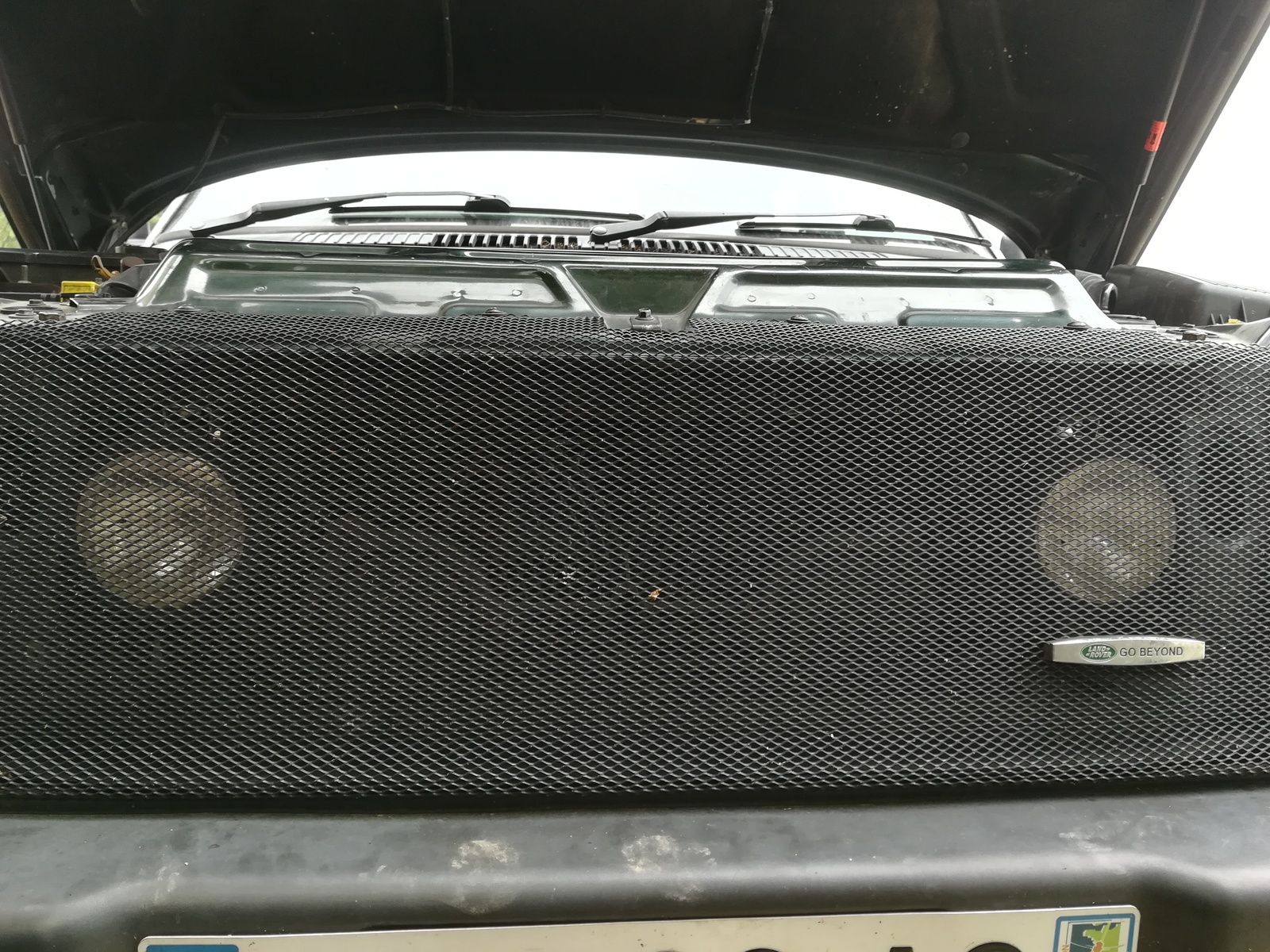

    That mesh is a serious impediment to air flow, and that fan sucking will never cope.

  11. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    29,312
    Likes Received:
    337
    Location:
    Near Poitiers SW France
    except that the viscous fails on a regular basis causing overheats.

  12. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    29,312
    Likes Received:
    337
    Location:
    Near Poitiers SW France
    You have another problem, using just the airtcon fans in 36/38C aircon on flat out, the needle never budges past 12 o'clock on either of my P38's. Above 30/40 mph the fans only run from the aircon command as the ram airflow is sufficient to maintain engine temperature.

  13. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    2,168
    Likes Received:
    405
    Location:
    sud ouest France

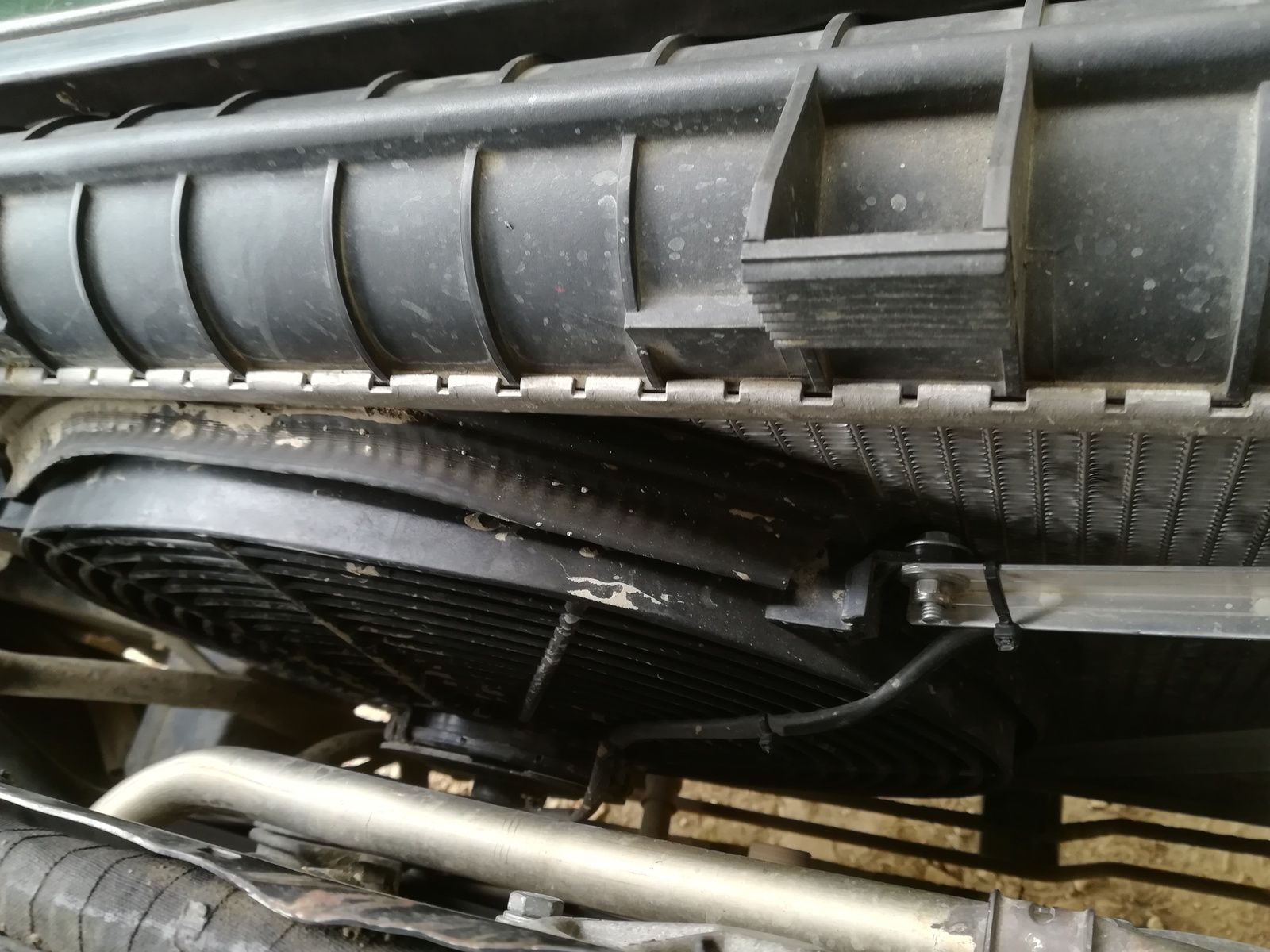

    All done. Refitted a shroud and nicley fitting to the fan.
    All refilled and sitting pretty.
    Air con on low to push a little harder, bonnet closed and sitting pretty at 12┬░clock!!( Well, just before)
    The fan now works half the time and definitely more effective.
    Road test tomorrow will reveal the results properly.
    No overheat problems Data, it never overheats!
    I did find a lot of dust in the lower part of the rad and half an hour of blowing air from the compressor has cleared a lot of crap.:cool:

  14. Grrrrrr

    Grrrrrr Well-Known Member

    Joined:
    Jul 8, 2012
    Posts:
    8,997
    Likes Received:
    1,273
    Location:
    Buckinghamshire, UK. ('95 DT)
    If you're out wading then give it a really good hose out afterwards. The mud gets in everywhere and turns to ceramic where hot.

    Mark Piercy likes this.
  15. tomcat59alan

    tomcat59alan Well-Known Member

    Joined:
    Apr 3, 2011
    Posts:
    9,772
    Likes Received:
    1,579
    Location:
    wirral and triquivijate
    I thought Datatek's mod did away with the v/fan and the rad cowl.

  16. DanClarke

    DanClarke Well-Known Member

    Joined:
    Mar 13, 2009
    Posts:
    1,583
    Likes Received:
    1,197
    Location:
    Benfleet, Essex
    I have no business posting on this thread (other than owning a P38 4.6 Petrol) and wishing @Mark Piercy well in fixing his problem, but I have always believed that motor manufacturers have quite probably researched what is required for their product not to be constantly broken down at the side of the road and therefore parts are there for a very good reason. The actual quality of the parts (over time) may change as they seek to make more & more money by reducing costs but the basic designs are sound.
    I do shy away from all species of "Modification" (but not refurbishment for repair) because it puts you outside of the envelope of RAVE, LR Dealer Support and INDIE experience and you are on your own (other than some of the real Genii on this forum).

    tomcat59alan likes this.
  17. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    2,168
    Likes Received:
    405
    Location:
    sud ouest France
    His mod does, I didnt do this on mine, just fitted an electric fan.. the big mistake was not using a shroud. As wammers quite rightly pointed out, the fan was only cooling its own size in surface area and not the whole face of the rad!! Now I have a shroud fitted it is all singing and dancing again! Thanks to all your input and better understanding and helping.;):)

  18. Mark Piercy

    Mark Piercy Well-Known Member

    Joined:
    Jul 11, 2016
    Posts:
    2,168
    Likes Received:
    405
    Location:
    sud ouest France
    Fixed that for you:p....
    Your right!
    Get out!!;):D









    But thank you.:cool:

    tomcat59alan likes this.
  19. Datatek

    Datatek Well-Known Member

    Joined:
    Feb 5, 2009
    Posts:
    29,312
    Likes Received:
    337
    Location:
    Near Poitiers SW France
    The majority of cars these days use electric fans, quicker warm up when cold helps meet emissions regs.

  20. wammers

    wammers STILL BREATHING. Donater

    Joined:
    Oct 19, 2008
    Posts:
    49,975
    Likes Received:
    5,952
    Location:
    Preston Lancs.
    How do electric fans produce a quicker warm up?
