Vac pipes

Evening all rite little question
discovery 1 300 tdi
on the passagner side inner wing ive got what looks like a vaccum box with 3 vac pipes comin from it and a wire block connector
2 OF THE 3 PIPES ARE CONNECTED 1 goes to the EGR, another runs arounfd the back of the engine and the third on which is alot shorter approx 6 t 8 inches is not connected t owt were does this go???????

look on the wing sode of the top of air box, i think its that one, theres a small plastic bit it pushes on to (unless its snapped off, (i sealed mine up when fitted snorkle), no idea what others are for either but i removed it all lol

Pics?

cruise control is it ?

blackhadder said:

Pics?

Click to expand...

Ill get one tomoz 2 dark tonite

As said above it should be on the air box. If I remember ill get a picture tomorrow for you.

Cheers mark

Cruise control pump...

Told him it was

if hes on about wehat i think he is..thats not it.

There's no vacuum box or anything like it with CC.

QUICK TIP: Land Rover 300 tdi Cruise Control

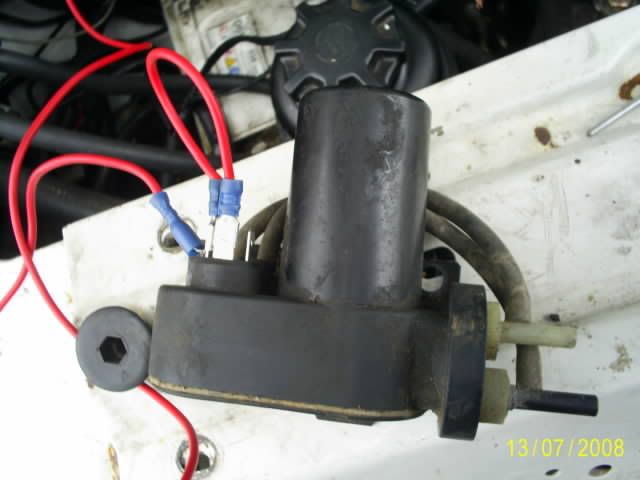

this is the vac unit it lives in a hole under the jack storage place



this is the vac driven bellows and throttle link set-up...

Paulmitchell1984 said:

if hes on about wehat i think he is..thats not it.

Click to expand...

If not the same in pic --

it may be the EGR modulator valve ...

http://landrover.workshop-manuals.com/discovery300tdi/index.php?id=334
Having looked at a non EGR 300 tdi the brake servo vacuum pipe looks to go straight from the vacuum pump to the servo, so if yours has a T piece in it you have to blank one side off (there's a bung in the removal kit for it, as well as new top hose and egr blanking plate).

Then just remove the egr valve fit, a blanking plate and replace the top hose.

So any pipes you take off you need to blank off basically.
