V8 D2 no spark... help !

DanBuild

New Member

Posts

5

Location

North Wales

• Jan 2, 2020

• #1

Forums>Introduce Yourself>
Land Rover 110 defender V8 auto build
< Previous Thread | Next Thread >
Unwatch Thread

1.
   DanBuildNew Member
   Hi All,
   I'm new on here, I am building a V8 auto 110 defender on a Galvanized chassis.
   The engine and box are from a D2 complete with the full loom, ECU, BCU and various ancillaries.
   I have not heard the engine run so I know there are some unknowns here...
   I purchased the chassis and engine as a project but although the engine now turns over with the key there is no spark and the pump does not run.
   I notice that the tachometer doesn't calibrate on switch on.
   The computer when connected says there is earth connection fault on the ECU.
   I have connected every earth carefully to the chassis so any advice you have would be helpful.
   Thanks in advance
2. Oh yes all the plugs are in the Engine Fuse box but I have one single plug with one single wire missing and unplugged in the passenger compartment fuse box and I'm not sure if that is relevant...
3.
   1 minute agoEditReport
   + QuoteReply

< Previous Thread | Next Thread >

• • Forums>Introduce Yourself>

    • Forums
      • Your Threads
      • Your Posts
      • DanBuild 1
    • Contact Us
    • Terms and Rules



JUKE179r

Well-Known Member

Posts

3,166

Location

Suffolkshire

• Jan 2, 2020

• #2

You will need a dedicated Land Rover diagnostic tester like a Nanocom Evolution, all the RAVE manuals pertaining the electrical circuits to check your wiring and the manuals for the Bosch/Thor 4.0L V8 engine.
Also check your coil packs, spark plug wiring and spark plugs for condition and correct firing order.
To add... check the crankshaft position sensor (CPK) on the LHD side of the engine. The CPK go bad which they allow the engine to turn over but not run so replace it with a Bosch brand part number ERR-735.



DanBuild

New Member

Posts

5

Location

North Wales

• Jan 2, 2020

• #3

Thanks for your help.
I now have the Rave manuals so I should be able to trace the missing passenger compartment fuse box wire...



mystery

Well-Known Member

Posts

1,510

Location

BULKINGTON

• Jan 3, 2020

• #4

here we go



Attachments

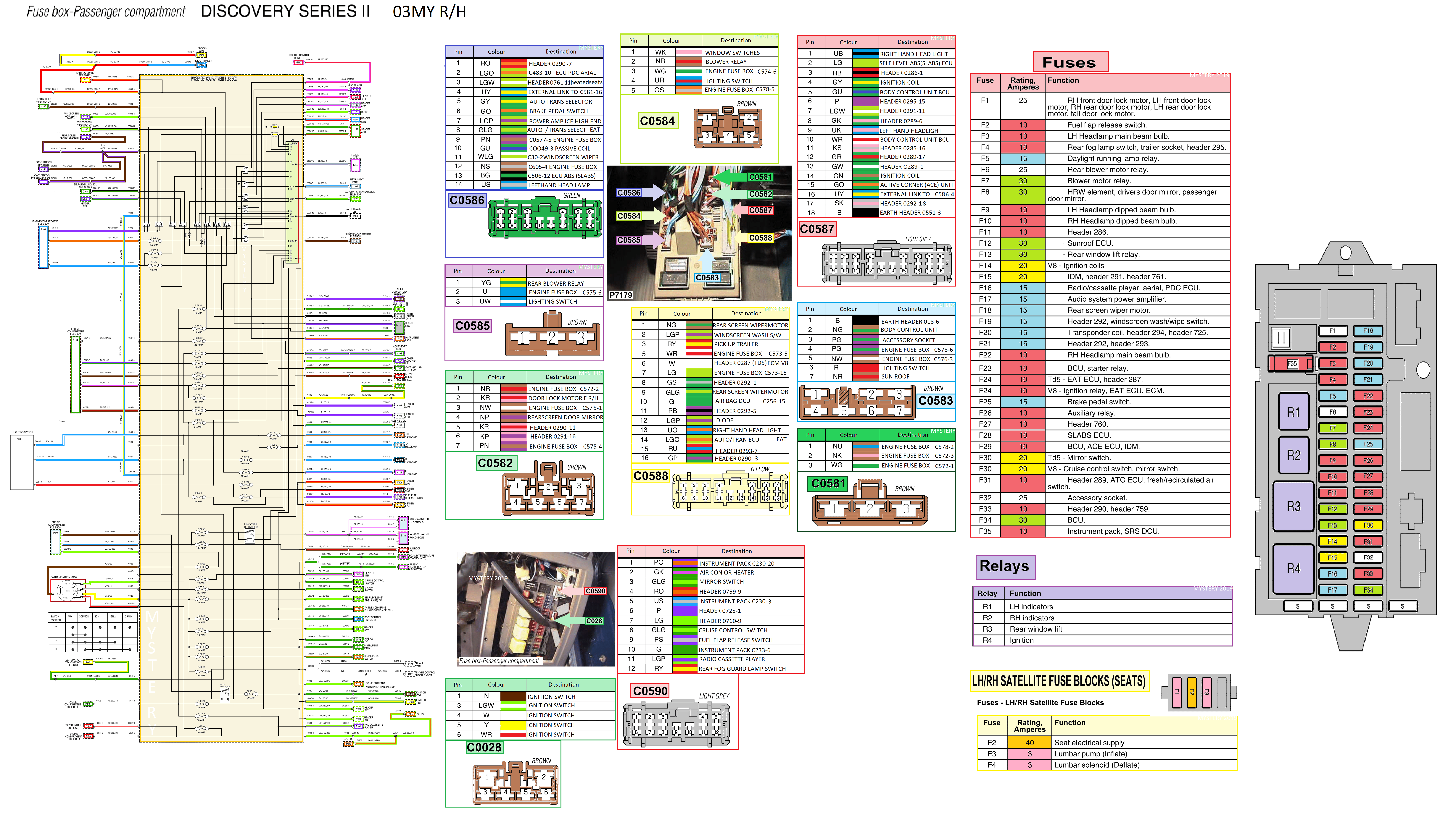

• MYSTERY passenger fuse box connections & fuses DISCOVERY SERIES 11 03MY -.png

  4.7 MB · Views: 189

DanBuild

New Member

Posts

5

Location

North Wales

• Jan 5, 2020

• #5

Thanks I have ordered a known good working matched set of ECU BCU immobiliser ignition barrel and coil from a D2 V8 auto....
So I will let you know how that goes in due course
