Turbo Hoses -TDI200

A friend has a split in his TDI200 turbo hoses.
He has bought a set of Silicone hoses to replace the damaged ones (you know these flashy blue things).

Anyway there are only 3 pipes in the new Silicone kit and 4 pipes in the original configuration.

I presume that the longer blue pipe is cut in two to create the original 2x 45 degree pipes on the lower turbo pipe???
I don't want to cut his nice new pipes and realise I've got it all wrong!

Any thoughts???

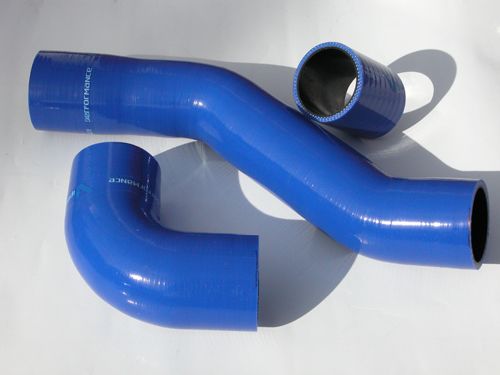

P.S - Picture attached is NOT our pipes, it was downloaded off the web as a guide, the picture contains 3 original pipes and 3 new pipes. Our TDI200 has 4 pipes (not a long one basically)

i bet the top left one is wrong, assuming the re-use of the metal hose piece

i doubt that they'd go to all the trouble of making such nice hose and then expect you to chop one in half

Hello,
I'm new on this forum and I have a turbo hose problem as well.
Looking on ebay for a hose kit for my TD5 I found an offer for a 300/200 TDI that looks like in my attachement.The one in your picture seems to be what I need for my TD5.

I have a question for any member that changed the hoses on a TD5-the hose that goes from the exit of the turbo towards intercooler is 135 or 90 degrees angle, as I'm a little far from UK(where is easy to find a proper kit) and want to adapt a silicone hose.
Thank you!

flay said:

Hello,
I'm new on this forum and I have a turbo hose problem as well.
Looking on ebay for a hose kit for my TD5 I found an offer for a 300/200 TDI that looks like in my attachement.The one in your picture seems to be what I need for my TD5.

I have a question for any member that changed the hoses on a TD5-the hose that goes from the exit of the turbo towards intercooler is 135 or 90 degrees angle, as I'm a little far from UK(where is easy to find a proper kit) and want to adapt a silicone hose.
Thank you!

Click to expand...

you pair should swop kits

unless he's got the hump with you for hijacking his thread on yer first post, keep up the good work
