Turbo filter

Ddleeds · Feb 22, 2020

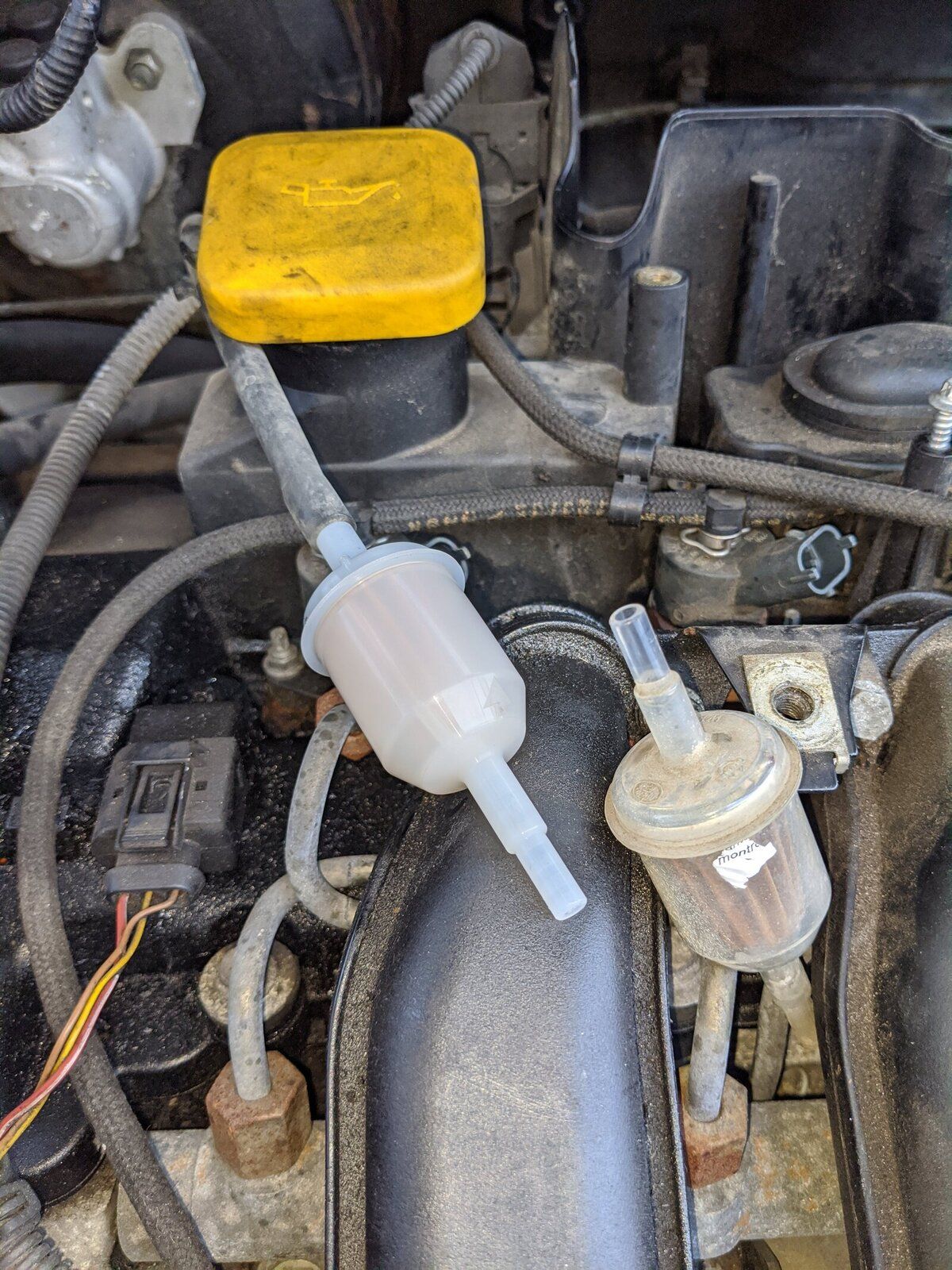

Iv changed the turbo filter I put on the new one the same way as the old one came off. I see there's an arrow on the filter its pointing upwards as the filter hangs down isthis correct?[GALLERY=]

[/GALLERY]

Nodge68 · Feb 22, 2020

There's a clip down the back of the engine, which allows the filter to dangle.

Ddleeds · Feb 22, 2020

Yeah it's currently clipped back in to that. Is the filter the right way tho should the arrow be pointed upwards towards the bonnet when it's clipped back in or should the arrow point to the ground

Nodge68 · Feb 22, 2020

I point the arrow to the pipe. If this is correct or not, I'm not sure. However the filter is only used to stop dust getting to the control solenoid, so I doubt it makes any difference. As long as one end is open to the atmosphere.

Ddleeds · Feb 22, 2020

Ok thanks. I will leave as is then just wasn't sure when I saw the arrow
