Turbo filter replacement

Hi,

I've recently move to Cyprus from the UK and have brought a 2004 TD4 Freelander, everything was working fine for the first few months. On a motorway journey it had loss of power and loads of black smoke coming from the exhaust, we limped it home and didn't us it for a few days. When we came round to using it again there was some black smoke it i accelerated hard other then that it was driving fine.

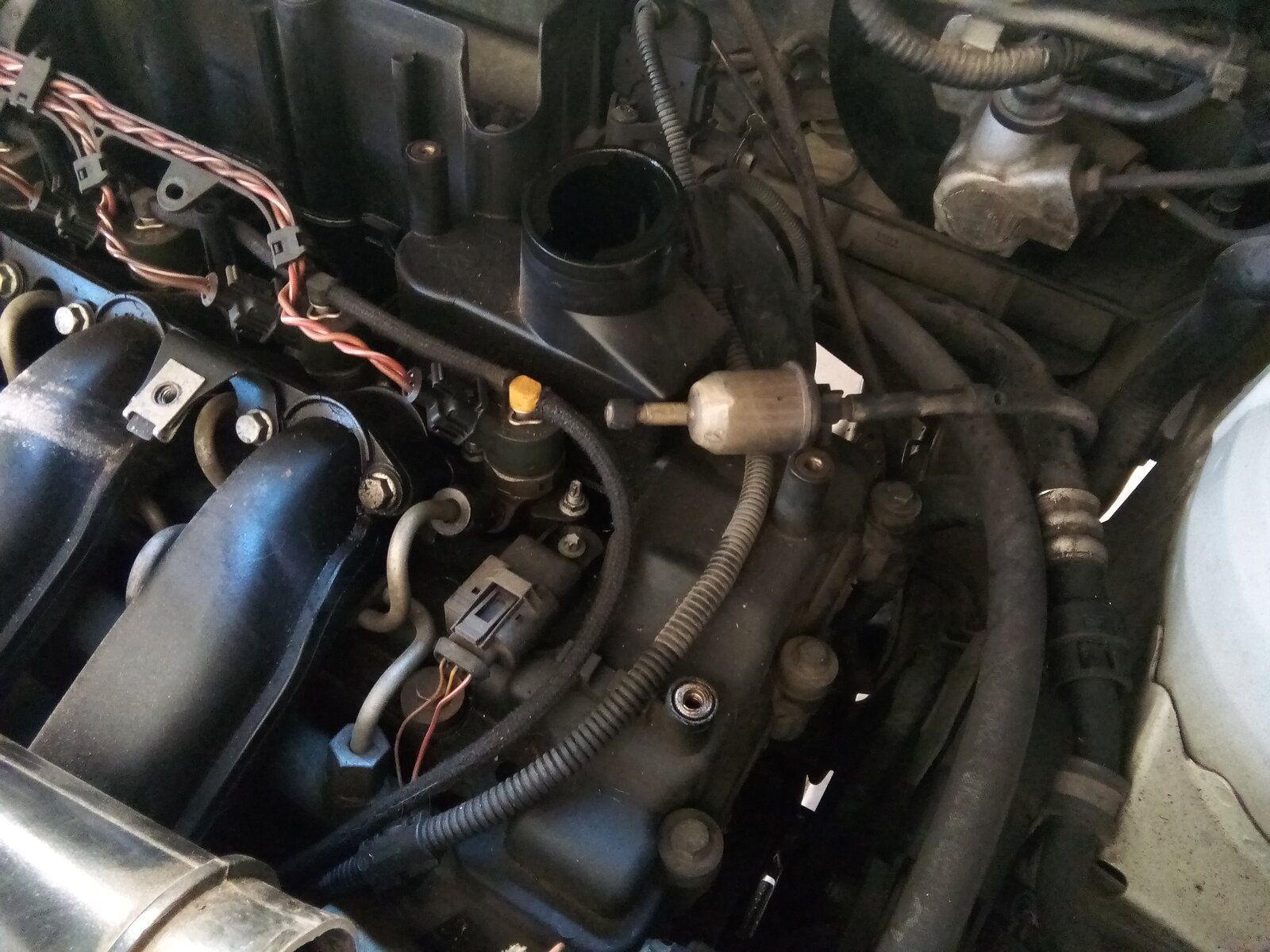

After a bit of reading I decided to change the crankshaft breather filter and air filter which was relatively easy, whilst on the job i noticed a small filter hanging at the back of the engine, ive moved it on to the right of the yellow nipple to take a picture.
Does anybody know what this is for and where is meant to attach?? Please see picture attached.

Many thanks in advance.

Mark

whilst on the job i noticed a small filter hanging at the back of the engine, ive moved it on to the right of the yellow nipple to take a picture.
Does anybody know what this is for and where is meant to attach?? Please see picture attached.

Click to expand...

that 'filter' is for the turbo vacuum operated actuator ..
one end is connected to the turbo vac solenoid .. the other end is left open ..
[ change that filter every year aprox. it's to stop dirt getting into the vacuum valve
[ see ..
[ https://www.landyzone.co.uk/land-rover/td4-lack-of-power-at-70mph-fixed.77147/
[ for a view of the vacuum solenoid

`````````````````````````````````````````````````````````
as for black smoke .. check for splits / holes .. in the post turbo intercooler hoses ..
especially where they might rub against the air-intake mounting bolts ..
[ there are other potential reasons for black smoke ..
[ but the above be the most common

`````````````````````````````````````````````````````````````
also ..
https://www.landyzone.co.uk/land-rover/75-zt-td4-fault-diagnosis.203935/

```````````````````````````````````````````````````````````````````

Thanks hd3 for the reply and the links.
I will change that this weekend as it pretty dirty!!

Will an inline fuel filter be a suitable replacement? or are they 2 different filters?

shanksyCY said:

Will an inline fuel filter be a suitable replacement? or are they 2 different filters?

Click to expand...

Just a standard universal type filter will be fine for the turbo.
