Turbo-disaster

Discussion in 'TD5' started by LennyK, Aug 18, 2017.

< Previous Thread | Next Thread >
  1. LennyK

    LennyK Member

    Joined:
    Aug 17, 2017
    Posts:
    39
    Likes Received:
    6
    Location:
    Tasmania

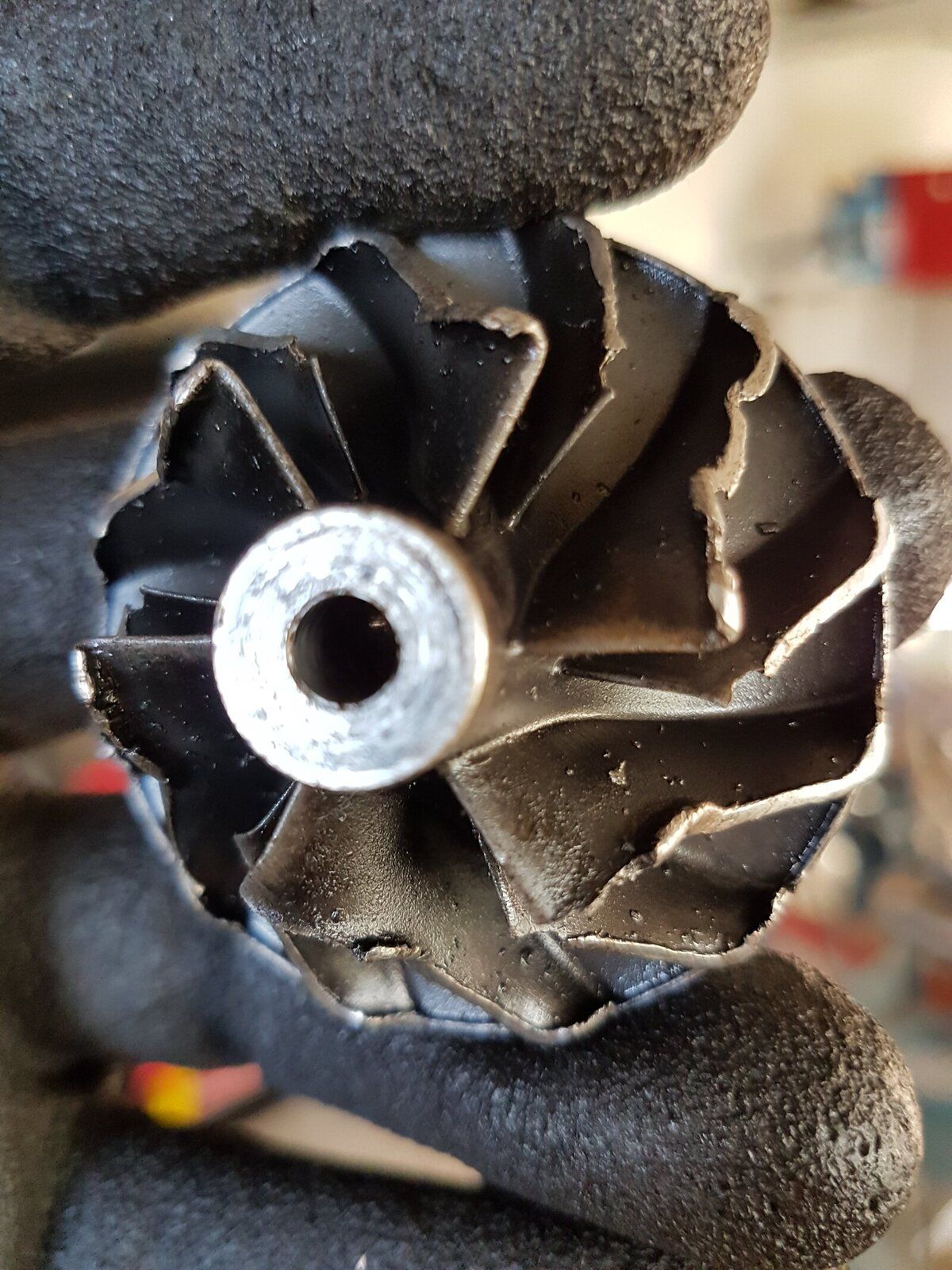

    Has anyone got a pair of pliers and a file I can borrow....

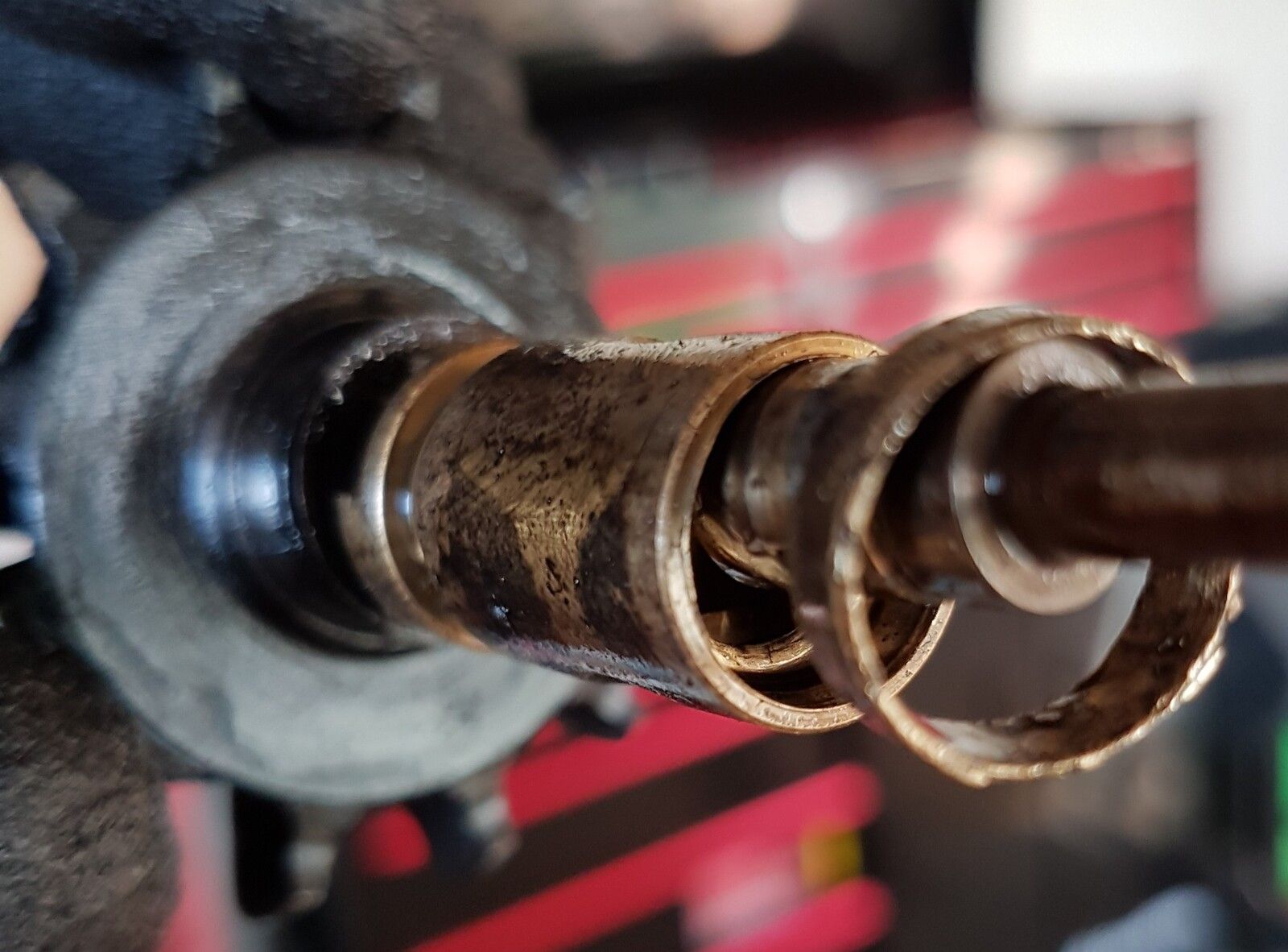

    20170814_155834.jpg Think these might need a bit of attention as well...

    Came out of my 2000 TD5 Defender bought in April this year. First L/R I've owned for at least 15 years and something I always wanted to get back to. Thought it would be a better bet than the old Series 3 I had then, but got to say its spent most of its time sitting in the driveway. Blew on its first decent trip while traveling on the Highway at Highway speeds. No warning and had been pulling well up hills etc. Noticed a loss of power and a lot of white smoke out the rear and when I had a look under the bonnet it was pumping oil out of the flange joint between turbo and exhaust. Was idling fine when I pulled up for a look but was pumping the oil out fast and by the time I got back to the cab to shut it down heard a couple of thumps from the big ends.
    Big question is....
    • What might have caused it???
    • What other damage can I expect???
    • What do I need to check/replace before I fit a new one???
    Hoping I can get some advice from those who have been there done that.

  2. JimS

    JimS Well-Known Member

    Joined:
    Apr 23, 2016
    Posts:
    5,758
    Likes Received:
    6,622
    Location:
    Airstrip One
    Looks like that Turbo gave way in a big way, real pain as you've just got it. I've a TD5 of the same vintage, maybe I need to check my turbo out in case it's starting to get wobbly....... I'm wondering what is the average lifespan of a TD5 turbo, do they tend to give up after a certain mileage?

    Last edited: Aug 18, 2017
  3. bankz5152

    bankz5152 Well-Known Member

    Joined:
    Jan 8, 2012
    Posts:
    8,590
    Likes Received:
    2,490
    Location:
    South London/North Kent
    Turbo was probably just on its way out, doesnt look too bad though, you shouldnt have any engine damage but check the boost hoses for any signs of debris, hopefully they are clear!

    Replacment turbo. I believe @Shifty1962 has one for sale at a good price on here.

  4. LennyK

    LennyK Member

    Joined:
    Aug 17, 2017
    Posts:
    39
    Likes Received:
    6
    Location:
    Tasmania
    Good question. I've just got a new unit from the UK...will date it when I put it in ;)

  5. LennyK

    LennyK Member

    Joined:
    Aug 17, 2017
    Posts:
    39
    Likes Received:
    6
    Location:
    Tasmania
    Have got an original garret from the UK... just worried about fitting it without a bit of background of what might have caused so much damage in a short time.

  6. Paul D

    Paul D Old, nackered 'n broke, but the Landy is fine . :) LZIR Despatch Agent

    Joined:
    Jun 3, 2007
    Posts:
    14,902
    Likes Received:
    2,518
    Location:
    Doncaster
    I'd check and thoroughly clean all the air inlet system .. Water into the air cleaner can easily clog it a bit, then dry off and bits get blown through .. often very hard but brittle bits that will really screw up a turbo blade if it gets hit! No air filter can let leaves and crpa through, broken hoses similarly etc etc. It could also conceivably just be a build-up of oil in the system that has got blown into the turbo and it's just said "screw that, I'm giving up" ... ;)

    ozzyboydeano and bankz5152 like this.
  7. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    88,958
    Likes Received:
    17,285
    Location:
    louth lincs
    its not uncommon turbos wear over time, poor oil changing creates faster wear as does low oil pressure,get oil pressure checked when new one is fitted

    LennyK likes this.
  8. Wimblowdriver

    Wimblowdriver Well-Known Member

    Joined:
    Aug 3, 2014
    Posts:
    2,170
    Likes Received:
    4,147
    Location:
    uk
    Not experienced this myself but I suspect turbo bearing failure as the cause, due to lack of oil and filter changes or incorrect grade of oil. That would also explain your thumping big ends.

    LennyK likes this.
  9. LennyK

    LennyK Member

    Joined:
    Aug 17, 2017
    Posts:
    39
    Likes Received:
    6
    Location:
    Tasmania
    Will have a look at that. Air filter wasn't changed at the last service. Read somewhere that the EGR can cause a buildup of oil and carbon on the turbo fan. Might be worth looking at removing it.

    Paul D likes this.
  10. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    88,958
    Likes Received:
    17,285
    Location:
    louth lincs
    its nothing to do with the egr

    LennyK likes this.
  11. Colthebrummie

    Colthebrummie Well-Known Member

    Joined:
    Jan 24, 2017
    Posts:
    6,738
    Likes Received:
    6,453
    Location:
    Thatcham
    How much oil is left in the engine?

    Col

  12. LennyK

    LennyK Member

    Joined:
    Aug 17, 2017
    Posts:
    39
    Likes Received:
    6
    Location:
    Tasmania

  13. ozzyboydeano

    ozzyboydeano Well-Known Member

    Joined:
    Jul 26, 2013
    Posts:
    843
    Likes Received:
    130
    I work with turbos part of my job
    unfortunately a turbo is like a light bulb is can blow at any time they also fail in mysteries ways
    you have to remember this turbo bearing is seeing up to 2000 to 30000 thousand rpm on a daily basis

    looking after the turbo is idle shut down or turbo savours turbo timers also change drive style prior to shut down although these methods are not 100% but every little helps ..the reason I added in an accumulator tank to my turbo

    the quality of oil used in the engine also comes into play as well as a clean air filter as also a free flow exhaust

    Last edited: Aug 18, 2017
  14. ozzyboydeano

    ozzyboydeano Well-Known Member

    Joined:
    Jul 26, 2013
    Posts:
    843
    Likes Received:
    130
    will have to disagree as EGR contaminates the engine oil

    LennyK likes this.
  15. lightning

    lightning Well-Known Member

    Joined:
    Aug 19, 2006
    Posts:
    2,830
    Likes Received:
    605
    Location:
    High Peak
    How much oil was left in the engine....did it still show on the dipstick. Did the oil pressure warning light come on?

  16. jamesmartin

    jamesmartin Well-Known Member

    Joined:
    Dec 8, 2010
    Posts:
    88,958
    Likes Received:
    17,285
    Location:
    louth lincs
    it does but not noticeable if oils changed regular

    LennyK likes this.
  17. ozzyboydeano

    ozzyboydeano Well-Known Member

    Joined:
    Jul 26, 2013
    Posts:
    843
    Likes Received:
    130
    with out knowing the history of the engine
    read the post

    Came out of my 2000 TD5 Defender bought in April this year.

    yes EGR has allot to do with contamination as well as engine breathing contamination

    LennyK likes this.
  18. LennyK

    LennyK Member

    Joined:
    Aug 17, 2017
    Posts:
    39
    Likes Received:
    6
    Location:
    Tasmania
    Thanks Ozyboy. How is an accumulator set up. I have only had the Landy a few months so don't know much about it yet except it looks in pretty good condition. I have been very conservative driving it and letting it idle down but that doesnt mean the previous owner has. Have already looked at timers. Does anyone have a suggestion on what to buy?

  19. LennyK

    LennyK Member

    Joined:
    Aug 17, 2017
    Posts:
    39
    Likes Received:
    6
    Location:
    Tasmania
    HI lightning. The oil is just over the low notch on the dipstick. The engine was idling when I got out to look at it. I saw that oil was pumping out of the braided exhaust coupling so I went back to the cab to shut it down. Just as I got there the engine knocked twice and then I shut it down.

  20. kommer2013

    kommer2013 Active Member

    Joined:
    Dec 12, 2014
    Posts:
    315
    Likes Received:
    50
    Location:
    Balikpapan
    here you go buddy.
    http://eurodiesel.com.au/products/filter/turbo-saviour-oil-accumulator-filter/turbo-saviour/
    i never realised you could get something like a acculator it filters the oil again from the main oil filter and then runs into the turbo, and it stores oil up above the turbo so it can slowly run past the turbo bearings after the engine is shut down.
    driving easy before you stop the engine will help too, just try to limit the turbo from spooling up before you shut it down, but the accumulator sounds like a very good idea. extra piece of mind that the turbo is getting cleaner oil as the turbo is a vital part well sort of and if that fails your stuffed, and you dont wanna be breaking down out in the middle of nowhere with a failed turbo, i just dont trust turbos to be honest, but anyway everyone is different.
    but give that link a try.

    Tony.
