Trailer Light wiring

Discussion in 'Defender 90 / 110 / 130' started by Angel_110, Nov 21, 2020.

< Previous Thread | Next Thread >
  1. Angel_110

    Angel_110 Member

    Joined:
    Oct 30, 2019
    Posts:
    31
    Likes Received:
    12
    Location:
    Liverpool
    Hi Everyone

    I've got an ex military TD5 (White Fleet). It still has the original Nato 24v 12 pin socket (no idea if its still connected to anything).

    After I bought the vehicle, I had a tow bar fitted for my caravan with a 12v set up. However, my trailer light does not appear to be connected on the dash. I'm guessing that the old military wire just needs to be connected to the new one (complete guess). Alternatively, maybe I need to connecting something else to somewhere else but have no idea.

    Any clues anyone?

    Much obliged

    Chris

  2. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    9,455
    Likes Received:
    3,471
    Location:
    North of the Wall
    IIRC the trailer light on your instrument binnacle only comes on when you use the indicators or hazards.

  3. Angel_110

    Angel_110 Member

    Joined:
    Oct 30, 2019
    Posts:
    31
    Likes Received:
    12
    Location:
    Liverpool
    It doesn't come ion under any circumstances for me I'm afraid. I do not think the light is wired up. I'm wondering where the wiring goes to from the binnacle.

    Thanks
    Chris

  4. Al2O3

    Al2O3 Well-Known Member

    Joined:
    Apr 21, 2014
    Posts:
    9,455
    Likes Received:
    3,471
    Location:
    North of the Wall
    I should imagine it'll be fed from the + feed from the indicator stalk switch and the hazard relay. Will probably be an earth issue after that. Do all the lights work properly on the trailer? If so, it might just be the bulb in the instrument cluster. To be honest I'm just an interested novice when it comes to Landy electrical issues. @Kwakerman has always been my go to electrical guru.

  5. flat

    flat Well-Known Member

    Joined:
    Mar 11, 2013
    Posts:
    8,132
    Likes Received:
    3,004
    Location:
    Far away from you!!

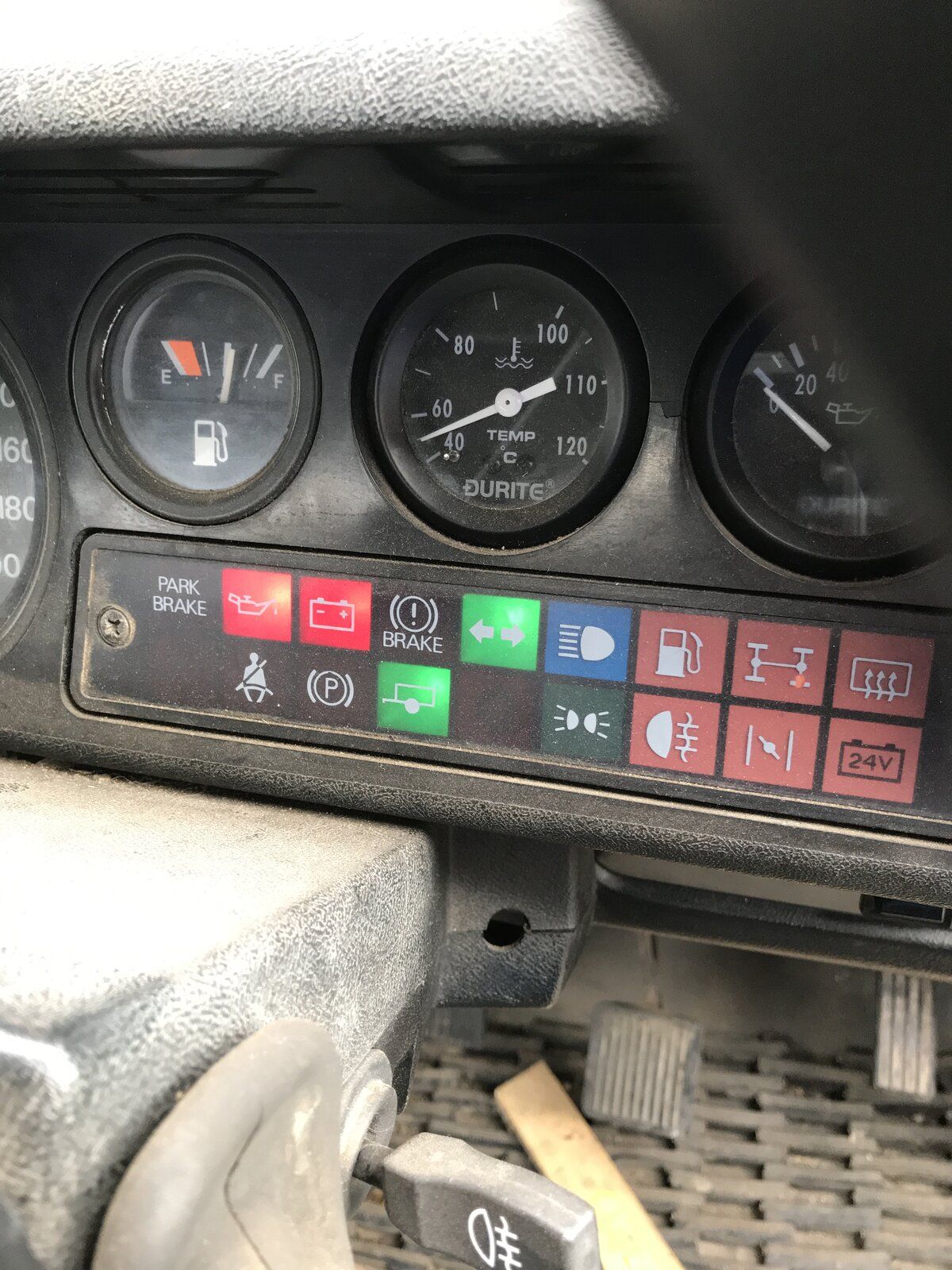

    It should be like this in the dash with the trailer connected and indicating left or right, these lights on the dash will flash (the green ones)
