Track rod end torque

R

Rorie

Active Member

Posts

641

• Feb 20, 2020

• #1

Should be simple - what torque?
I’ve read 40Nm, 80Nm and even up to 110Nm!

Does it make a difference if it’s a nylock nut or castle nut?

To be clear, I’m talking about the bar that connects both swivels together, which is sometimes called the drag link?



L

lynall

Well-Known Member

Full Member

Posts

25,890

Location

Kent

• Feb 20, 2020

• #2

Track rod connects wheels/swivels.
Drag link connects wheel/swivel to steering box.
No idea on the torque, tight would be my guess!



H

Hicap phill

Well-Known Member

Posts

16,319

Location

Wiltshire

• Feb 20, 2020

• #3

Nylock or castle nut is good.
But I find nylock easier as you don’t have to lineup a split pin hole.



L

lynall

Well-Known Member

Full Member

Posts

25,890

Location

Kent

• Feb 20, 2020

• #4

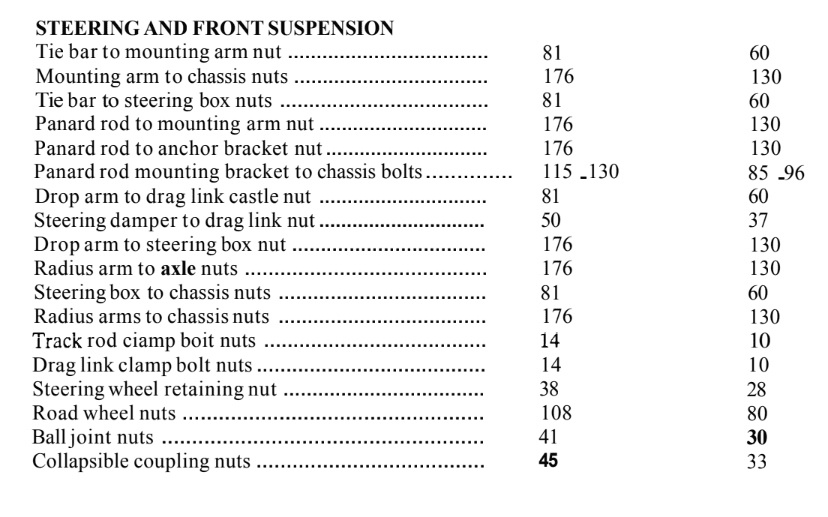

This is from the manual, seems really low torque figures to me?
They call them ball joints.
1st column NM, 2nd LBSFT



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Feb 20, 2020

• #5

Rorie said:

Should be simple - what torque?
I’ve read 40Nm, 80Nm and even up to 110Nm!

Does it make a difference if it’s a nylock nut or castle nut?

To be clear, I’m talking about the bar that connects both swivels together, which is sometimes called the drag link?

Click to expand...

40nm if i was to use a torque ,i just nip them up by hand so nut is tight,nut type doesnt matter
110nm is 2.5 engine head bolt torque ridiculously high
