Tow bar electrics

Hi all, Fitted my towbar off Fleabay, looks ace.

Went to wire the electrics & some former owner of the towbar has removed the plug to plug directly into the plug on my freelander (If I could find it).
Does anyone know which wires in the flander connect to the wires on the loom? I have a colour code diagram of the tow bar electrics. Not the car though? My emial is [email protected]

Thanks.

Which Freelander, I'll look in Rave see if it has anything to say on it.

Doesn't matter ...

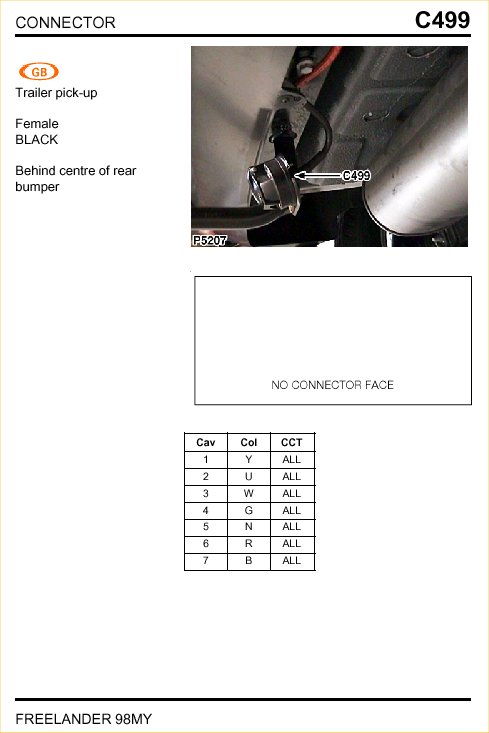

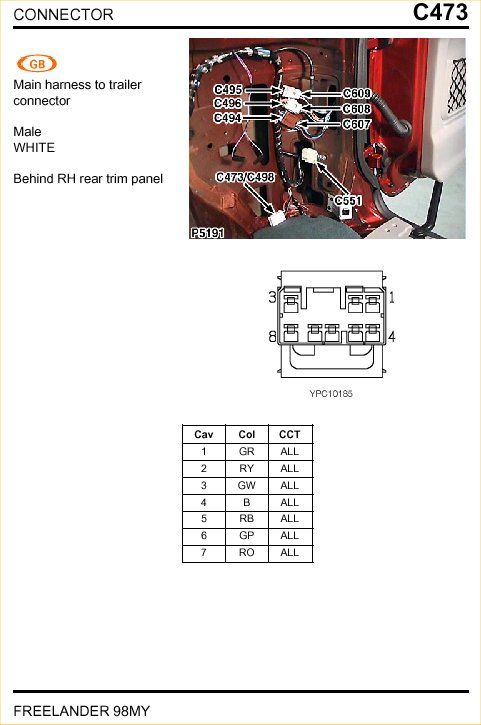

Model Year numbers at base of page ...

Thanks for this but.... My tow bar wiring is as follows

Yellow, left indicator.
Blue, Foglight,
White, Earth.
Green, Right indicator,
Brown right tail light.
Red, Brake lights
Black, left tail light?

where in the loom does these attach?

kturvy said:

Thanks for this but.... My tow bar wiring is as follows

Yellow, left indicator.
Blue, Foglight,
White, Earth.
Green, Right indicator,
Brown right tail light.
Red, Brake lights
Black, left tail light?

where in the loom does these attach?

Click to expand...

Mine is a 2201, 1800 petrol 5 door

Poor sod

Hi
I have the same problem - did you ever get an answer?

Thanks

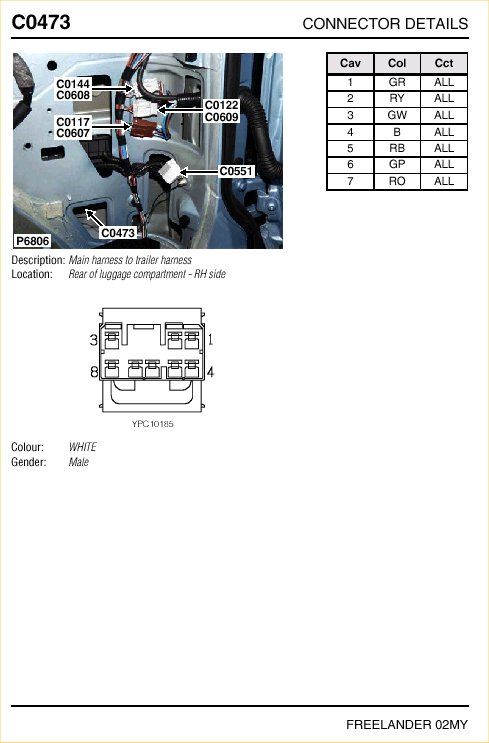

hope its of help
1 GR = L/H Indicator
2 RY = fog lights
3 GW = R/H Indicator
4 B = GROUND
5 RB = Tail lamps L/H
6 GP = Brake lights
7 RO = Tail lamp R/H

look in frequently asked questions, it is all there.
