tool advise / help please

tyke100

Active Member

Posts

418

Location

derby

• Jul 6, 2020

• #1

could anyone tell me what size and type i need to remove the front brake caliper on my 1996 dei please?
just want to make sure i have everything handy before i start on it.

i need to take the wedged abs cable out from behind the wheel hub and repair this rattle from the disc cover plate.

thank you



Salisbury Nick

Well-Known Member

Posts

790

Location

Dorchester

• Jul 11, 2020

• #2

You will need a 13mm socket - but when I worked on my brakes recently I also needed a 14mm and an 11mm - so basically you need a standard socket or spanner set.



Beneagles

Well-Known Member

Full Member

Posts

6,406

Location

North Perthshire

• Jul 11, 2020

• #3

Salisbury Nick said:

You will need a 13mm socket - but when I worked on my brakes recently I also needed a 14mm and an 11mm - so basically you need a standard socket or spanner set.

Click to expand...

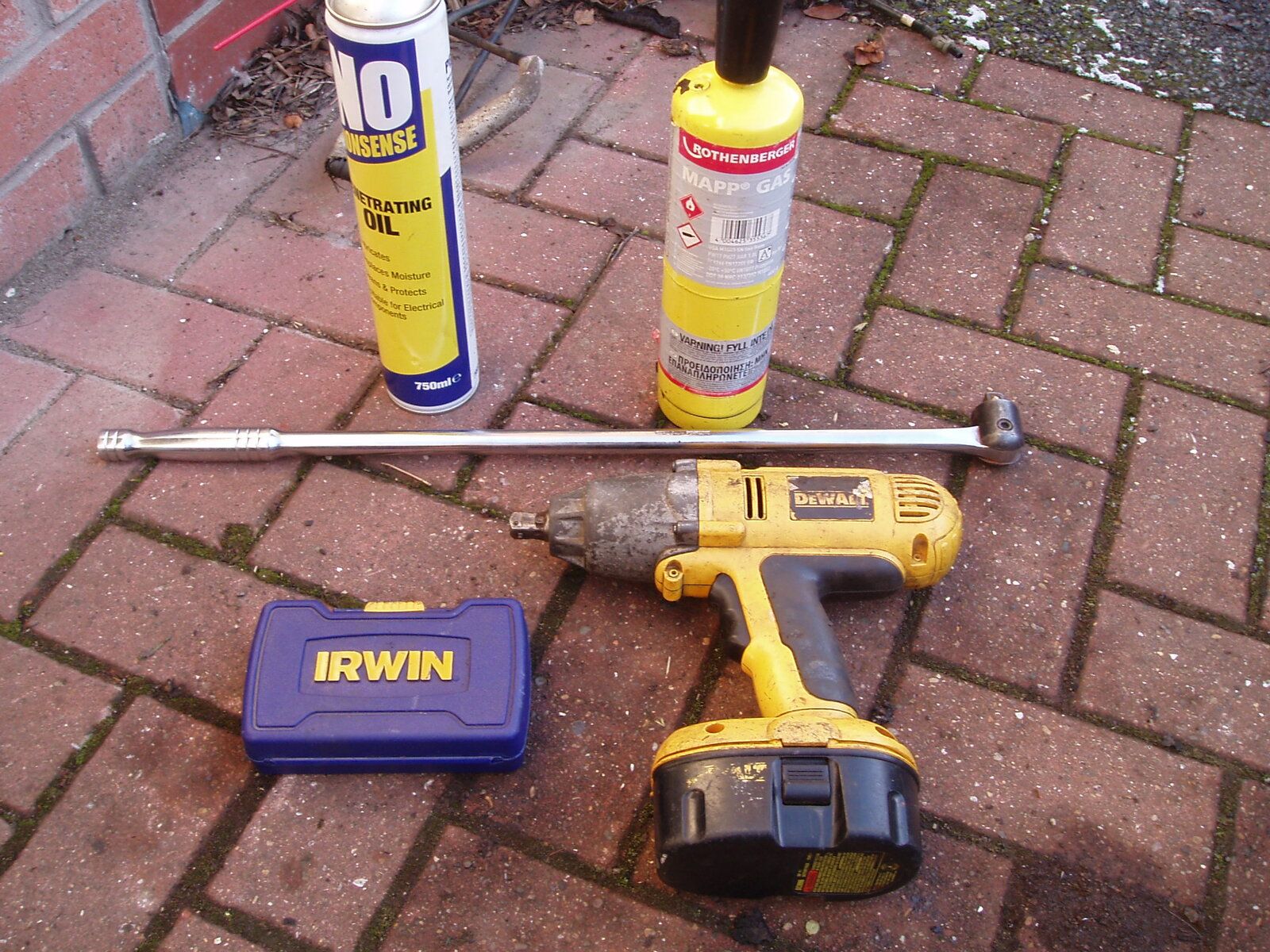

But then again, it is a land rover:



Attachments

•
  New besties.JPG

  416.9 KB · Views: 90

brianp38dse

Well-Known Member

Posts

20,093

Location

heathrow

• Jul 11, 2020

• #4

Beneagles said:

But then again, it is a land rover:

Click to expand...

You missed out one these



brianp38dse

Well-Known Member

Posts

20,093

Location

heathrow

• Jul 11, 2020

• #5

And these stand JLR tool kit



Salisbury Nick

Well-Known Member

Posts

790

Location

Dorchester

• Jul 11, 2020

• #6

And I missed out this... https://www.saxtonblades.co.uk/impa...86fL48NiuQ-fPm3MRFAVQ2cqObQ5_S1hoCAhoQAvD_BwE



Bagshot

Well-Known Member

Posts

866

Location

Cornwall

• Jul 11, 2020

• #7

.



Last edited: Jul 11, 2020

T

tomcat59alan

Well-Known Member

Posts

18,611

Location

wirral and triquivijate

• Jul 11, 2020

• #8

Beneagles said:

But then again, it is a land rover:

Click to expand...

Are some of them 12 point ie.double hex?



brianp38dse

Well-Known Member

Posts

20,093

Location

heathrow

• Jul 11, 2020

• #9

Yes the caliper carriers to hub are 12 sided bolts



Datatek

Well-Known Member

Posts

45,022

Location

Near Poitiers SW France

• Jul 11, 2020

• #10

brianp38dse said:

Yes the caliper carriers to hub are 12 sided bolts

Click to expand...

They look a bit like a male Torx.



Tenebreaux

Well-Known Member

Posts

4,337

Location

Armagh

• Jul 11, 2020

• #11

brianp38dse said:

Yes the caliper carriers to hub are 12 sided bolts

Click to expand...

19mm on the front.



Henry_b

Think outside, no box required.

Posts

15,509

Location

somewhere else

• Jul 11, 2020

• #12

brianp38dse said:

Yes the caliper carriers to hub are 12 sided bolts

Click to expand...

Bi-Hex



T

tomcat59alan

Well-Known Member

Posts

18,611

Location

wirral and triquivijate

• Jul 11, 2020

• #13

Thought so, these are hub bolts, the caliper are larger.don't know why this didn't post earlier.



Attachments

•
  2020-07-11 11.22.51.jpg

  134.3 KB · Views: 94

T

tomcat59alan

Well-Known Member

Posts

18,611

Location

wirral and triquivijate

• Jul 11, 2020

• #14

Henry_b said:

Bi-Hex

Click to expand...

My post #8 said double hex, see you go for Bi.



Grrrrrr

Technician, Bodgit & Scarper Ltd

Full Member

Posts

19,309

Location

Buckinghamshire, UK. ('95 DT)

• Jul 11, 2020

• #15

tomcat59alan said:

Thought so, these are hub bolts, the caliper are larger.don't know why this didn't post earlier.

Click to expand...

That's the ones. You may well need some heat on them from a torch to free them up as they can be sods. If so, beware the CV boot and I think the ABS sensor wire is nearby too. Use a small spade or similar to shield the rubber parts.
