Tomcat Project

Discussion in 'Members Vehicles/Projects' started by DaveP_Tomcat, Feb 8, 2019.

< Previous Thread | Next Thread >
  1. DaveP_Tomcat

    DaveP_Tomcat Active Member

    Joined:
    Feb 7, 2019
    Posts:
    71
    Likes Received:
    54
    Location:
    Cheshire
    Hi folks,
    I'm new to LZ so thought this would be be a good place to start....

    My project is finishing a Tomcat 88" build started in 2001, then dry stored for 17 years... The original tyres even have their moulding whiskers!

    When I picked it up it had only been driven around a yard and onto a trailer.... The electrics were only just enough to start the engine. Hopefully when I've finished it will have a v5 and be road legal - currently it can't be used on the road. :-(

    It's got a carb V8 with a Torqueflite 3sp auto with Disco2 axles on a shortened chassis. Any help with IVA would be happily accepted.


    Attached Files:

    callisr likes this.
  2. Bobsticle

    Bobsticle De Villes Advocaat

    Joined:
    Aug 8, 2013
    Posts:
    18,317
    Likes Received:
    20,897
    Location:
    Manchester
    Itll probably have to have a Q plate but that wont make it drive ant worse. Looks good but we need lots more pictures. We like pictures as most members cant read too well. :D

  3. DaveP_Tomcat

    DaveP_Tomcat Active Member

    Joined:
    Feb 7, 2019
    Posts:
    71
    Likes Received:
    54
    Location:
    Cheshire
    Bobsticle, here is a video walk around and of it ticking over:






    100 (1).JPG 069.JPG 076.JPG

    Last edited: Feb 8, 2019
  4. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    10,055
    Likes Received:
    19,499
    Location:
    Wiltshire
    May fail on the distance of the bumper to the body work.

    Enquire about what is needed for IVA you may need lots of invoices for parts used.
    Hardest part is the sharp edges & caps on ball joints etc. Last Iva was 20years ago & I found it intense.
    Good luck & a nice motor

    DaveP_Tomcat likes this.
  5. Henry_b

    Henry_b ̿̿ ̿ ̿'̿'\̵͇̿̿\з= ( ▀ ͜͞ʖ▀) =ε/̵͇̿̿/’̿’̿ ̿ ̿̿

    Joined:
    Jan 29, 2018
    Posts:
    13,339
    Likes Received:
    13,153
    Location:
    Its Full of WIN.....
    That thing looks like heaps of fun!! ;)

  6. DefenderPilot

    DefenderPilot Well-Known Member

    Joined:
    May 12, 2014
    Posts:
    548
    Likes Received:
    100
    Location:
    Shetland
    Cool looking Landy. It's so heavily modified that it'll need the full IVA. You can download the IVA inspection manual from here which will tell you everything you need to know to get it through the test. Good luck with it and keep the updates coming.

    DaveP_Tomcat likes this.
  7. DaveP_Tomcat

    DaveP_Tomcat Active Member

    Joined:
    Feb 7, 2019
    Posts:
    71
    Likes Received:
    54
    Location:
    Cheshire
    First step. :)


    Attached Files:

    Hicap phill likes this.
  8. DaveP_Tomcat

    DaveP_Tomcat Active Member

    Joined:
    Feb 7, 2019
    Posts:
    71
    Likes Received:
    54
    Location:
    Cheshire
    Handbrake Time.

    The handbrake is totally not functioning, no cable - no brake shoes - no springs - no expander, just a drum and the lever in the passengers footwell. :-(
    So... I purchased an X-Eng disk conversion.

    Fitting sounds dead easy:

    _Just_
    • Remove the rear propshaft,
    • take off the drum,
    • remove the backing plate,
    • fit new backing plate,
    • fit disc,
    • fit caliper,
    • refit propshift.
    Then cable the lever, and adjust to fit...

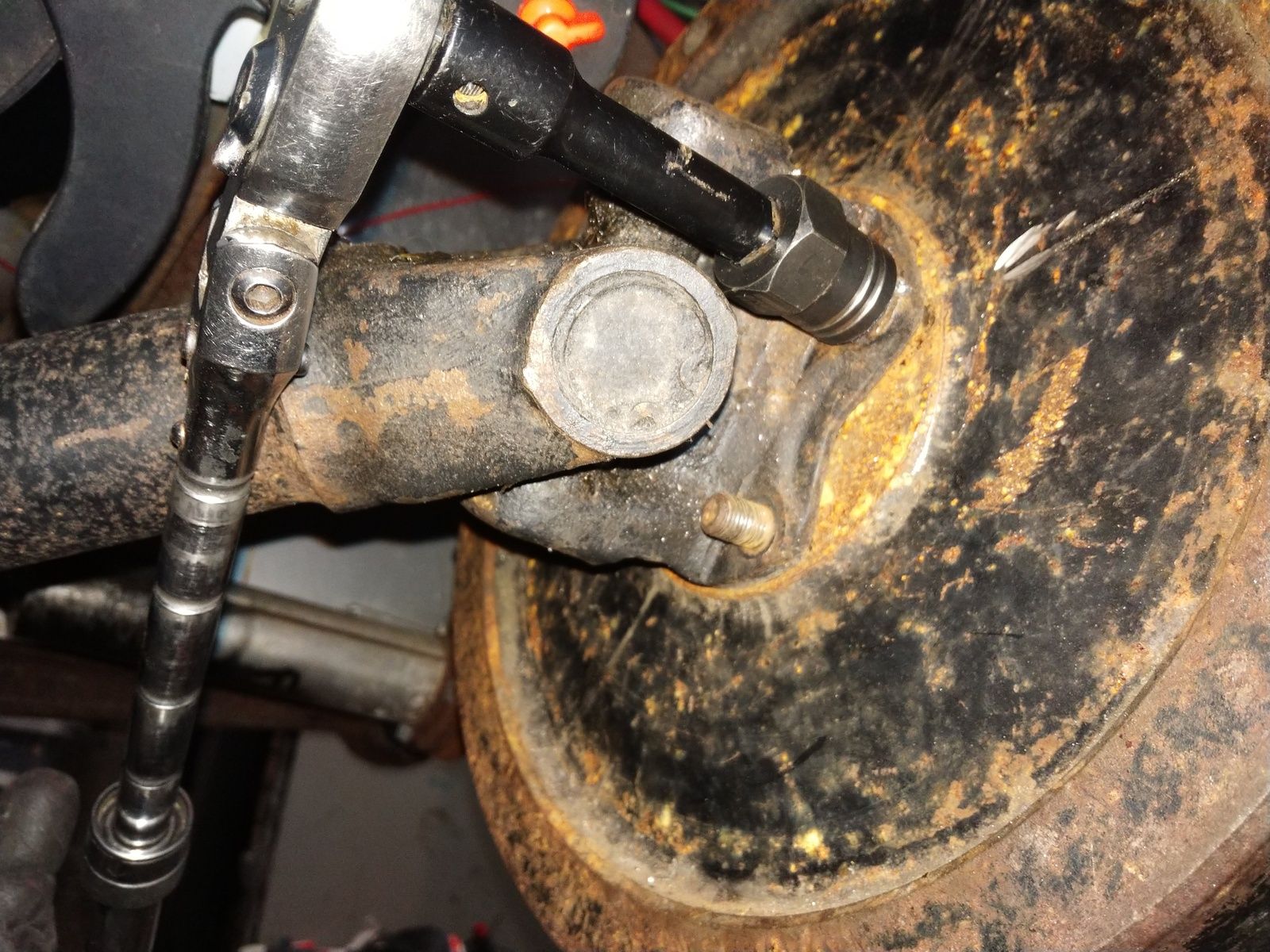

    Sounds great but someone fitted 9/16th chunks of cheese instead of nuts on the propshaft.

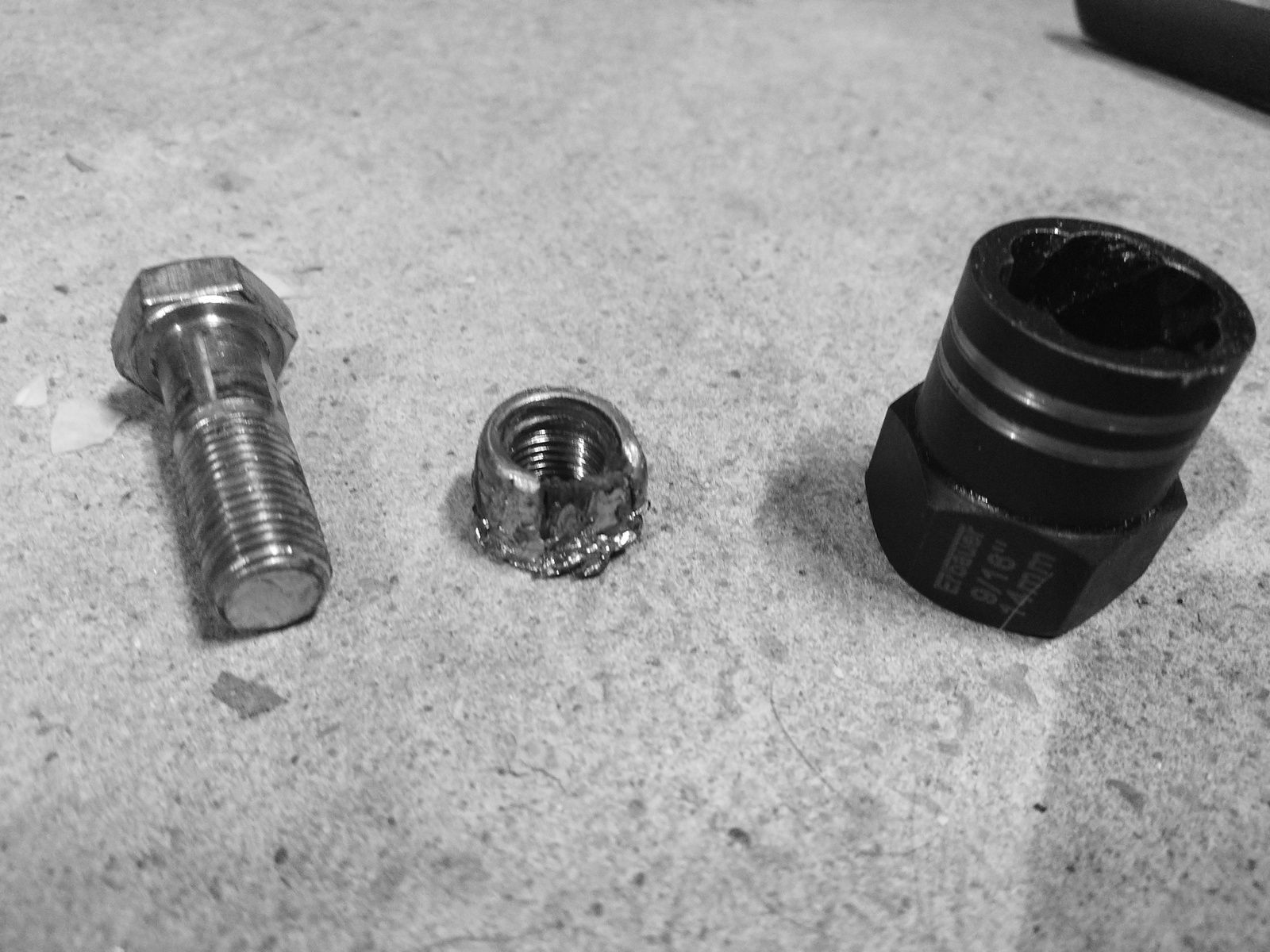

    9/16ths!?! Too big for 14mm, too small for 15mm!! But at least a 14mm stripped/rounded nut extractor eventually shifted the mushy little buggers. :)
    IMG_20190208_110016.jpg IMG_20190208_110416 (1).jpg

    After smacking my head for the third time on the diff, the propshaft came away along with the drum. A 15mm socket and lube got the backing plate off with ease.

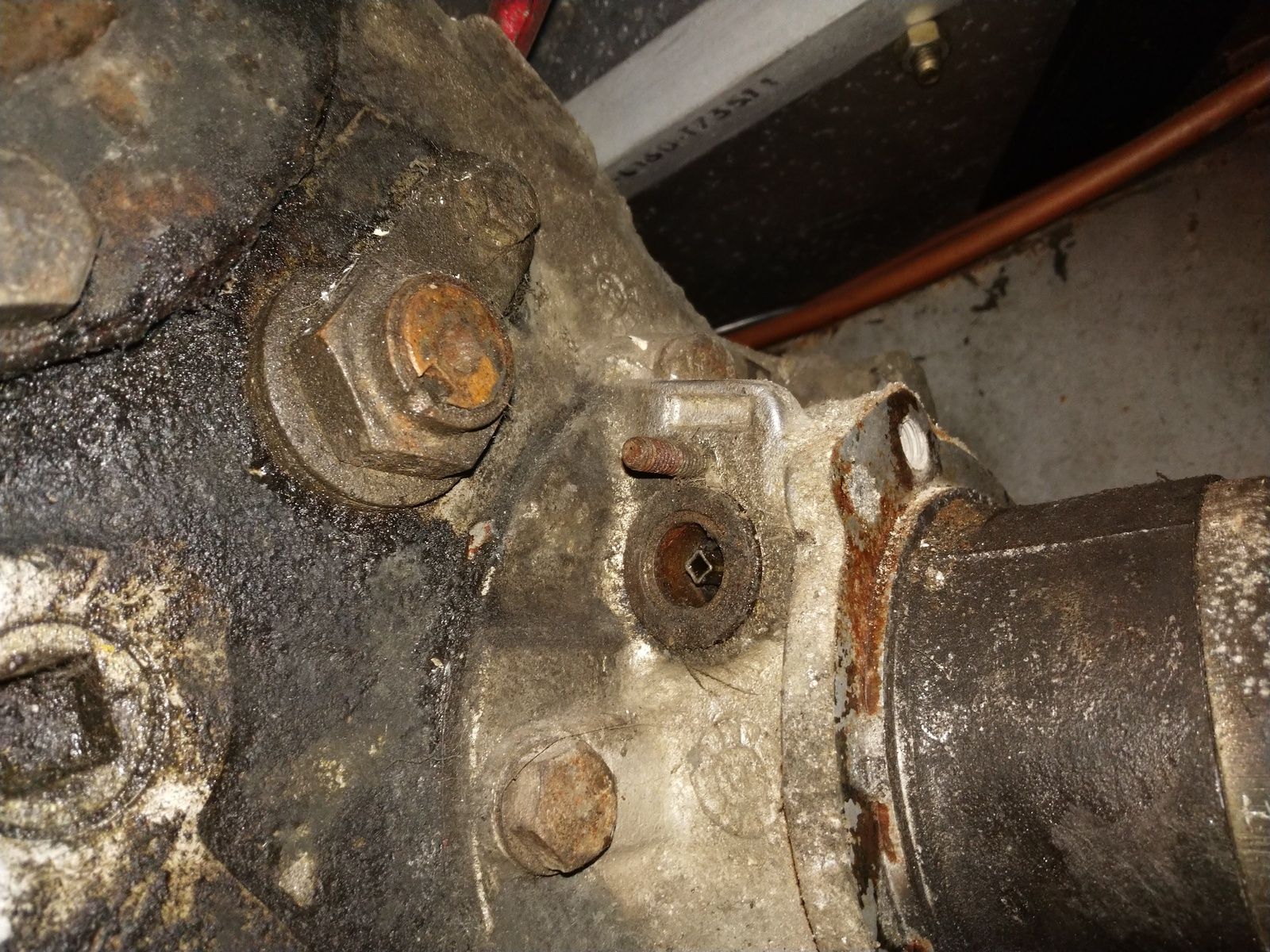

    With the plate off I had access to the speedo port on the LT230

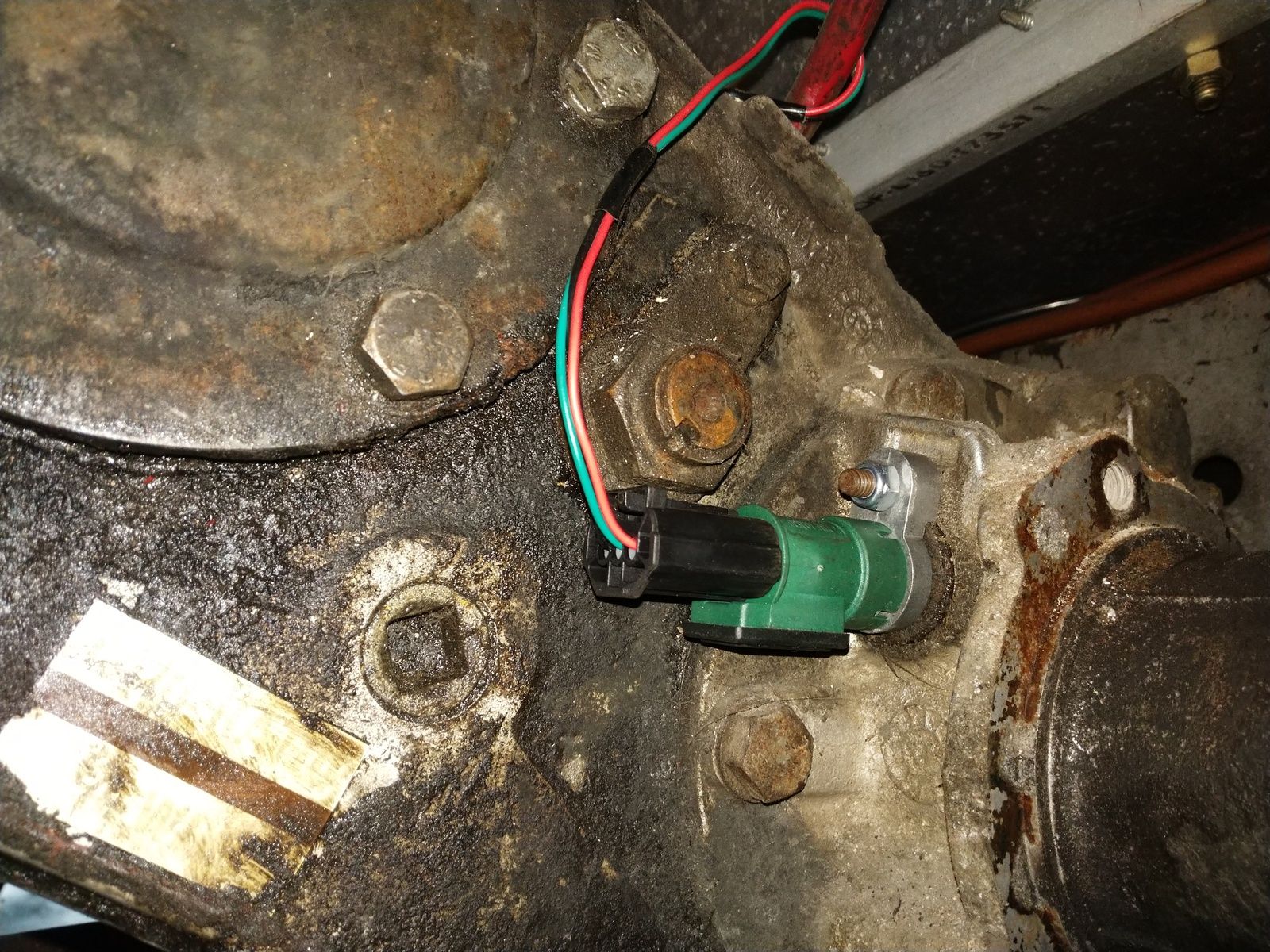

    I've no speedo, so I picked up a late model speedo transducer off flea bay for £10.. I got quoted nearly £90 for the hook up cable alone, but a search through the forums revealed that the connector is the same as a brake lamp connector at £7!

    So now to reverse the process fitting the new gubbins. :)

    Last edited: Feb 9, 2019
    Hicap phill likes this.
  9. DaveP_Tomcat

    DaveP_Tomcat Active Member

    Joined:
    Feb 7, 2019
    Posts:
    71
    Likes Received:
    54
    Location:
    Cheshire

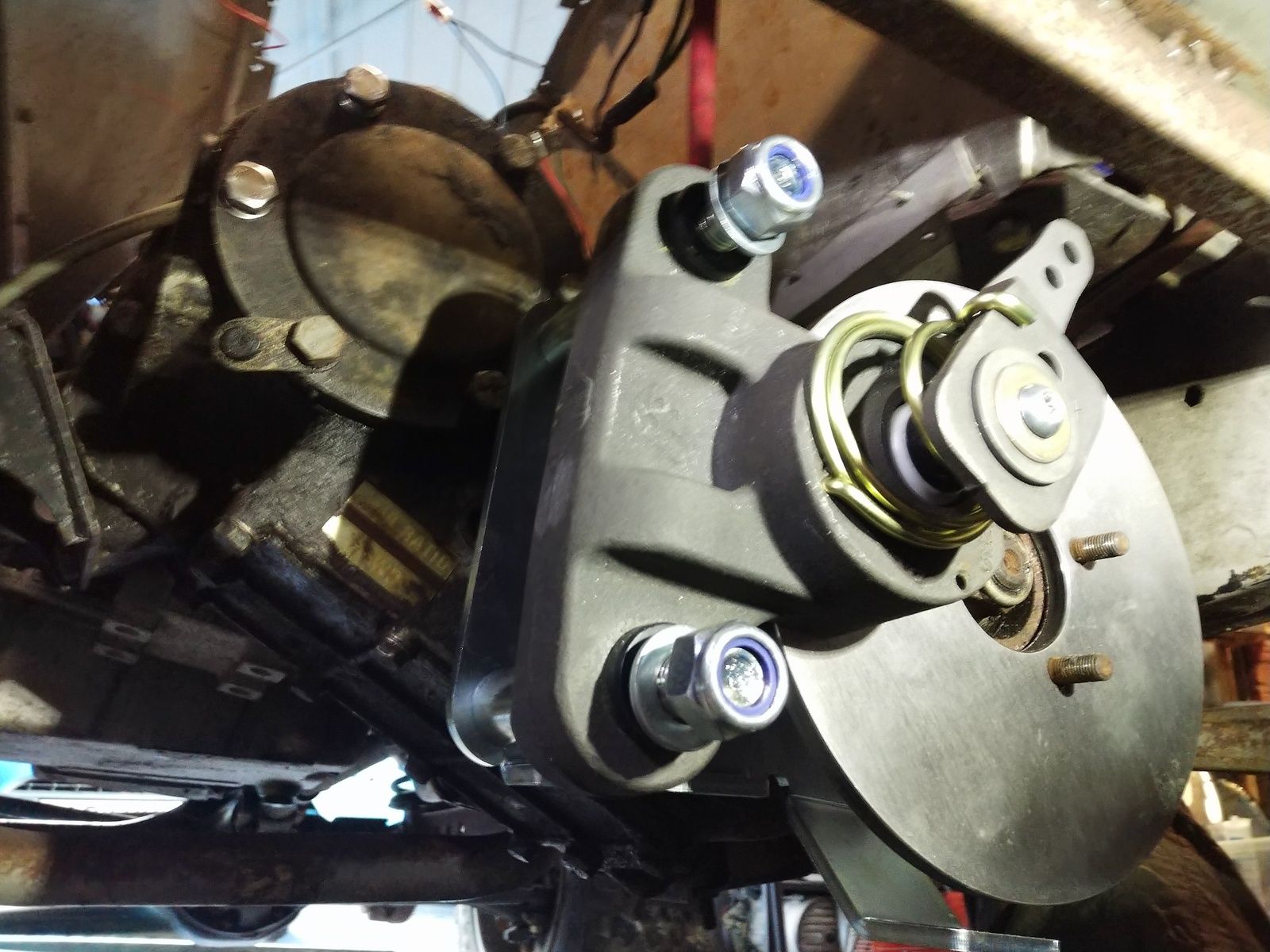

    First fit of the X-Eng Disc and handbrake caliper... Next for the cable stop and cable.



    Hicap phill likes this.
  10. 1988smithy

    1988smithy Well-Known Member

    Joined:
    Jul 11, 2015
    Posts:
    2,937
    Likes Received:
    1,898
    Location:
    West midlands
    Watching this

  11. DaveP_Tomcat

    DaveP_Tomcat Active Member

    Joined:
    Feb 7, 2019
    Posts:
    71
    Likes Received:
    54
    Location:
    Cheshire
    Oh Bugger!

    The top caliper bolt fouls the cable, when it's done up fully...
    I'm going to need a couple of M16 washers on the back to space it correctly.
    So the whole thing needs to come back off!

    Time for a coffee and some cake. :-(

  12. marjon

    marjon Well-Known Member Full Member

    Joined:
    Jul 15, 2018
    Posts:
    6,248
    Likes Received:
    8,174
    Location:
    Bulgaria
    Watching this it’s going to be great when done.:)

    As suggested earlier get the IVA regs and follow it as you do jobs because nothing worse than having to undo 3 things to change 1.
    Also take a peak on some kit cars sites for info on IVA(SVA) to get some hints. Alot seem to struggle with internal things, and many exhausts.but lots of tips on where you can trip up on the way and how to avoid.
    Also photo proof of your work and receipts as apparently sometimes they need to see stuff that maybe covered.

    I can see you might need to bulk buy cake and coffee to keep you going:)

    Good luck.

    J

    Shippers and DaveP_Tomcat like this.
  13. DaveP_Tomcat

    DaveP_Tomcat Active Member

    Joined:
    Feb 7, 2019
    Posts:
    71
    Likes Received:
    54
    Location:
    Cheshire

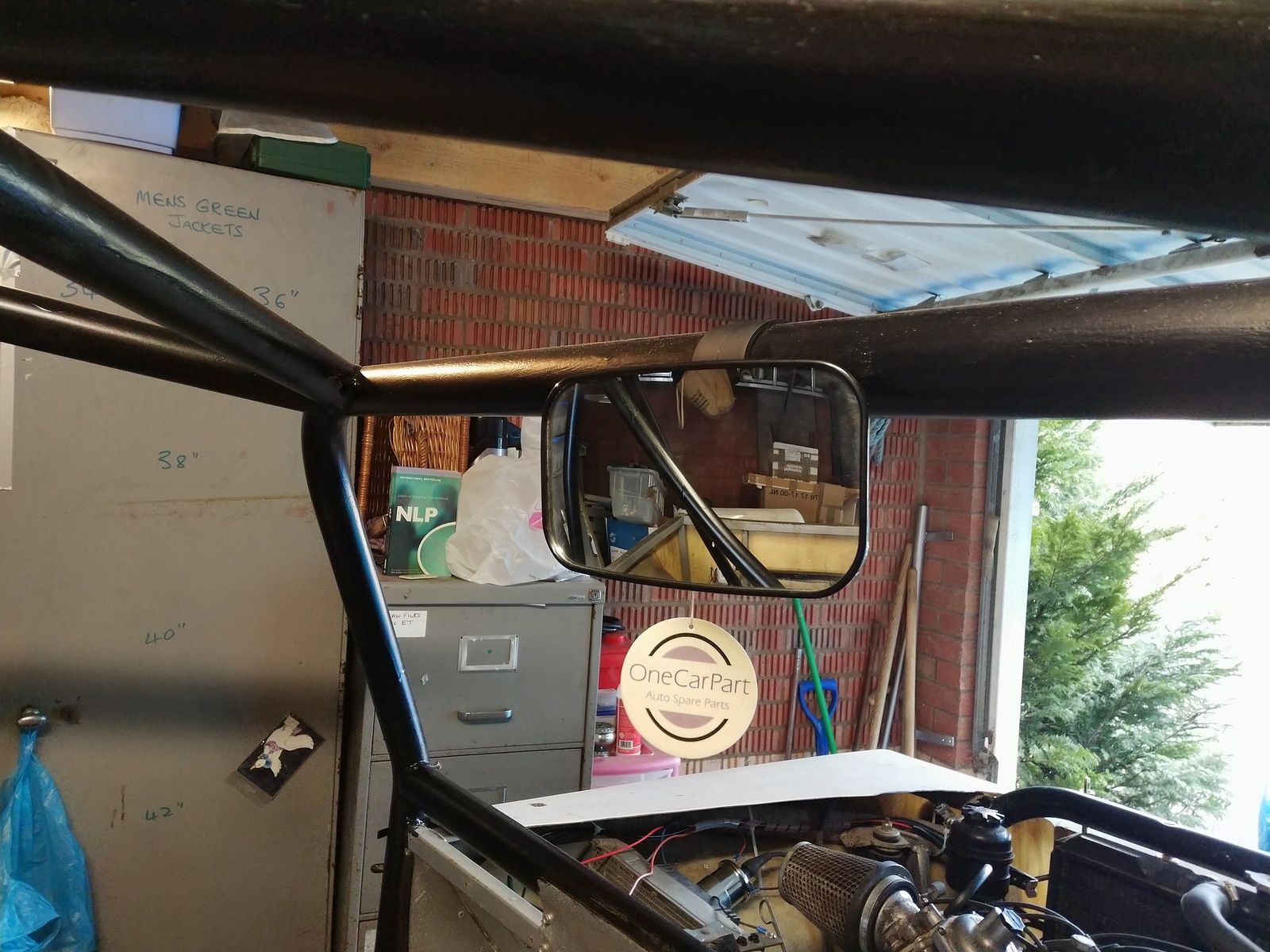

    Small victories..... Got the internal rearview fitted. :)



    Hicap phill and 1988smithy like this.
  14. Kev12

    Kev12 Well-Known Member

    Joined:
    Jan 1, 2018
    Posts:
    1,273
    Likes Received:
    671
    Location:
    Cornwall
    9/16 is correct for prop bolts

    DaveP_Tomcat likes this.
  15. DaveP_Tomcat

    DaveP_Tomcat Active Member

    Joined:
    Feb 7, 2019
    Posts:
    71
    Likes Received:
    54
    Location:
    Cheshire
    And made of cheese....:mad:
    Ordered some Britpart ones for the rebuild.

  16. DaveP_Tomcat

    DaveP_Tomcat Active Member

    Joined:
    Feb 7, 2019
    Posts:
    71
    Likes Received:
    54
    Location:
    Cheshire

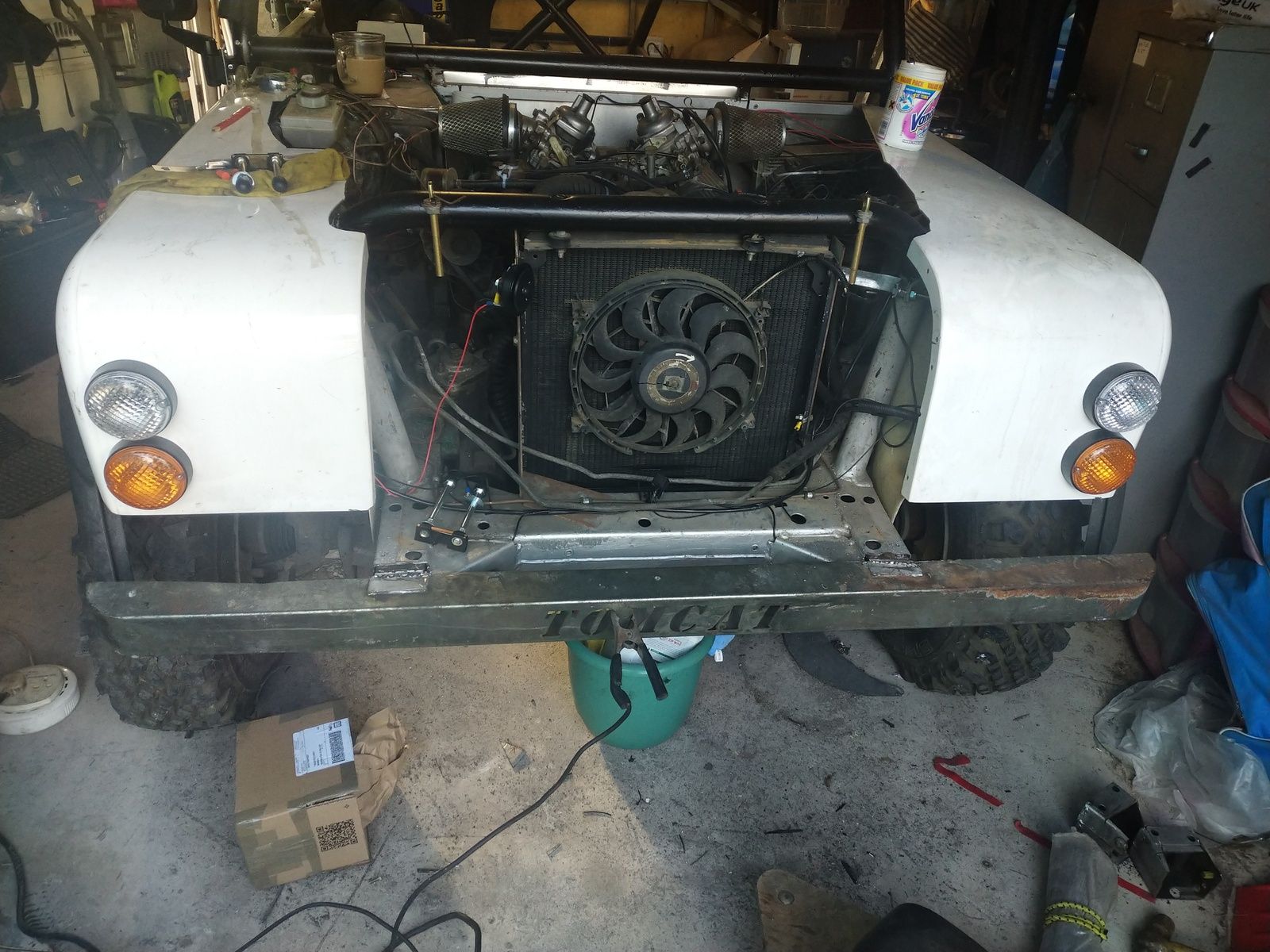

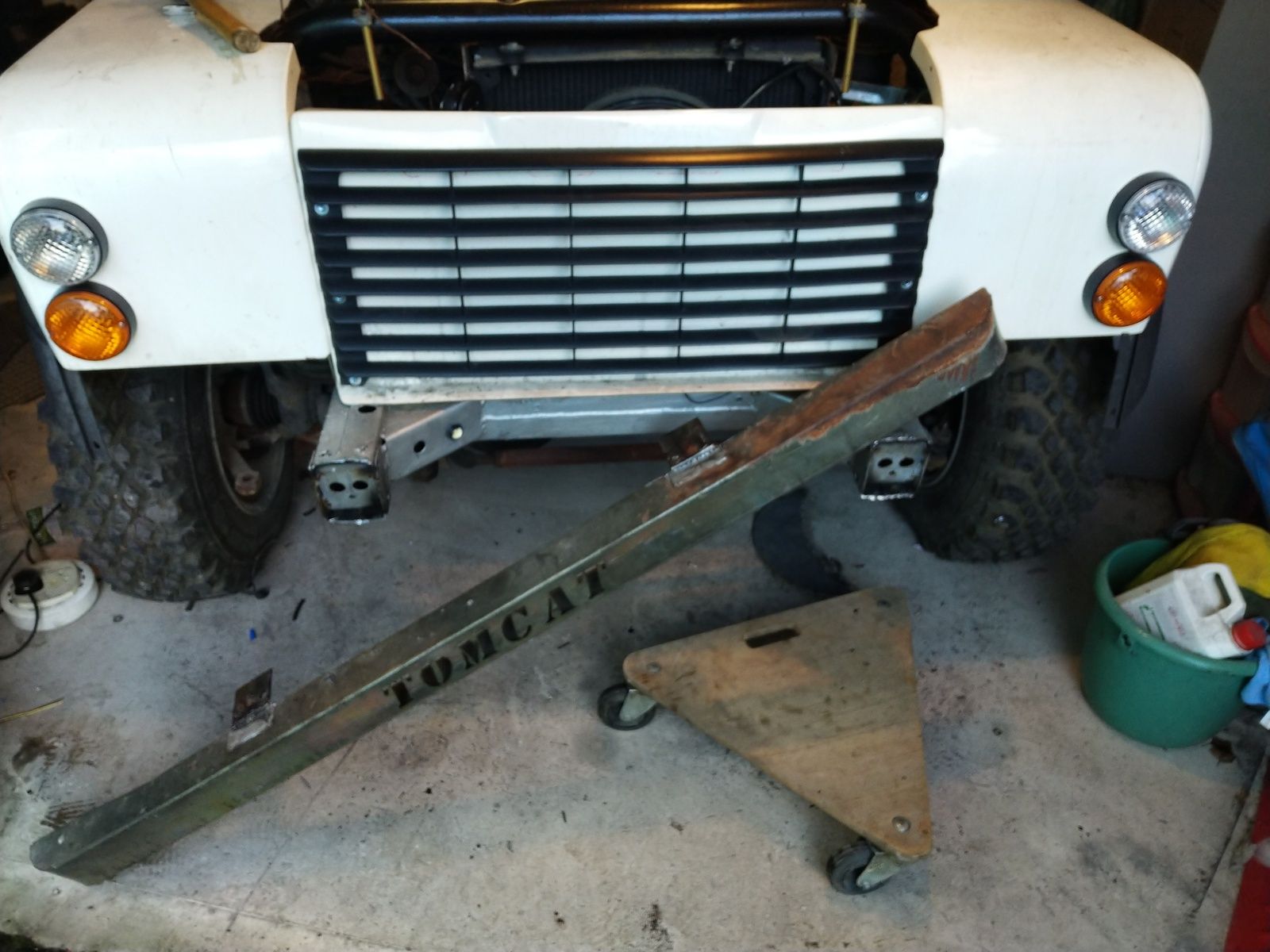

    I removed the bumper yesterday, and 4inch of unrequired chassis. This morning I welded the bumper back on closer to the body. :)

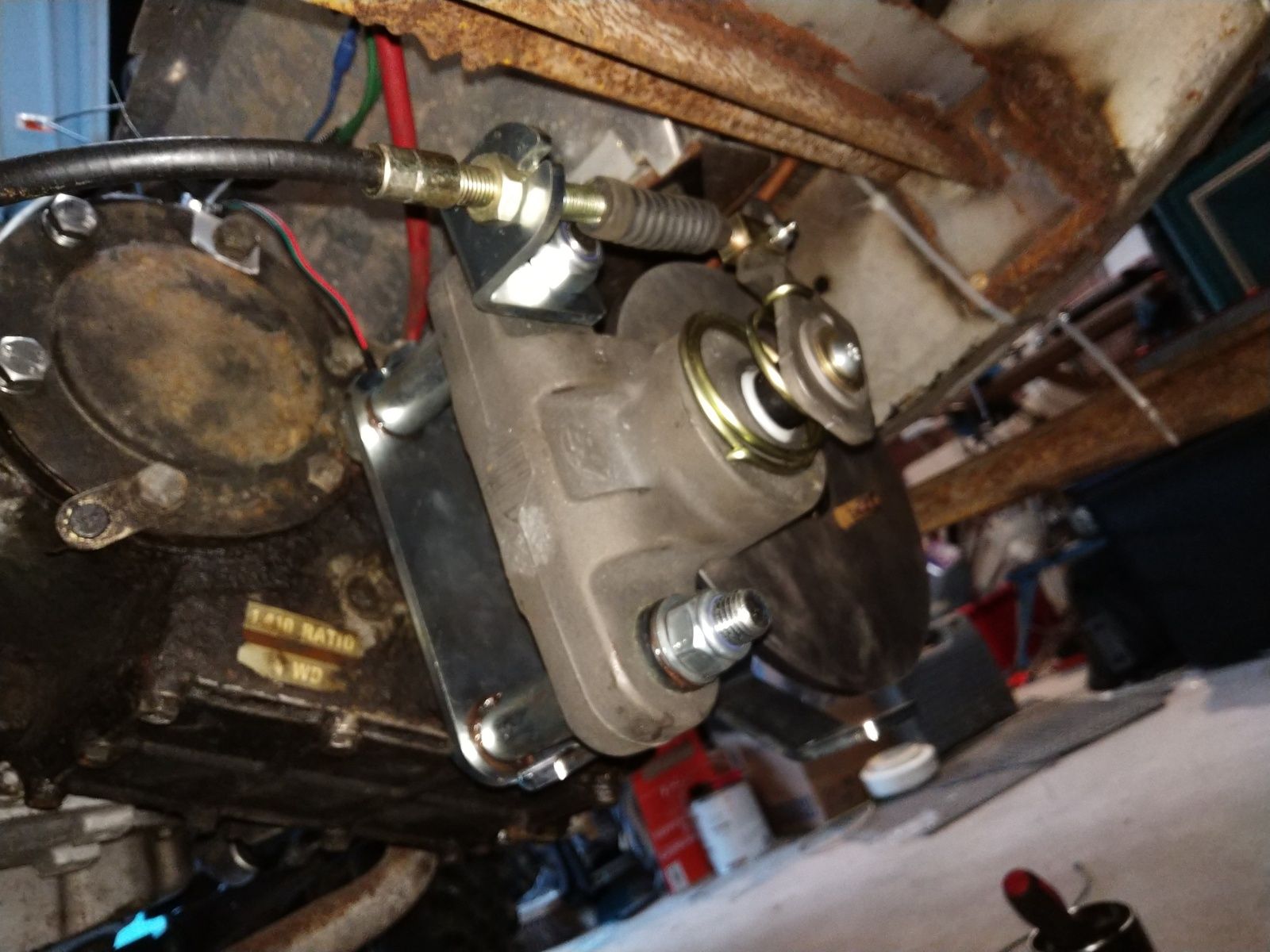

    This afternoon I finished the Disk handbrake conversation:
    Now to wait for the, hopefully, tougher propshaft nuts and bolts...

    Hicap phill likes this.
  17. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    10,055
    Likes Received:
    19,499
    Location:
    Wiltshire
    Where's your headlights?;)
    Also do you need 2 mirrors to look backwards.
    Good to see you cracking on

    DaveP_Tomcat likes this.
  18. DaveP_Tomcat

    DaveP_Tomcat Active Member

    Joined:
    Feb 7, 2019
    Posts:
    71
    Likes Received:
    54
    Location:
    Cheshire
    I've got a passenger side mirror, somewhere.... Just need another 2inch tube mount to hold it in place.

    As the wings are smaller than standard the 7inch lamps in their square surrounds don't fit, so was thinking of 5 inch dip/main units.... Or something else..

    Hicap phill likes this.
  19. Hicap phill

    Hicap phill Well-Known Member

    Joined:
    Dec 30, 2017
    Posts:
    10,055
    Likes Received:
    19,499
    Location:
    Wiltshire
    My wings were series/90 cut down.
    Headlights were behind Ali cover. Removed for night races.

    You sure 7" won't fit?

    I see you have a 3wash/wipe to fit to.

    How are you doing reading the IVA?

    DaveP_Tomcat likes this.
  20. DaveP_Tomcat

    DaveP_Tomcat Active Member

    Joined:
    Feb 7, 2019
    Posts:
    71
    Likes Received:
    54
    Location:
    Cheshire
    To be honest I've not '''tried" 7inch lamps... :(

    IVA docs doing my head in... Think the 1950's door catches are going to be an issue.
