TIMING BELT POSSIBLE OUT A TOOTH?

I went out tonight to start getting ready for changing the timing belt tomorrow, I brought the woodruff key to the timing mark and the 9.5mm drill bit went straight in the pump cog with no hassle but it looks like the cam shaft pully mark is well off the arrow. I didnt get as far as checking the flywheel for the marks through the bung plug as it was getting dark and baltic. I tried it three to four times with the same result, would really appreciate your opinions on this one.

cam is a tooth out

Could be but from experience I'd use the timing mark on the flywheel and not the woodruff key

I've found these guys really helpful in the past



There's a couple of talk throughs on their channel

Thanks for the replies, I will check flywheel tomorrow before i go any further. Is there meant to be a timing dot on the pump wheel?

Ian1991 said:

Thanks for the replies, I will check flywheel tomorrow before i go any further. Is there meant to be a timing dot on the pump wheel?

Click to expand...

not that is of any use to you if it has, pump uses the pin, pulley holes are slotted to allow proper fit of belt,because theres no adjustment for cam it can be part of a tooth out once belt is tensioned though yours is a whole tooth,but pump need to be exact

jamesmartin said:

not that is of any use to you if it has, pump uses the pin, pulley holes are slotted to allow proper fit of belt,because theres no adjustment for cam it can be part of a tooth out once belt is tensioned though yours is a whole tooth,but pump need to be exact

Click to expand...

Cheers James, would it have done any damage being a tooth out?

youd have heard it if it had ,so you should be ok once set properly

jamesmartin said:

youd have heard it if it had ,so you should be ok once set properly

Click to expand...

Thanks again James

your welcome

I went out this morning and turned crank until the timing mark appeared in the bung hole at bottom, then i took the bung out at the top and the timing mark wasnt there . Rotated until the other mark appeared in the bottom and the mark was at the top, happy days untili looked at the cam and pump marks they are well out. Am i right in the settings ????? could this run being this far out or am i being stupid here???

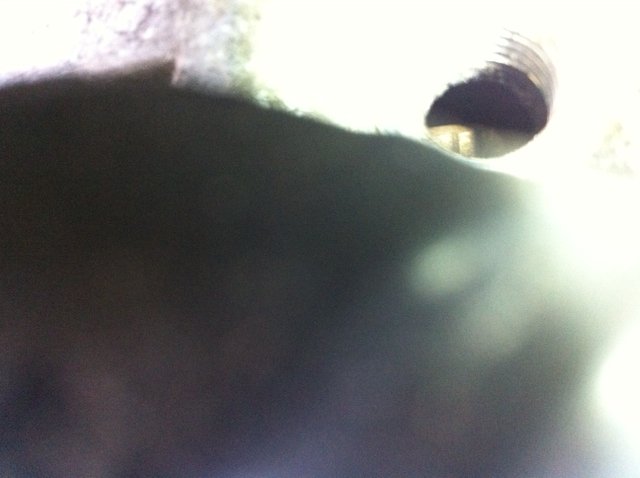

sorry for poor photo but its the best i could do. Top mark!

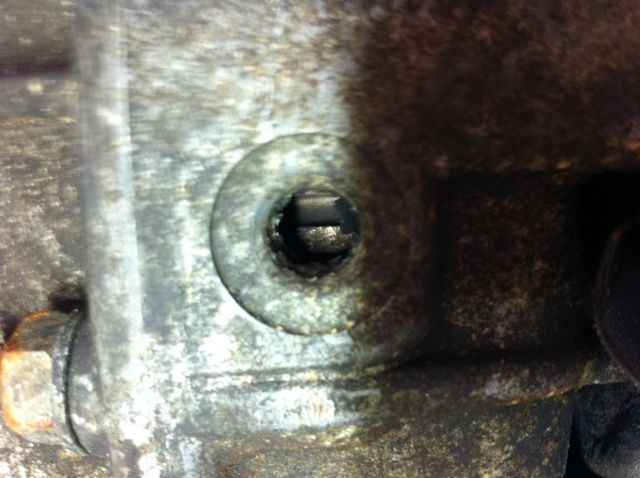

Bottom mark.

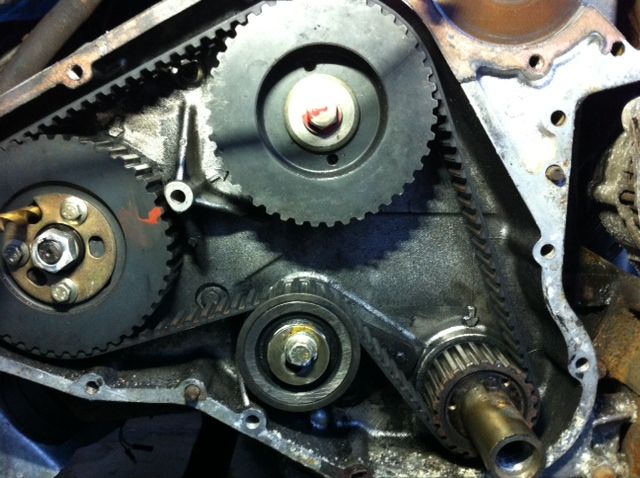

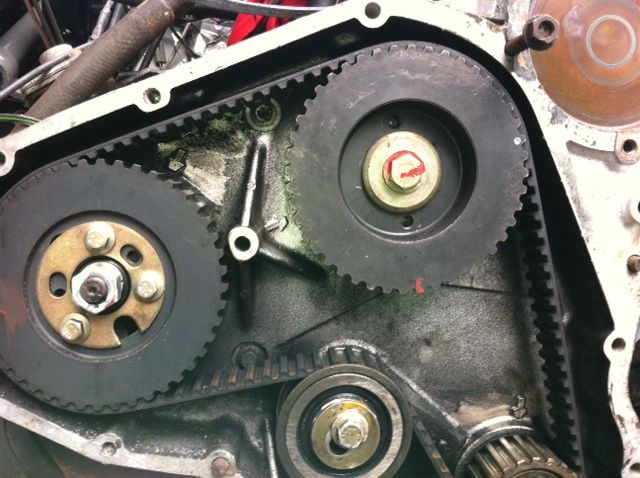

This is how far out it is with flywheel settings as of pictures, it cant be seen from the photo but the woodruff key is in line with timing arrow.
Surely ive made a mistake here somewhere!!!

Top bung?
Using a pre Defender flywheel housing or something?
Ignore that one.

My 200's flywheel has two slots in it,why that should be I don't know. But it is obvious which is the right one to set the timing.

There are the slots in the fly wheel one is timing one is for something else. When I timed mine with the engine out one of the timing slots in the flywheel puts the camshaft dot pretty much spot on the other puts it way out. I'd assume you have the wrong slot in the fly wheel. If you turn the crank twice with a socket wrench you'll probably feel contact where the timing is out. Don't force it if you feel any hard resistance. Compression is quite stiff but springy doesn't feel rock solid.

I was being stupid, rotated again and lined up grand. still atooth out though.

Ian1991 said:

I was being stupid, rotated again and lined up grand. still atooth out though.

Click to expand...

Have you watched the video I posted?

Marmaduke said:

Have you watched the video I posted?

Click to expand...

yes ive watched a lot of videos on it, turned out I missed the timing mark on bottom the first time but sorted now, thanks for the help.
